Coil Weight | 20000 pounds |
Coil Width | 48 inches |
Coil Thickness | .175 inches |
Standard Specifications

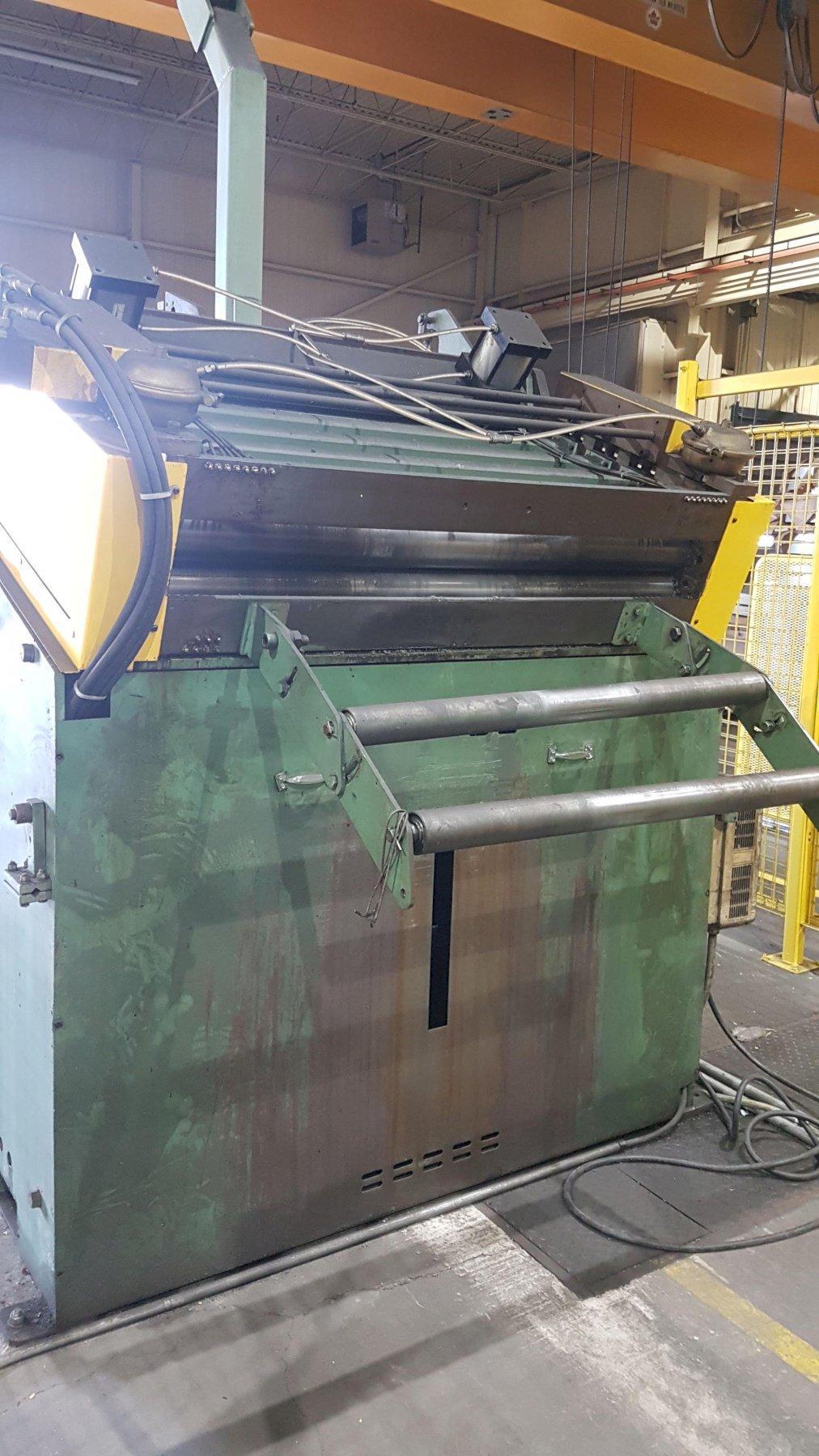

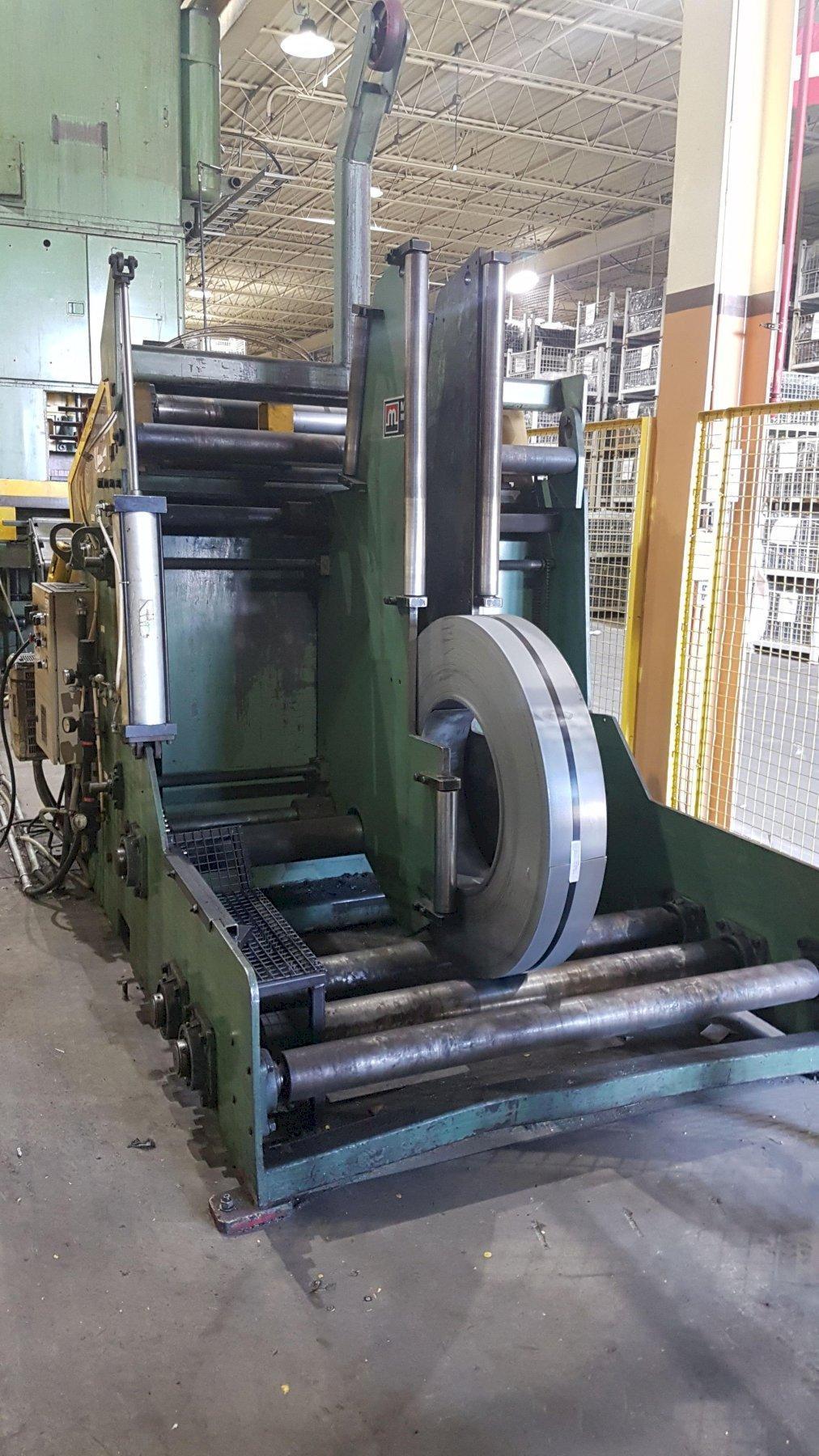

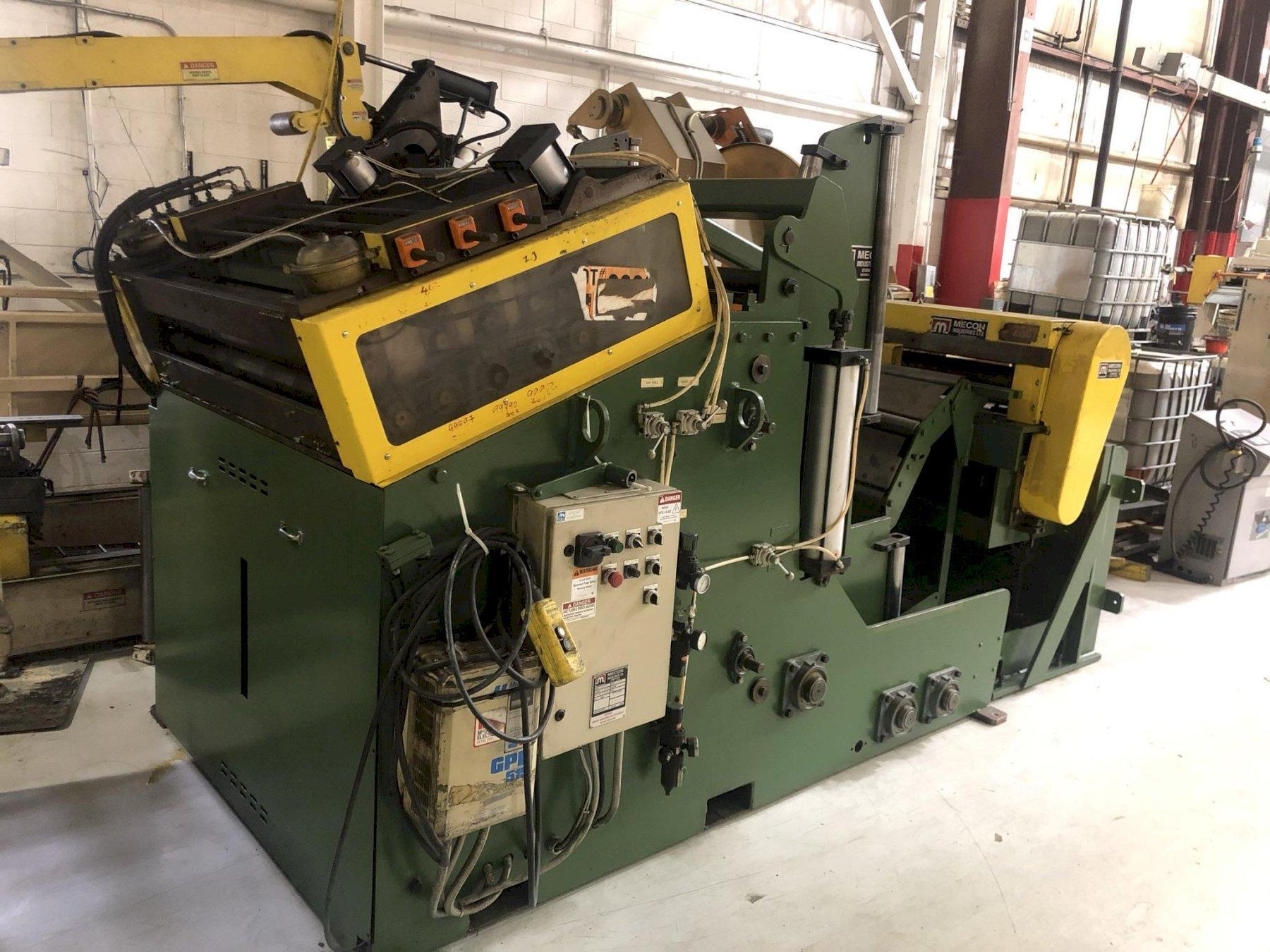

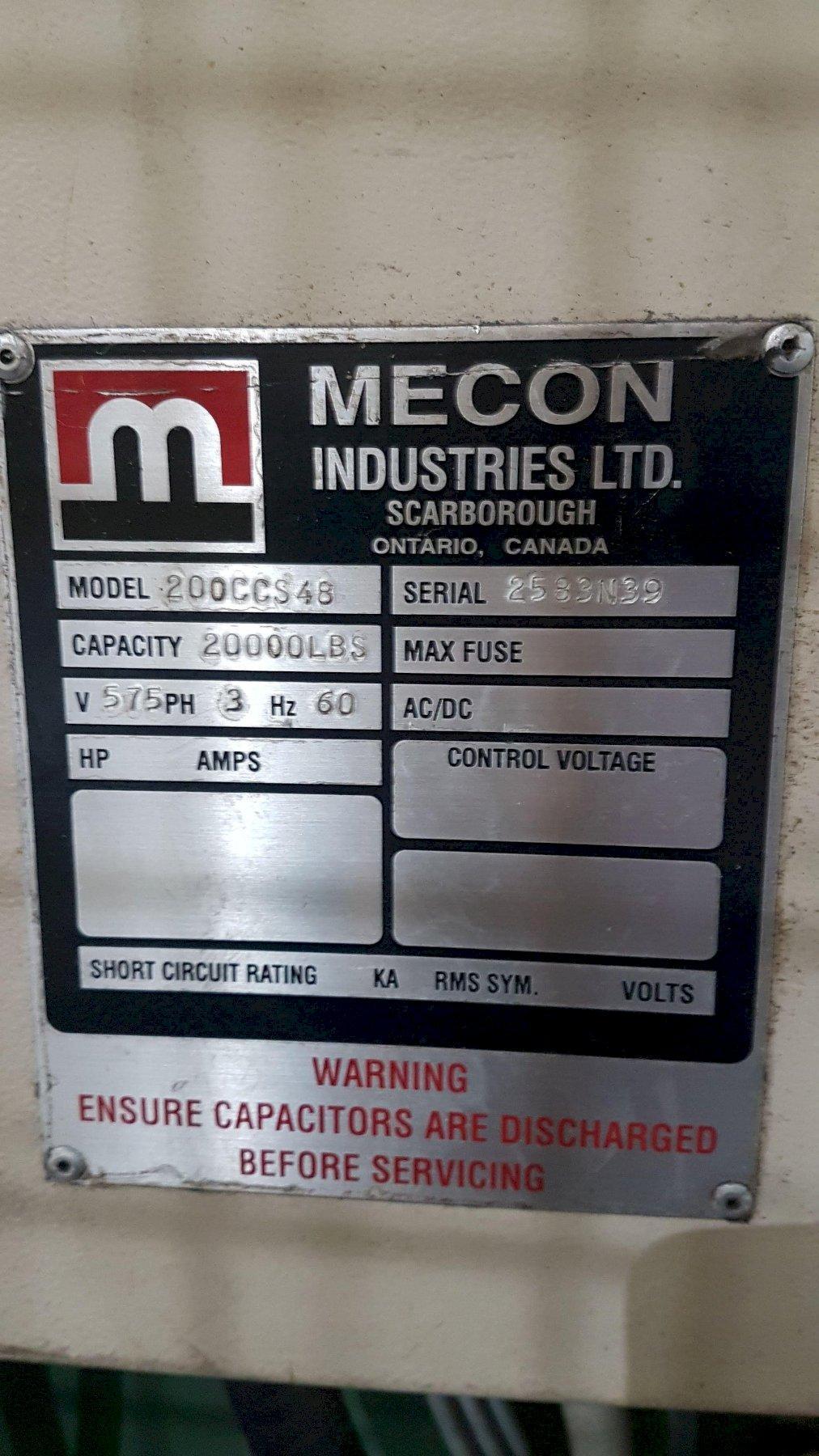

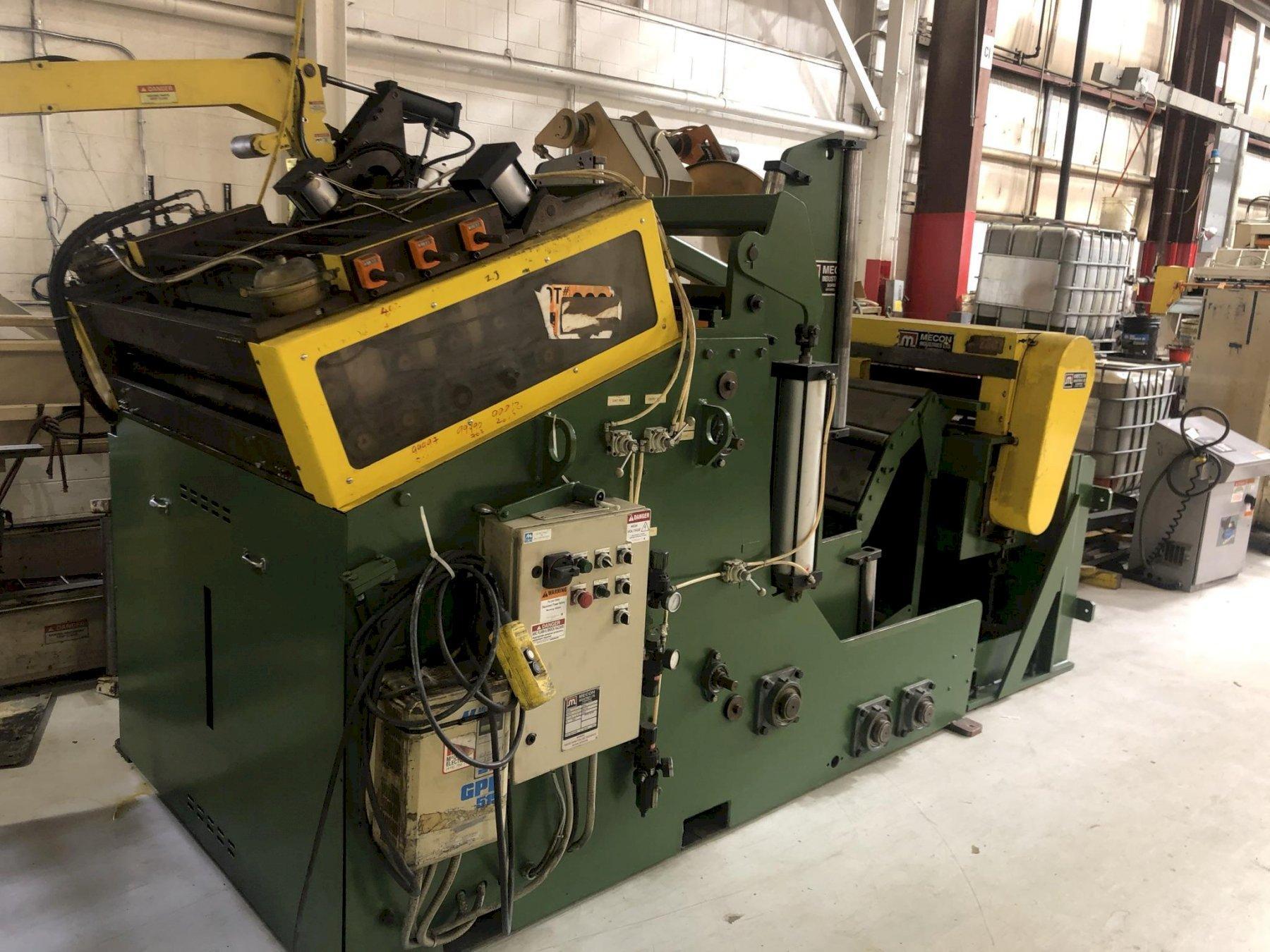

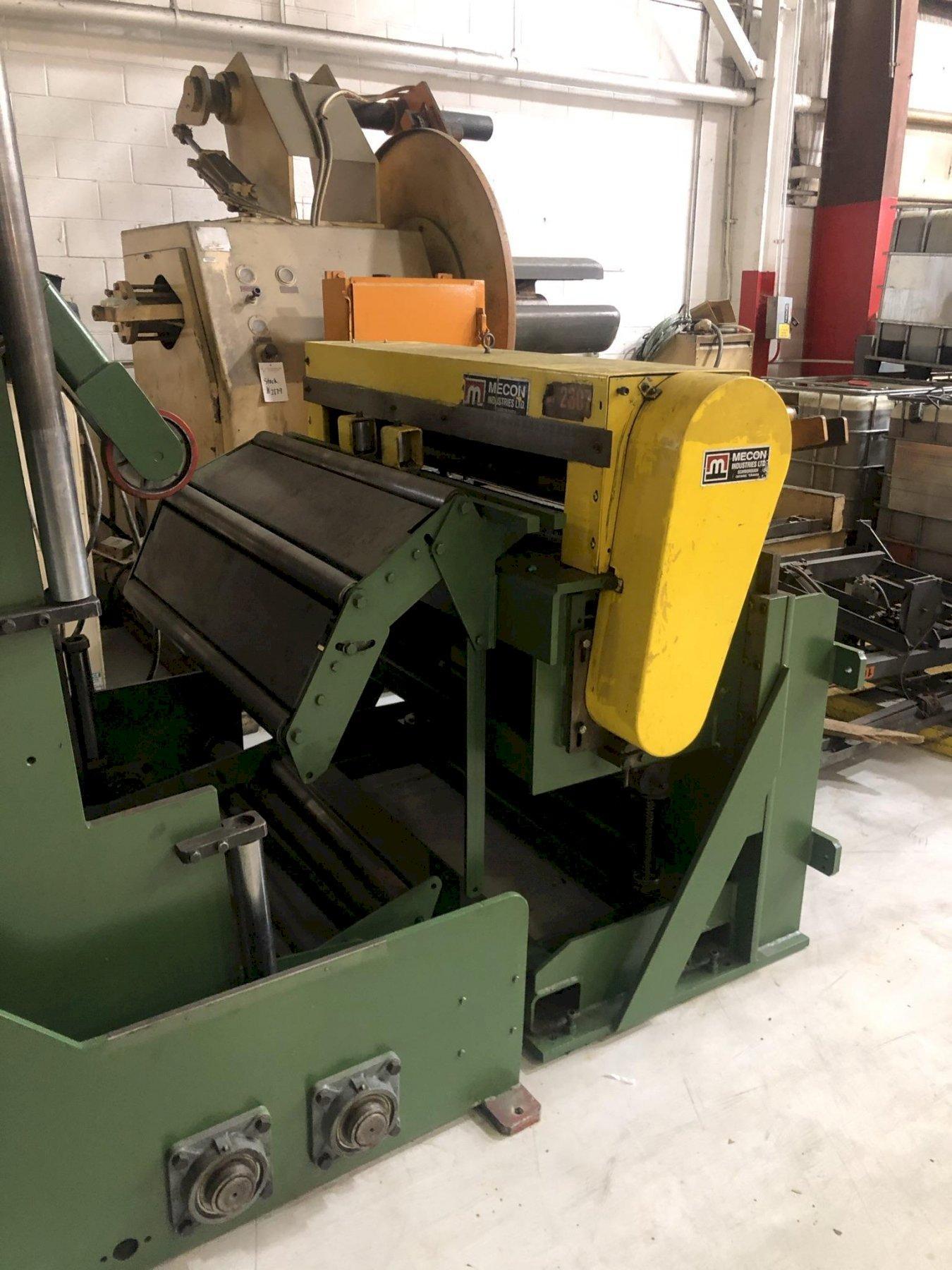

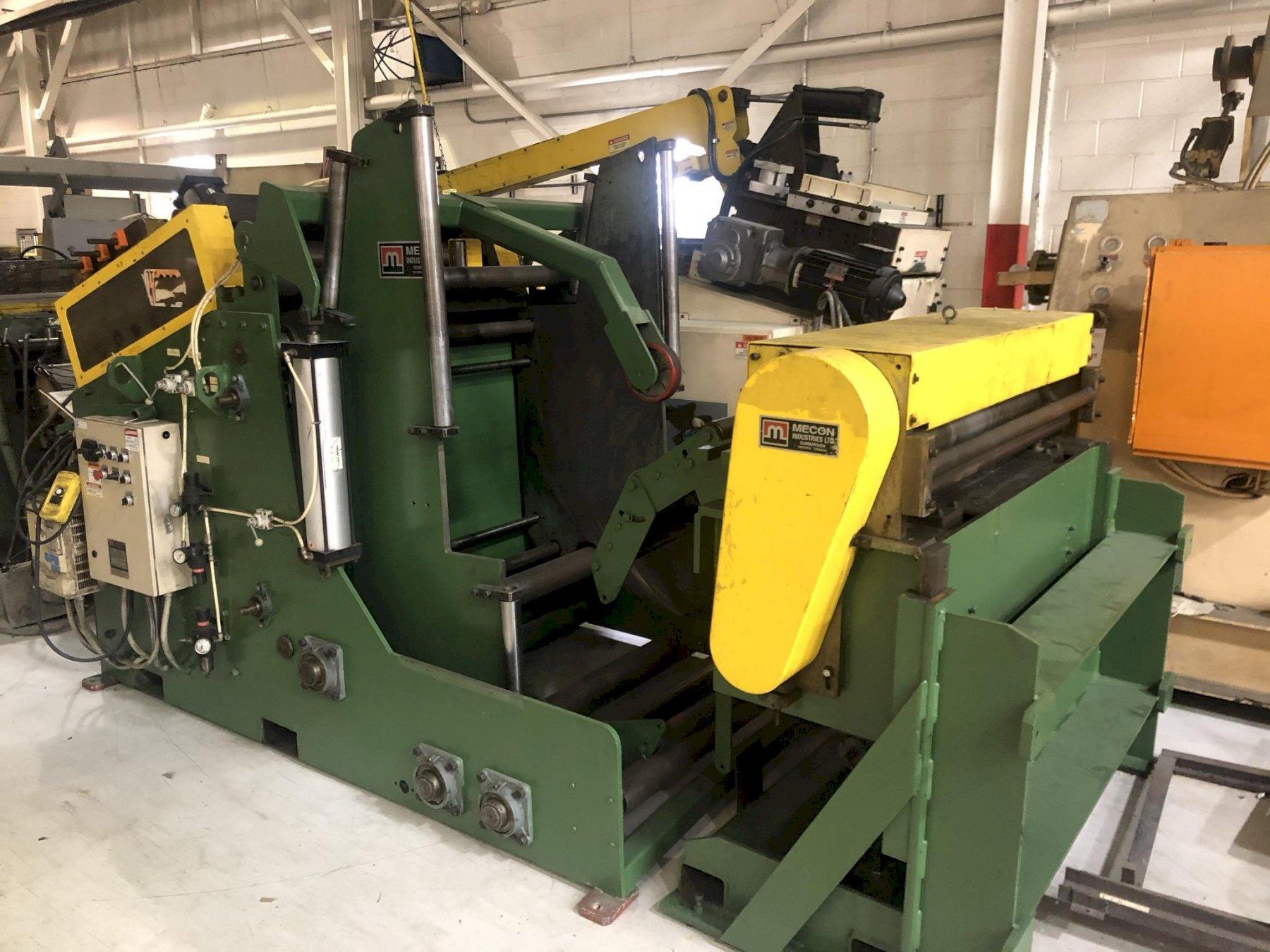

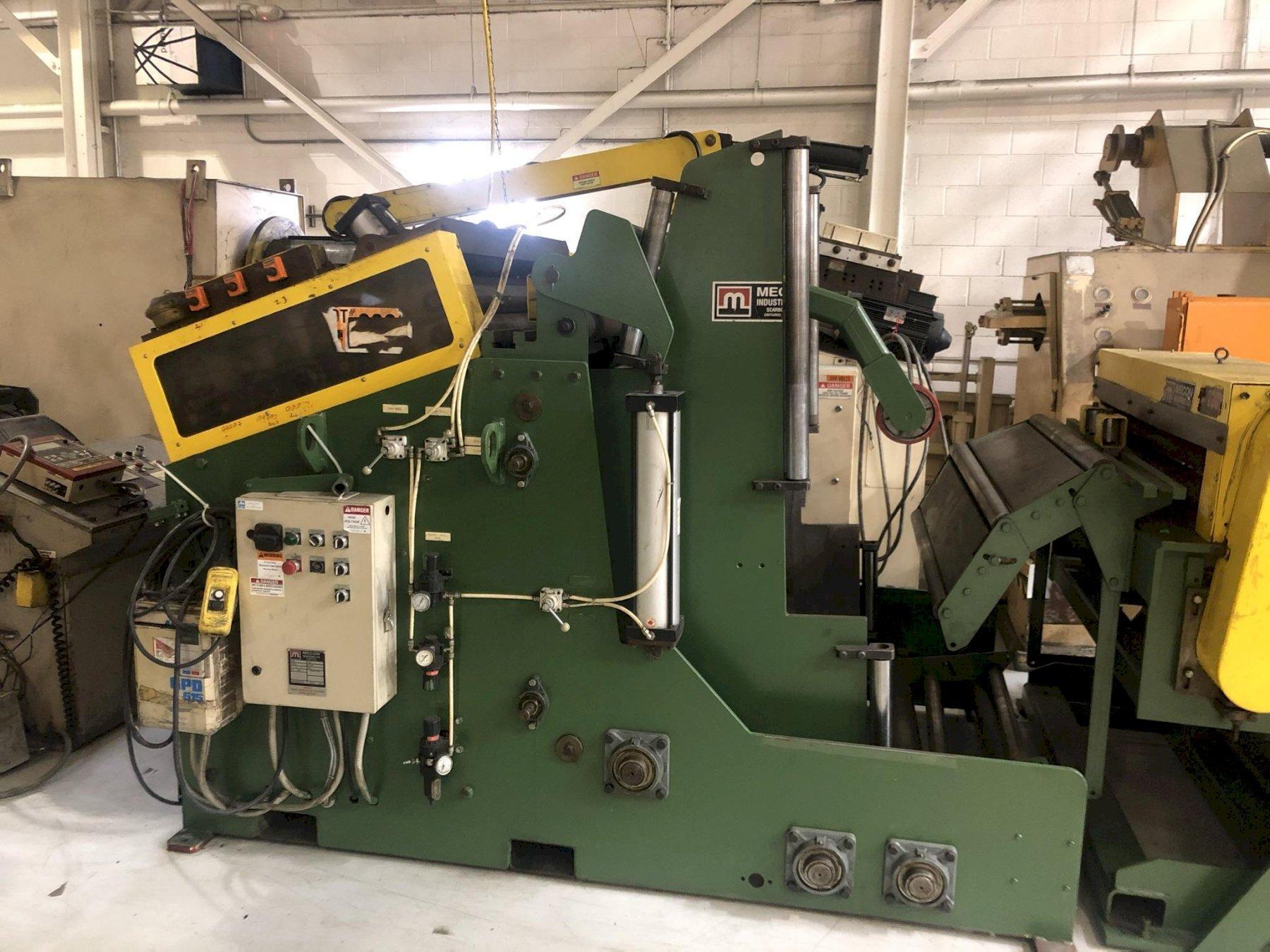

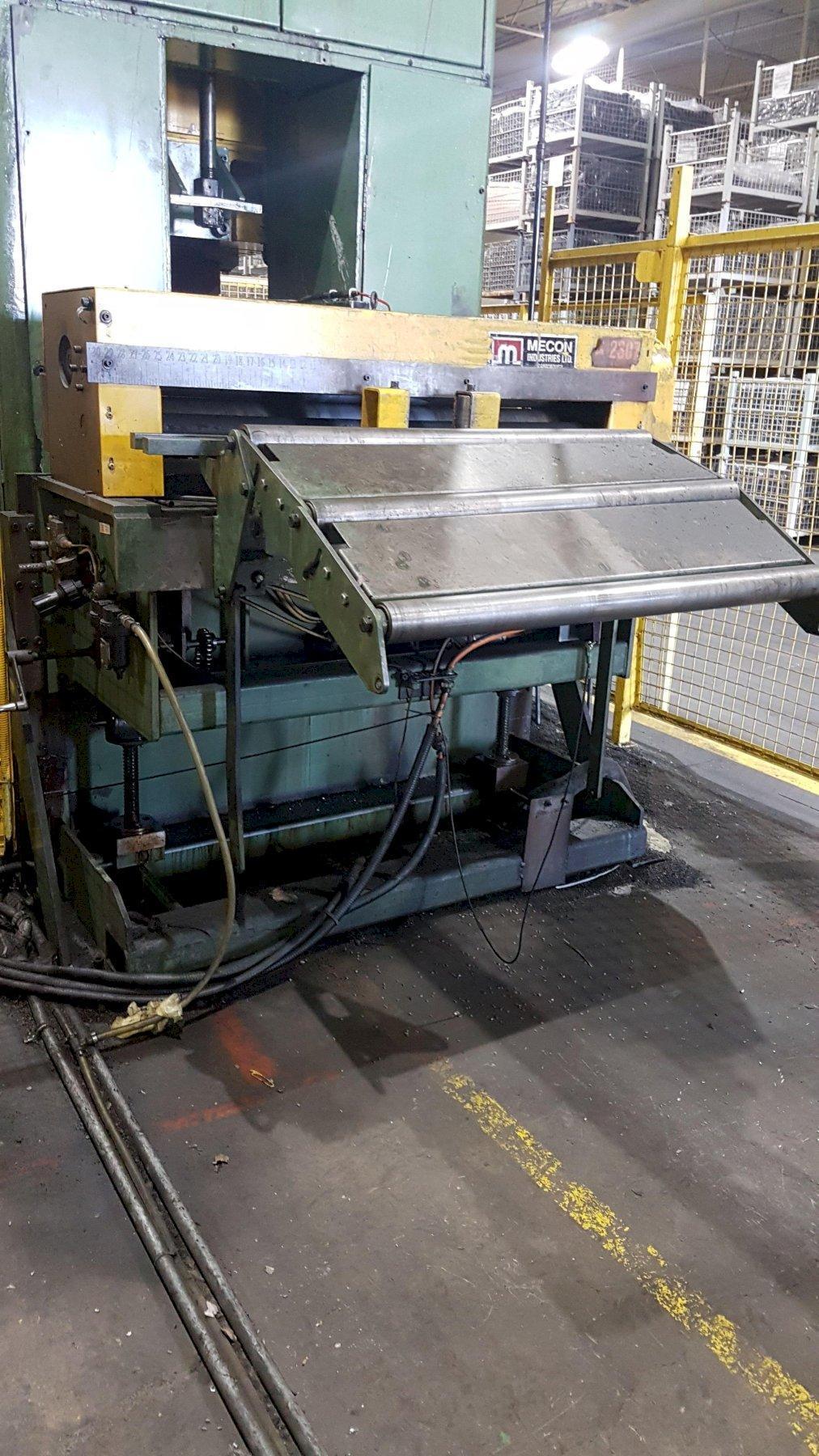

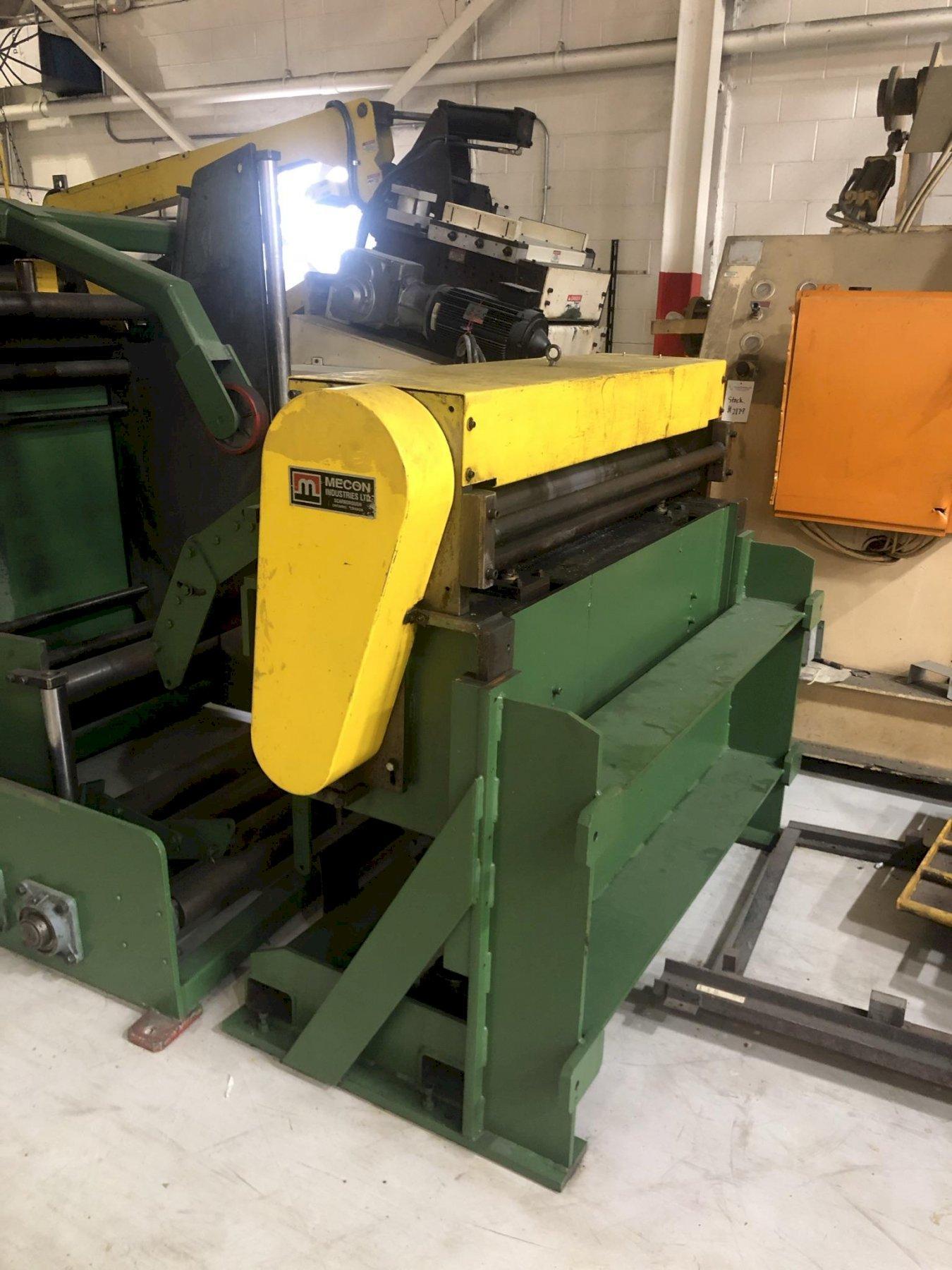

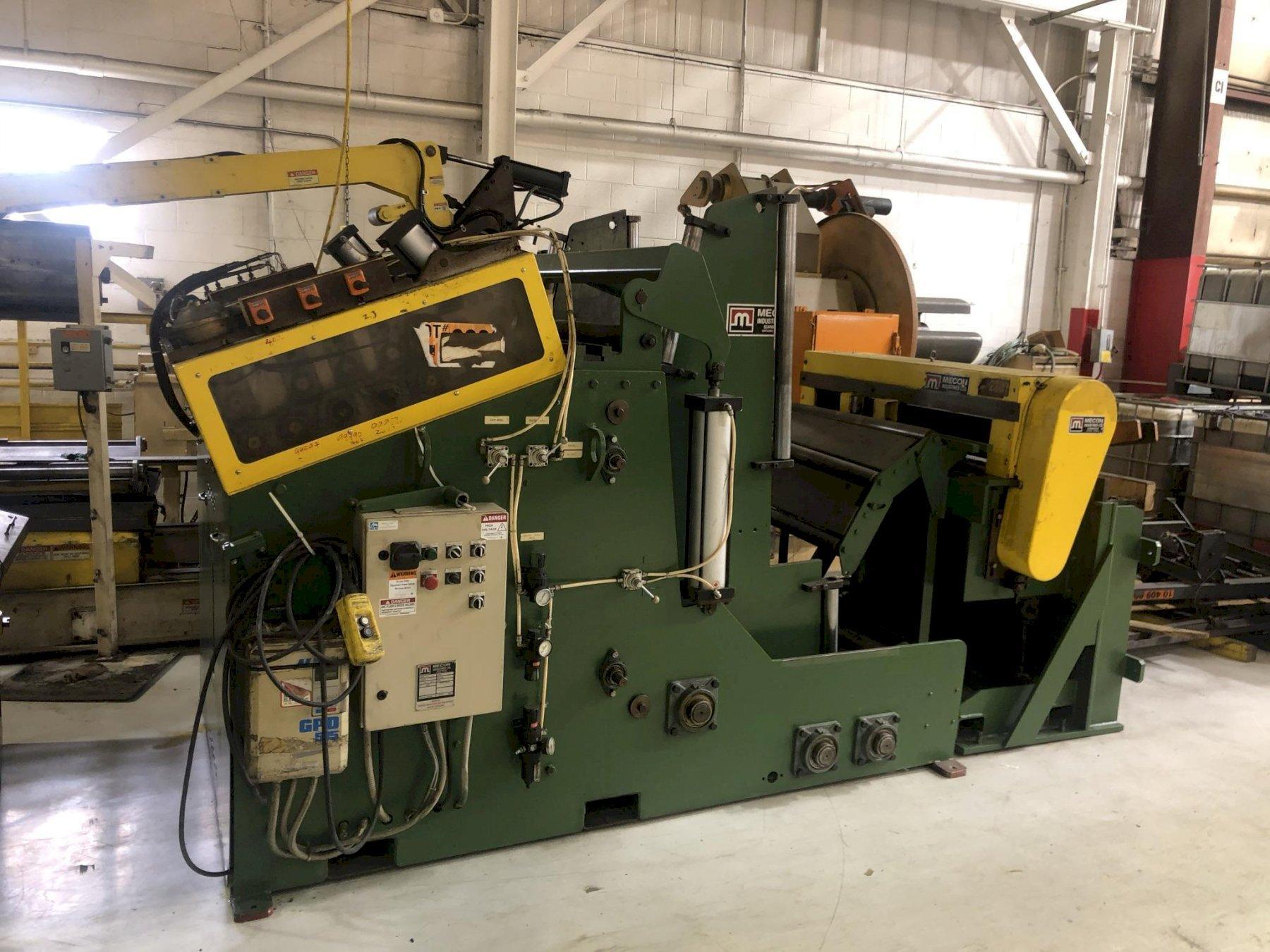

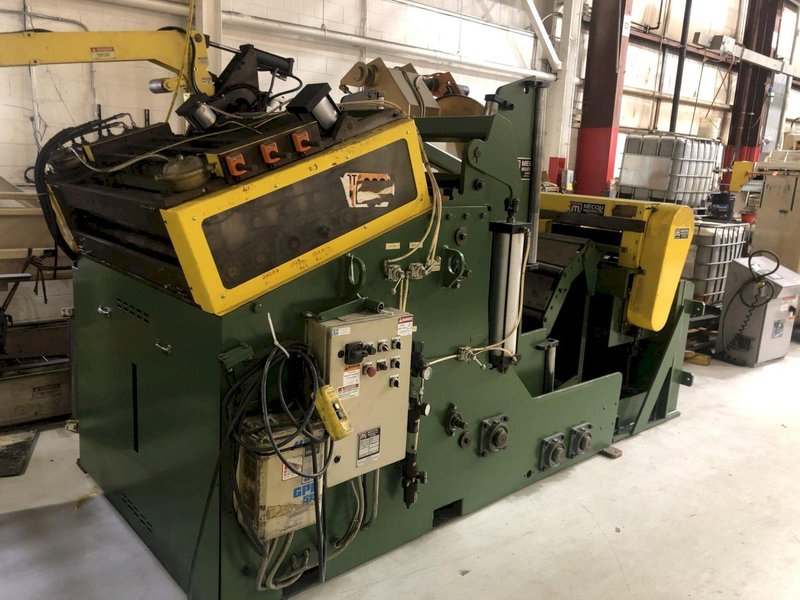

20,000 lbs Max Coil Weight 48" Max. Coil Width 48" Wide x .175" Thickness Capacity @ Full Width 24" Wide x .250" Max. Thickness Equipment and Features Coil Cradle - Straightener Model No. 200CCS-48 Entry and exit pinch rolls with air operated adjustments Seven straightening rolls x 4" diameter Individual upper straightening roll adjustments Adjustable stock width edge guides Coil hold down arm - dual cylinder Adjustable coil side guide plates Side plate rollers for wear protection Variable speed payout Jog forward and reverse Auto / Run cycle Loop control Operator's control station Servo Roll Feed Model No. 500F48HD Four-inch diameter feed rolls Matte chrome finish on upper and lower rolls Pneumatic upper feed roll lift and pilot Adjustable stock width edge guides Cascade loop support rollers Free standing base Adjustable pass line New AC Servo drive and control package (consult sales for full details) Color touch screen HMI Job memory, micro adjust, full feature menu Pilot pin mode 480 V Pricing Includes: One year parts and labor warranty on new Servo Feed Controls including schematics and operator's manual Cleaned, painted and 100% cycling Please know this feed Line can be purchased with its existing controls... Ask your sales representative for "as is" pricing if desired. |
