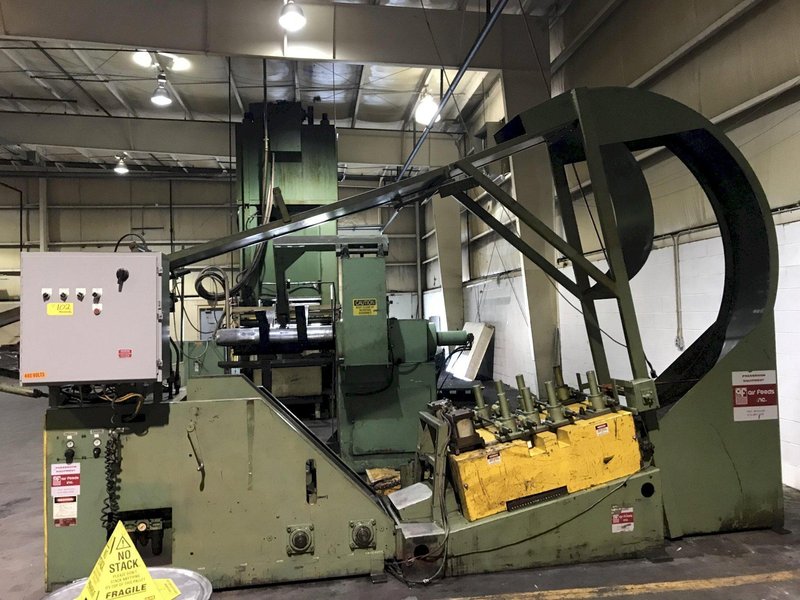

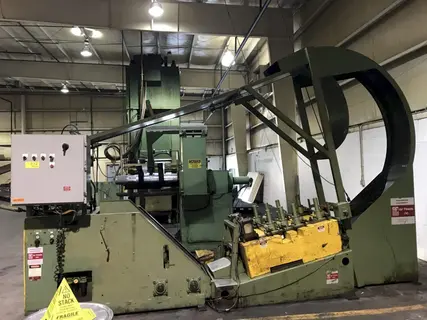

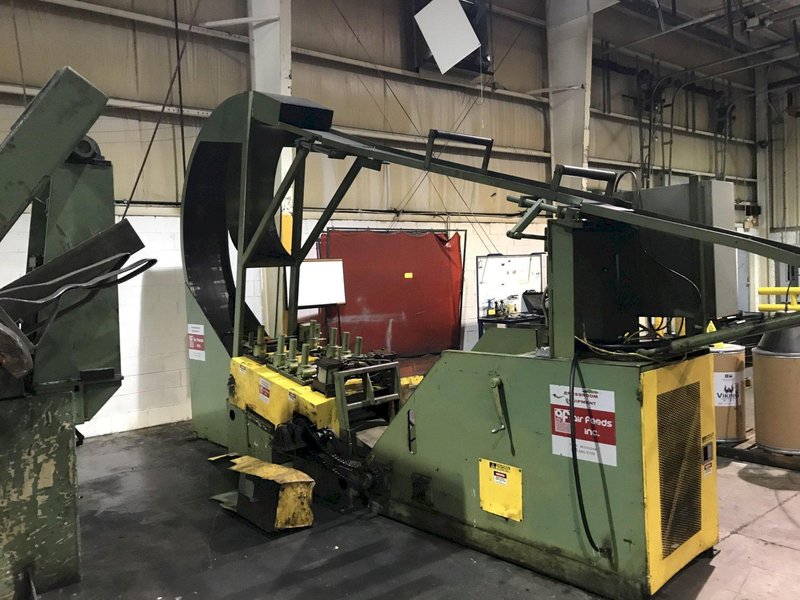

10,000 lbs x 18" Air Feeds Inc. Coil Cradle Straightener
Brand
Category
Model
C100
Stock #
2586
Year
1996
Condition
Excellent
Location
Michigan
| Coil Weight | 10000 pounds |
| Coil Width | 18 inches |
| Coil Thickness | .250 inches |
|
Standard Specifications

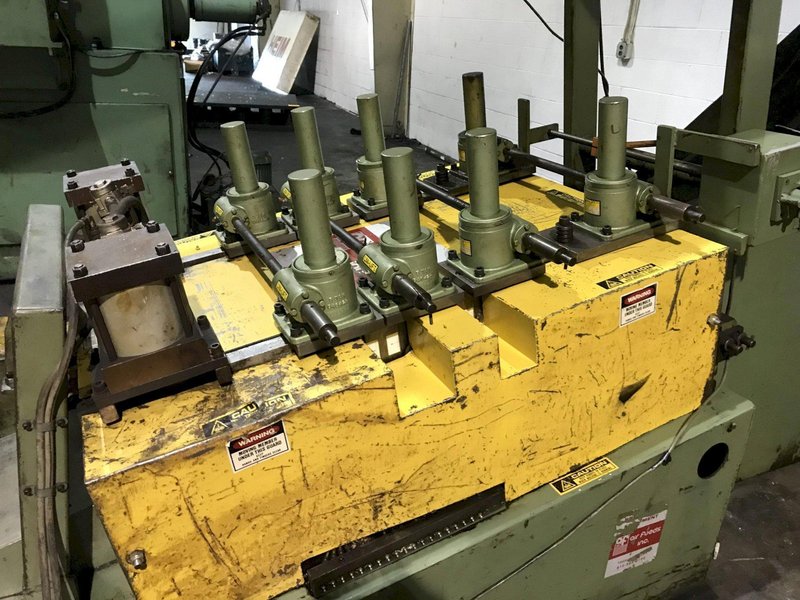

10,000 lbs Coil Weight Capacity 18" Max. Coil Width 18" @ .250" Max Coil Capacity at Full Width 60" Max. Coil O.D. Equipment and Features Entry and Exit Pinch Rolls Air operated adjustable entry pinch roll Manual adjustable exit pinch roll via 5 ton Screw Jacks Seven Straightening Rolls x 4" Diameter Hand Crank Upper Straightening Roll Adjustments via 5 ton Screw Jacks Inline (Floor Mounted) Powered Straightener Dual adjustable side plates with side plate rollers Reverse Loop stock deflector Overhead guide chute (air operated) Chute Extension Variable Speed Drive System Common operator's controls Station Jog / Forward / Reverse Auto / Run Cycle Loop Control Foot Print: 17' x 5' x 11' Tall Can be purchased "as is" or Cleaned Painted and 100% Cycling |
|
