Coil Weight | 15000 pounds |
Coil Width | 24 inches |
Coil Thickness | .187 inches |
Specifications:

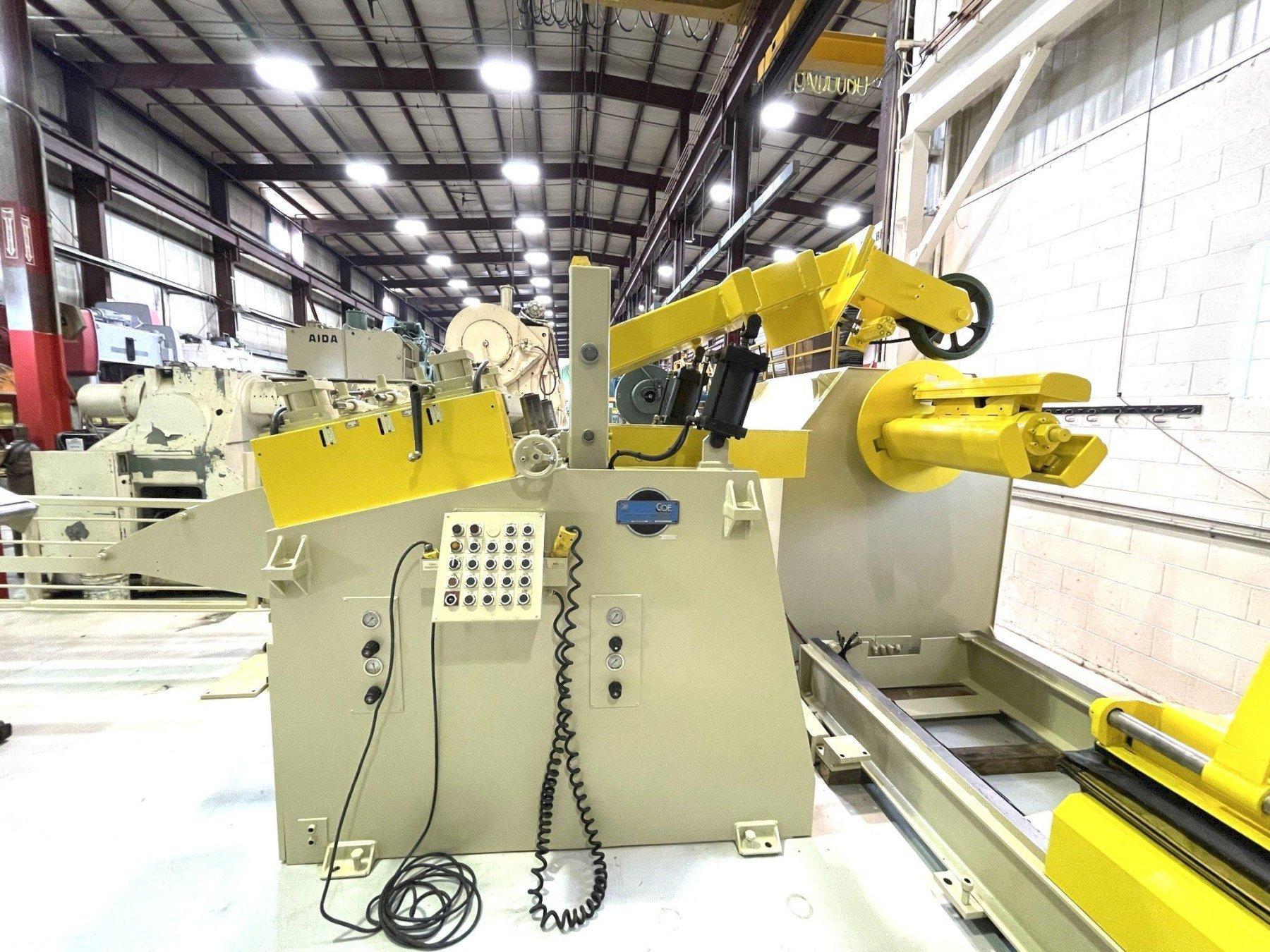

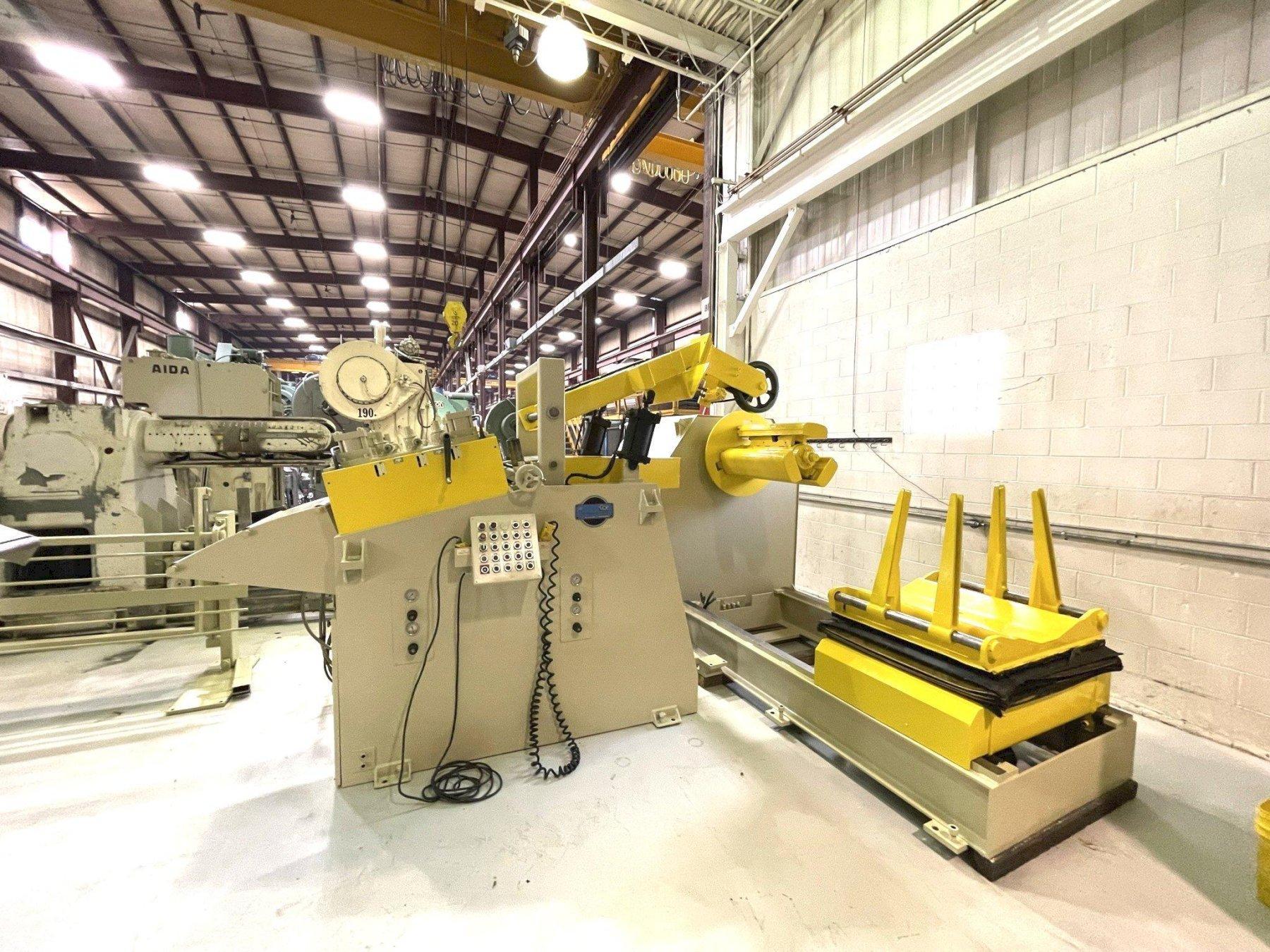

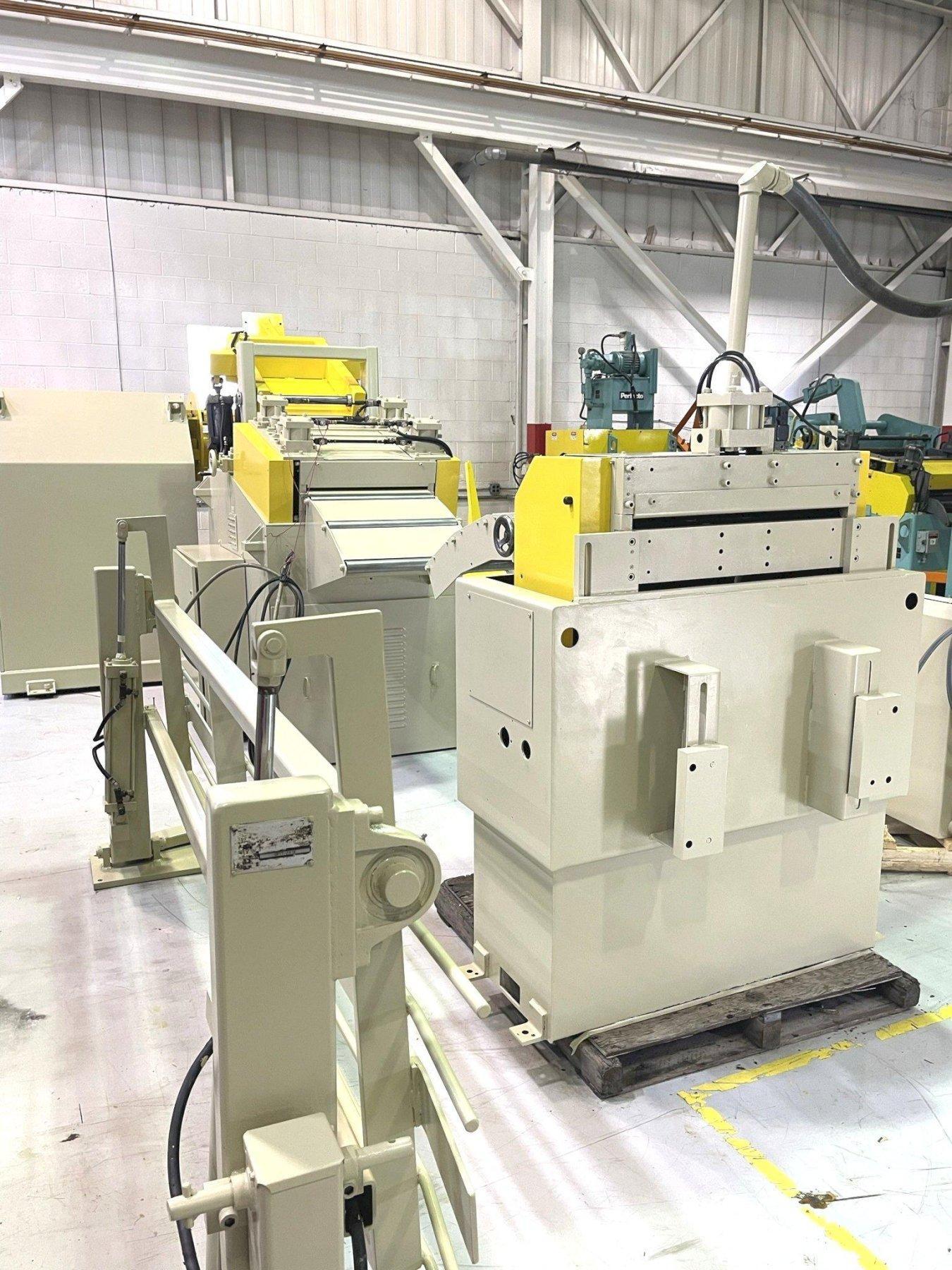

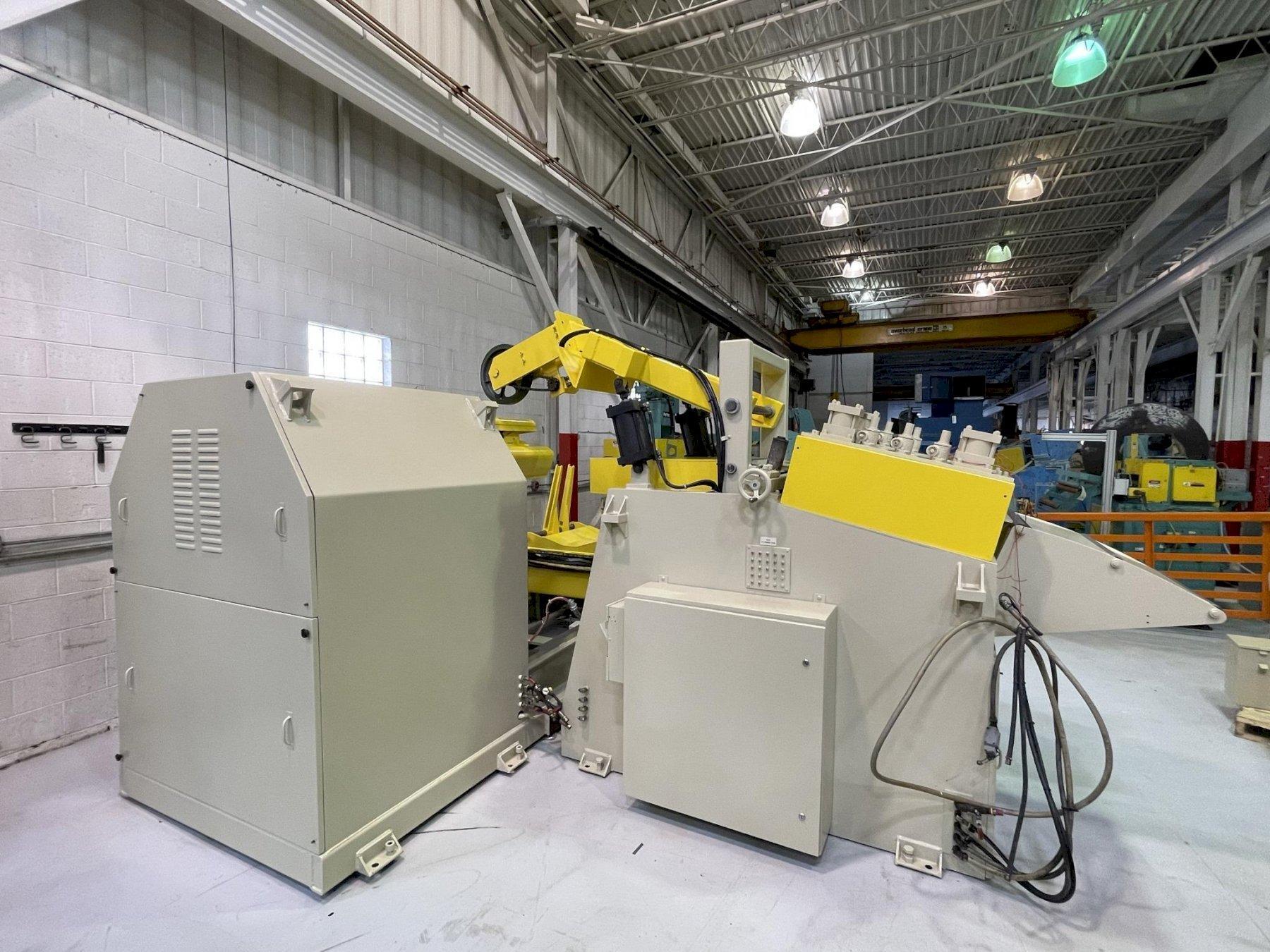

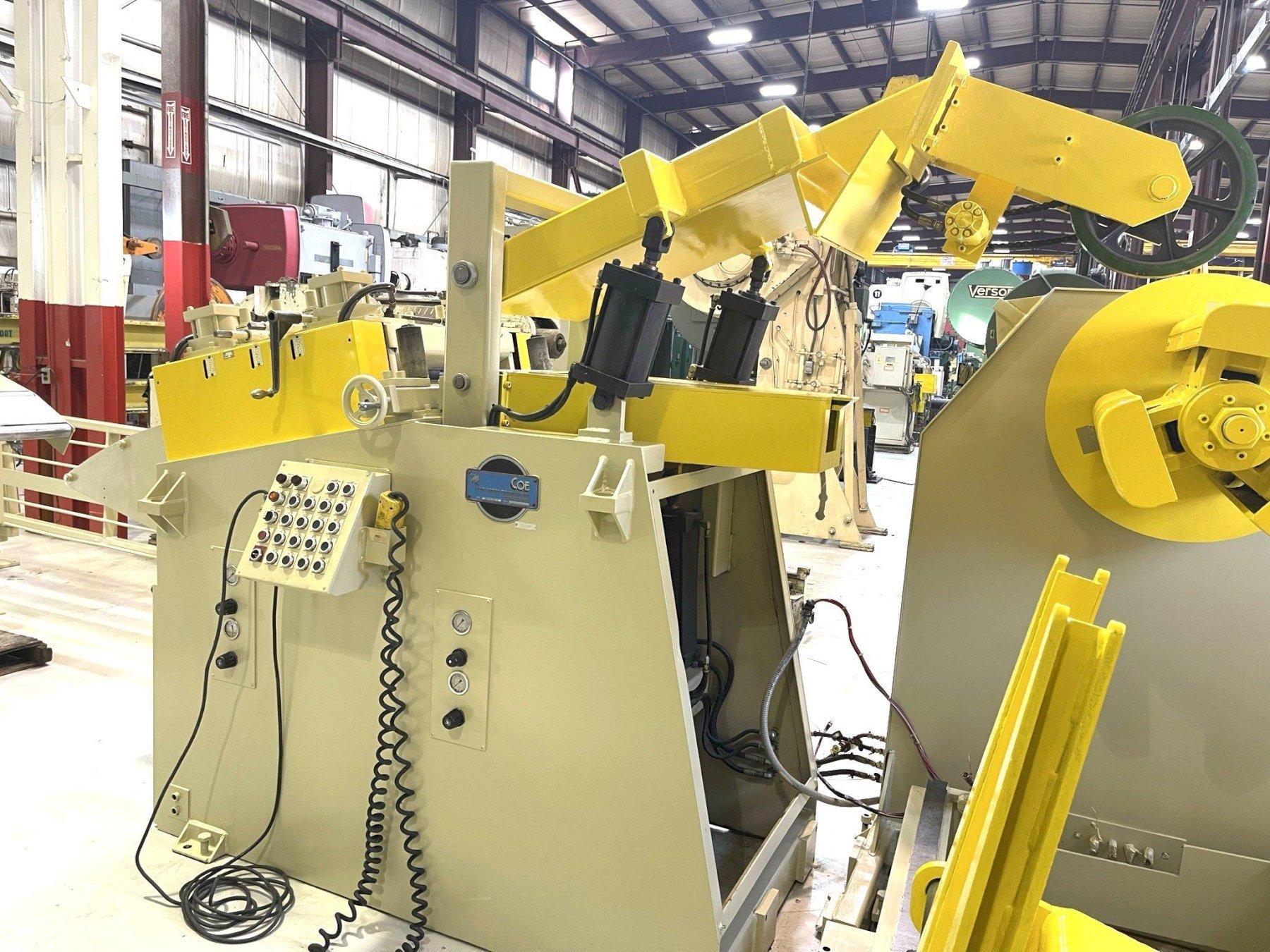

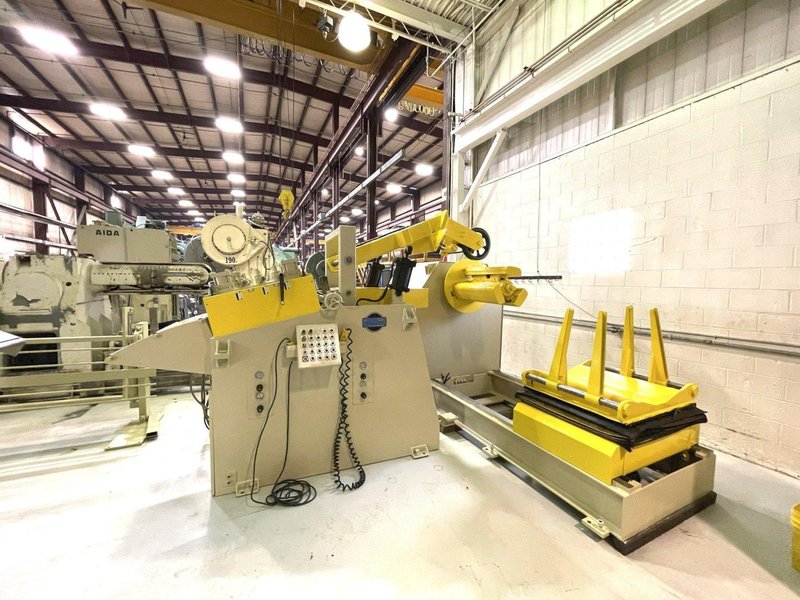

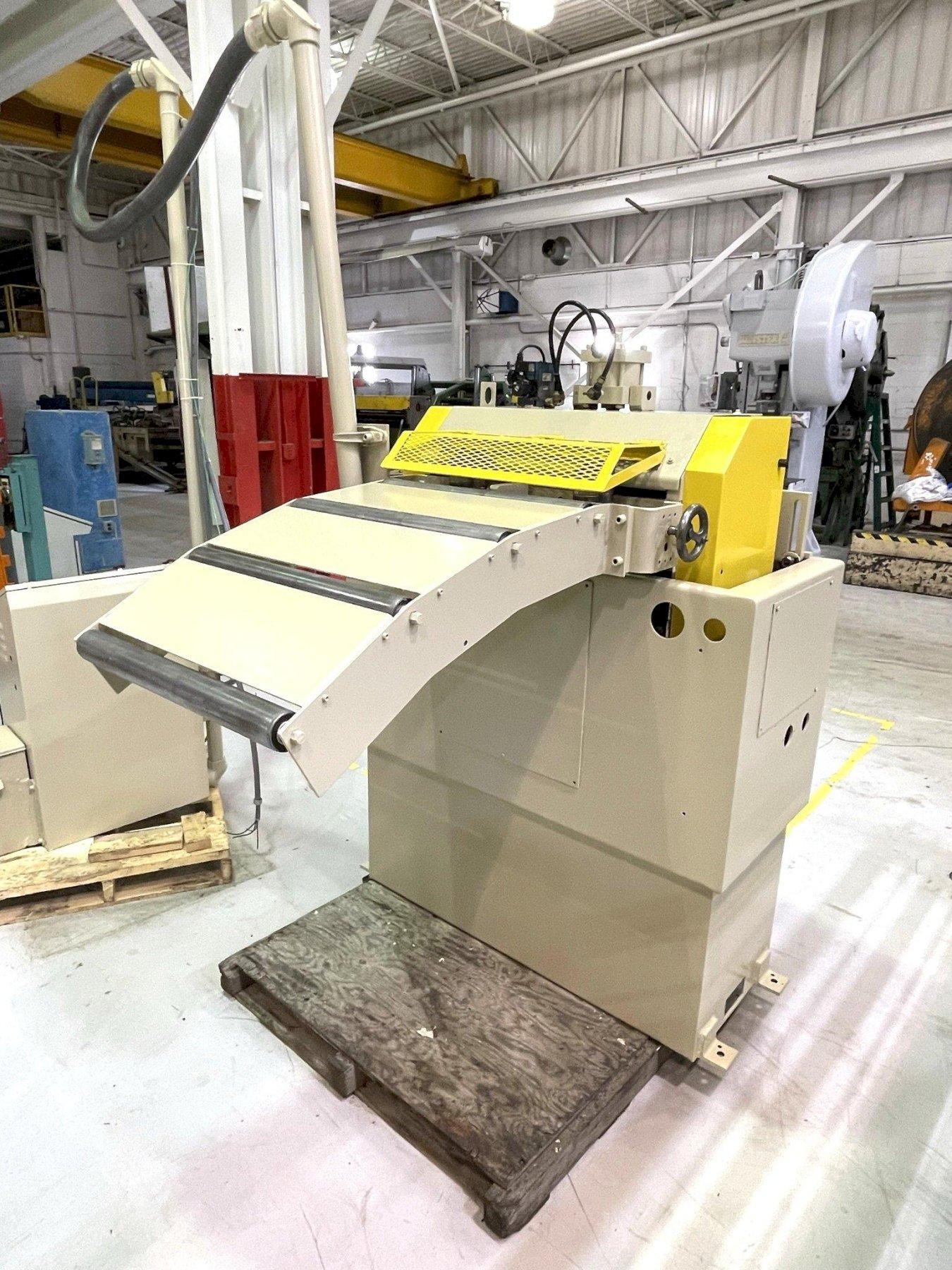

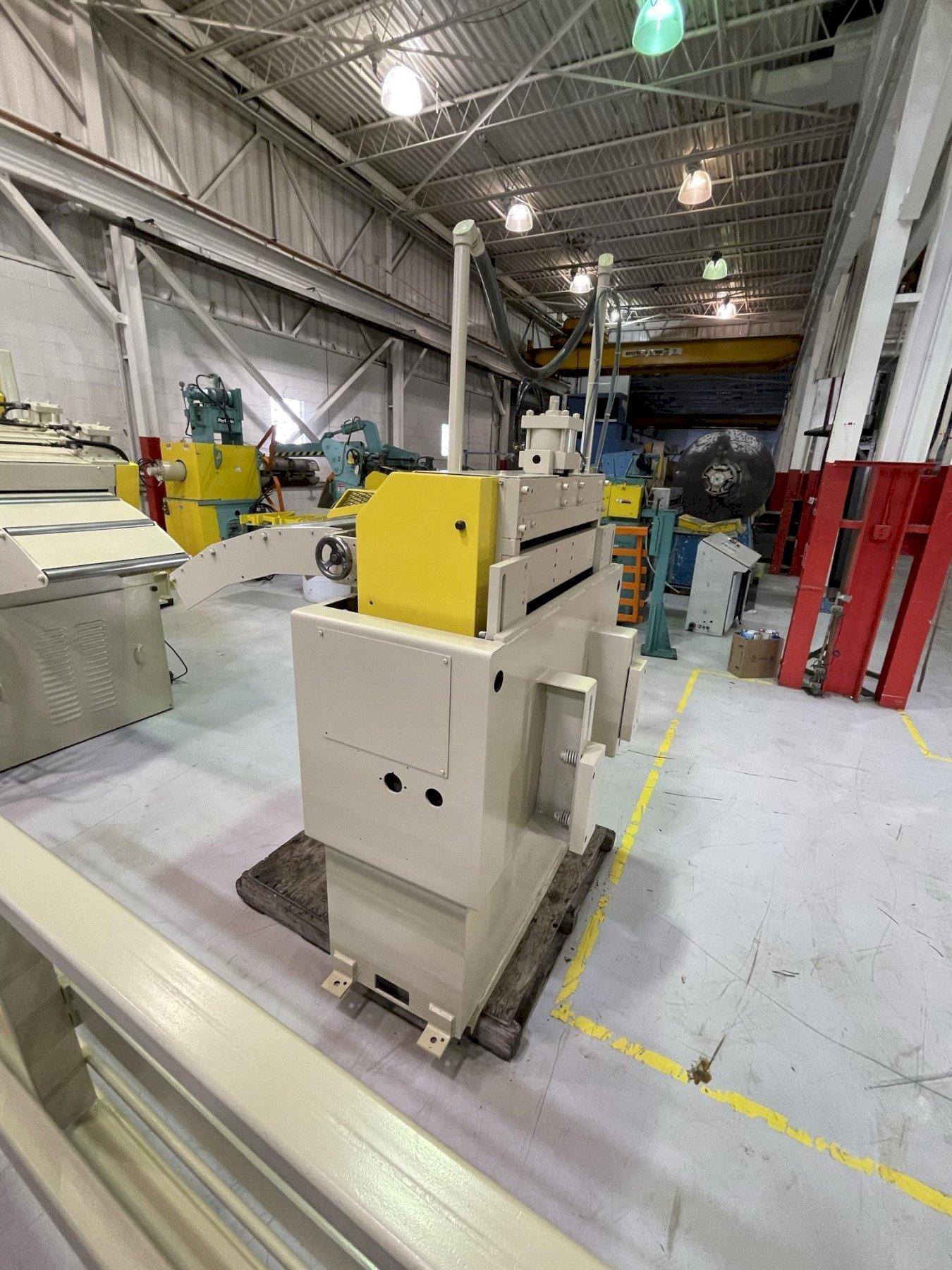

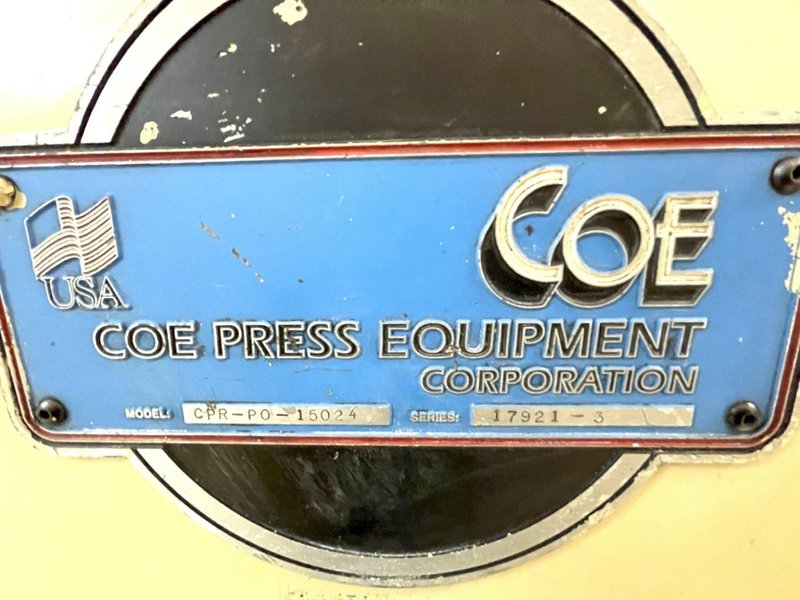

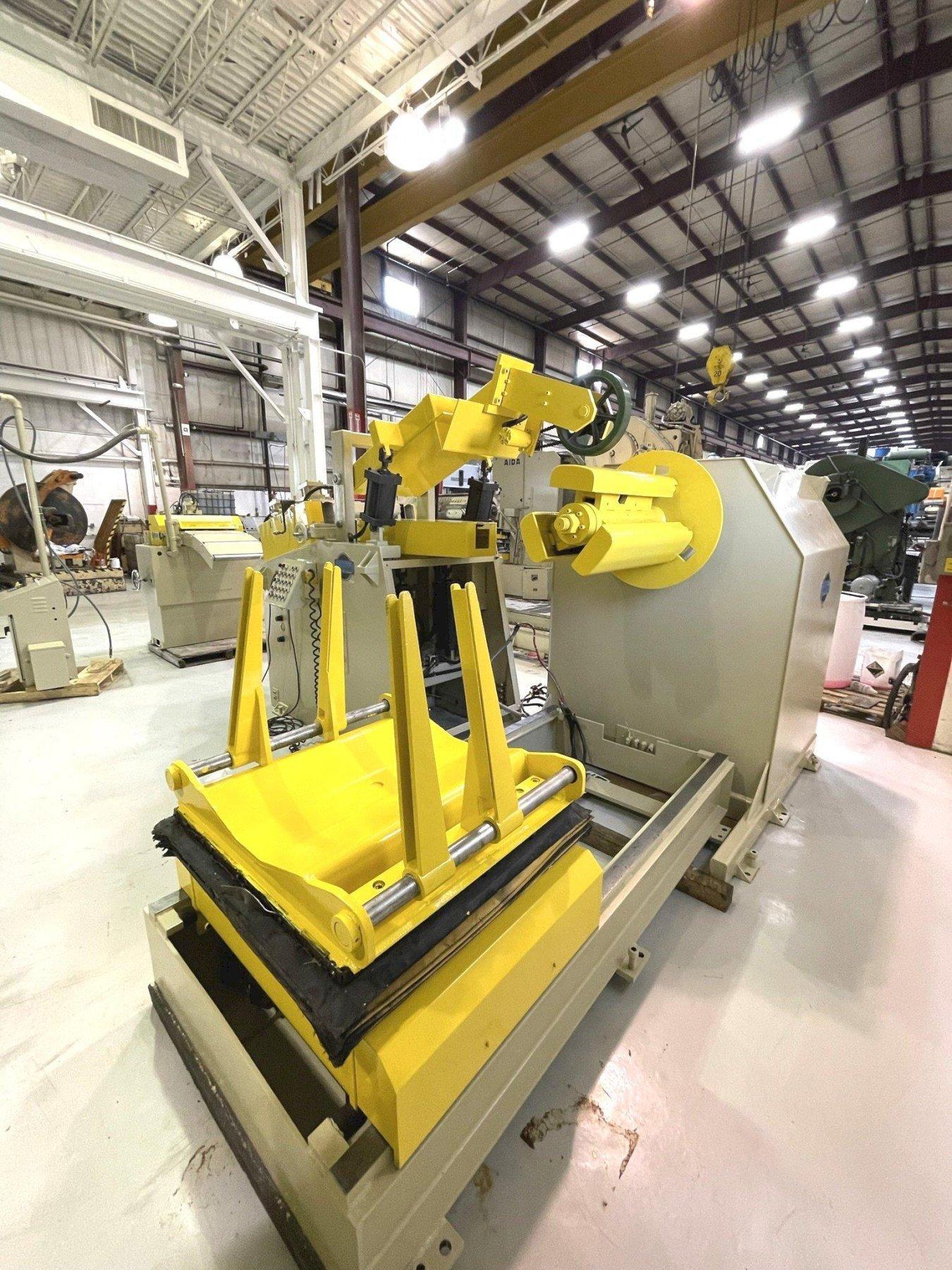

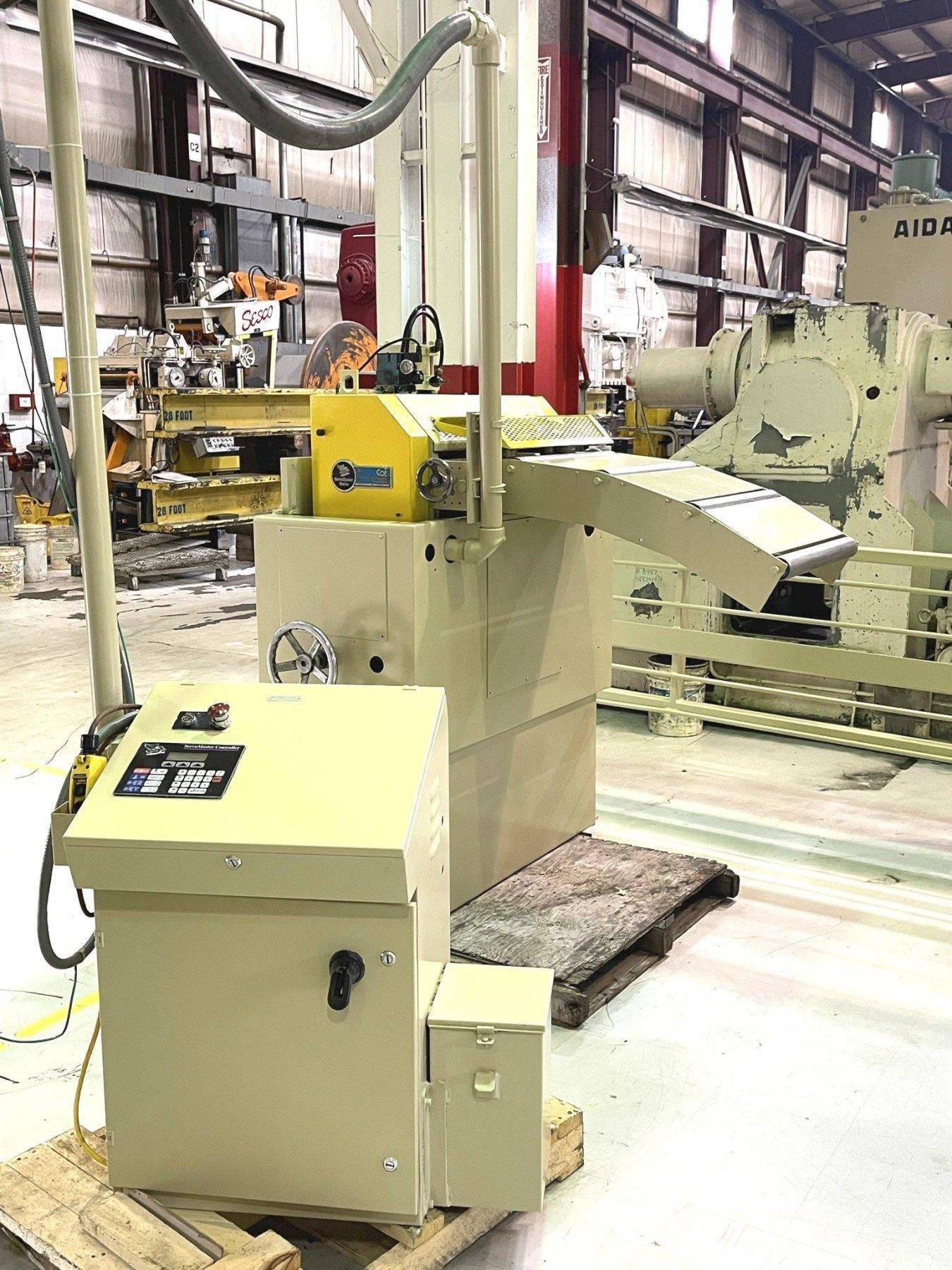

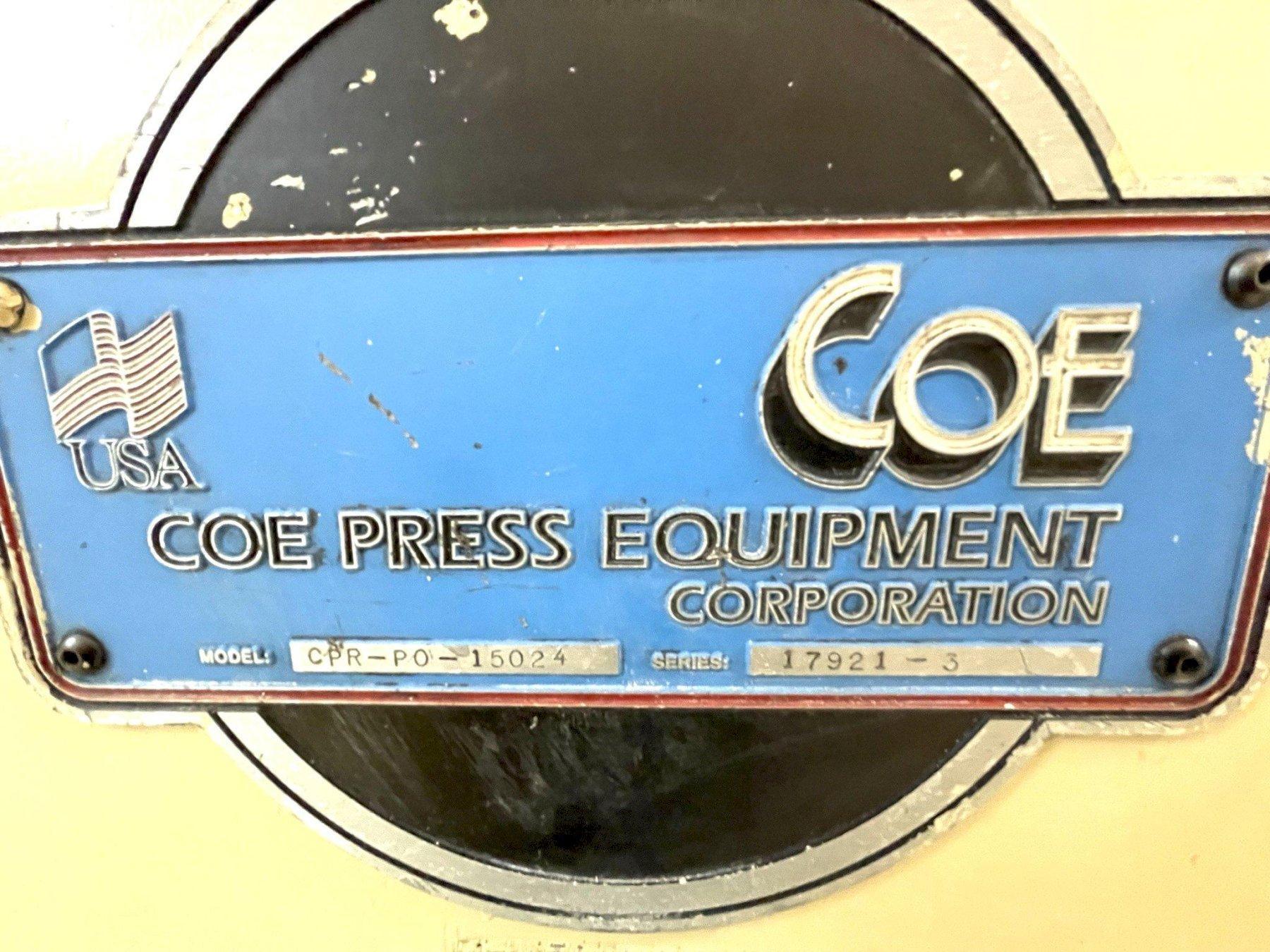

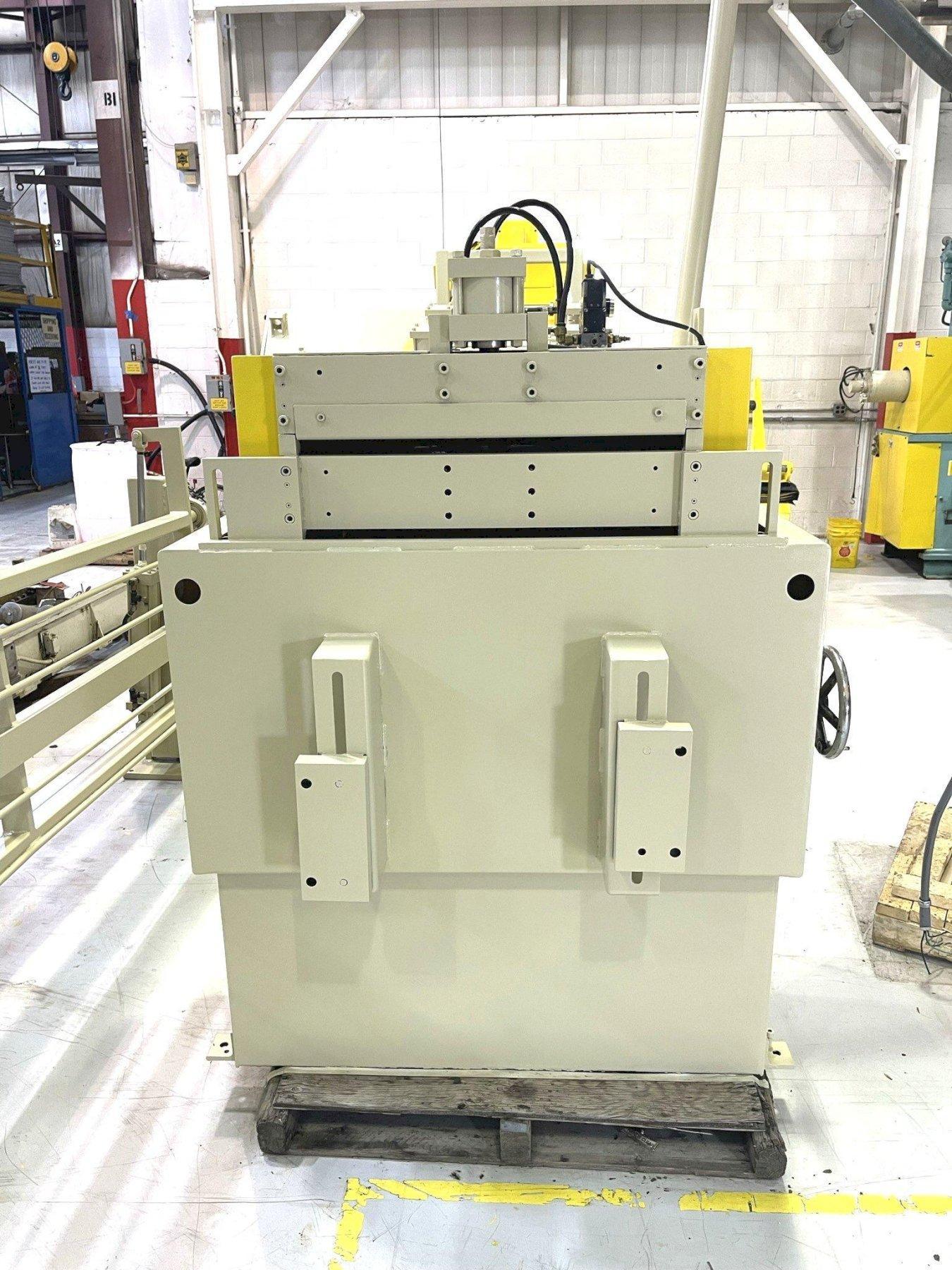

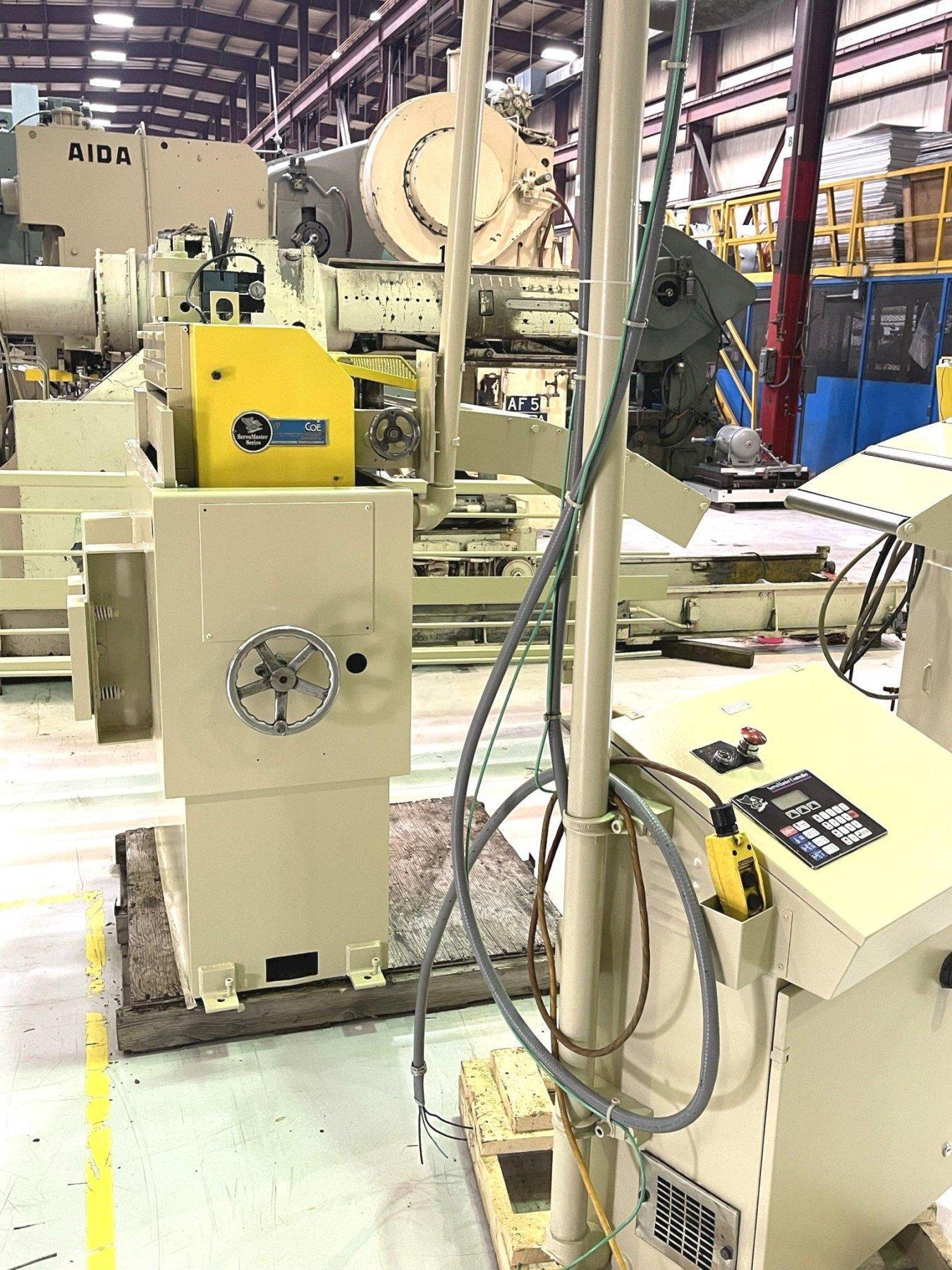

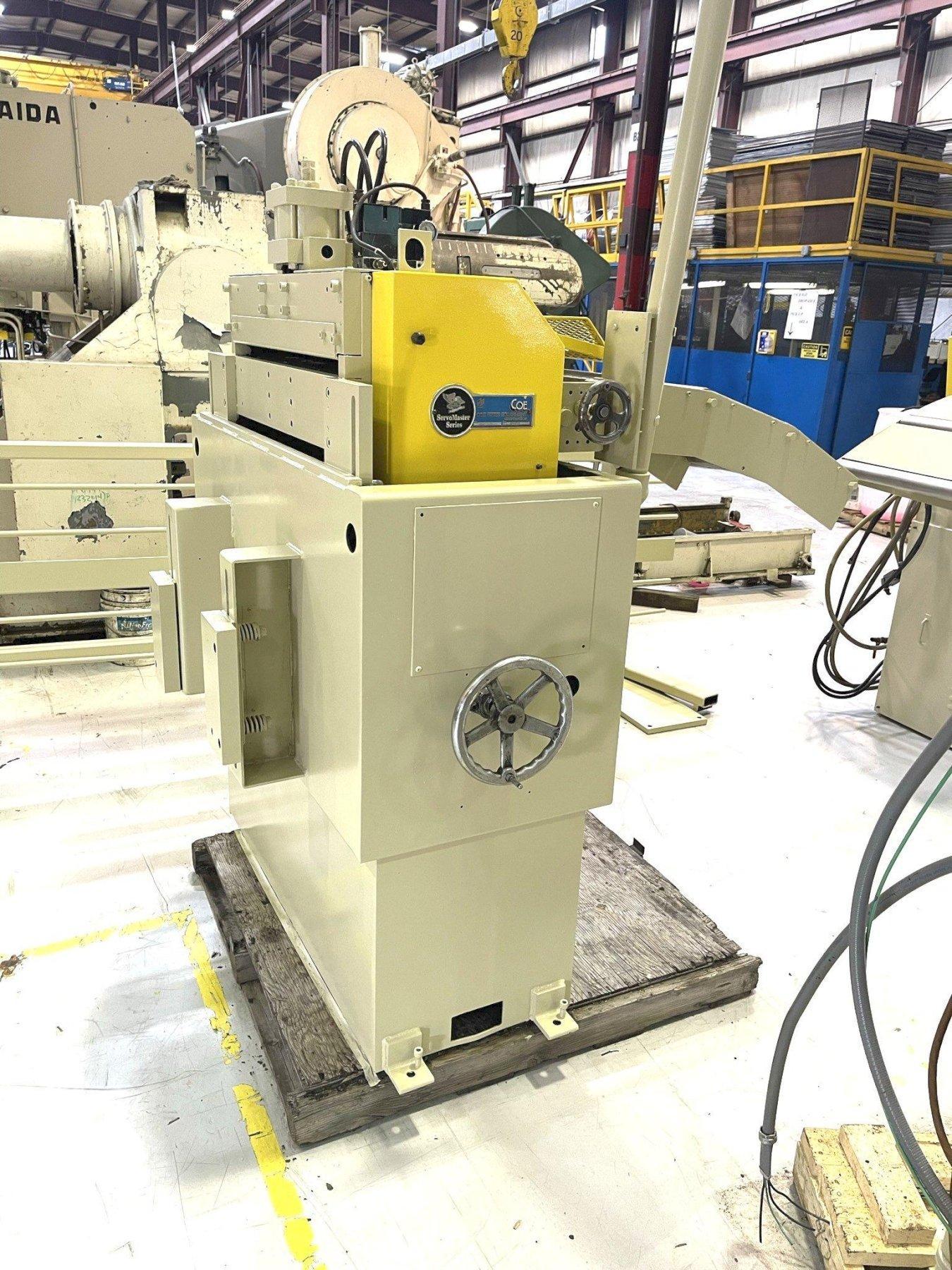

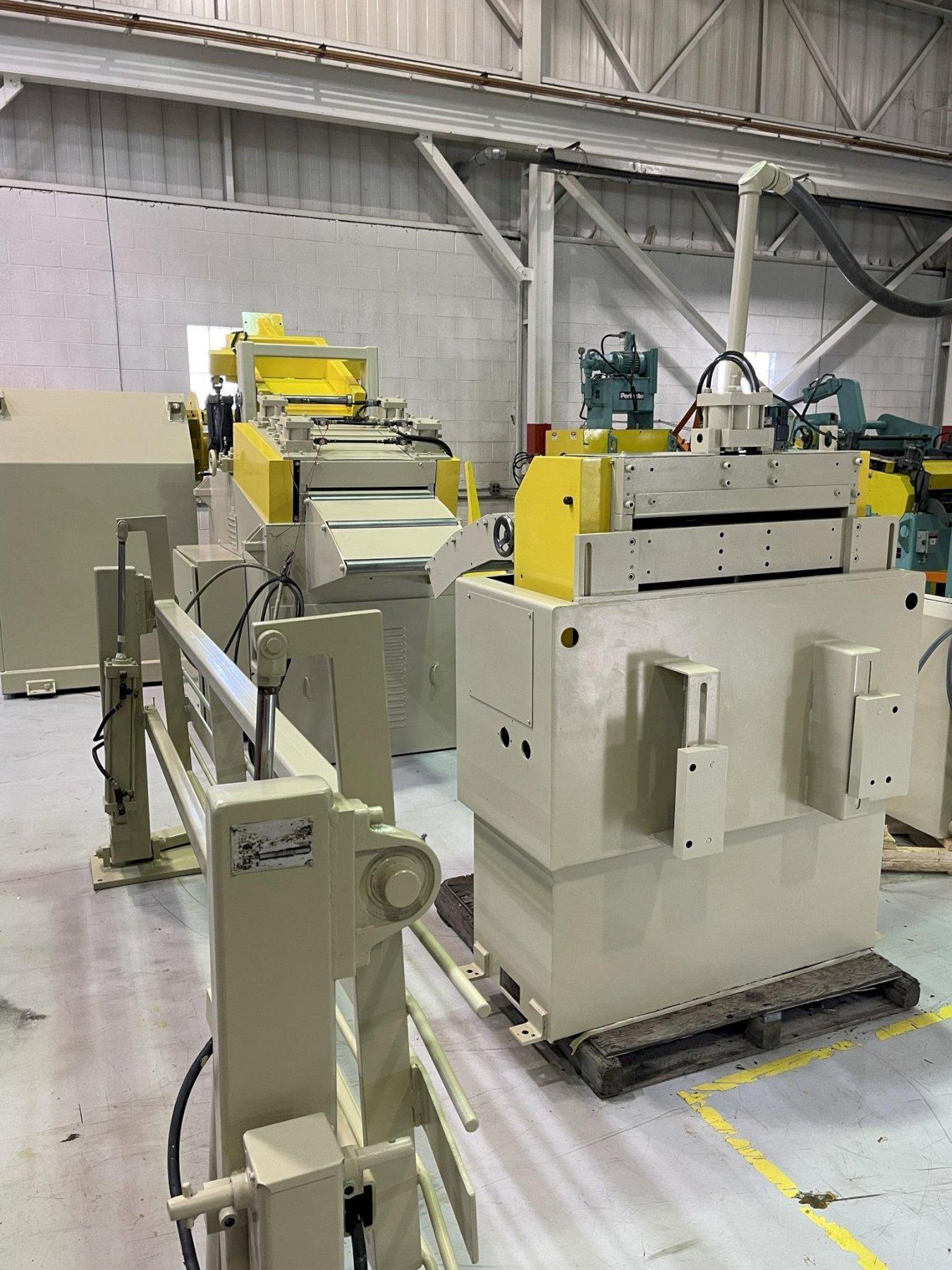

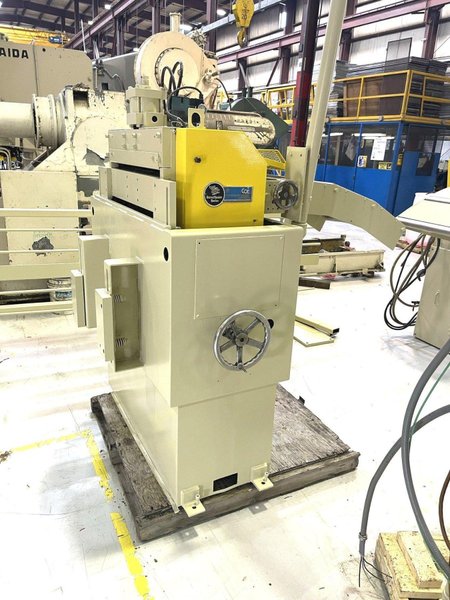

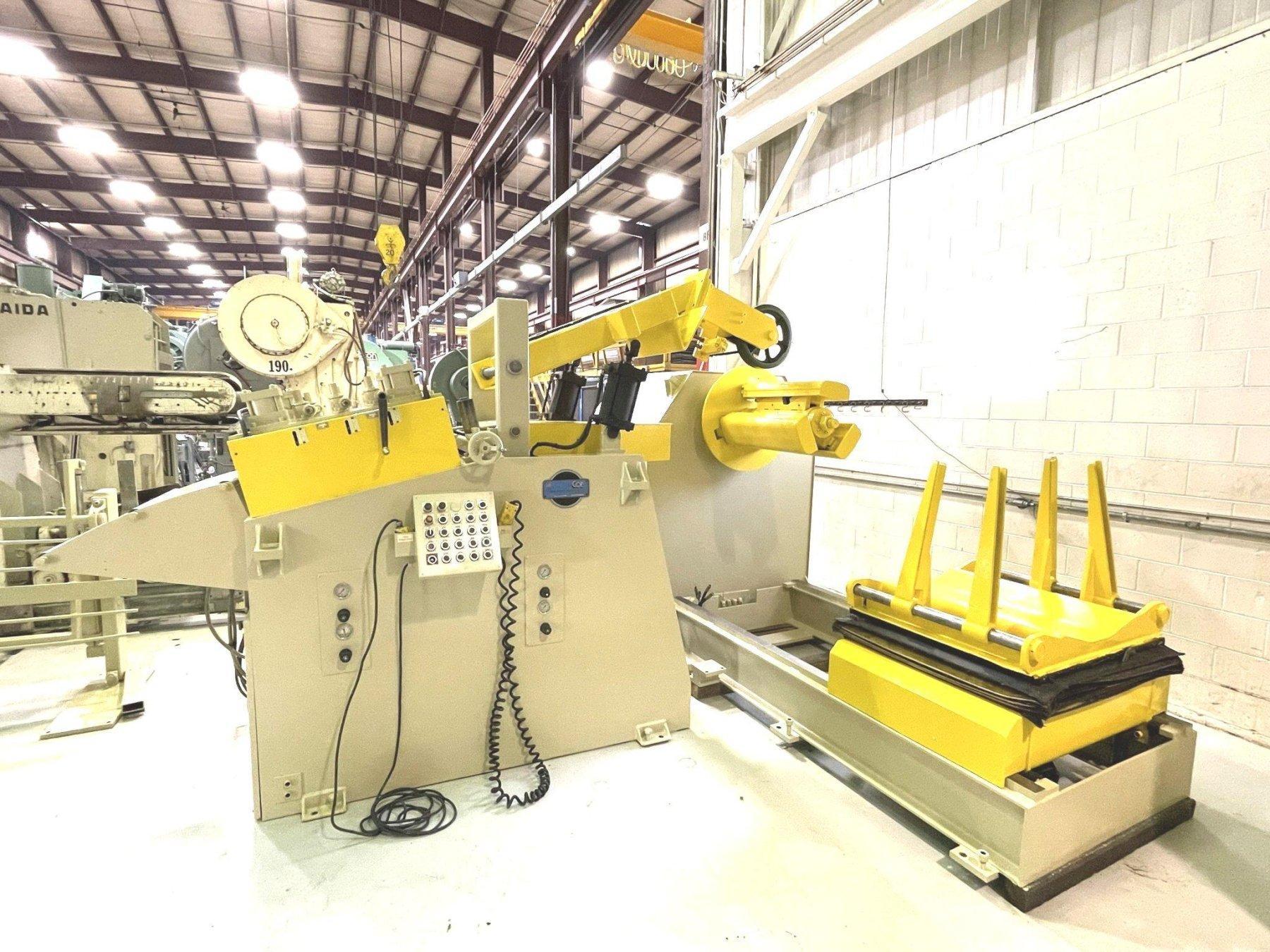

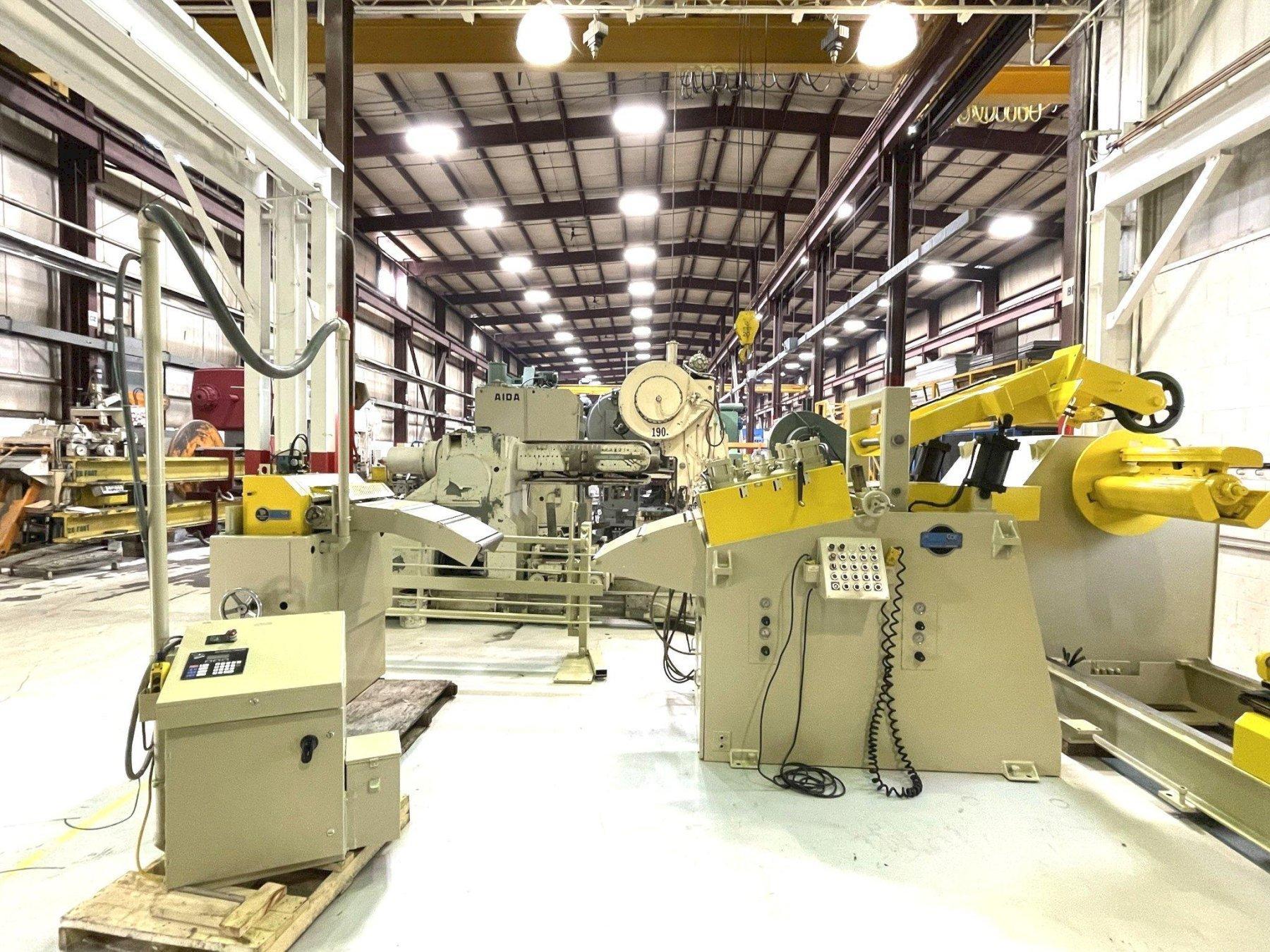

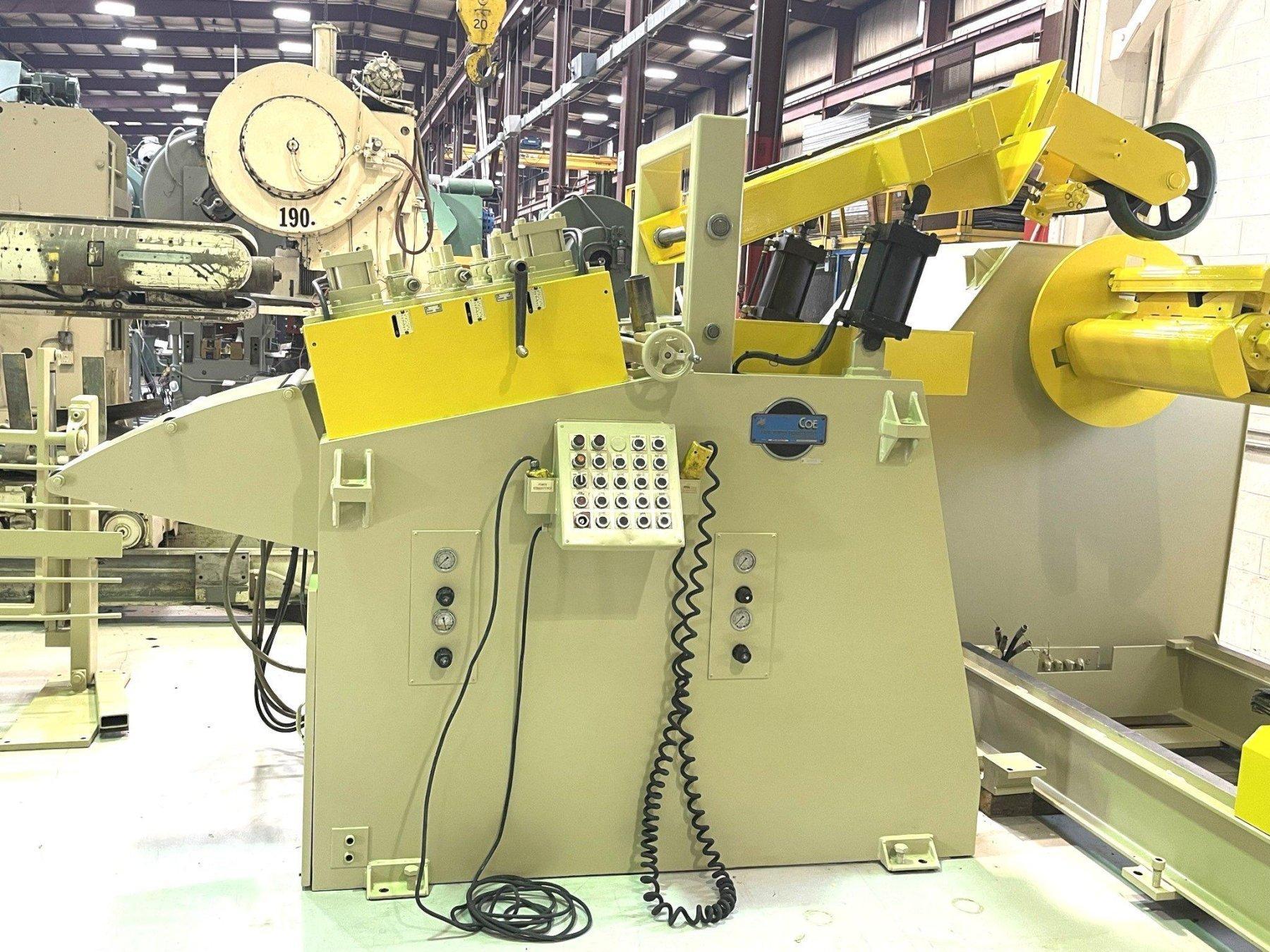

Coil weight capacity: 15,000 Lbs. Coil width capacity: 24" Stock thickness capacity: .187" x 24" Wide Stock thickness capacity: .210" x 12' Wide Expansion range: 19" - 24" Coil O.D. capacity: 60" Equipment and Features: Coil reel Model No.: CPR-PO-15024, Serial No.: 17921-3 Three leaf mandrel with heavy duty wedge type hydraulic expansion Coil keeper arms Threading drive for jog forward and reverse Air brake with adjustable tensioning Traveling coil load car Powered lift and travel Narrow coil support arms Powered straightener Model No.: CPPS-PO-350-24, Serial No.: 17921-2 Entry and Exit pinch rolls with air operated adjustments Seven 3.5" diameter straightening rolls Scales for upper straightening roll position Hand crank edge guides Inclined straightening head Stock peeler / de-bender / hold down station Motorized end wheel on coil hold down arm Hand held pendant control for jog forward and reverse Variable speed drive and control package Common operator control station Auto/Run cycle Variable speed loop control Exit threading table Bombay door style Air operated actuation Servo Driven Roll Feed Model No.: CPRF-S424, Serial No.: 29147-1 Upper and lower matte chrome finished rolls four inch diameter Air operated upper roll lift / pilot Cabinet base mounted with pass line adjustments Hand crank entry stock width edge guides AC Servo drive and controls Job memory, micro adjust, batch count, etc (Consult sales for complete details) Pilot pin mode Free standing sloped front control console Remote pendant control for jog forward and reverse Fused disconnect |
