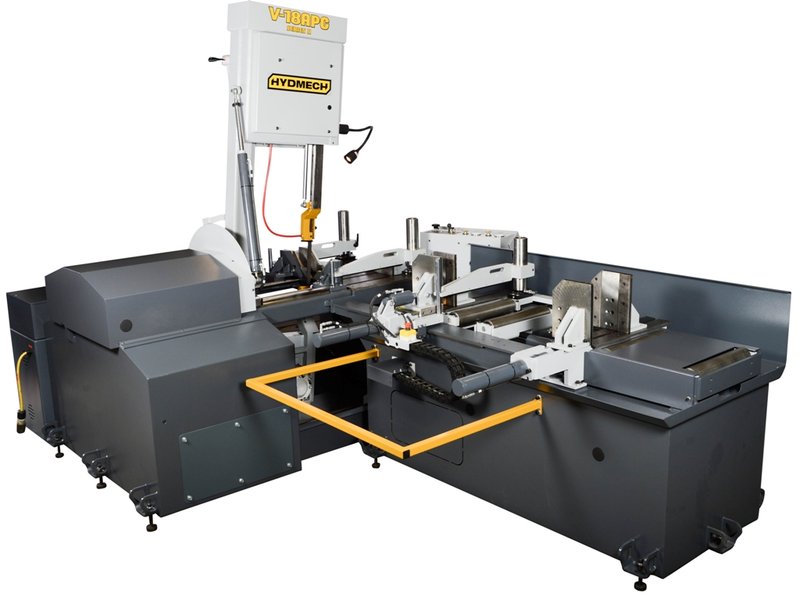

The V-18APC is an automatic vertical band saw with the ability to miter from 45° left to 45° right.

The V-18APC is fast, with its high speed shuttle feed indexing up to 40″ in a single movement. A 2 HP driven hydraulic pump supplies system pressure through 3-position directional valves controlling all vising, head swing, head advance/retract, blade tension, guide arm, and shuttle movement. Its PLC control features storage of up to 99 jobs with the ability to run 5 in queue.

Featuring a 18″W x 31″H capacity, 7.5 HP motor, and 1 1/4″ blade, the V-18APC is a reliable choice for all your vertical metal cutting applications.

STANDARD FEATURES

• Automatic programmable mitering with “go to” angle functionality from 45° left to 45° right
• Two full stroking hydraulic vises and third squaring vise
• Automatic multi-indexing up to 40” in a single stroke.
• Hydraulically powered idler side guide arm
• Automatic PLC control programmable up to 99 jobs with 5 in queue.
• Drag chain chip conveyor
• Hydraulic overhead bundling
• 5 HP VFD. True direct blade drive – no belts/pulleys
• Hydraulic positive down feed
• Blade chamber separates material from cut part
• Out of stock switch
• Cast iron band wheels
• Replaceable blade brush
• Robust steel base
• Easy access electrical panel and hydraulics
• Blade breakage switch
• You choose left or right side infeed
• Hydraulic band tensioning with digital readout
• Replaceable carbide guide inserts
• 2 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
