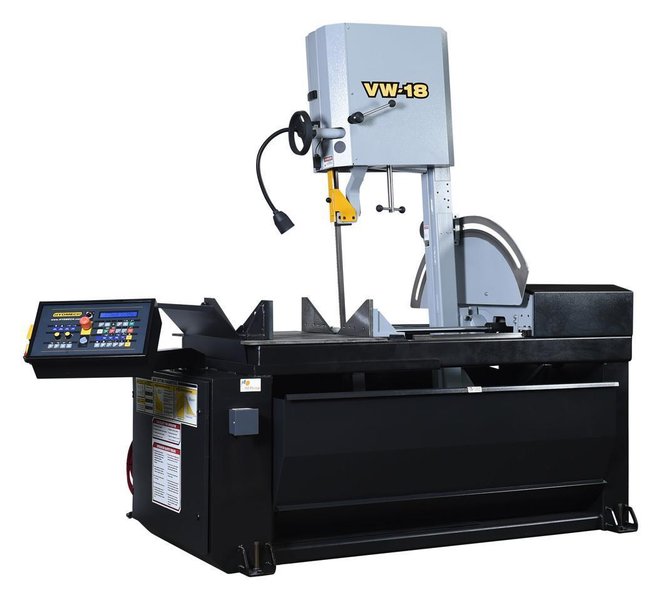

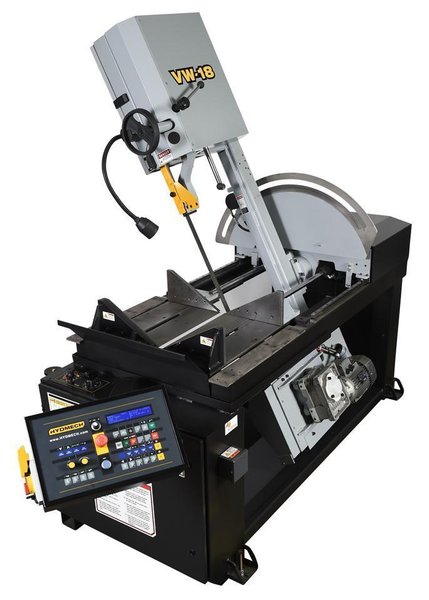

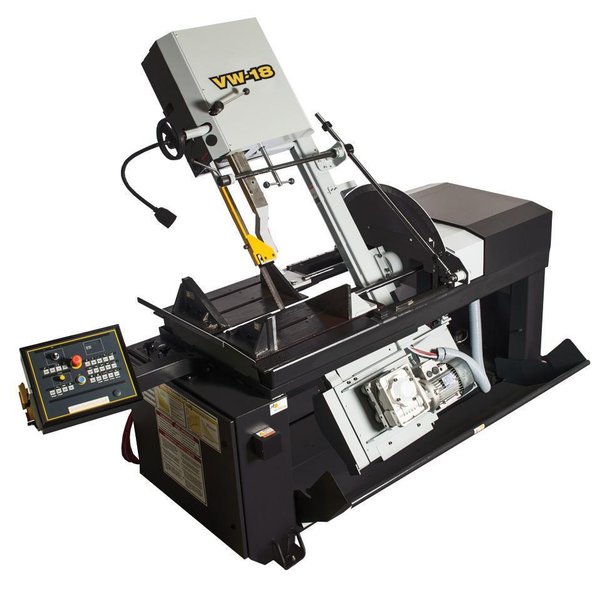

NEW - 22"H x 18"W HYD-MECH VW-18 VERTICAL TILT FRAME BAND SAW

This model is one of a kind in the HYDMECH line up with its saw head that can cut at 90° and be adjusted to cut at a 3° head cant.

Now available with optional powered head tilt and digital angle display.

Featuring a 22″H x 18″W capacity, 5 HP motor, and 1 1/4″ blade, the VW18 II is a reliable choice for all your light to medium-duty, vertical metal cutting applications.

STANDARD FEATURES

• Adjustable 3° canted head

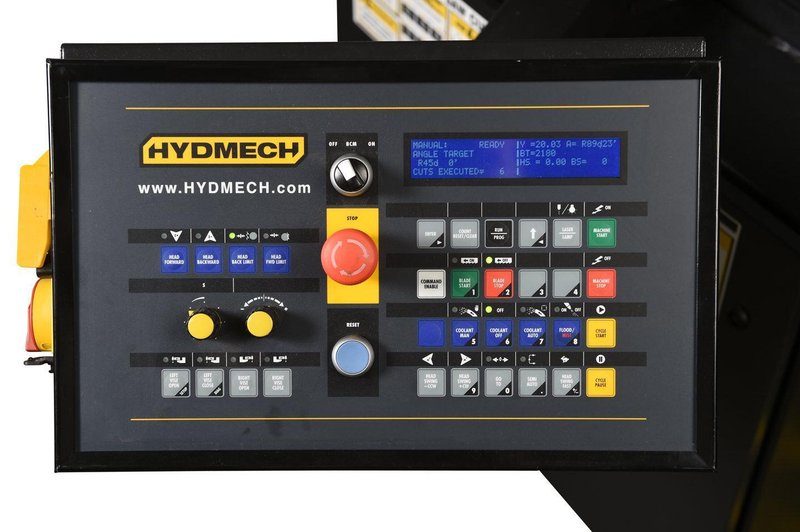

• Double articulating, semi-automatic control

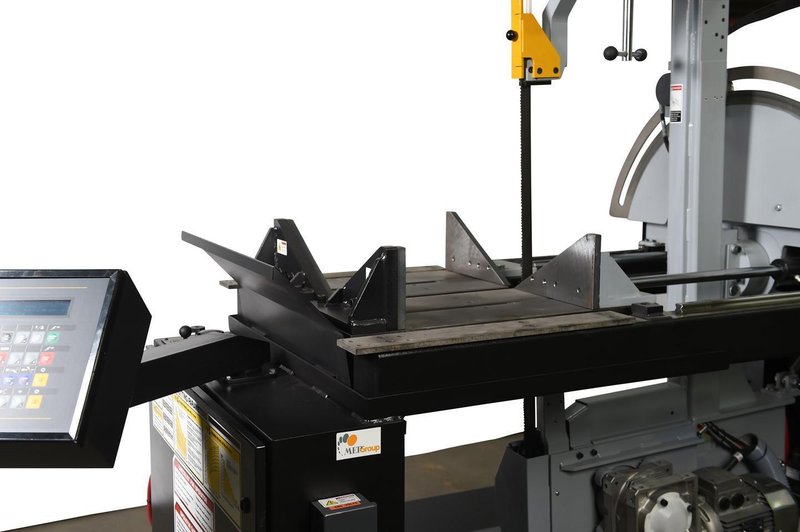

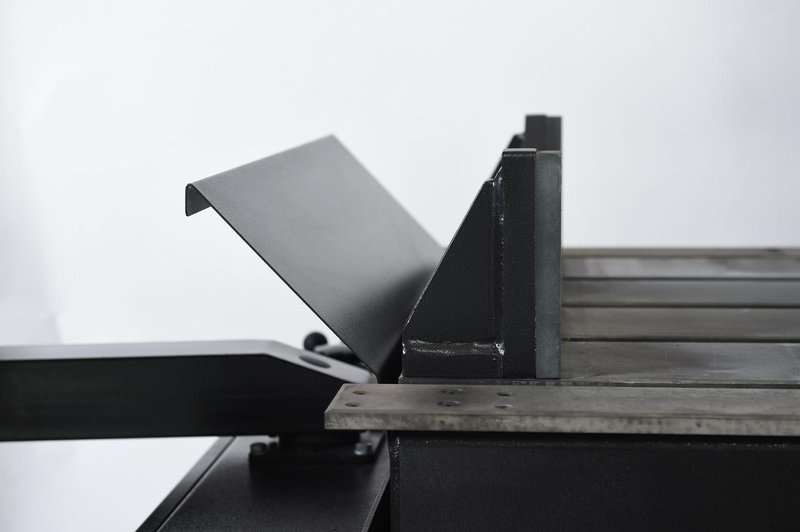

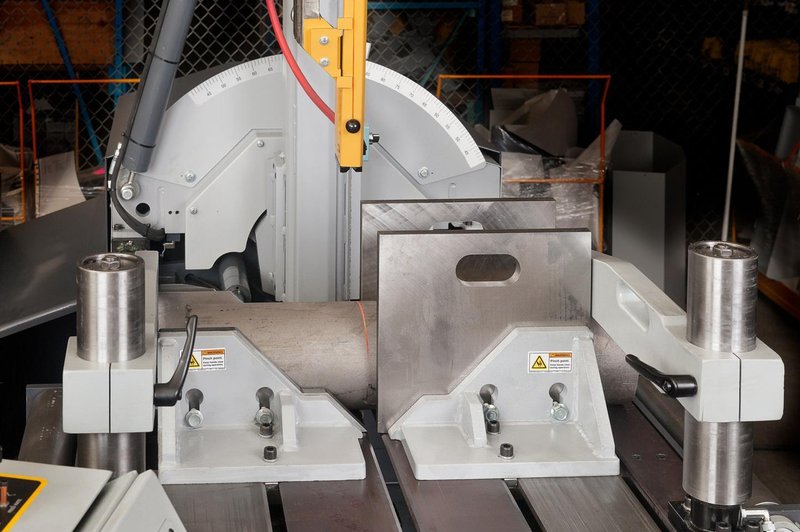

• Two full stroking hydraulic vises

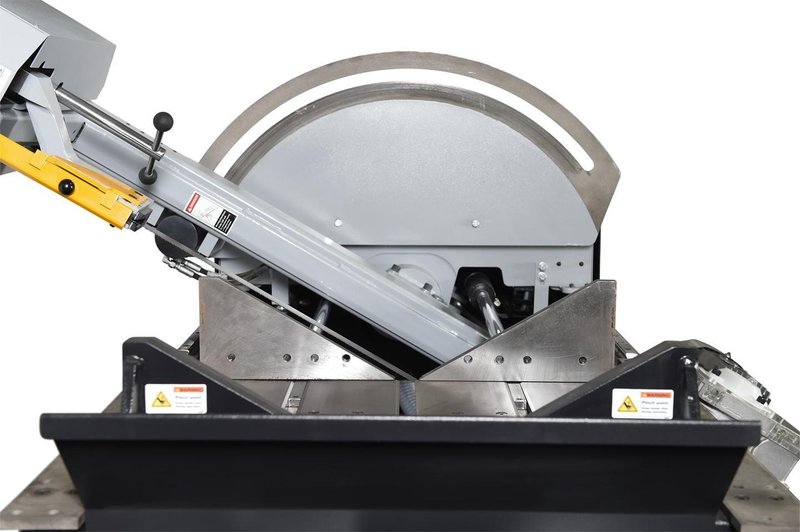

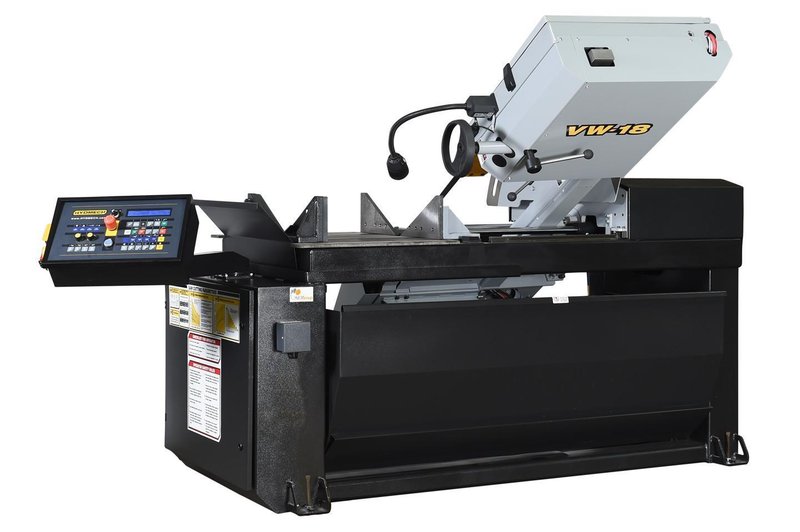

• Manual precise head positioning from 60° left to 60° right
• Digital angle display

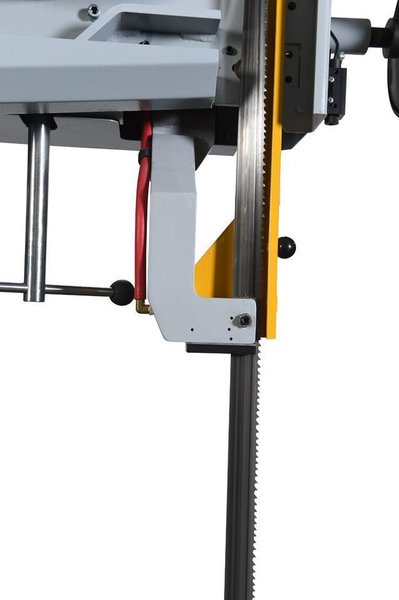

• Mechanically adjustable guide arm
• On-demand hydraulics save energy

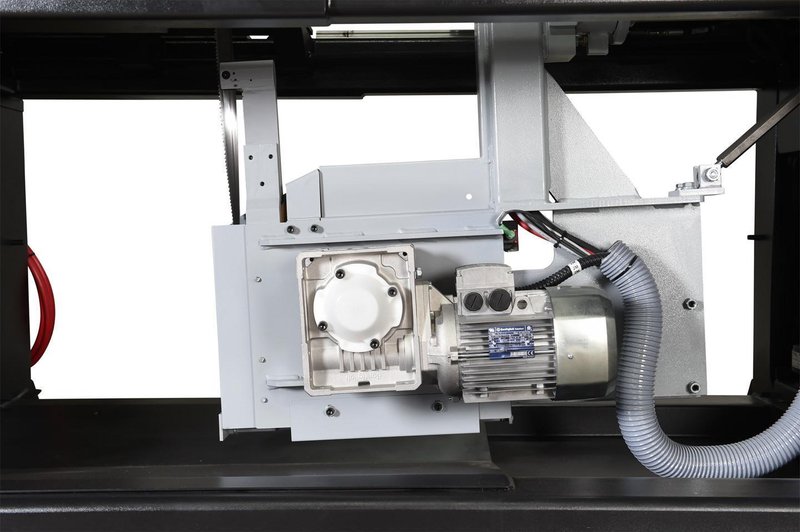

• 5 HP VFD. True direct blade drive – no belts/pulleys

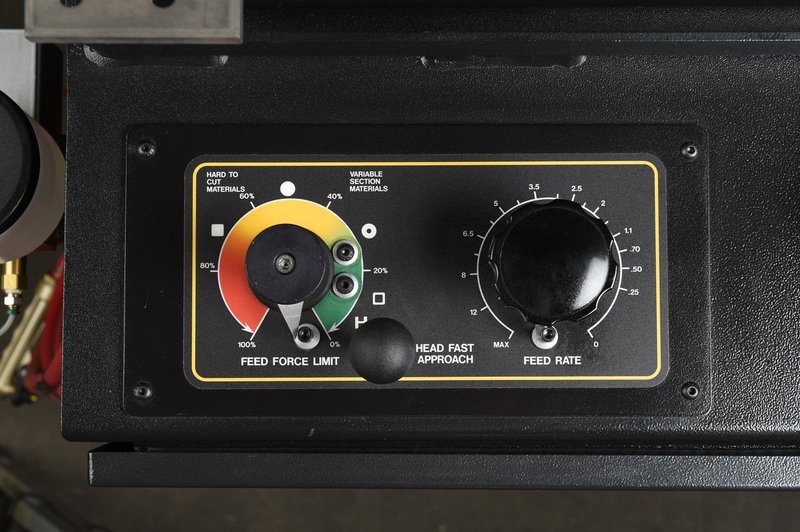

• Hydraulic positive down feed

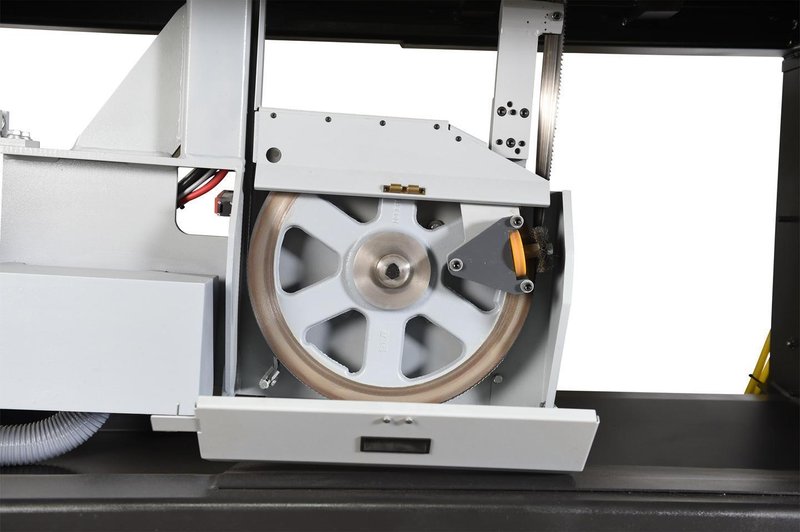

• Cast iron band wheels
• Replaceable blade brush

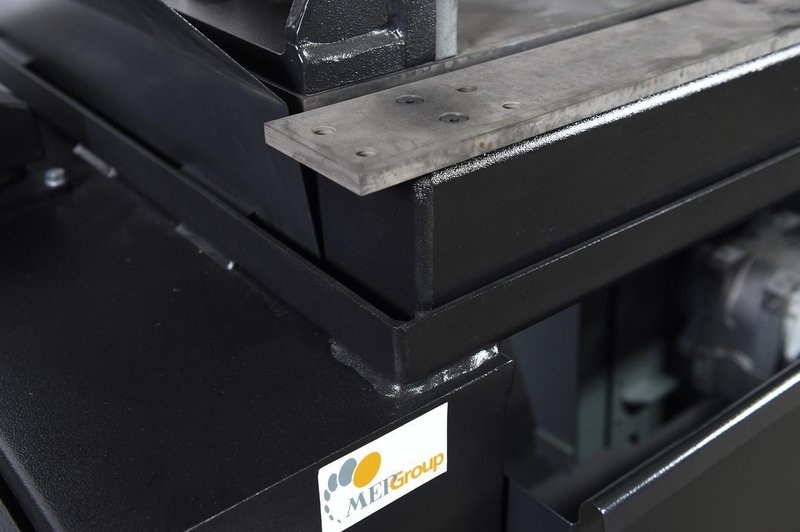

• Robust steel base

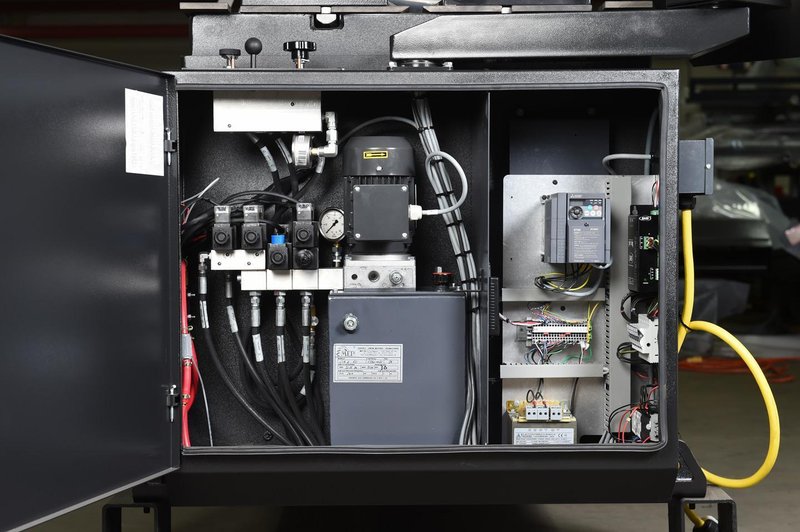

• Easy access electrical panel and hydraulics
• Blade breakage switch
• Mechanical band tensioning with digital readout
• Replaceable carbide guide inserts
• 5 HP hydraulic pump provides system pressure
• Safety door interlocks

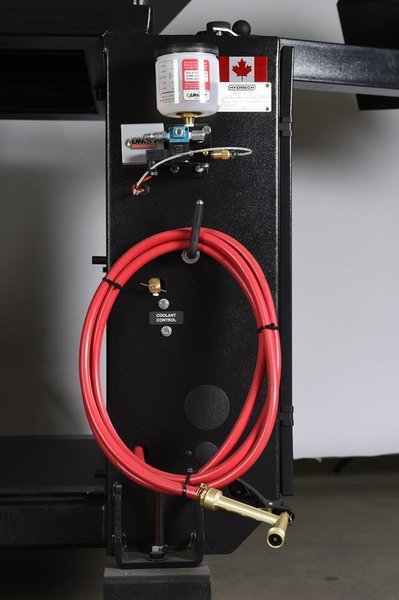

• Flood coolant with wash down hose
• Laser light
• Work light
