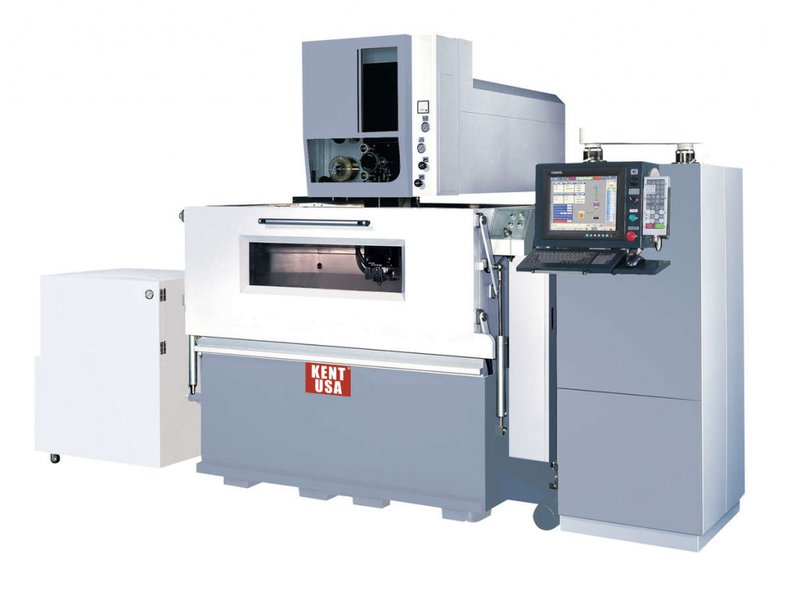

KENT USA WSI-860H CNC DOUBLE COLUMN WIRE SUBMERGE TYPE EDM - NEW

Brand
Model
WSI-860H
Stock #
12828
Year
Not specified
Condition
New
Location
Not specified
KENT USA WSI-860H CNC DOUBLE COLUMN WIRE SUBMERGE TYPE EDM - NEW

PRODUCT FEATURES

  • Machine structure designed and analyzed by CAE system for high structural rigidity.
  • U, V, Z axis strategically placed on upper column for enhanced spindle rigidity and precision.
  • Magnet power clutch wire-receiving systems.
  • ATW auto threading wire system
  • Permanent generator control system for wire tension stability
  • Accurate linear guide ways coupled with patented linear and block design

OPTIONAL ACCESSORIES

  • Diameter guide upper + lower (0.25 mm)
  • CAD/CAM Software
  • Water chiller
  • Power regulator / 15 kva
  • Parallel bar – for setting the work piece
  • Filter (2 pcs)
  • Resin / 5L
  • Brass Wire 0.25 mm / 3 kg
  • Power feed contact (2 pcs)
  • Water resistance meter
  • Wire tension meter
  • Wire speed meter
  • Water nozzle (upper/lower)(2 pcs) / 1 set
  • 22.5 degree water nozzle / set (upper/lower + diameter guide)



  • Max Work Piece Size (L x W x H)
  • Max Work Piece Weight
  • Drive & Servo
  • Simulation Axis
  • X/Y-Axis Travel
  • Z-Axis Travel
  • U/V-Axis Travel
  • Wire Diameter Range
  • Max Taper Angle
  • Max Axes Load
  • Conductivity
  • Water Tank Capacity
  • Net Weight
  • Dimension (W x D x H)
  • WSi-860H

  • 52.4” x 35.4” x 15.6”
  • 9,921 lbs
  • 5 axes AC servo
  • X / Y / U / V (4 axes)
  • 31.5” / 23.6”
  • 11.8"
  • 15.7” (Opt. 23.6”)
  • Ø 0.15~0.3 mm
  • ± 22.5° 3.93”
  • 35 lbs
  • Automatic
  • 686.8 Gallons
  • 14,330 lbs
  • 161” x 141.7” x 108.3”
