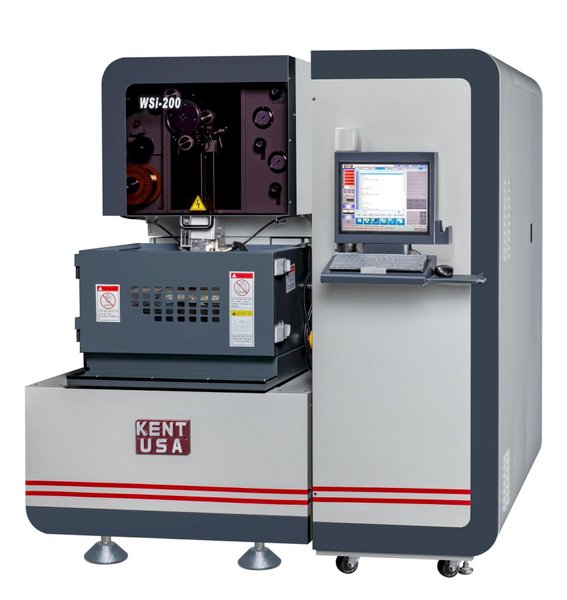

KENT USA WSI-200 CNC WIRE SUBMERGE TYPE EDM - NEW

Brand
KENT
Category
EDM Machines
Type
Wire CNC EDM
Model
WSI-200
Stock #
12824
Year
Not specified
Condition
New

Location

Not specified
KENT USA WSI-200 CNC WIRE SUBMERGE TYPE EDM - NEW

PRODUCT FEATURES

  • Machine structure designed and analyzed by CAE system for high structural rigidity.
  • U, V, Z axis strategically placed on upper column for enhanced spindle rigidity and precision.
  • Magnet power clutch wire-receiving systems.
  • ATW auto threading wire system
  • Permanent generator control system for wire tension stability
  • Accurate linear guide ways coupled with patented linear and block design

OPTIONAL ACCESSORIES

  • Diameter guide upper + lower (0.25 mm)
  • CAD/CAM Software
  • Water chiller
  • Power regulator / 15 kva
  • Parallel bar – for setting the work piece
  • Filter (2 pcs)
  • Resin / 5L
  • Brass Wire 0.25 mm / 3 kg
  • Power feed contact (2 pcs)
  • Water resistance meter
  • Wire tension meter
  • Wire speed meter
  • Water nozzle (upper/lower)(2 pcs) / 1 set
  • 22.5 degree water nozzle / set (upper/lower + diameter guide)

  • Max Work Piece Size (L x W x H)
  • Max Work Piece Weight
  • Drive & Servo
  • Simulation Axis
  • X/Y-Axis Travel
  • Z-Axis Travel
  • U/V-Axis Travel
  • Wire Diameter Range
  • Max Taper Angle
  • Max Axes Load
  • Conductivity
  • Water Tank Capacity
  • Net Weight
  • Dimension (W x D x H)

  • WSi-200

  • 22” x 18.5” x 4.5”
  • 661 lbs
  • 5 axes AC servo
  • X / Y / U / V (4 axes)
  • 15.7" / 7.87"
  • 4.7"
  • 1.8” / 1.8”
  • Ø 0.1~0.3 mm
  • ± 10° 2.4”
  • 13.23 lbs
  • Automatic
  • 118.8 Gallons
  • 3,747 lbs
  • 71” x 75” x 73”
