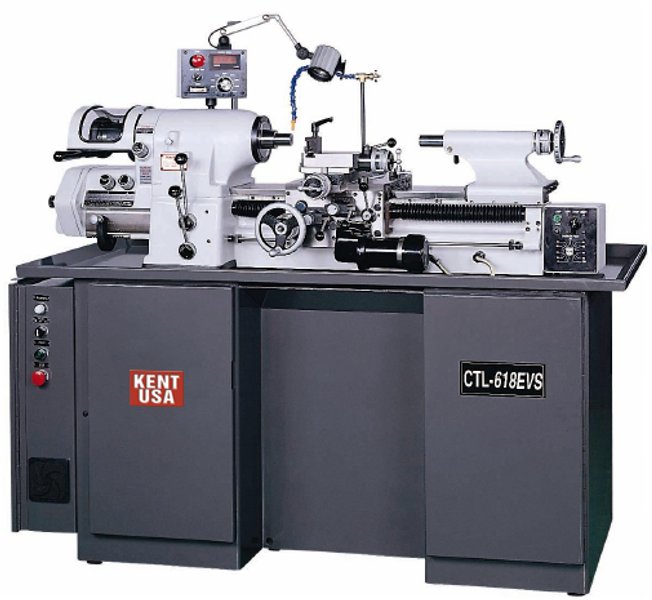

11" x 18" KENT USA CTL-618EVS PRECISION TOOLROOM LATHE - NEW

Brand
KENT
Category
Lathes & Turning Machines
Type
Toolroom Lathes
Model
CTL-618EVS
Stock #
12776
Year
Not specified
Condition
New

Location

Not specified
11" x 18" KENT USA CTL-618EVS PRECISION TOOLROOM LATHE - NEW

PRODUCT HIGHLIGHTS
  • Tool setting gauge
  • Collet fixture plates
  • Vertucak cut-off slide
  • Steady rest
  • Follow rest
  • Face plate
  • Taper turning attachment
  • 6″ zero-set universal 3-jaw chuck with 4° back plate
  • 6″ 4-jaw chuck with 4° back plate
  • DRO system
  • 6 station automatic indexing turret
  • Indicator carriage stop
  • 4 station turret
  • Radius turning attachmen

OPTIONAL ACCESSORIES

  • 0-4000 infinitely variable spindle speeds using electronic vector drive
  • 1-1/16” 5C thru-collet capacity
  • Induction hardened and ground alloy steel bedways for extra longevity
  • Full-bearing carriage
  • T-Slot compound
  • Inch/metric reading on dials



  • Swing Over Bed
  • Swing Over Cross Slide
  • Swing Over Gap
  • Width of Bed
  • Distance Between Centers
  • Cross Slide Travel
  • Top Slide Travel
  • Spindle Speeds
  • Spindle Speed Range
  • Through Hole Diameter
  • Spindle Nose
  • Spindle Bore Taper
  • Thread – Standard (Whit-worth)
  • Thread – Metric Pitch
  • Longitudinal Feed
  • Cross Feed
  • Lead Screw Diameter
  • Threading Pitch
  • Quill Travel
  • Quill Diameter
  • Quill Bore Taper
  • Main Motor
  • Coolant Pump Motor
  • Machine Dimension
  • Packing Dimension
  • Machine weight
  • Packing weight

  • CTL-618EVS

  • 11"
  • 6"
  • 9"
  • 6-3/4"
  • 18"
  • 6"
  • 3"
  • Inf. Variable
  • 0-4000 RPM
  • -
  • -
  • I - 5C (10°)” & O - 4°
  • 36 (11-108) TPI
  • 36 (0.275-2.7) mm
  • 5/16" - 7" ipm
  • 5/16" - 4" ipm
  • 1"
  • 8 TPI
  • 3.75"
  • 1.358"
  • MT#2
  • 3 HP
  • 1/4 HP
  • 65" x 28" x 58"
  • 85" x 36" x 68"
  • 2300 LBS
  • 2450 LBS
