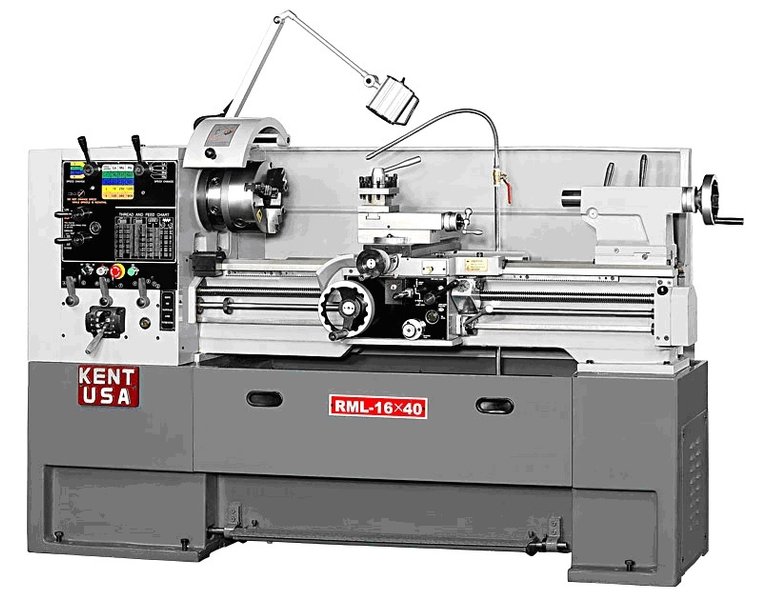

16" x 40" KENT USA RML-1660VT MANUAL PRECISION LATHE - NEW

Brand
KENT
Category
Lathes & Turning Machines
Type
Toolroom Lathes
Model
RML-1660VT
Stock #
12893
Year
Not specified
Condition
New

Location

Not specified
16" x 40" KENT USA RML-1660VT MANUAL PRECISION LATHE - NEW

PRODUCT HIGHLIGHTS
  • 5 HP main spindle motor
  • 36-1800, 12 steps spindle speeds
  • Hardened and ground gears and bedways
  • Cast iron machine bedways with full one piece cast base and front loading chip tray for easier cleaning
  • Foot brake and T-Slot compound Inch/metric reading on dials
  • Inch/metric ruler on tailstock quill
  • ISO 9001 certified manufacturer


STANDARD ACCESSORIES
  • 3-jaw chuck (9″)
  • Steady rest
  • Follow rest
  • 4-position tool post
  • Coolant system
  • Full-length splash guard
  • Worklight
  • Chuck cover
  • Thread chasing dial
  • Toolbox with standard tools

OPTIONAL ACCESSORIES

  • 4-jaw chuck (10″)
  • Digital Readout System
  • Royal spindle type live center
  • BTC 3-jaw chuck with back plate
  • Taper turning attachment
  • Rustlick coolant
  • Micro carriage stop
  • Face plate (12″ D1-6)
  • Transformer for 440V power (5 KVA)





  • Swing Over Bed
  • Swing Over Cross Slide
  • Swing Over Gap
  • Width of Bed
  • Distance Between Centers
  • Cross Slide Travel
  • Top Slide Travel
  • Spindle Speeds
  • Spindle Speed Range
  • Through Hole Diameter
  • Spindle Nose
  • Spindle Bore Taper
  • Thread – Standard (Whit-worth)
  • Thread – Metric Pitch
  • Longitudinal Feed
  • Cross Feed
  • Lead Screw Diameter
  • Threading Pitch
  • Quill Travel
  • Quill Diameter
  • Quill Bore Taper
  • Main Motor
  • Coolant Pump Motor
  • Machine Dimension
  • Packing Dimension
  • Machine weight
  • Packing weight

  • RML-1660VT

  • 16-3/16"
  • 10-3/8"
  • 23"
  • 10.25"
  • 60"
  • 8-11/16"
  • 5.5"
  • Inf. Variable
  • 20-2500 RPM
  • 2-1/16"
  • D1-6 Camlock
  • MT#6
  • 45 (2-72) TPI
  • 39 (0.2-14) mm
  • .002" - .067"
  • .001" - .034"
  • 4/5"
  • 4 TPI
  • 6"
  • 2"
  • MT#4
  • 5 HP (7.5 HP Optional)
  • 1/8 HP
  • 99" x 40" x 62"
  • 105" x 44" x 66"
  • 3740 LBS
  • 4180 LBS
