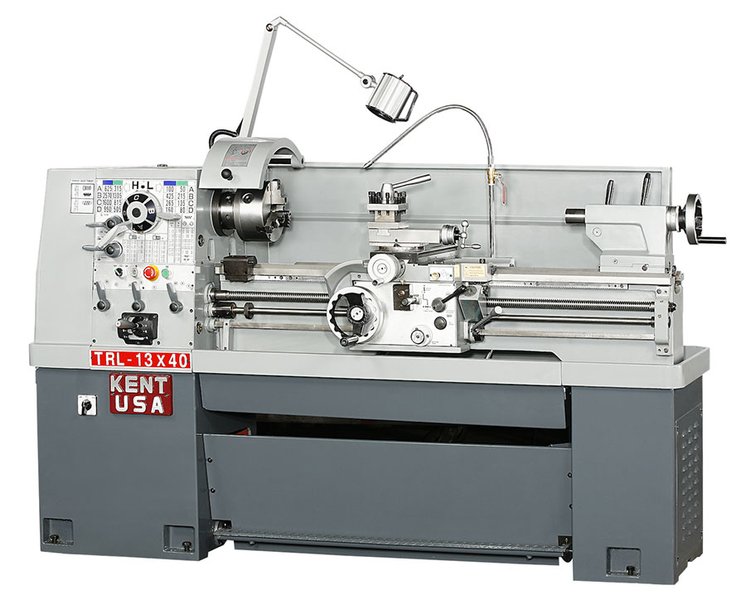

13" x 40" KENT USA TRL-1340/1340V MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
- Heaviest duty 13” lathe in its class
- 5 HP main spindle motor
- 16 speeds, geared headstock (TRL-1340) (50 – 2570 RPM)
- Infinitely variable speed in Hi/Low geared speed ranges (TRL-1340V) (100-500-3000 RPM)
- Jog button for easy gear changes
- Hardened and ground gears and bedways
- Cast iron machine bedways and base
- Removable chip pan for easy clean up
- Foot brake and T-Slot compound
- Inch/metric reading on dials
- Inch/metric ruler on tailstock quill
- ISO 9001 certified manufacturer
STANDARD ACCESSORIES
- 3-jaw chuck (7″)
- Steady rest
- Follow rest
- 4-position tool post
- Coolant system
- Full-length splash guard
- Worklight
- Chuck cover
- Thread chasing dial
- Toolbox with standard tools
OPTIONAL ACCESSORIES
- 4-jaw chuck (8″)
- Digital Readout System
- Royal spindle type live center
- BTC 3-jaw chuck with back plate
- Taper turning attachment
- Rustlick coolant
- Swing Over Bed
- Swing Over Cross Slide
- Swing Over Gap
- Width of Bed
- Distance Between Centers
- Cross Slide Travel
- Top Slide Travel
- Spindle Speeds
- Spindle Speed Range
- Through Hole Diameter
- Spindle Nose
- Spindle Bore Taper
- Thread – Standard (Whit-worth)
- Thread – Metric Pitch
- Longitudinal Feed
- Cross Feed
- Lead Screw Diameter
- Threading Pitch
- Quill Travel
- Quill Diameter
- Quill Bore Taper
- Main Motor
- Coolant Pump Motor
- Machine Dimension
- Packing Dimension
- Machine weight
- Packing weight
- 13-3/8"
- 8.25"
- 20"
- 9"
- 40"
- 7"
- 4"
- 16
- 50-2570 RPM
- 1-9/16"
- ASA D1-4 Camlock
- MT#5
- 45 (2-72) TPI
- 39 (0.2-14) mm
- .002" - .067"
- .001" - .0375"
- 1-1/8"
- 4 TPI
- 4"
- 2"
- MT#3
- 5 HP
- 1/8 HP
- 81.5" x 32" x 56"
- 90" x 37" x 60"
- 2000 LBS
- 2440 LBS
|
