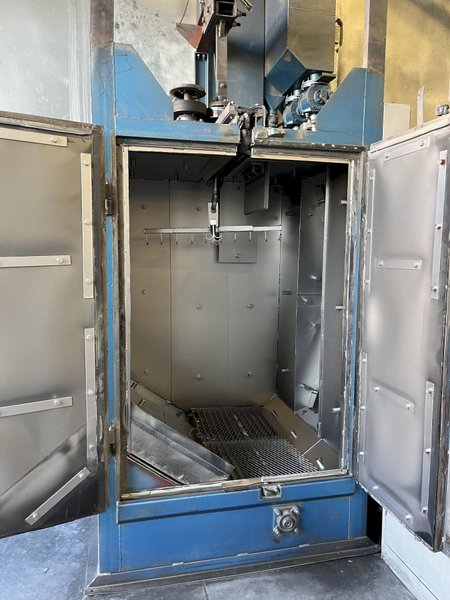

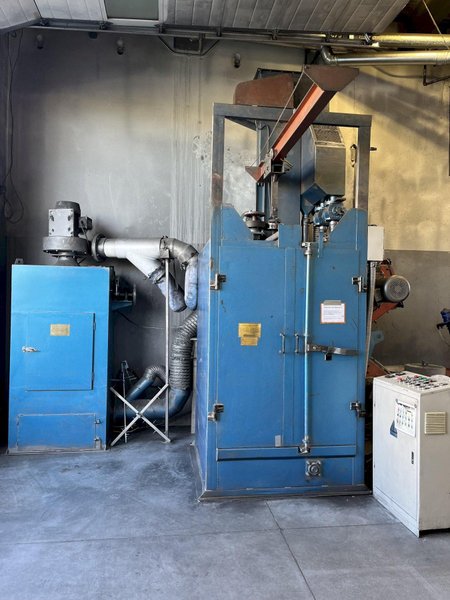

Automatic Spinner Hanger Shot Blast Machine

Manufacture: Doublestar China

Model: Q376

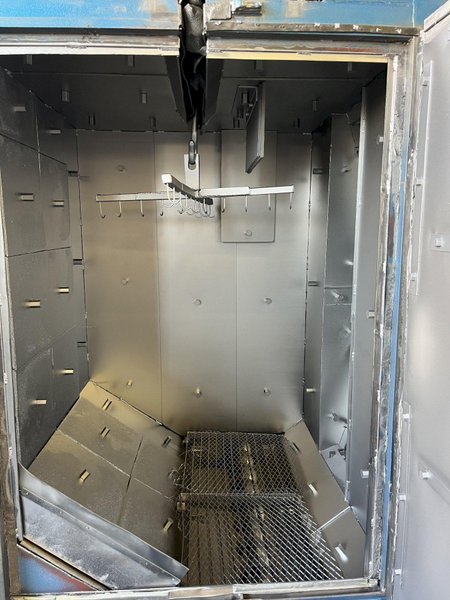

Opening: 42" diameter x 60" tall (Ideal size is 40" x 40")

Footprint: 12' wide x 10' deep x 13-1/2' tall

Spinner hanger hook: 1 rated for 1,320 lbs, rotating speed is 2.8 r/min

Blast cabinet wear plates: 65Mn

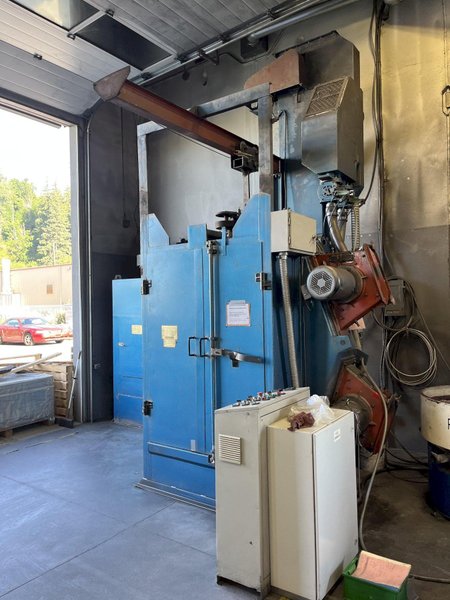

Blastwheels: 2 - 10HP blastwheels with a diameter of 16.535" (420mm). This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, direct drive with a double disk design (each disk is over 3/4" thick), and straight blades

Abrasive flow rate: 264 lbs/min each wheel x two = 528 lbs/min total

Velocity: 250 ft/sec

Media cleaning/recycling system: bucket elevator with airwash separator

Initial media charge: 1,100 lbs

Electric control system: control panel with PLC, 460V, 3 phase, 60 Hz

Mechanical Shaking Bag Type Dust Collector:

Model: F351E

Bags: 24 pcs

Bag dimensions: 5” diameter x 60” long

Dimentions: 52" x 30" x 8' tall

Voltage: 460V 3 phase

Efficiency: 99.6% dust removal

Blower: 4HP @ 2,000CFM

Shaking Motor: .5HP (1/2HP)

Dust particle size: 0.1 micron (.001mm, or .00004”)Q376F electric control system consists of an operator control panel with an operating voltage of 460V, 3 phase, 60 Hz. The total installed motors are 29HP, which is 21.62Kw/kVA (47A) of power for the entire machine with dust collector.
