Dimensions | 54"x 54” x 68" tall (Ideal operating size is 30" dia x 48" tall) |
Weight | 1102 pounds |

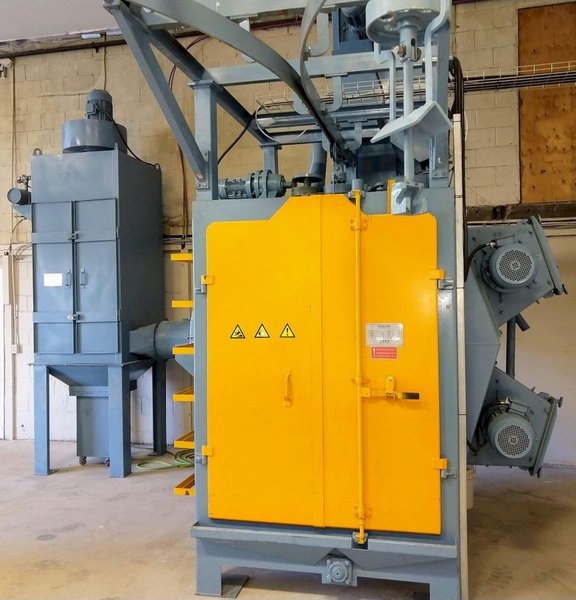

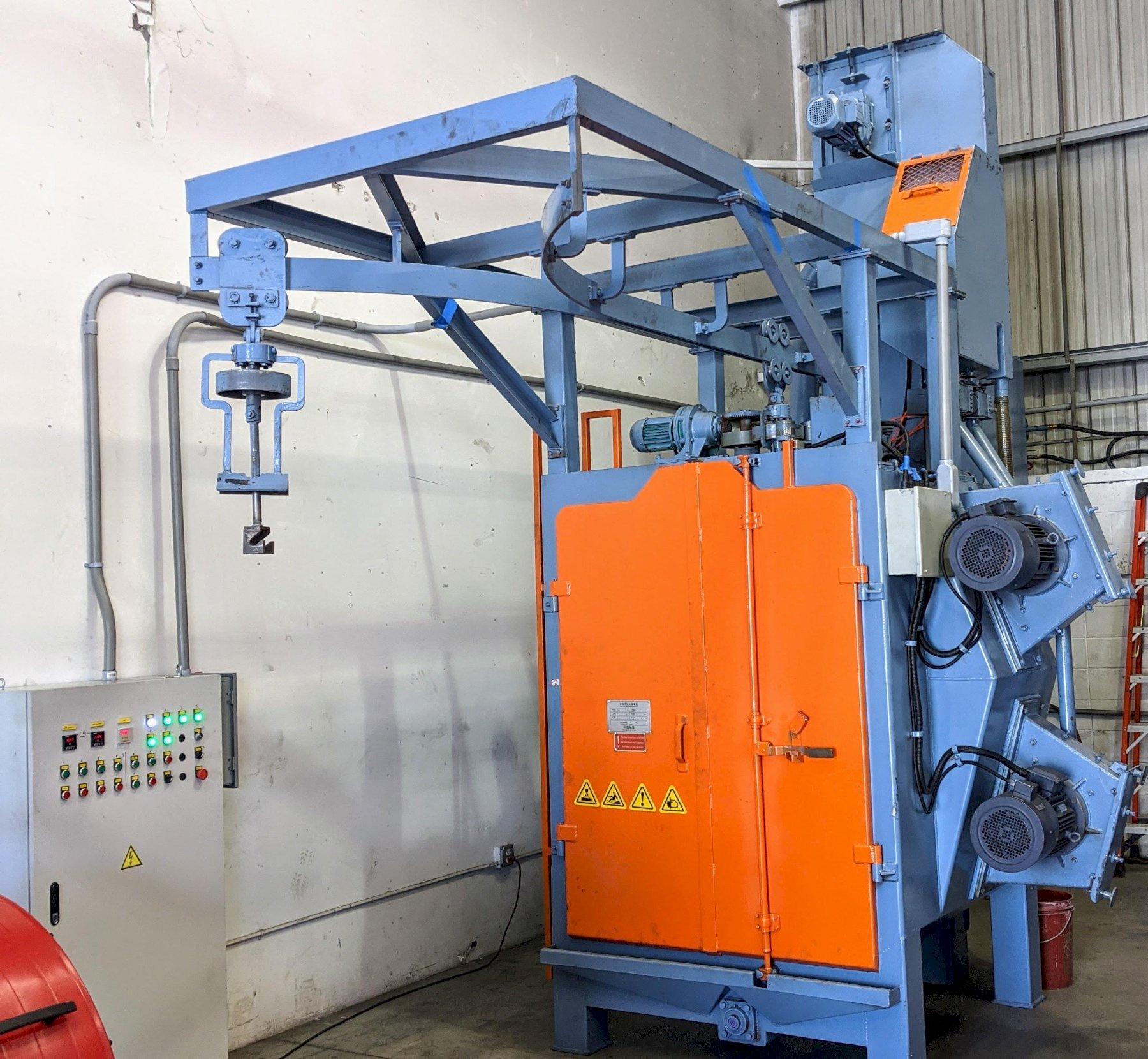

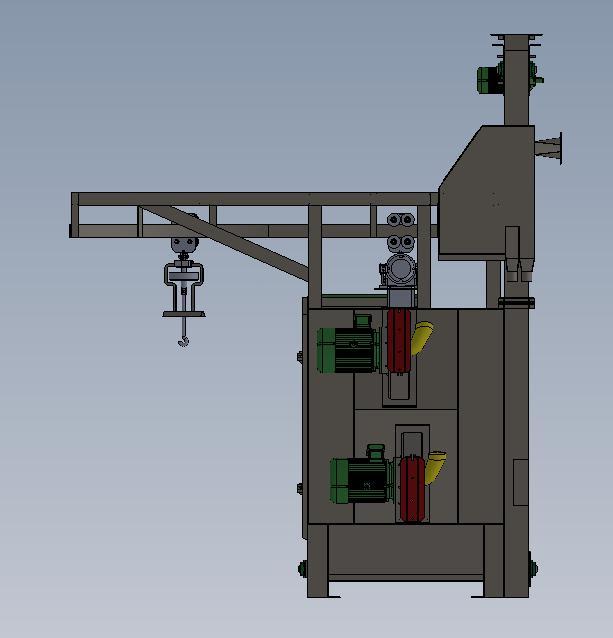

New Automatic "Y" Spinner Hanger Shot Blast Machine
Model: TD377

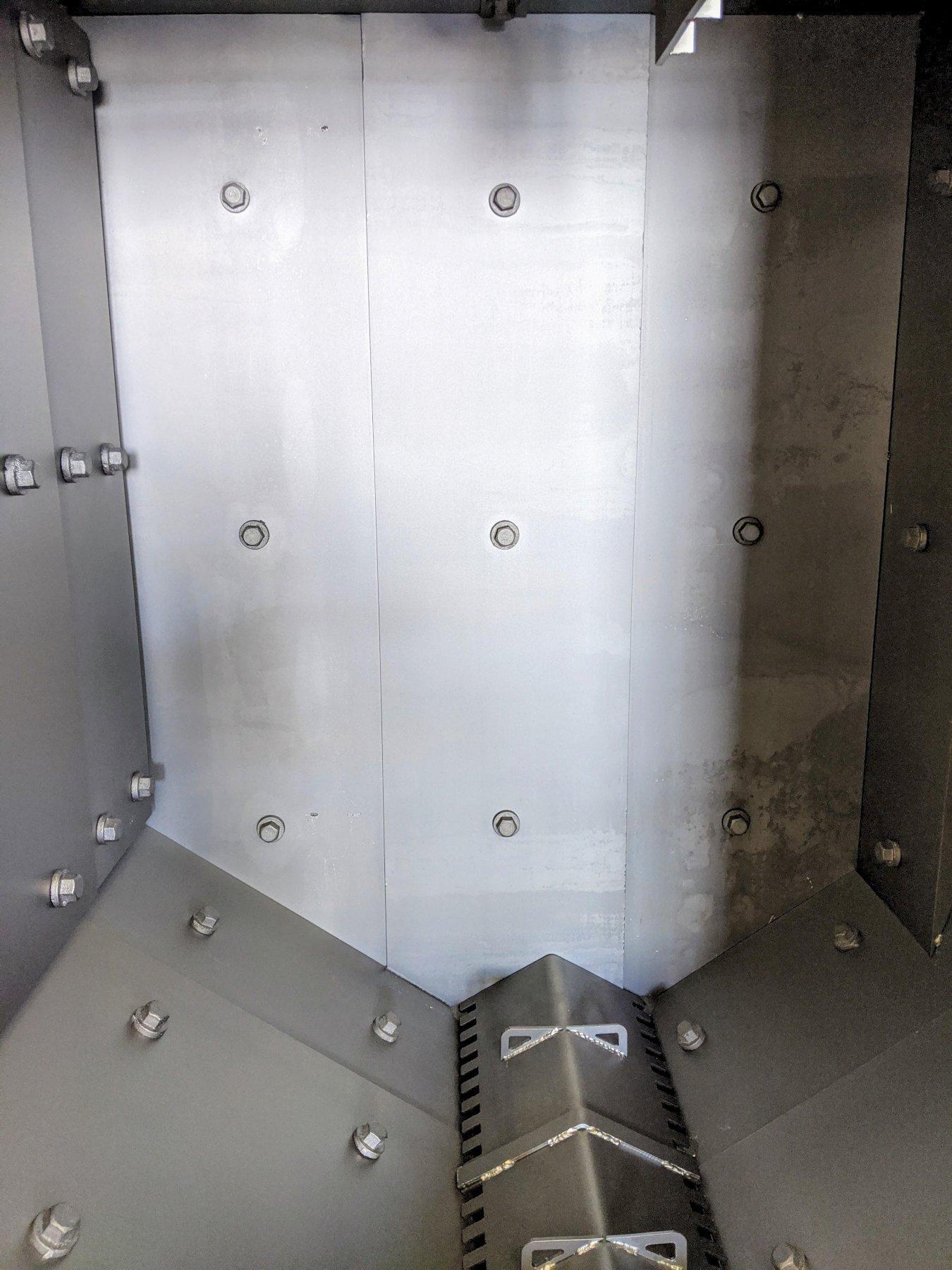

Blastroom inside dimensions: 54"x 54” x 68" tall (Ideal operating size is 30" dia x 48" tall)
Footprint/area required: 6ft wide x 20ft deep x 14ft tall with duct work and dust collector behind machine
Spinner hanger hook: 2 rated for 1,102 lbs

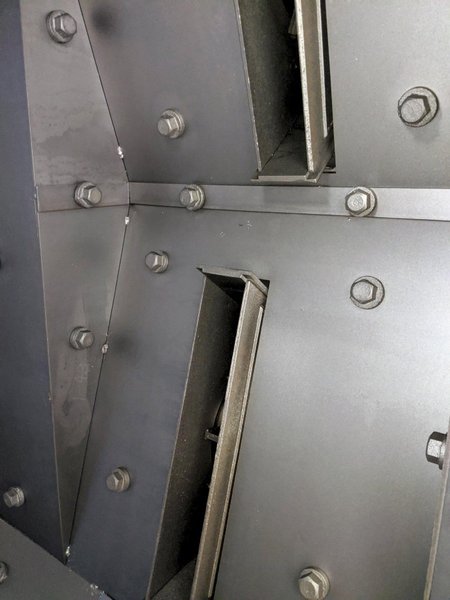

Blastwheels: 2 - 10HP blastwheels. This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, direct drive with a double disk design (each disk is over 3/4" thick), and straight blades
Abrasive flow rate: 264 lbs/min each wheel x two = 528 lbs/min total
Velocity: 250 ft/sec
Media cleaning/recycling system: bucket elevator with airwash separator
Initial media charge: 1,100 lbs

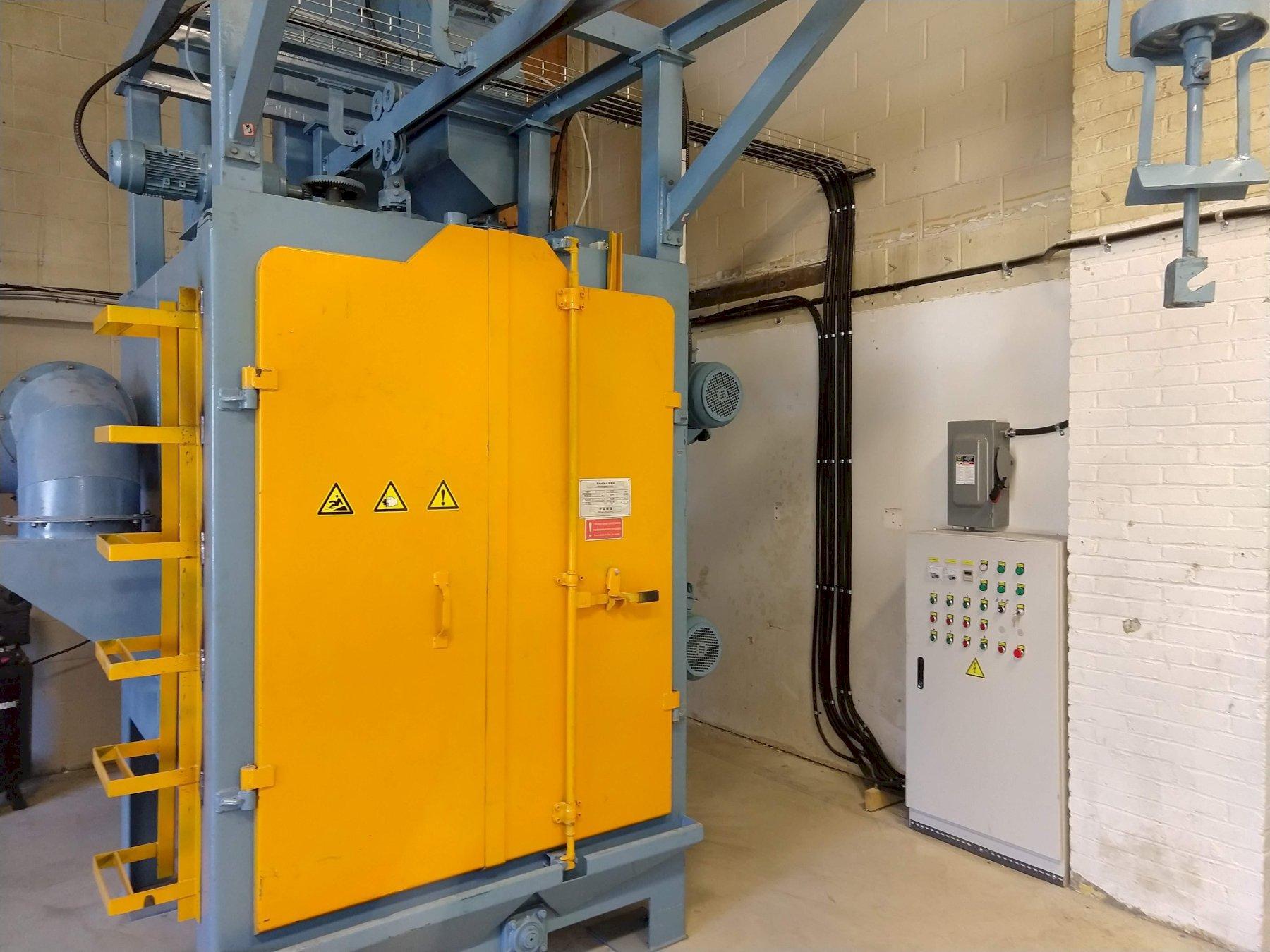

Electric control system: control panel, 460V, 3 phase, 60 Hz
Total system weight 10,000 pounds, & we need 25-30 feet of a standard flatbed truck length with a height of 7 feet laid down (8ft 7in, 104” standing up with rotation motor & gear box), standard truck width

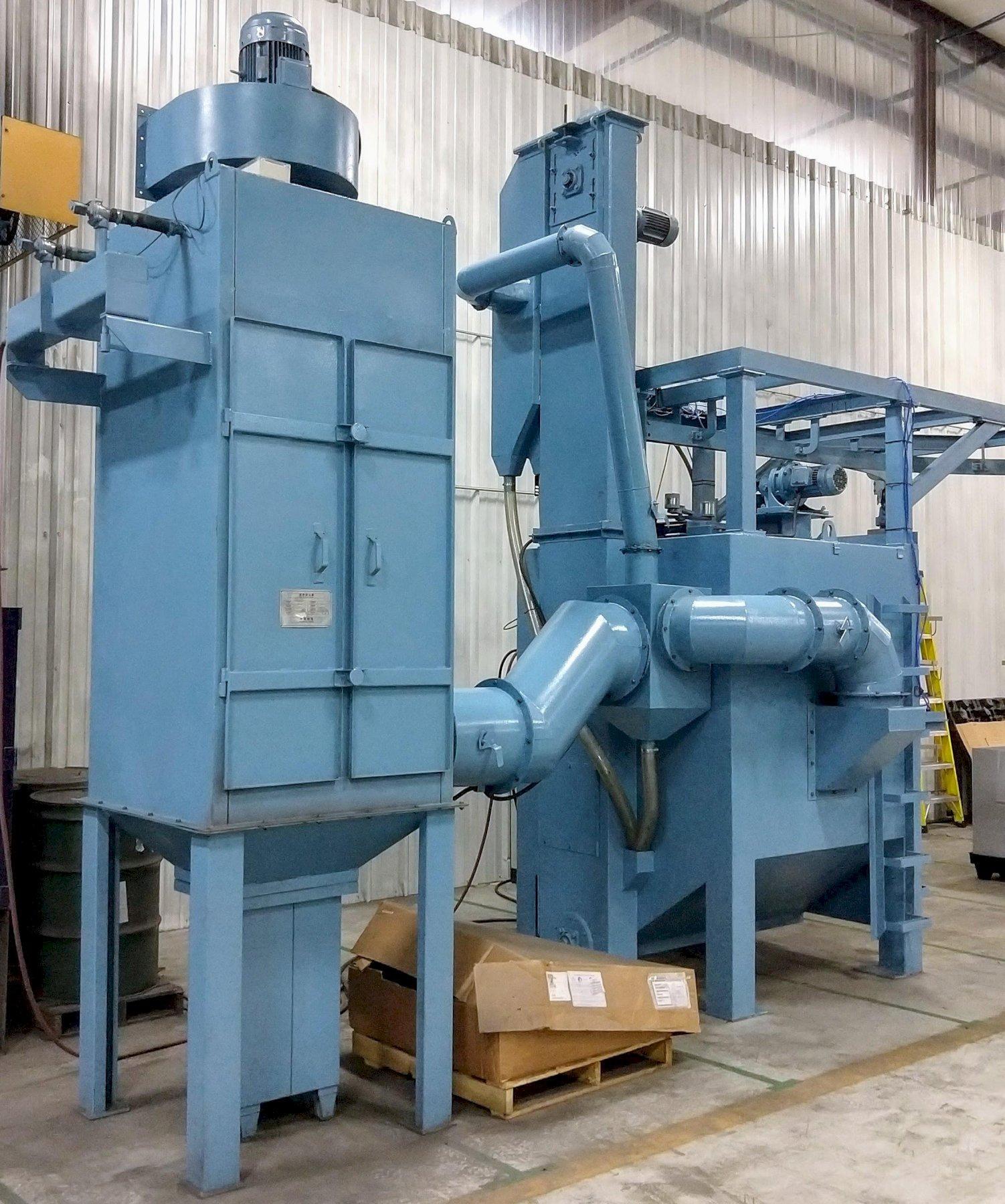

Dust Collector with Reverse Pulse Cartridges: Model: TDL-8 Cartridges: 8 Voltage: 460V 3 phase Blower: 7HP @ 3000 CFM Top Mounted Fan Pulse Clean with Timer |
