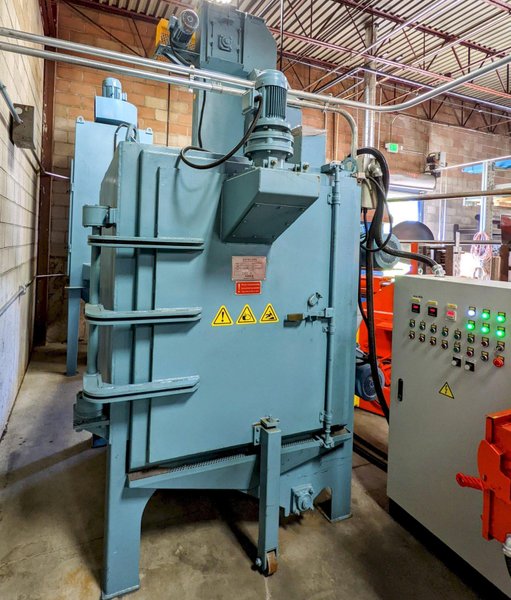

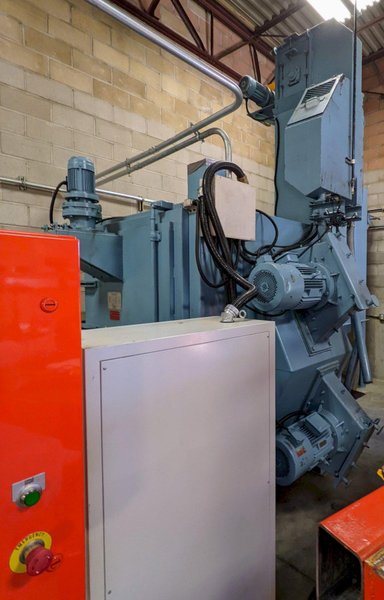

New Automatic Spinner Hanger Single Swing Door Shot Blast Machine
Brand
Not specified
Model
TD367
Stock #
Not specified
Year
2022
Condition
New
Location
Ohio
| Dimensions | Maximum workpiece/fixture size: 27" diameter x 35" tall |
| Weight | 1102 pounds |
|
New Automatic Spinner Hanger Single Swing Door Shot Blast Machine
Model: TD367
Maximum workpiece/fixture size: 27" diameter x 35" tall
Footprint/area required: 6ft wide x 20ft deep x 14ft tall with duct work and dust collector behind machine

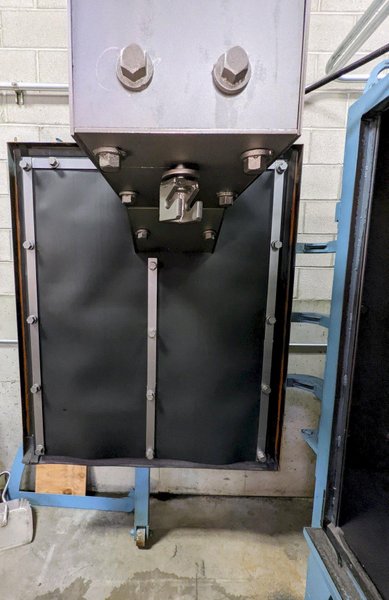

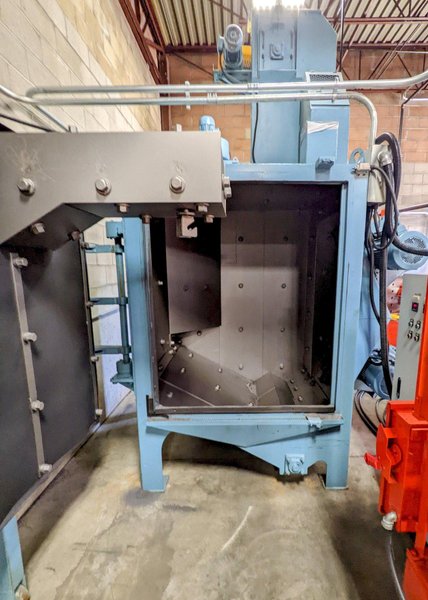

Swing door hook: 1 Hook rated for 1,102 lbs

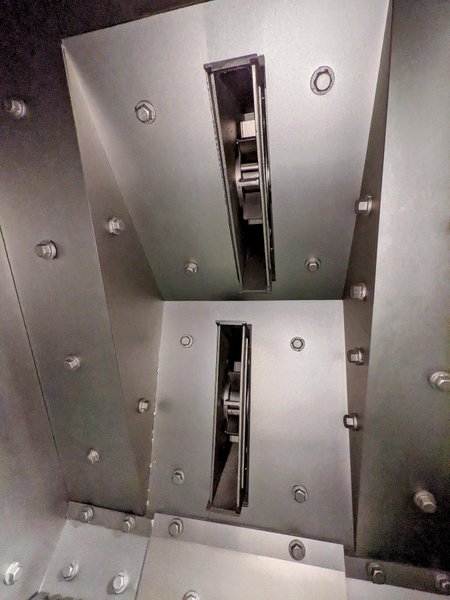

Blastwheels: 2 - 10HP blastwheels with VFD's for soft start and gentile blast if desired. This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, direct drive with a double disk design (each disk is over 3/4" thick), and straight blades
Abrasive flow rate: 264 lbs/min each wheel x two = 528 lbs/min total
Velocity: 250 ft/sec

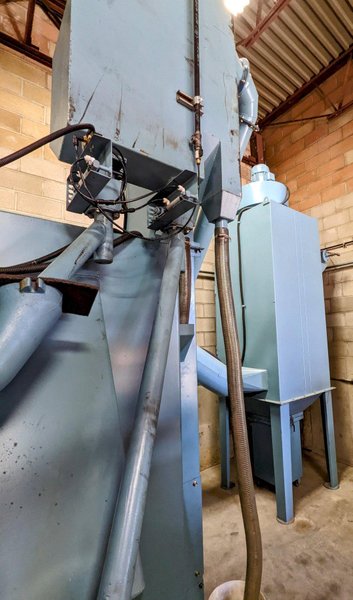

Media cleaning/recycling system: bucket elevator with airwash separator
Initial media charge: 1,100 lbs

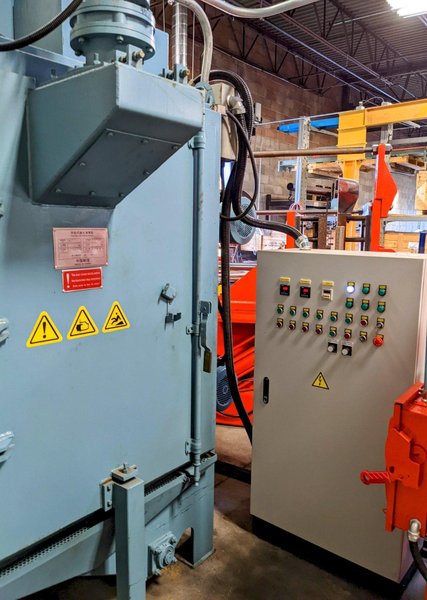

Electric control system: control panel, 460V, 3 phase, 60 Hz

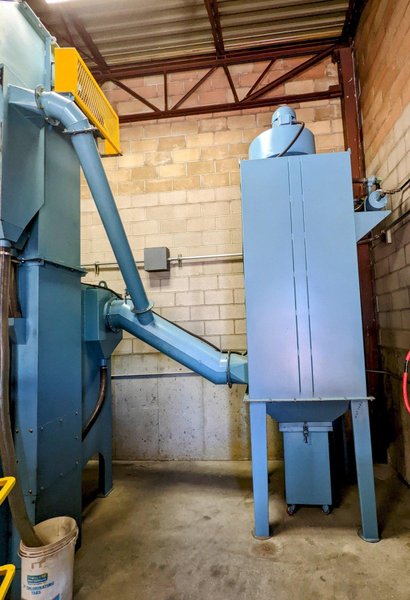

Dust Collector with Reverse Pulse Cartridges:
Model: TDL-8 Cartridges: 8 Voltage: 460V 3 phase Blower: 7HP @ 3000 CFM Top Mounted Fan Pulse Clean with Timer F.O.B. Litchfield, Ohio 44253 USA
Loaded onto flatbed truck
|
|
