Dimensions | Diameter of end disk barrel head: 39-1/2" x 43-1/2” wide belt |
Weight | 1322 pounds |

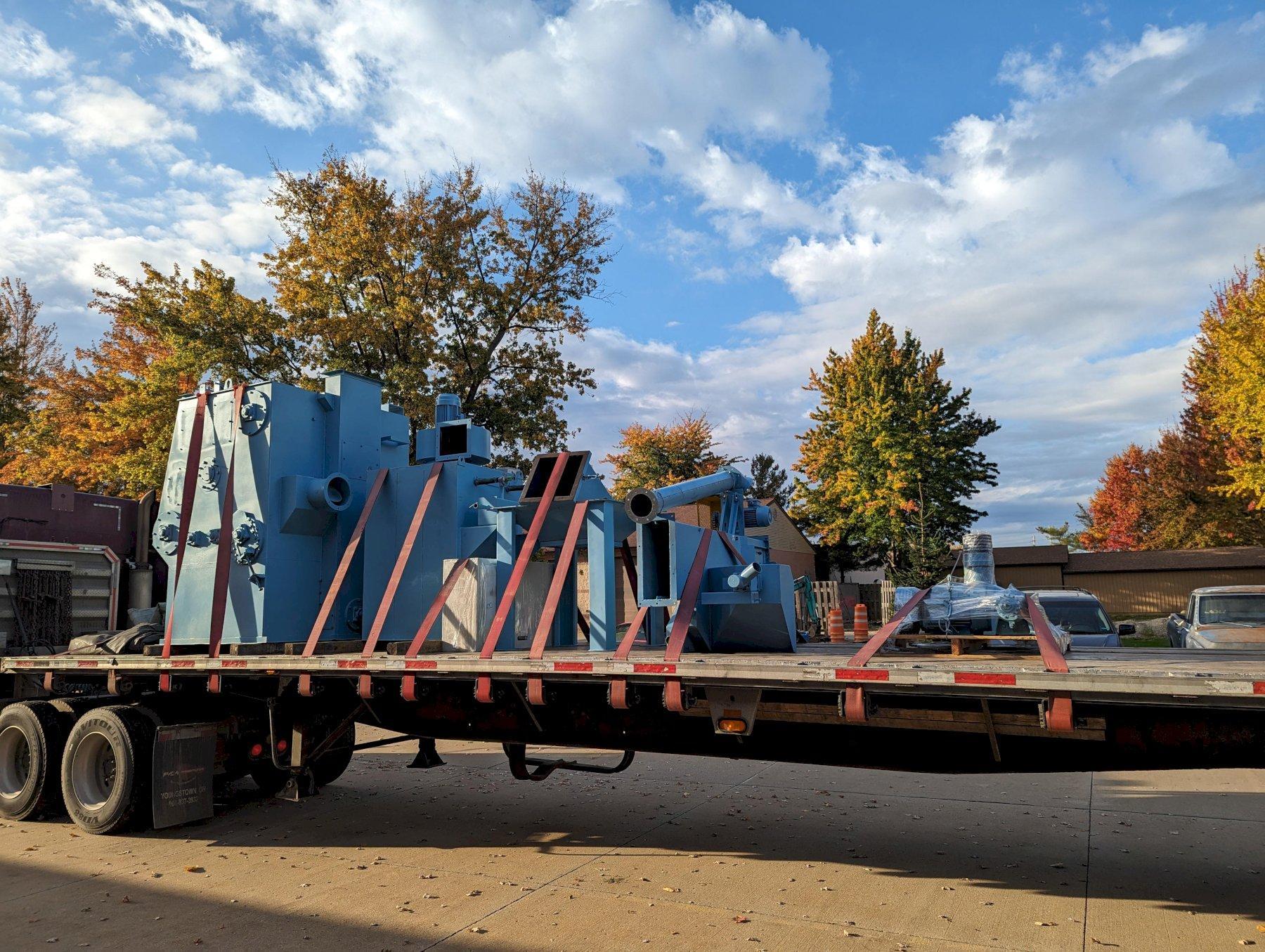

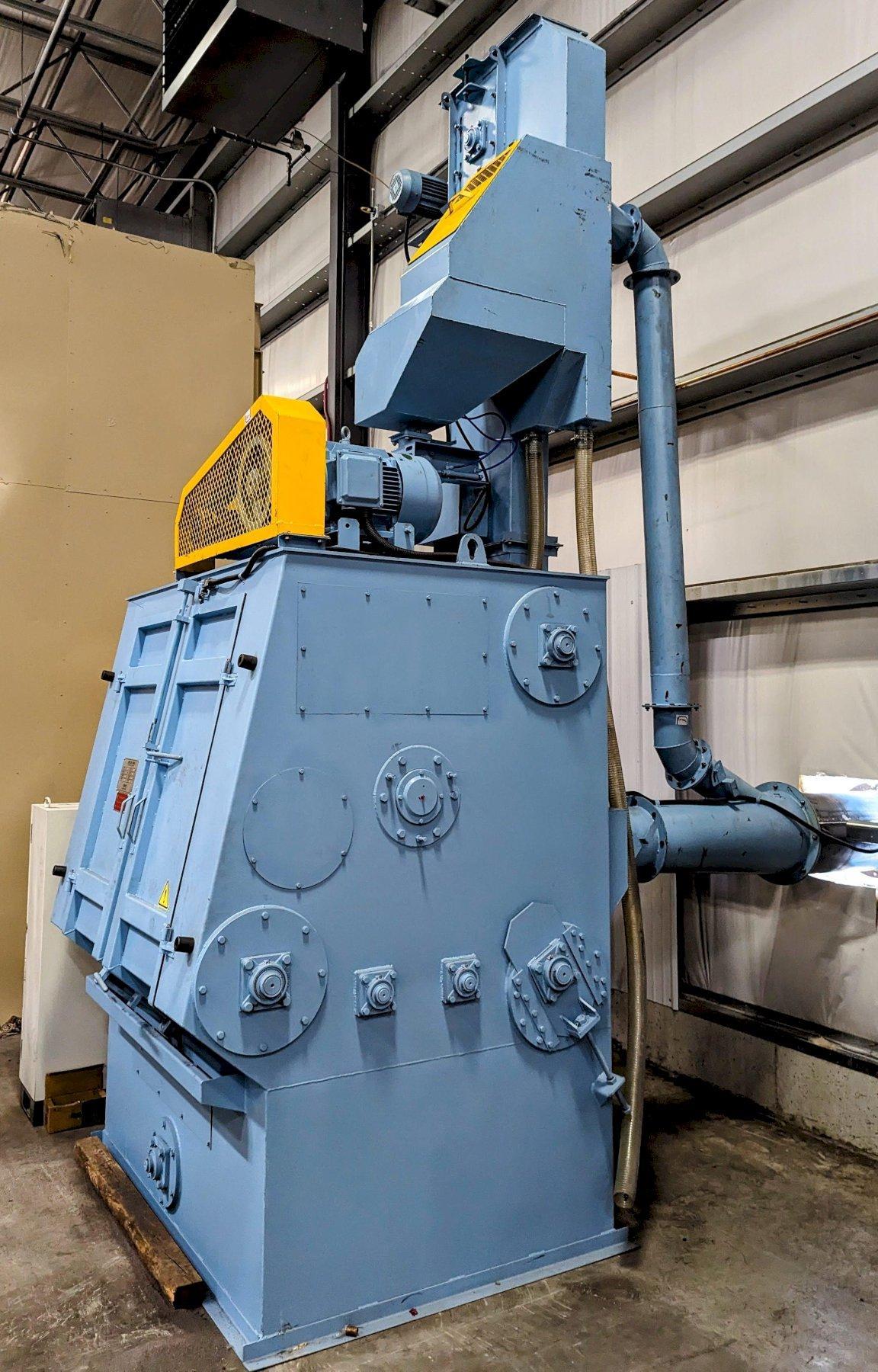

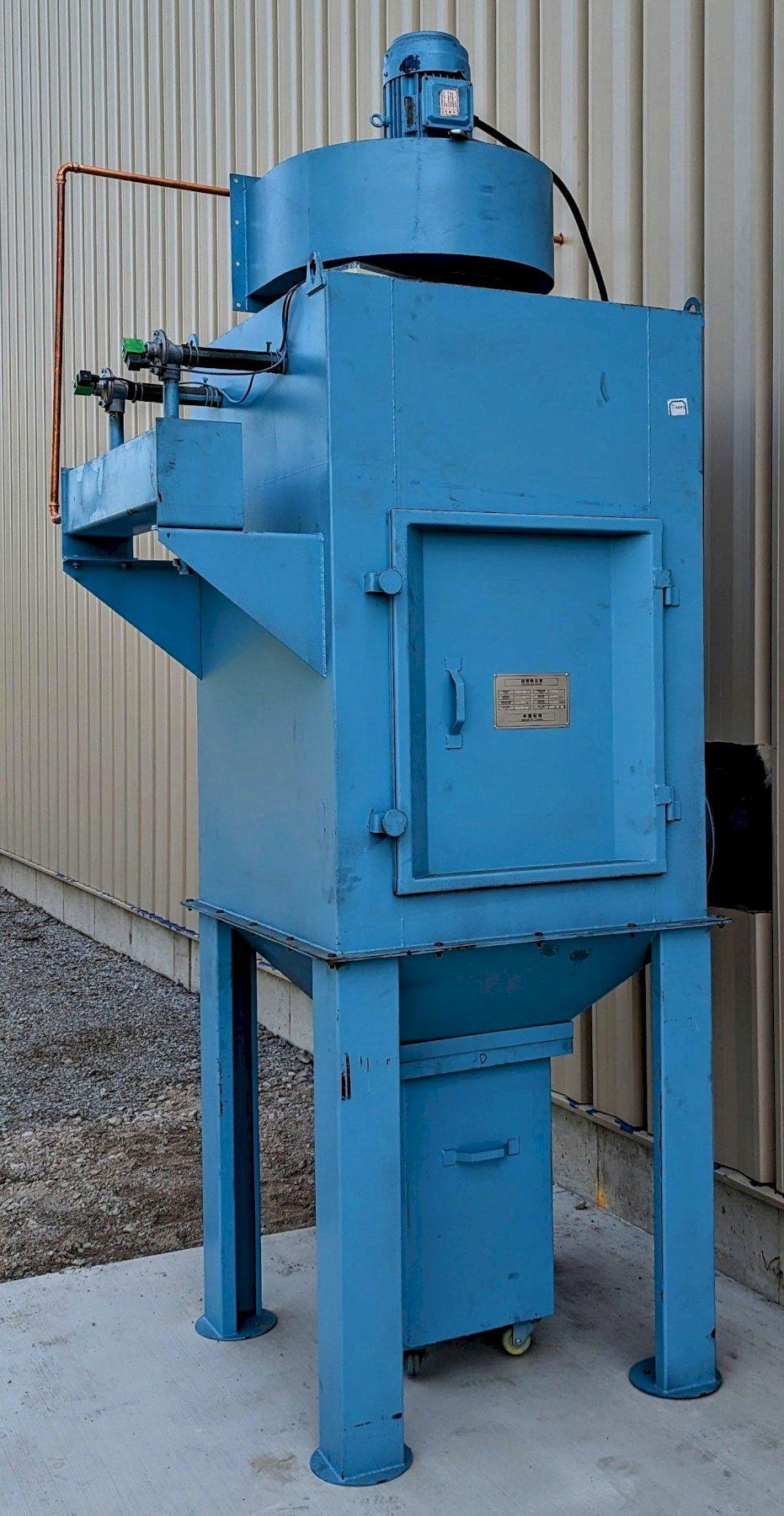

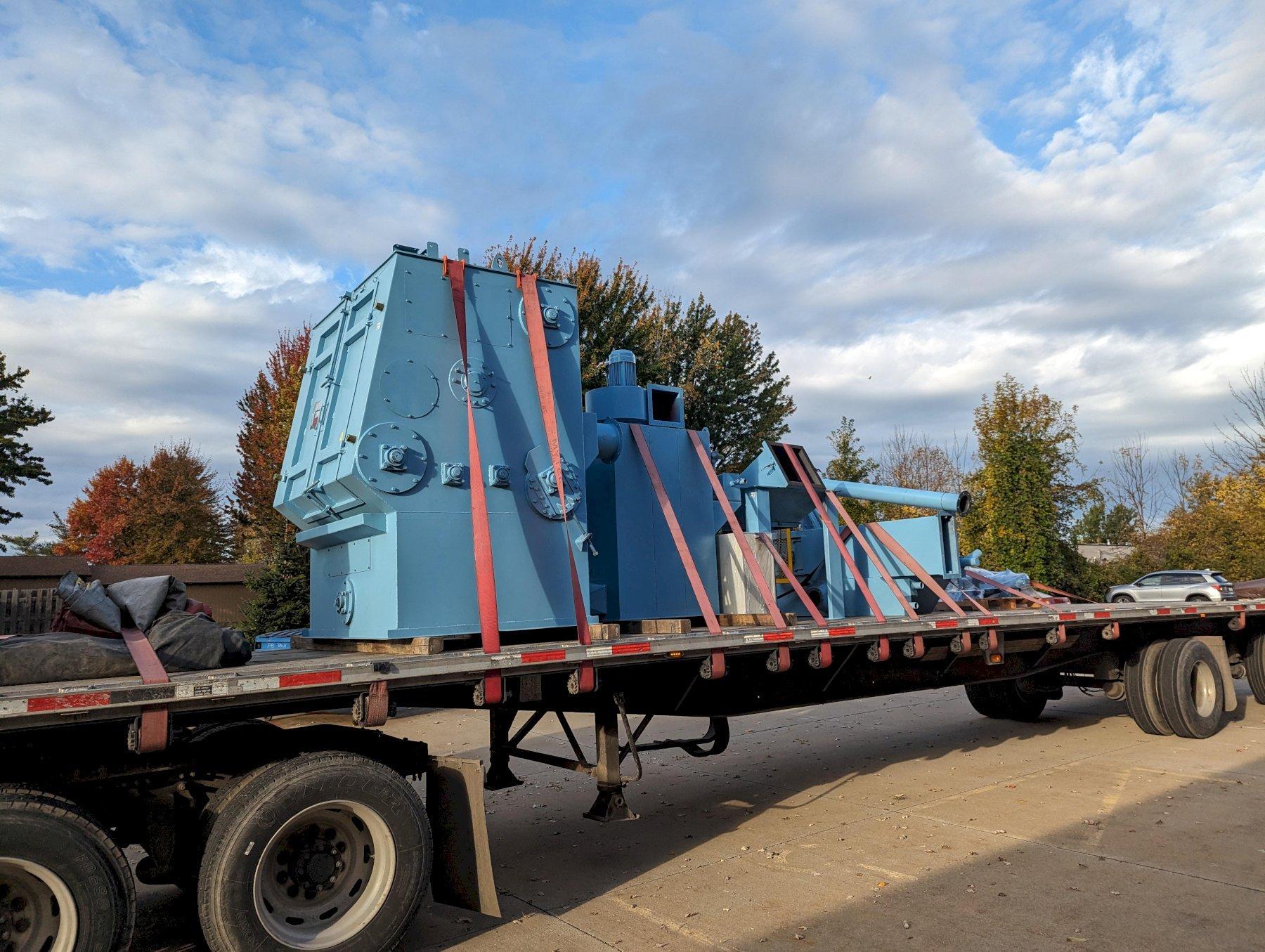

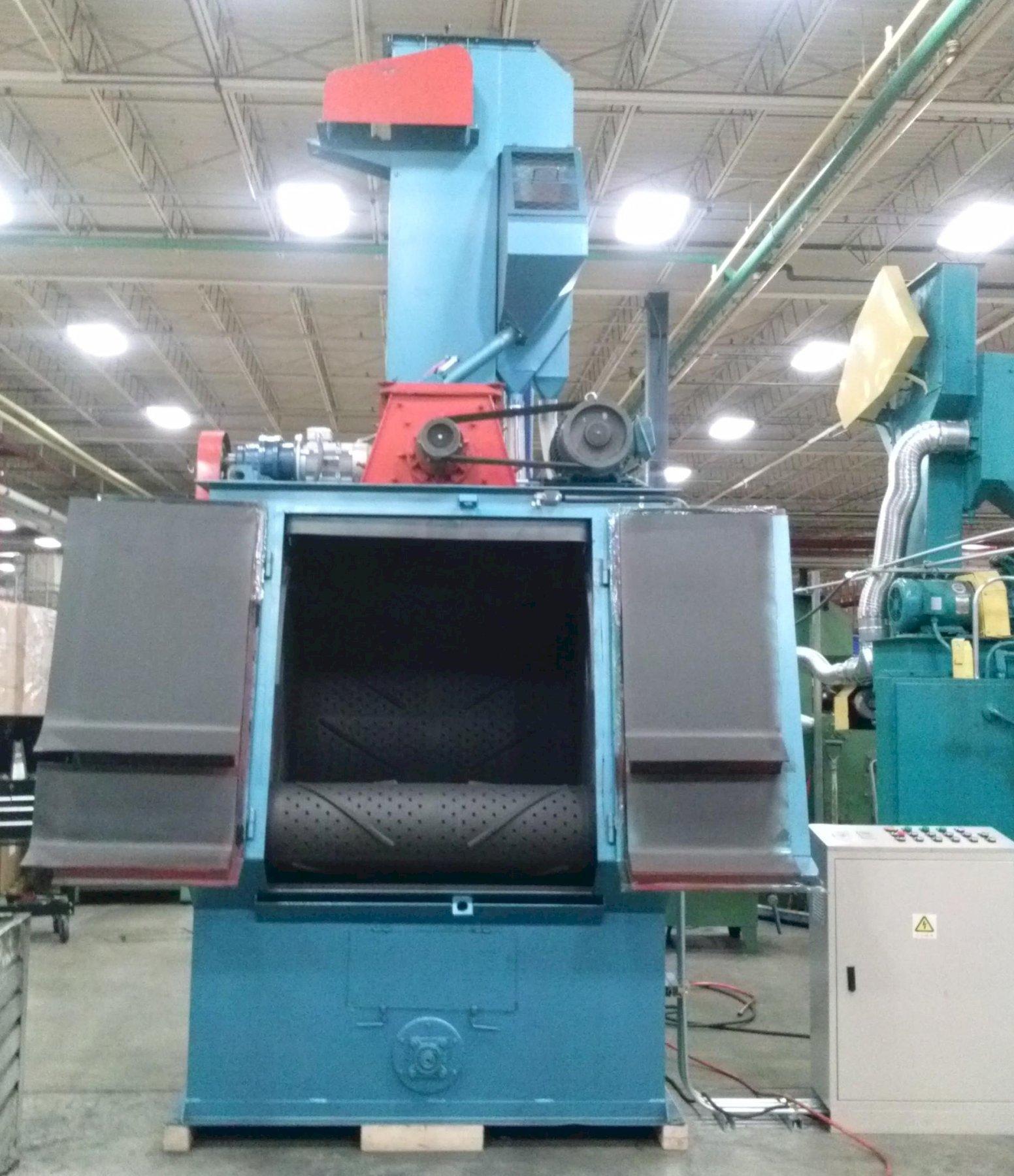

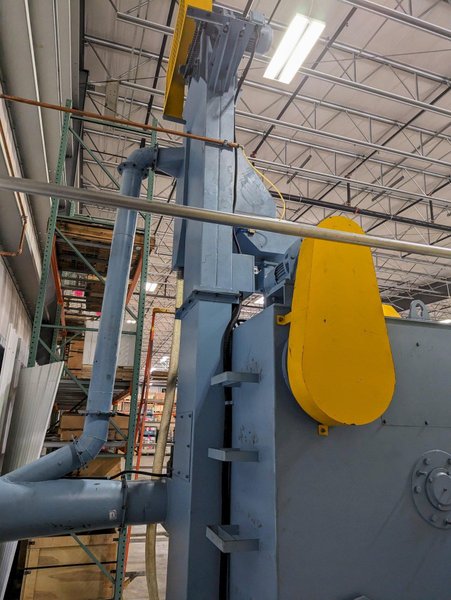

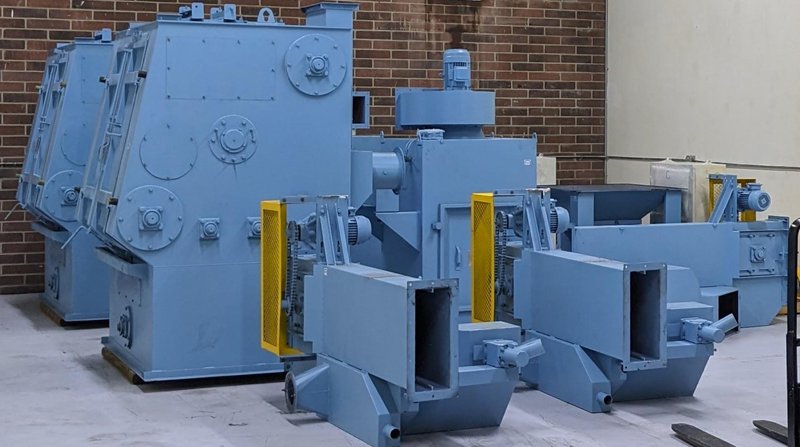

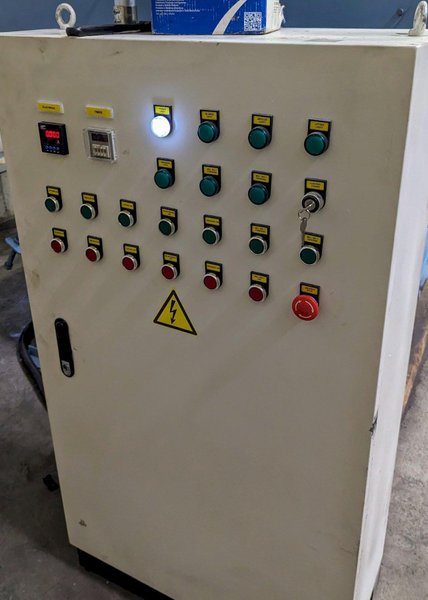

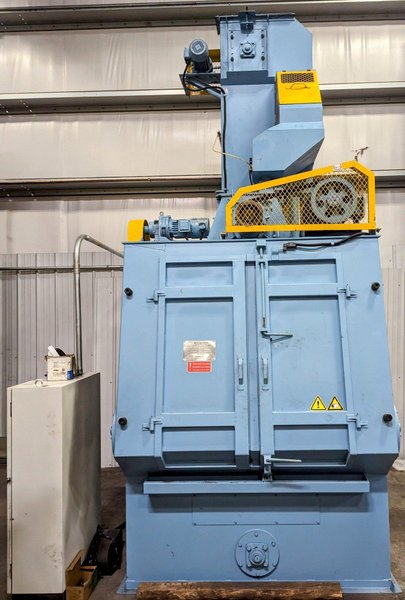

10 Cubic Foot Rubber Belt Tumble Blast System with Dust Collector + Duct Work Model: TD3210 Effective machine volume: 10 cubic feet Rubber mill belt: 43-1/2” wide belt with VFD speed control Diameter of end disk barrel head: 39-1/2" Maximum recommended weight of single work-piece: 66 lbs, with a maximum load capacity of 1,322 lbs Blastwheel: 1 – 15HP (11Kw) blast wheel assembly that is dynamically balanced Blastwheel flow rate capacity: 551 lbs per minute Media cleaning/recycling system: Bucket elevator with air wash separator Dust collector: Cartridge type with 2,354CFM with all ducting included Electric control system: Operating voltage of 460V, 3 phase, 110V control @ 60 Hz Power consumption: 18kw, 24HP Total system weight 7,000 lbs, and we need 20 feet of a standard flatbed truck. Machine is under 8 feet tall , Cabinet: 6' x 6' x 8' tall |
