Dimensions | Diameter of end disk: 25", and the distance between the barrel heads is 35" |
Weight | 440 pounds |

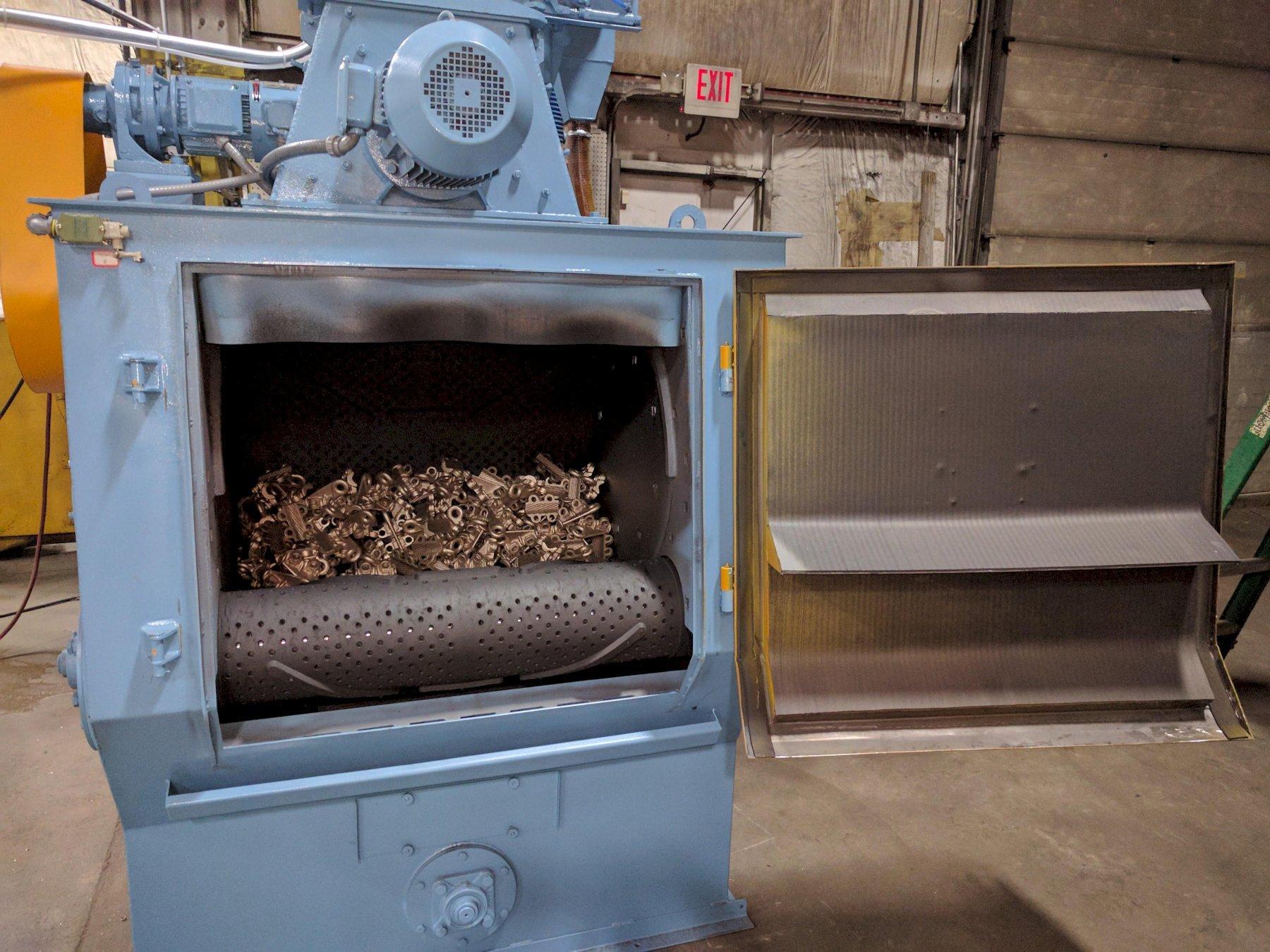

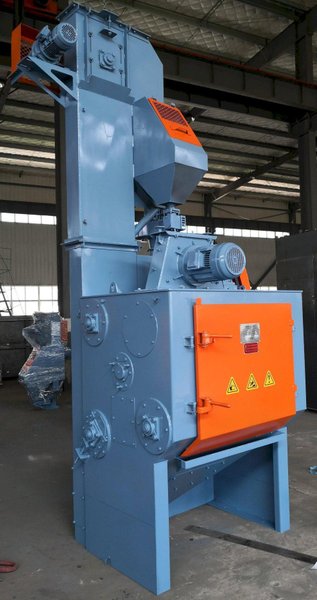

Effective machine volume: 5 cubic feet Diameter of end disk: 25", and the distance between the barrel heads is 35" Maximum recommended weight of single work-piece: 22 lbs, with a maximum load capacity of 440 lbs Blastwheel: 1 - 10HP (7.5Kw) blastwheel with a diameter of 16.535" (420mm). This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, direct drive with a double disk design (each disk is over 3/4" thick), and straight blades Footprint: 6' wide x 6' deep x 13' tall Weight: Total system weight is 4,630/lbs Electric control system: Operator control panel with an operating voltage of 460V, 3 phase, 60 Hz Abrasive flow rate: 264 lbs/min Productivity: 1,322-2,645 lbs/hour Rotating speed of the barrel: 1-3.6 r/min VFD Media Velocity: 230-246 ft/sec Media sizes: S70-S660 Media cleaning/recycling system: bucket elevator with airwash separator Initial media charge: 500 lbs Power consumption: 16.9 HP (12.6 Kw) approximately 26A Dust collector: Cartridge type dust collector with reverse pulse cleaning and removable dust waste bin FOB: Litchfield, Ohio 44253
|
