Outer Core | 14.22" , 14.05" , 14.88" |
Spiral Angle | 29.75", 30 Deg, 35 Deg. |

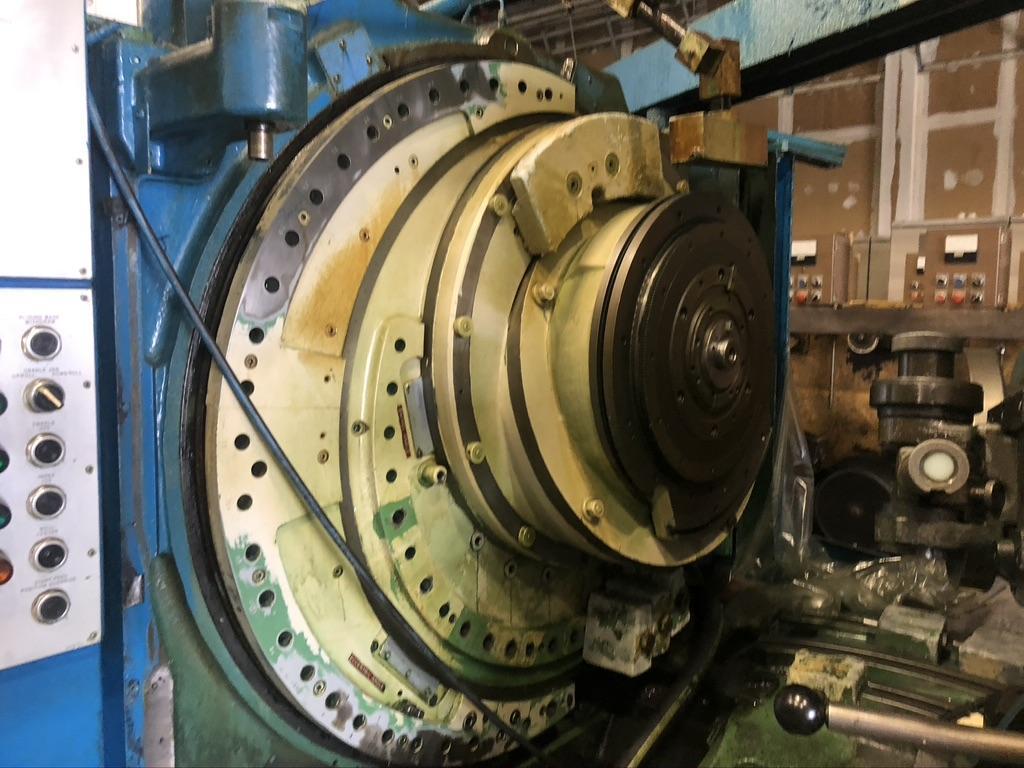

Cutter Diameter | 12", 16" , 18" |
Extreme Ratio | 10:1 |
Root Angle Range | -8Deg. to 90Deg. |
Maximum Radial Setting | 10.50" |
Coarsest Pitch | 1.5 DP |
Full Depth | 1.25" |
Face Width Max. | 4.60" |
Index Range | 5-80 Inclusive |

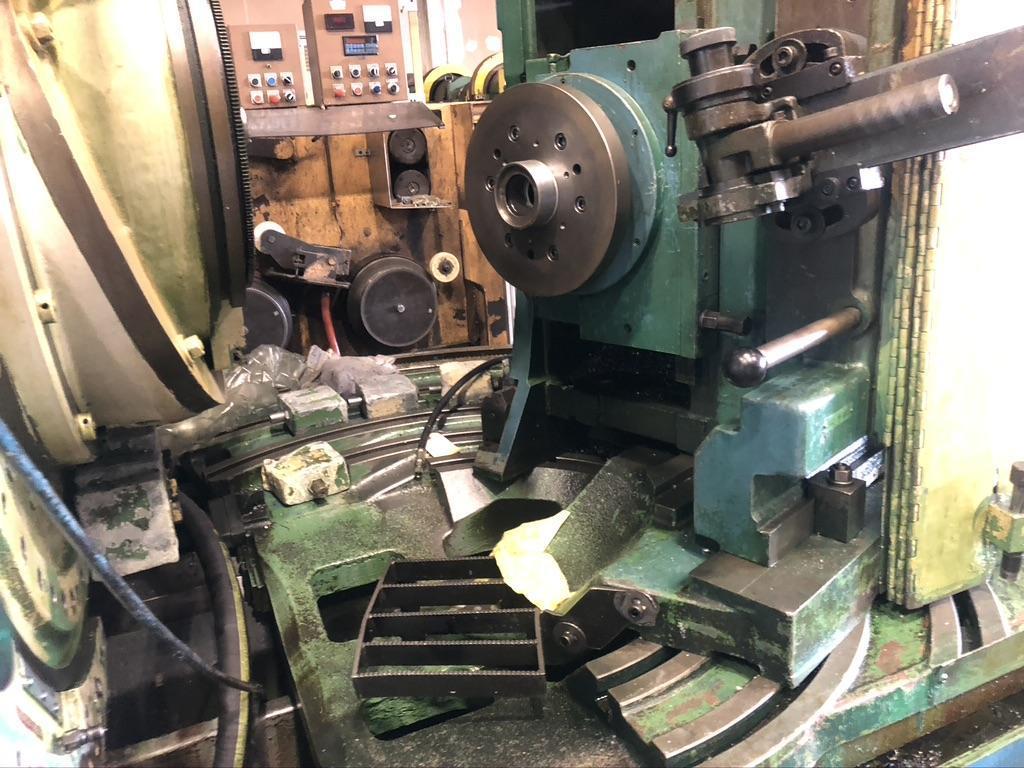

Work Spindle : | Diameter of Taperhole at Large End 6" |
Taper/Ft | 3/4" |
Taper/Depth | 6" |
Diameter of Hole thru Spindle | 5" |
Cutter Diameter | 9", 12", 16", 18" |

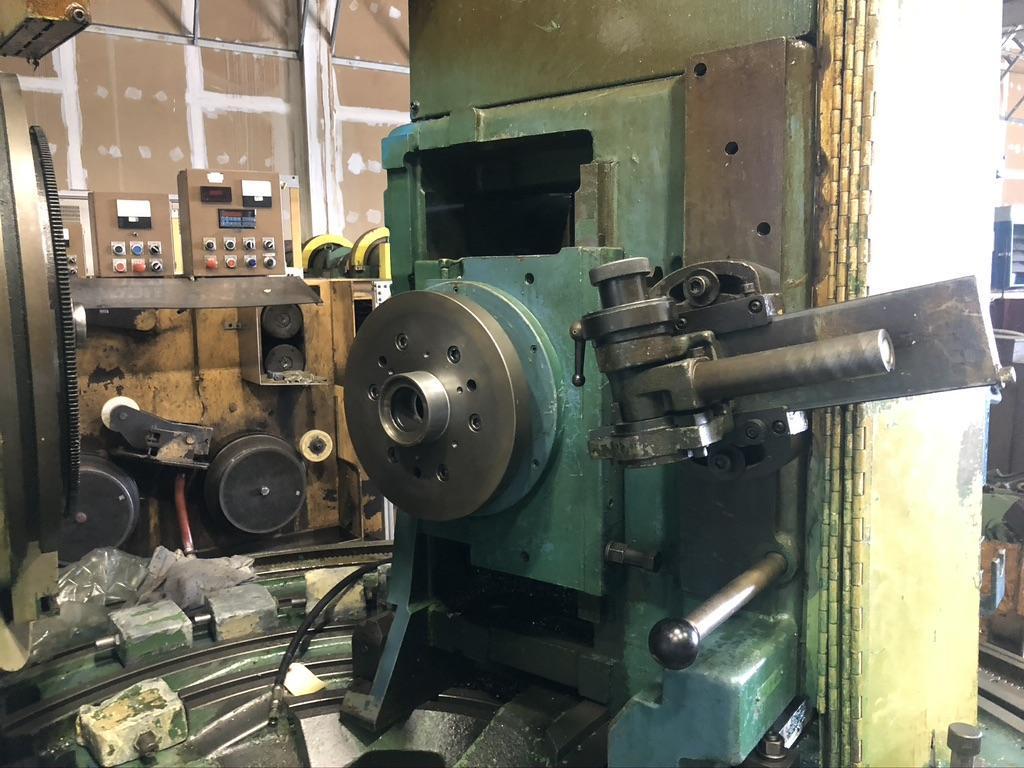

Work Head Setting | Offset Above Center 4 1/2" |
Offset Below Center | 4 1/2" |
Machine Center to Nose of Spindle | 23.5" |
Speed/Feeds | Cutter 19-167RPM |

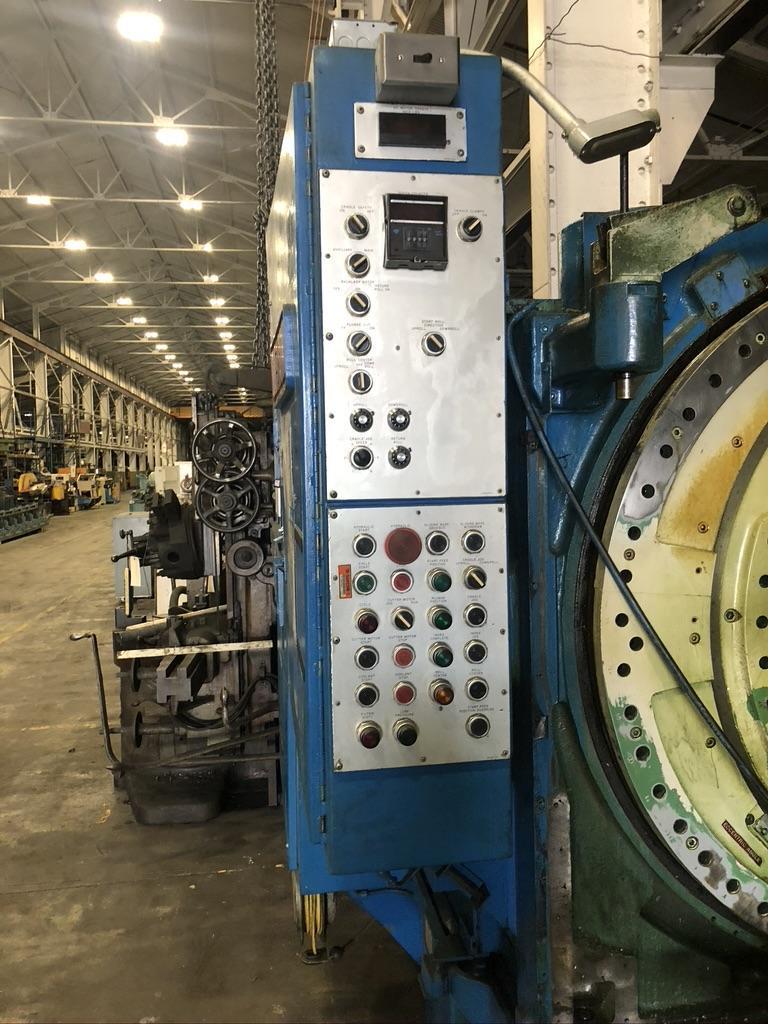

Electrics | 460 Volts AC Motor and Controls |
Weight | 55,000 Lbs. |
Feeds Infinite Variable from 7 Second Per Tooth
equipped with: stock divider Coolant Hydraulics Chip Auger |
