Selling - Vacuum Metallizer KOLZER

KOLZER

Vacuum Chambers

$64,000.00

DGK 36 SV

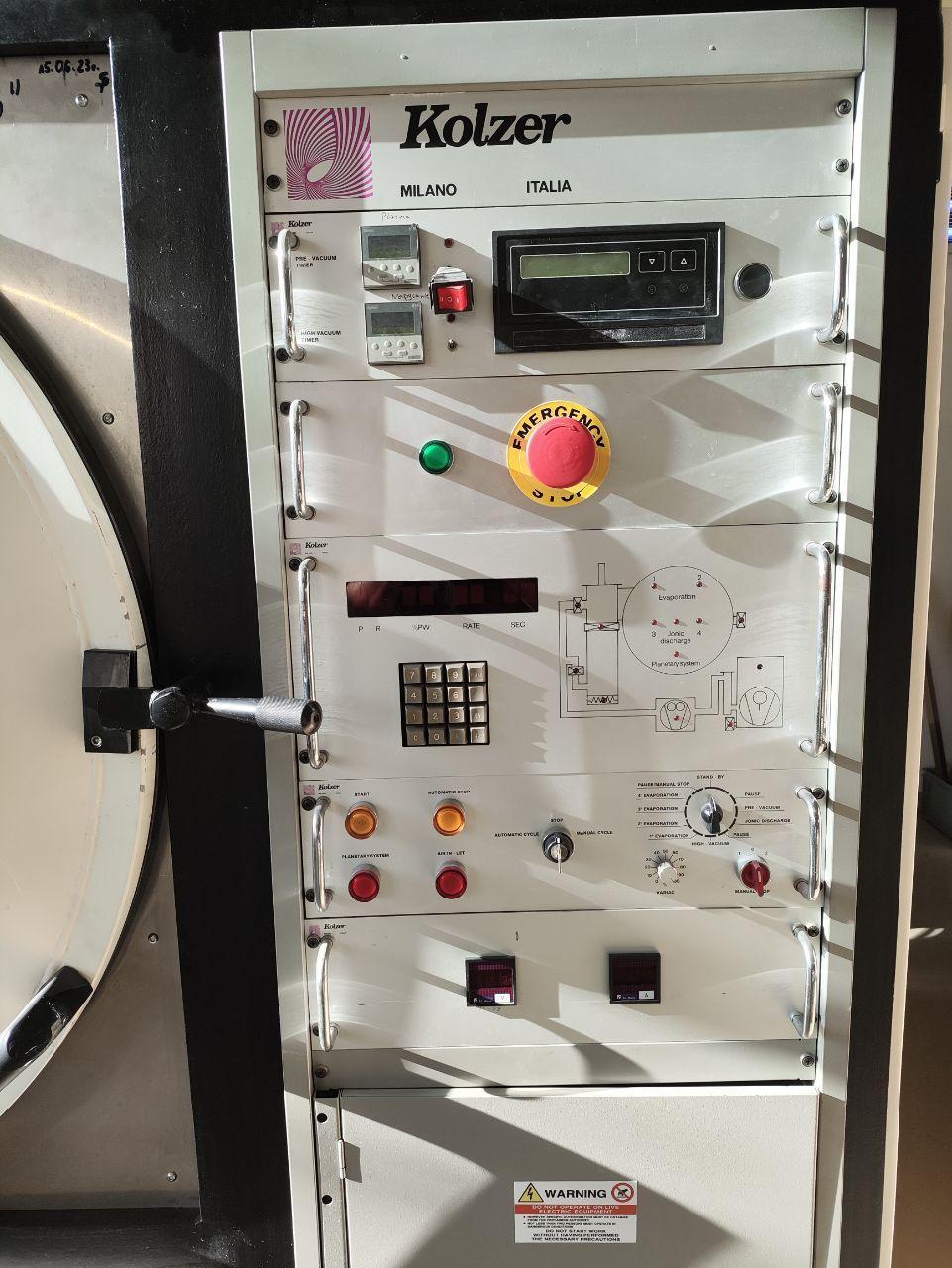

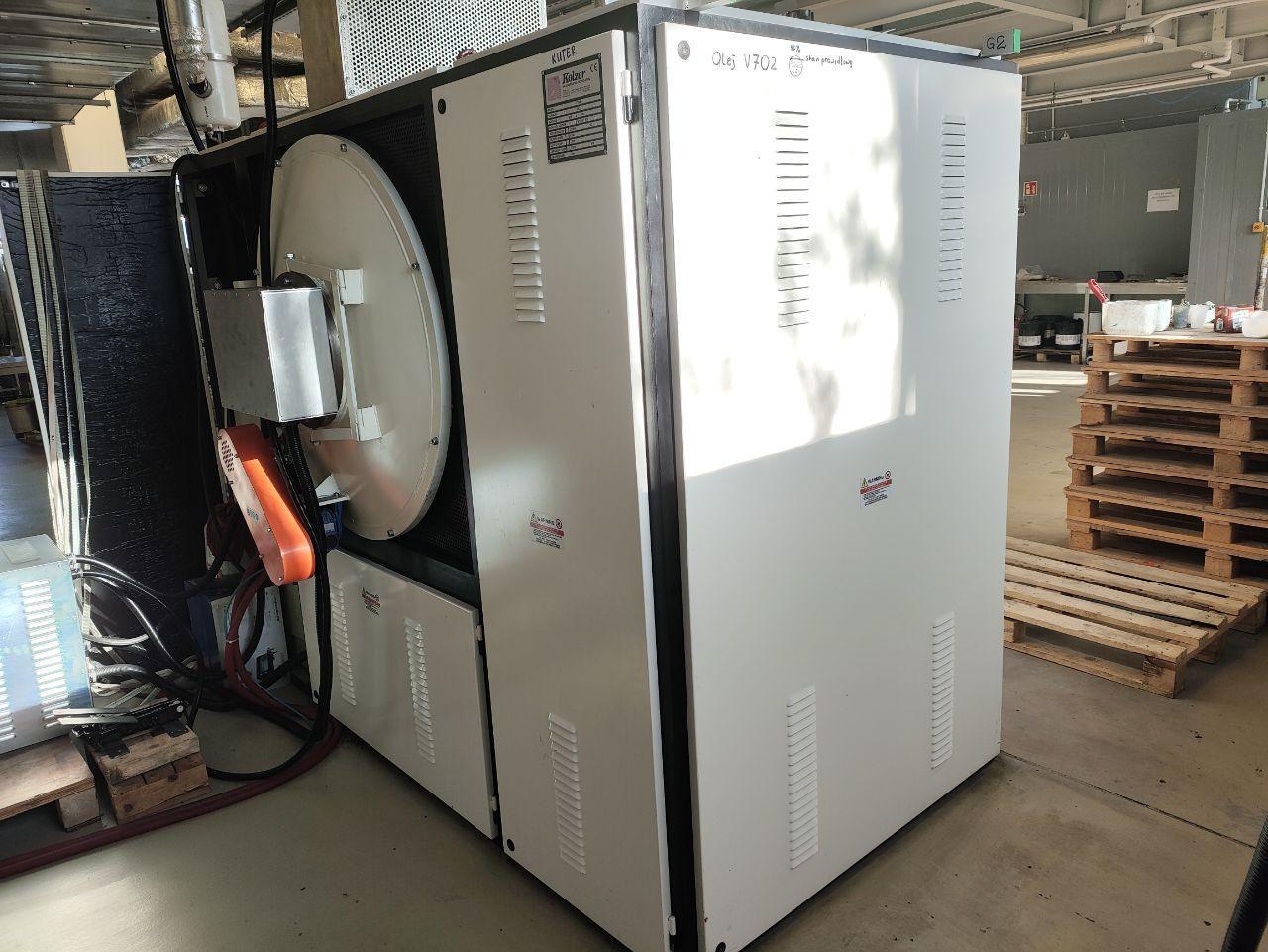

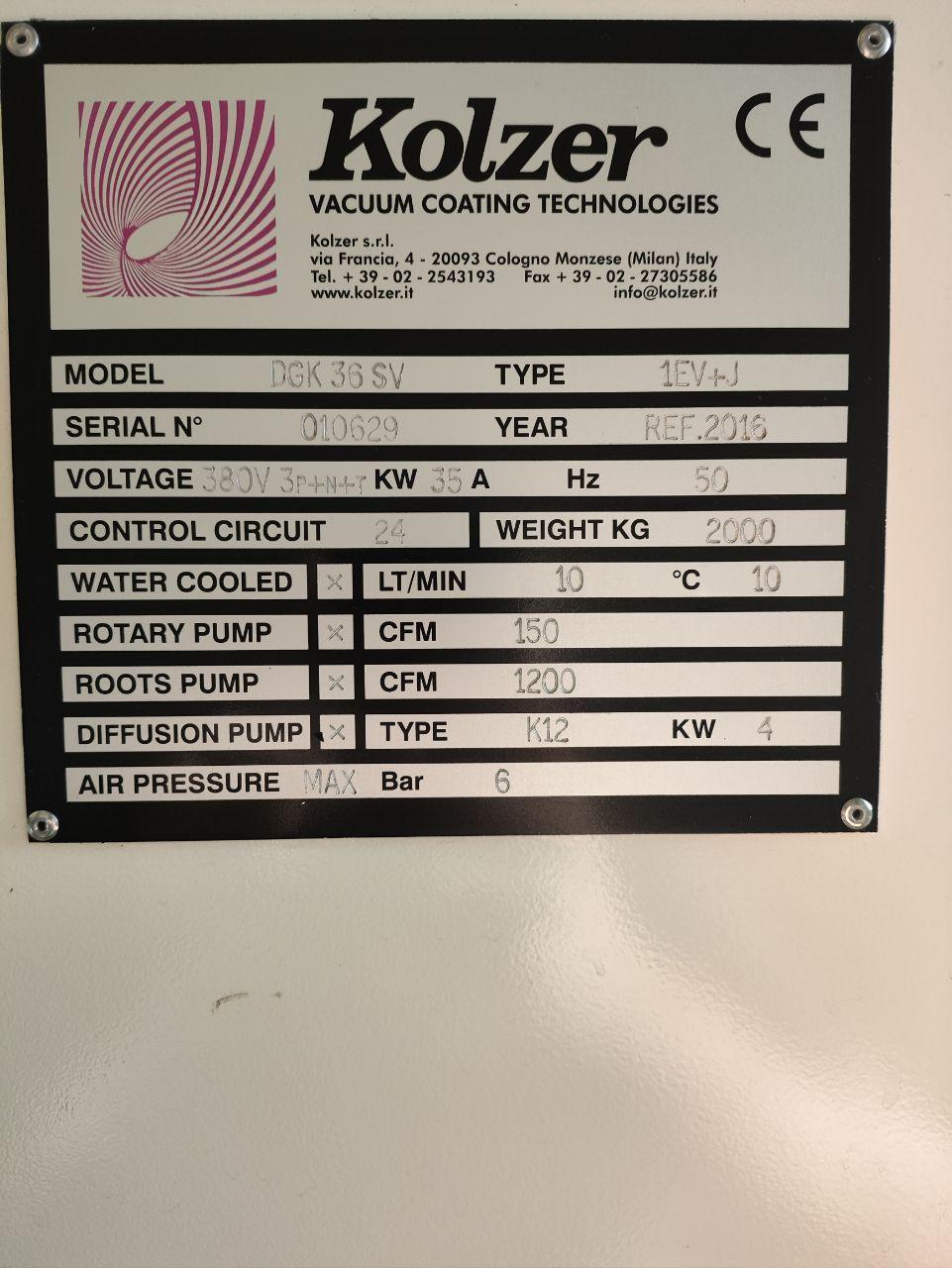

For sale: Vacuum Metallizer KOLZER DGK 36 SV – Year 2016 Manufacturer: KOLZER S.r.l., Italy Model: DGK 36 SV Type: 1EV+J Serial No.: 010629 Reference Year: 2016 Condition: Excellent / Fully operational Location: Grodzisk Mazowiecki, Poland Technical Data: - Power supply: 380 V 3Ph+N+T / 50 Hz - Installed power: 35 kW - Nominal current: 35 A - Control circuit: 24 V - Weight: 2000 kg - Water cooling: 10 l/min at 10 °C - Rotary pump: 150 CFM - Roots pump: 1200 CFM - Diffusion pump: type K12, 4 kW - Max air pressure: 6 bar - Width: ~ 257 cm - Depth: ~ 160 cm - Height: ~ 225 cm Description: The KOLZER DGK 36 SV is a modern vacuum metallizing machine designed for Physical Vapour Deposition (PVD) coating applications. It enables evaporation of metals such as aluminium, chrome, titanium etc., and their uniform deposition as decorative or functional coatings. Ideal for automotive, lighting, cosmetic and packaging industries requiring high-quality surface finishing and process repeatability. Equipment and Features: - Complete vacuum pump set (rotary, Roots, diffusion K12) - Water cooling system - Automatic PLC control (24 V circuit) - Vertical DGK horizontal (~1000 mm diameter x 1300 mm depth ) – ideal for medium-scale production - Applications: decorative and functional metallization (mirror, gold, silver, coloured finishes) - Can be integrated with UV coating/curing system Advantages: - Short cycle time (approx. 4–6 min) - Stable vacuum parameters and high repeatability - Energy efficient – total power 35 kW - Reliable Italian technology by Kolzer (established 1950) Price: 55.000 EUR - negotiable. Contact: Name: Piotr Jasicki Phone: 604-195-102 E-mail: pjasicki@intertonpackaging.com Machine location: Grodzisk Mazowiecki, Poland
