Coil Weight | 10000 pounds |
Coil Width | 32 inches |
Coil Thickness | .080 inches |

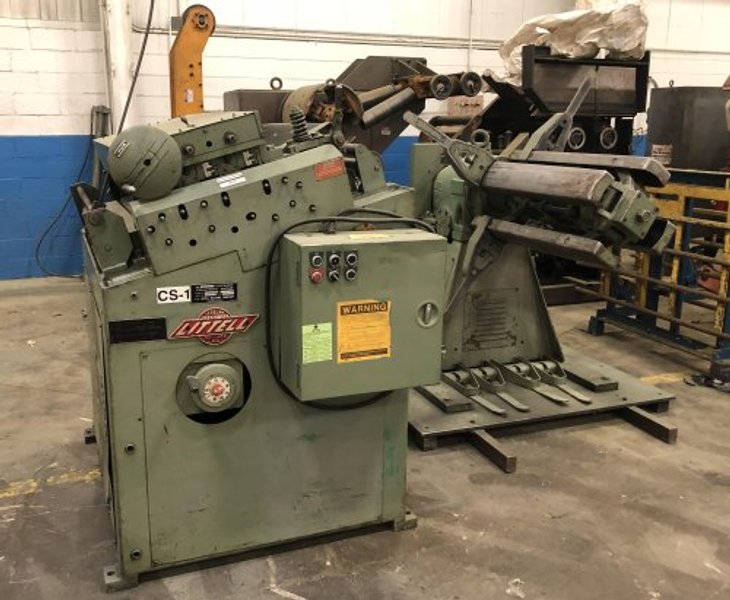

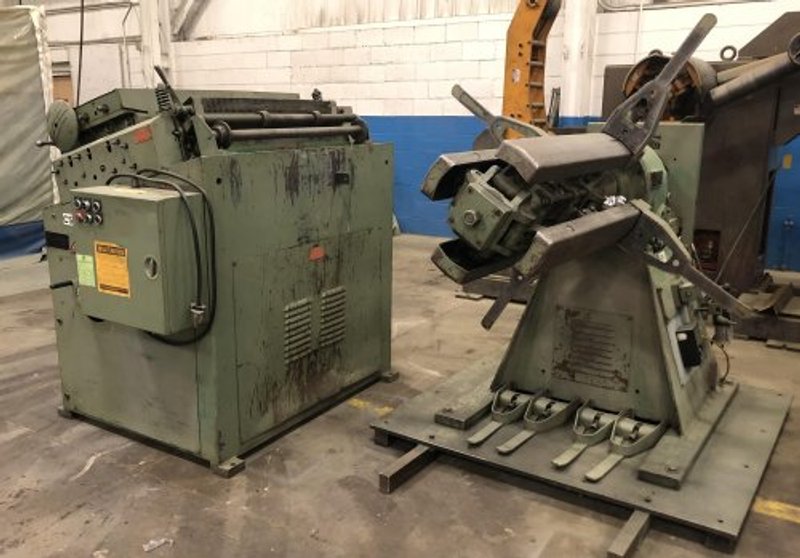

Standard Specifications 10,000 lbs Coil Capacity 32" Max. Coil Width .080" Max. Stock Thickness at Full Width .125" Max. Stock Thickness at 12" Width 60" Max. Coil O.D. 20-24" Expansion Range Equipment and Features Coil Reel Model No. 90-36 Four leaf mandrel Adjustable coil keeper arms Hydraulic mandrel expansion Electric drag brake mounted on main spindle Adjustable pull off tension Powered Straightener Model No. 432-7PDL Entry pinch rolls x 4" diameter Seven straightening rolls x 3.125" diameter Individual or unison upper roll adjustments Adjustable entry stock edge guides Upper roll depth indicators Inclined straightening head Variable speed drive Jog forward and reverse Auto / Run cycle Loop control |
