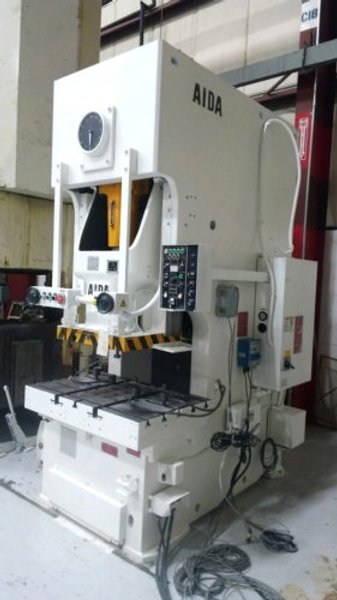

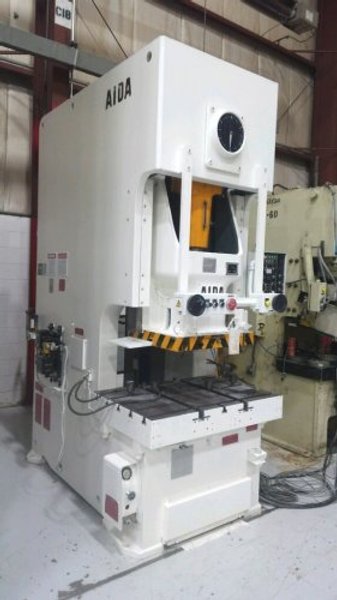

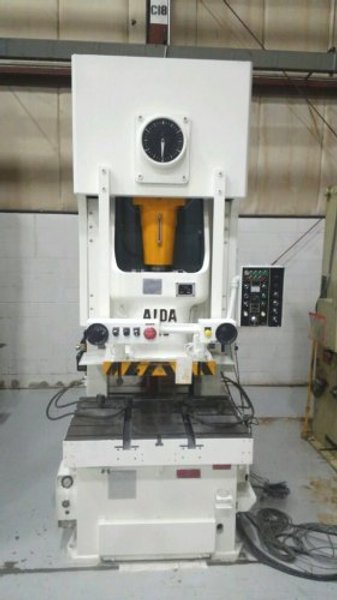

150 Ton AIDA NC1-150(2) OBS Press
Brand
Category
Model
NC1-150(2)
Stock #
2529
Year
1996
Condition
Used
Location
Not specified
| Tonnage | 150 |
| Stroke | 7.87 inches |
| Shut Height | 19.67 inches |
| Adjustment | 3.93 inches |
| Bed Size | 48" LR x 28.8" FB |
| Ram Area | 48" LR x 28.8" FB |
| SPM | 30 - 55 VSPM |
|
Standards Specifications 150 ton Metric Capacity 165 US Ton Capacity 7.87" Stroke 15.74" Die Height (Over Bolster) 3.93" Motorized Adjustment 48" LR x 28.8" FB Bed Area 48" LR x 28.8" FB Slide Area 30-55 VSPM Equipment and Features Aida Wet Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Hydraulic Overloads AC Variable Frequency Drive Quill mounted flywheel Taper fit of main gear to crankshaft Ball Socket Connection Configuration Floor Standing Overall Height: 10'3" Tall Can be seen under power! |
|
Watch https://youtu.be/V_eCyPrf0x8
