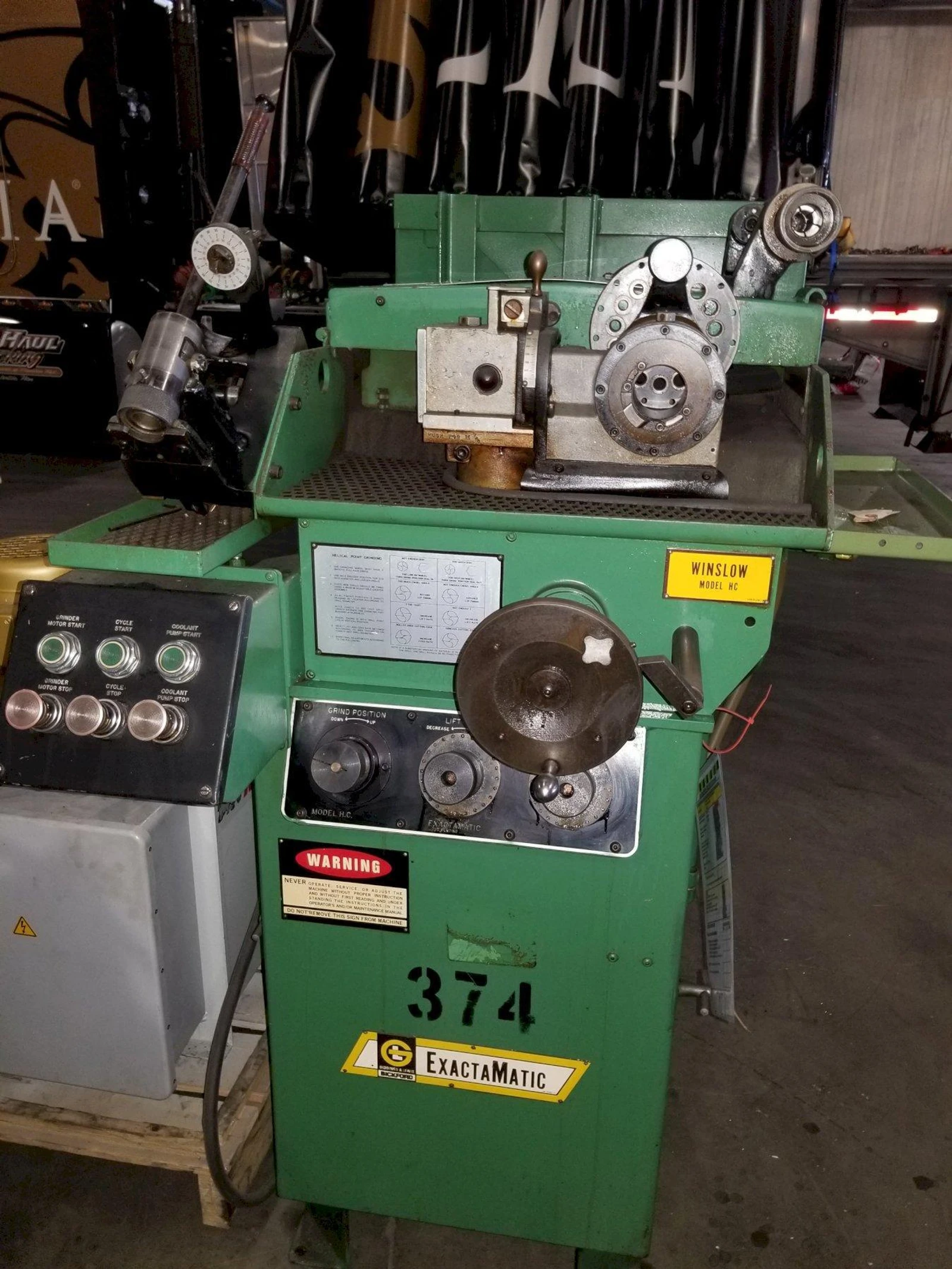

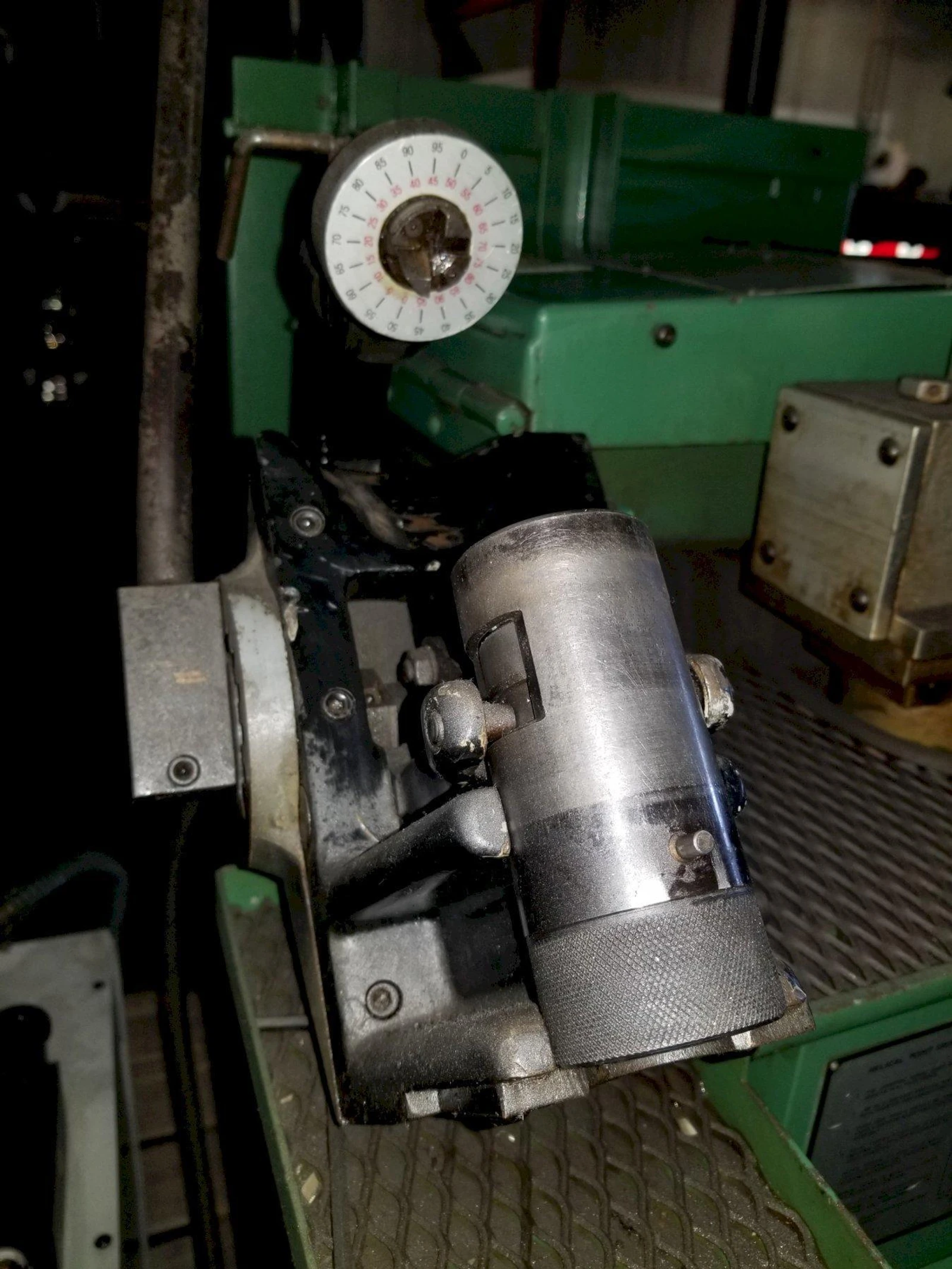

1981 Giddings & Lewis Winslow ExactaMatic HC Drill Point Grinder - 3 HP, 20" Wheel
Brand
Category
Type
Model

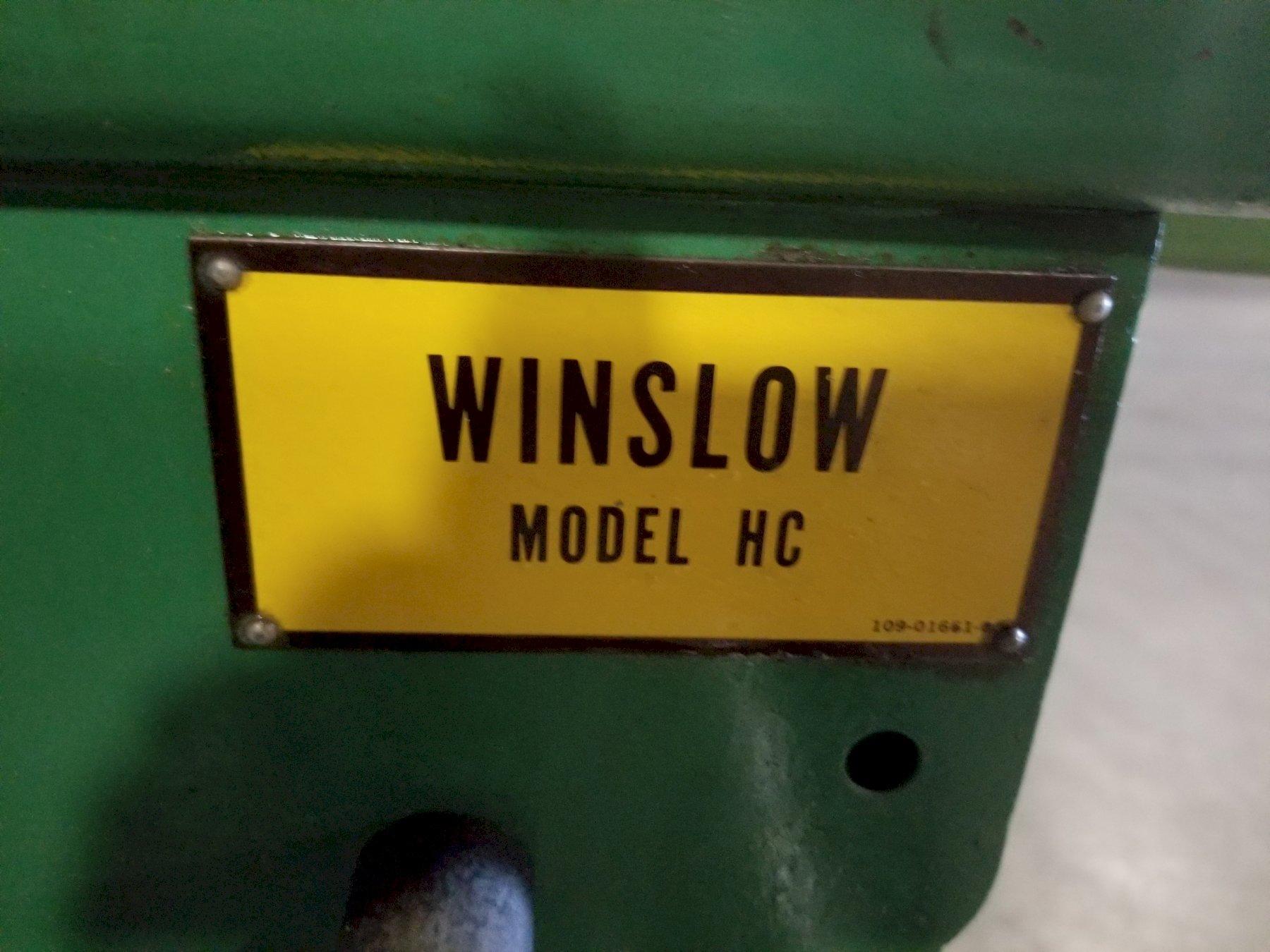

Winslow ExactaMatic HC
Stock #
54015
Year
1981
Condition
Good
Location
Minnesota
| Helical | 1/16" to 1-1/2" (1.55 to 38.0 mm) |
| Wide-Web Helical | 1/16" to 1-1/2" (1.55 to 38.0 mm) |
| Bickford* | 1/8" to 1" (3.0 to 25.4 mm) - *Requires two operations to achieve geometry |
| Racon | 1/8" to 1" (3.0 to 25.4 mm) |
| Conventional | 1/16" to 1" (1.55 to 25.4 mm) |
| Step Drills | 3/32" to 1/2" (2.4 to 12.5 mm) |
| 3- And 4-fluted Drills | 1/16" to 1-1/2" (1.55 to 38.0 mm) |
| 2, 3 And 4 Straight-fluted Plug And Bottom Taps | #4 to 7/8" (M3 to M22) |
| Grinding Wheel | Horizontally mounted; 20" (510 mm) diameter |
| Spindle Power | 3 HP (2.25 kW), 1800 RPM |
| CNC Control | no |
| Dimensions | 92" x 102" (2.34 x 2.59 m) plus coolant tank |
| Weight | 3200 pounds |
|

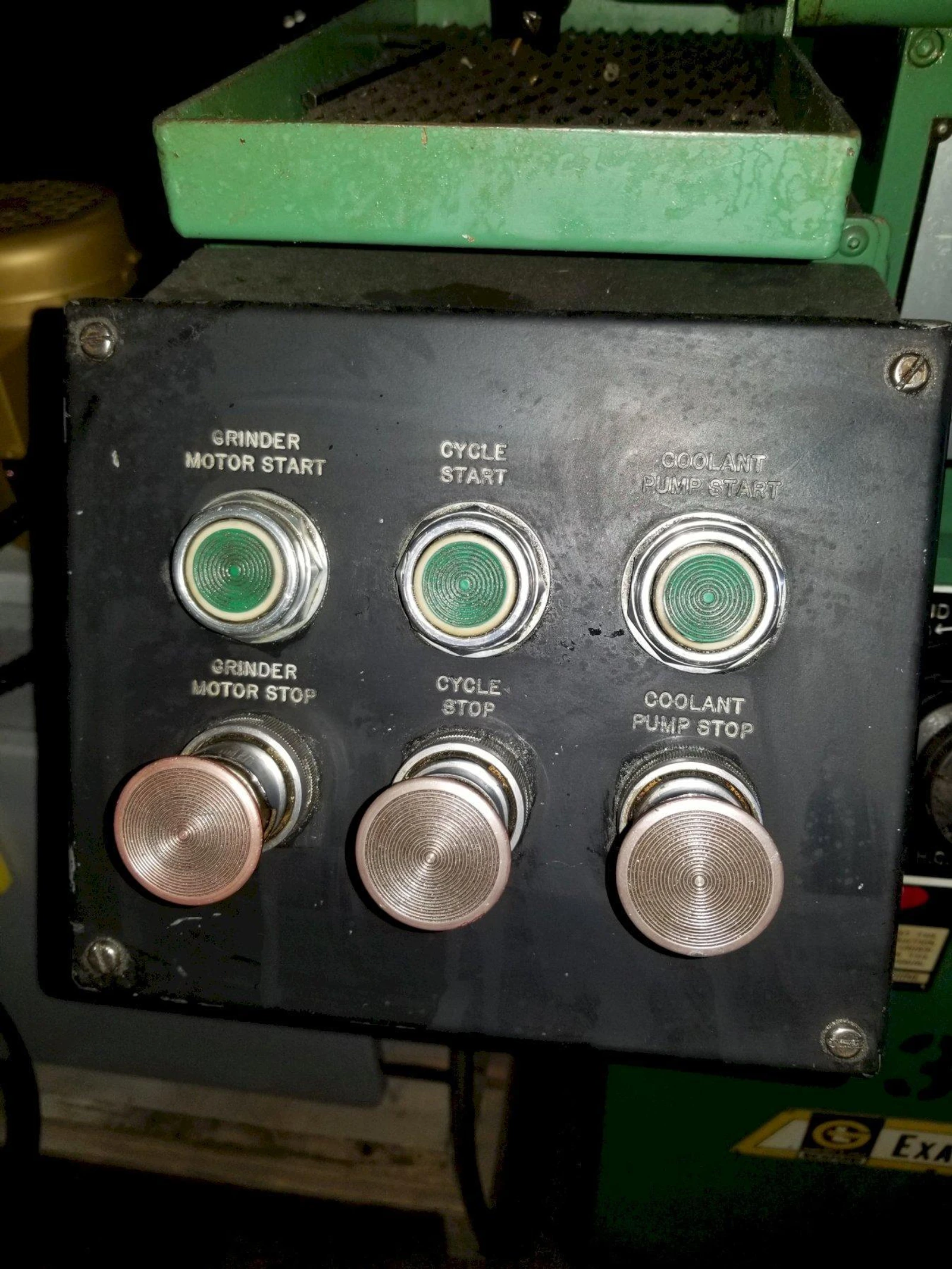

Controls: Grinder Motor Start, Cycle Start, Coolant Pump Start, Grinder Motor Stop, Cycle Stop, Coolant Pump Stop

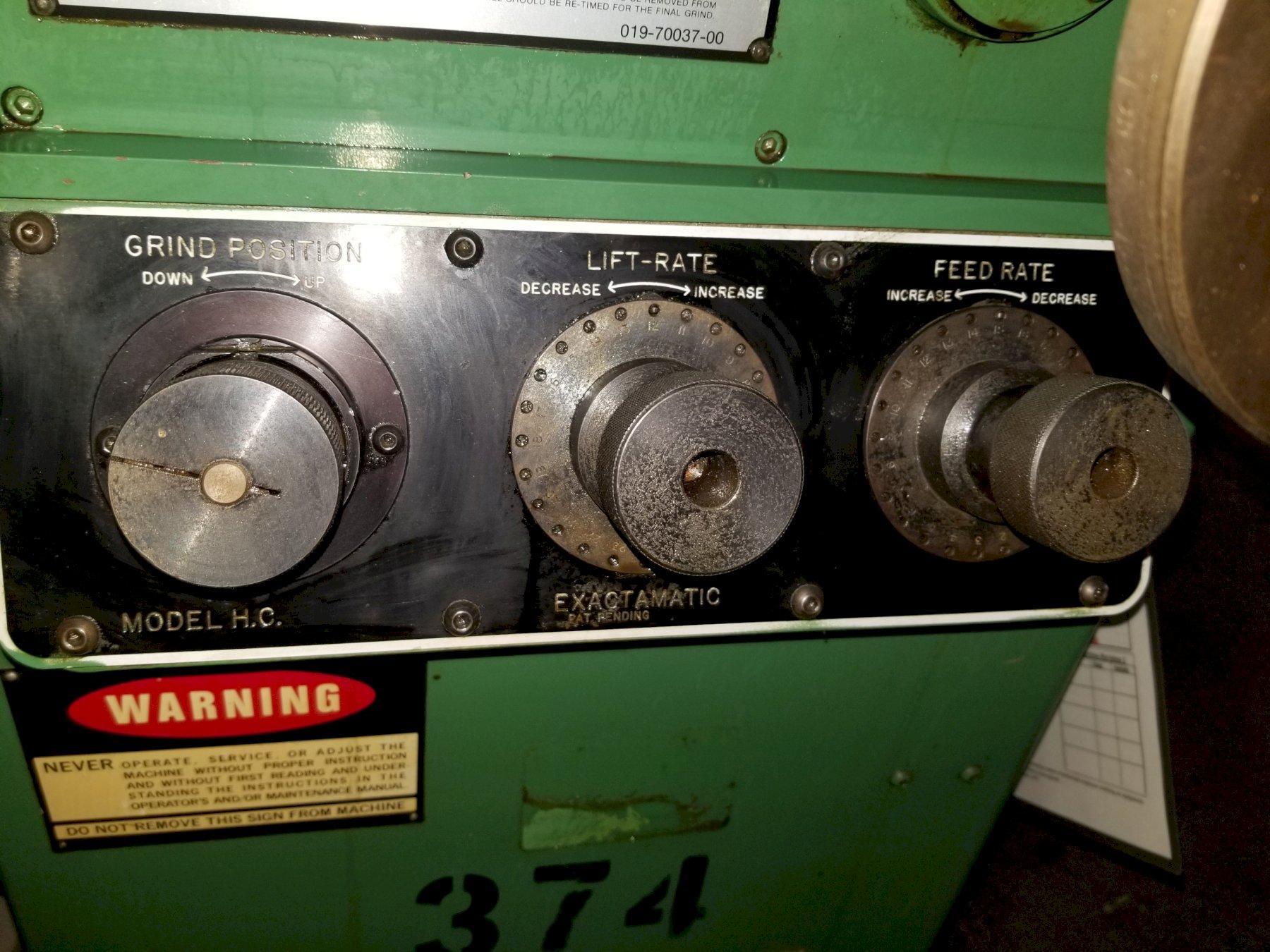

Grind Position - Up/Down Lift Rate - Decrease/Increase Feed Rate - Increase/Decrease Wheel Dresser 3HP
|
|
