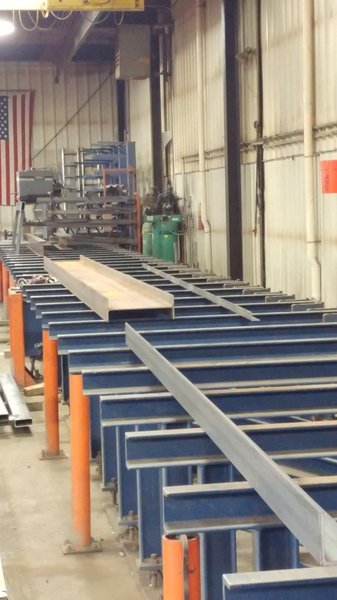

Maximum Beam Size                       Profiles up to 40". Max beam length 60ft. Max weight 730 lbs/ft.

Minimum Drill Diameter                  1/4" (6.5mm)

Maximum Drill Diameter                  2" (50mm)

Maximum Material Thickness           Up to 10" (250mm)

Max Speed X Axis                             120 ft per minute

Max Speed Y Axis                             120 ft per minute

Spindle Motor Power                       13 3/4 hp

Drilling Speeds                                 0-545 rpm (continuously variable)

Drilling Feed Rate                             2” – 10” per min (50-254mm) infinitely variable

Spindle Stroke                                  13" (330mm) Max.

Total Power                                      20 HP (14.9 kW)

Power Supply                                   460V, 3-ph, 60 Hz

Average Output                                200 to 400 holes per hour depending on the profile drilled

Date Built                                          July 2012

Machine Includes:

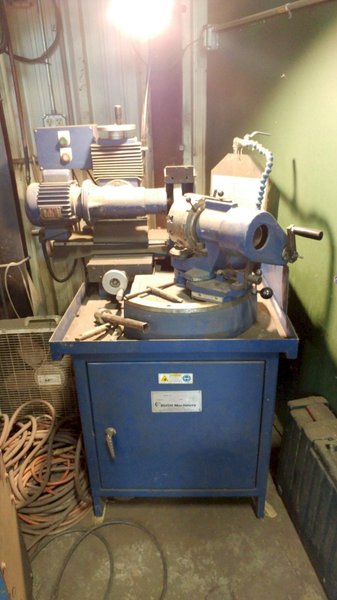

Ocean Rejuvenator 110V Drill Sharpener

5-Stage Speed-Aire Desiccant Air Dryer

GE Transformer (converts our 208V to the necessary 460V)
