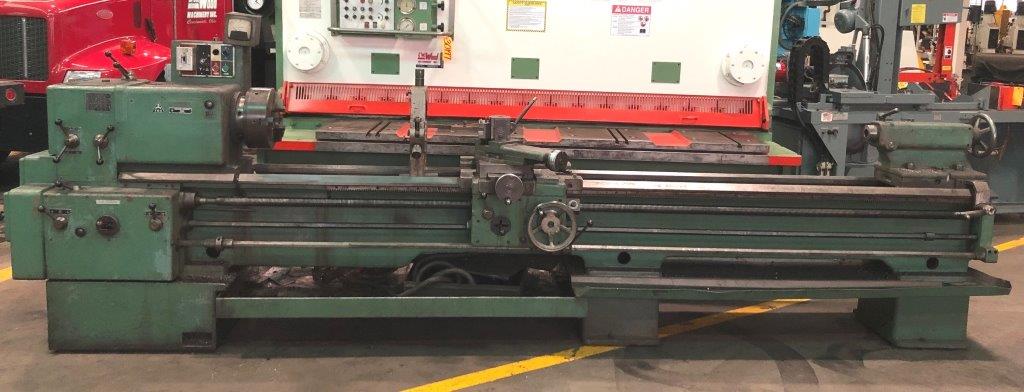

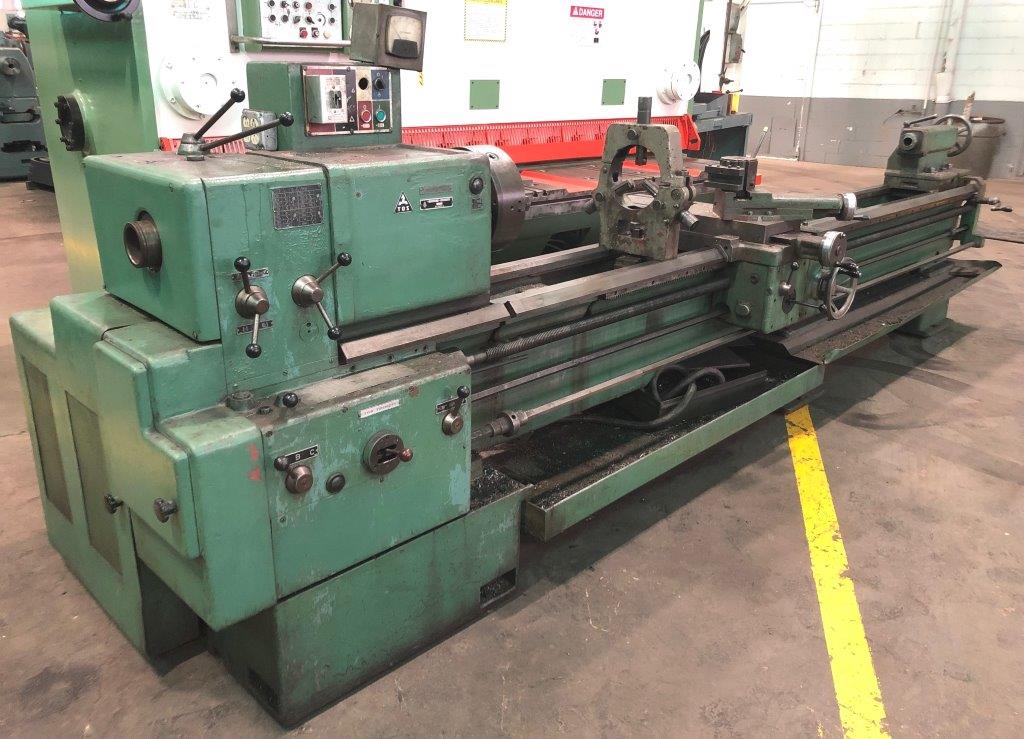

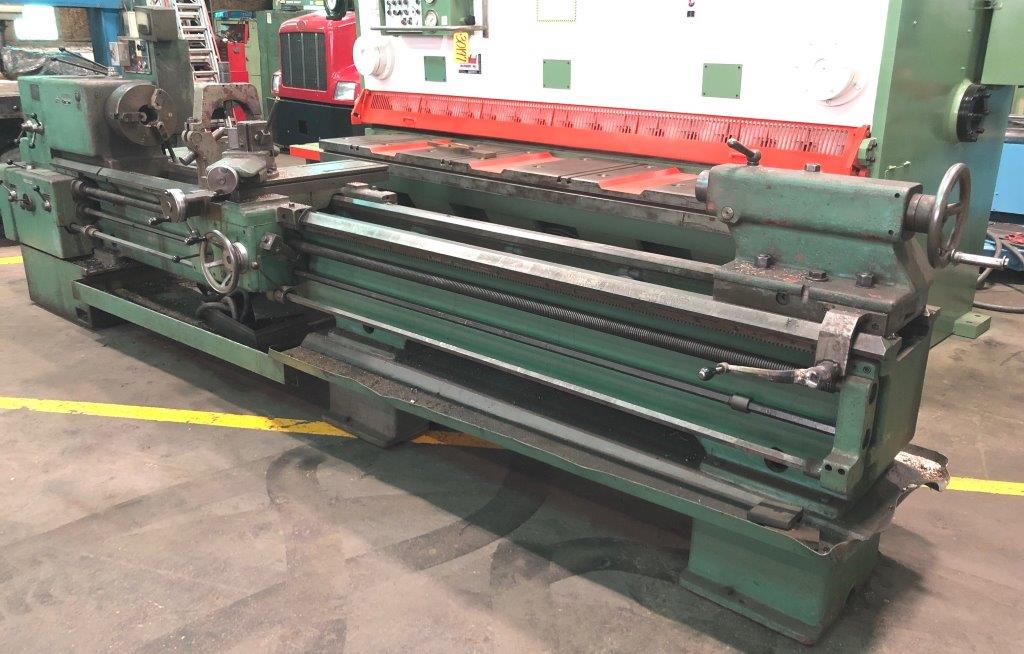

TOS ENGINE LATHE

MODEL: SN 55B
SERIAL NUMBER: 055300770223

GENERAL SPECIFICATIONS

Swing Over Bed: 22"
Swing Over Cross Slide: 12-1/4"
Swing in Gap: 31"
Distance Between Centers: 120"
Spindle Bore:
Spindle Speeds: (16)  10 - 1000 RPM
Travel Of Cross Slide: 16"
Top Slide Travel: 7"
Threads, Inch: 1 - 80 TPI
Threads, Metric: 0.5 - 4 mm
Threads, Whitworth: (48) 1/4 - 56 TPI
Threads, Module: 0.25 - 20
Threads, Diametral Pitch: 2 - 72  D.P.
Longitudinal Feeds: .002 - .242 In./Rev.
Cross Feeds: 1/2 Of Longitudinal
Tailstock Center: No. 5 M.T.
Tailstock Spindle Travel: 9-1/2"
Tailstock Spindle Diameter: 3-1/2"

EQUIPPED WITH

10 HP Main Drive Motor

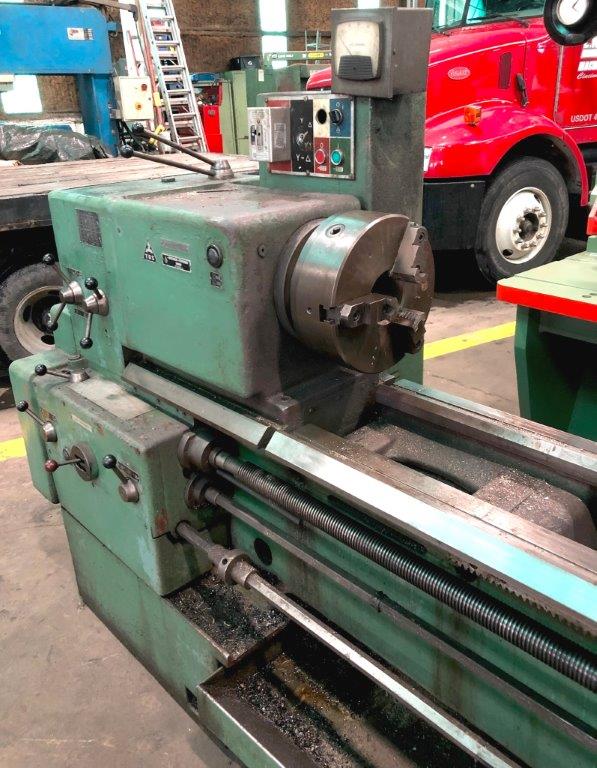

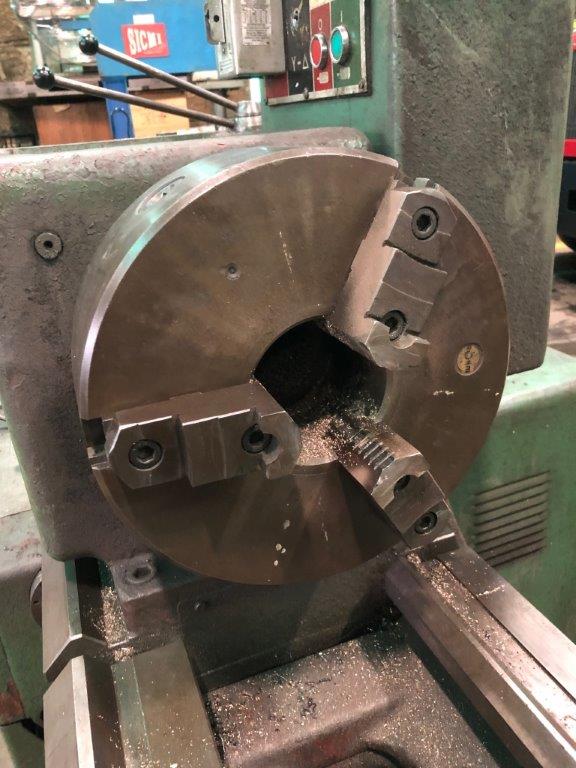

12" 3-Jaw Chuck

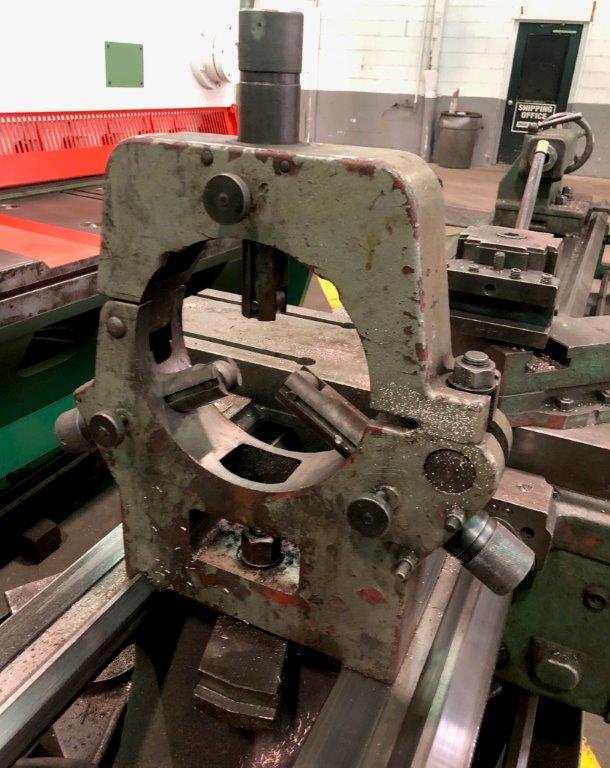

Steady Rest
Thread Dial
Hardened Bed Ways
Coolant

Approximate Weight:
Machine Dimensions:

F.O.B. Cincinnati, Ohio 45223

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
