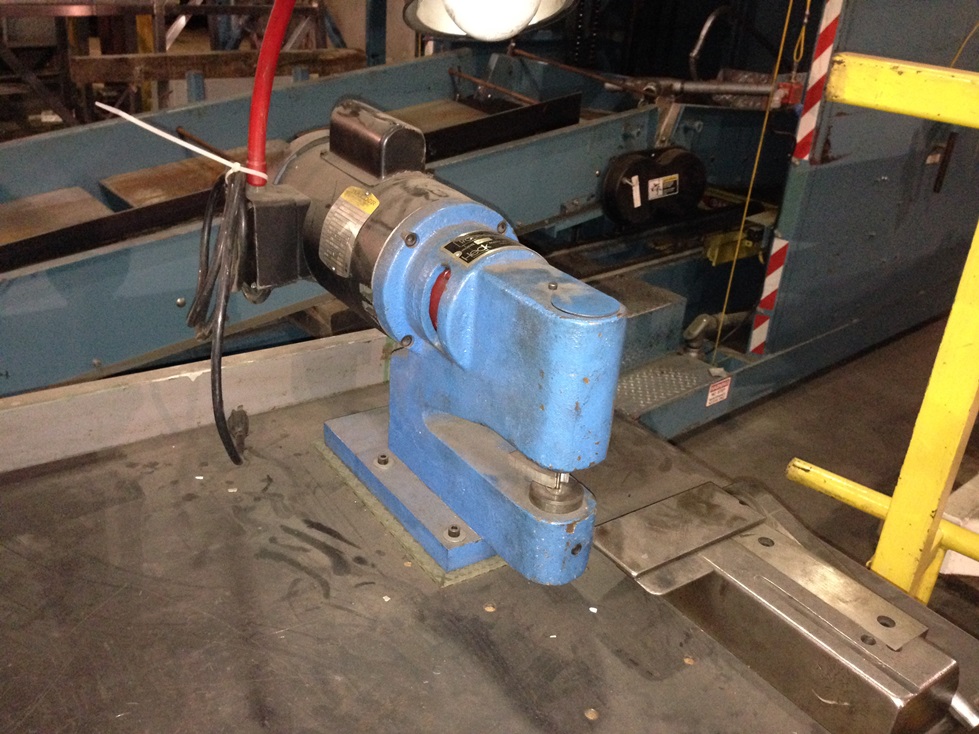

HECK TRACE-A-PUNCH DUPLICATING NIBBLER

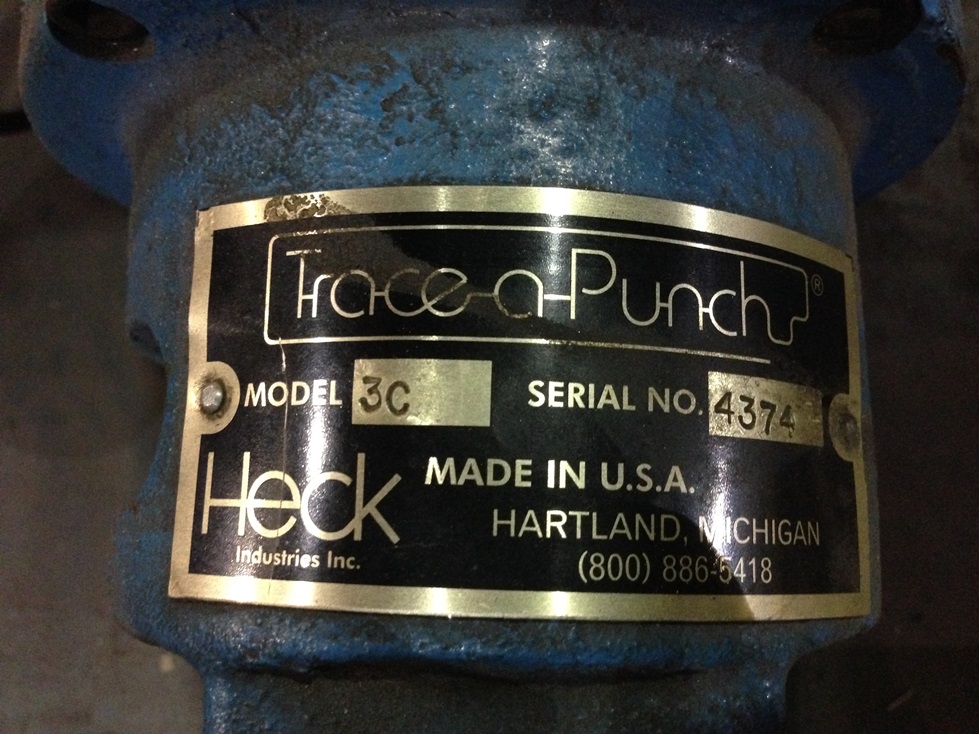

MODEL: No. 3C
SERIAL NUMBER: 4374

GENERAL SPECIFICATIONS

Uses For Trace-A-Punch:
*Template Making and Duplicating
*Low Production Fabricating

Trace-A-Punch follows your guided template to produce burr-free
straight and contoured outlines and holes. Simple, rugged
meehanite casting construction insures very little maintenance.

An existing part can be used as the master pattern or one can
easily be made by tracing over acetate-plastic .020-1/4" with a
sharp scriber or razor knife. An office copier can be used to
produce a master copy by coping on to Mylar-plastic and cutting
with scissors.

Cutting Capacity, Mild Steel/Plastic: 1/8"
Cutting Capacity, Stainless Steel: 1/8"
Throat Depth: 6-3/4"
Strokes Per Minute: 1750

EQUIPPED WITH

1-1/2 HP Motor, 115/230/60/1
Work Light

Approximate Weight: 130 Lbs.

F.O.B. Hiram, OH

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
