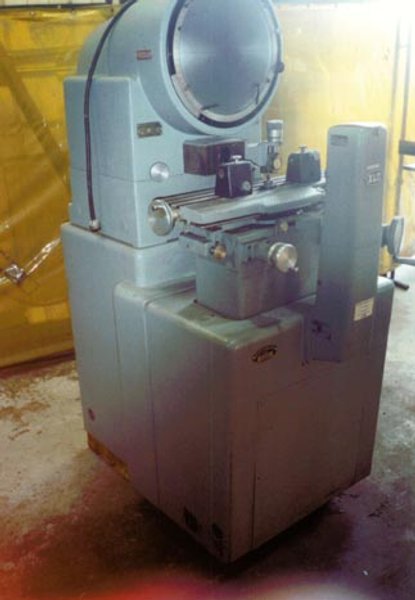

MODEL NUMBER...........................14-5
SERIAL NUMBER..........................8140070 (YEAR 1968 APPROX.)

GENERAL SPECIFICATIONS

Screen Diameter........................14"
Table Size.............................8" x 26"
Table Travels..........................8" x 8"
Focus Travel...........................3"
Chart Ring Rotation....................360 Degrees
Table Helix Adjustment.................15 Degrees
Distance
Focal Plane/Front Of Projector System ........8"
Focal Plane/Front Of Lamp house ........9-1/2"
Total Throat Clearance Distance, Lens
Centerline To Table...................1" Minimum, 9" Maximum

EQUIPPED WITH

Built In Surface Reflection
Manual Lens Turret, 10, 20, 31, .25X Lenses
Fresnel Field Lens
Staging Centers

SPECIFICATIONS SUBJECT TO VERIFICATION
