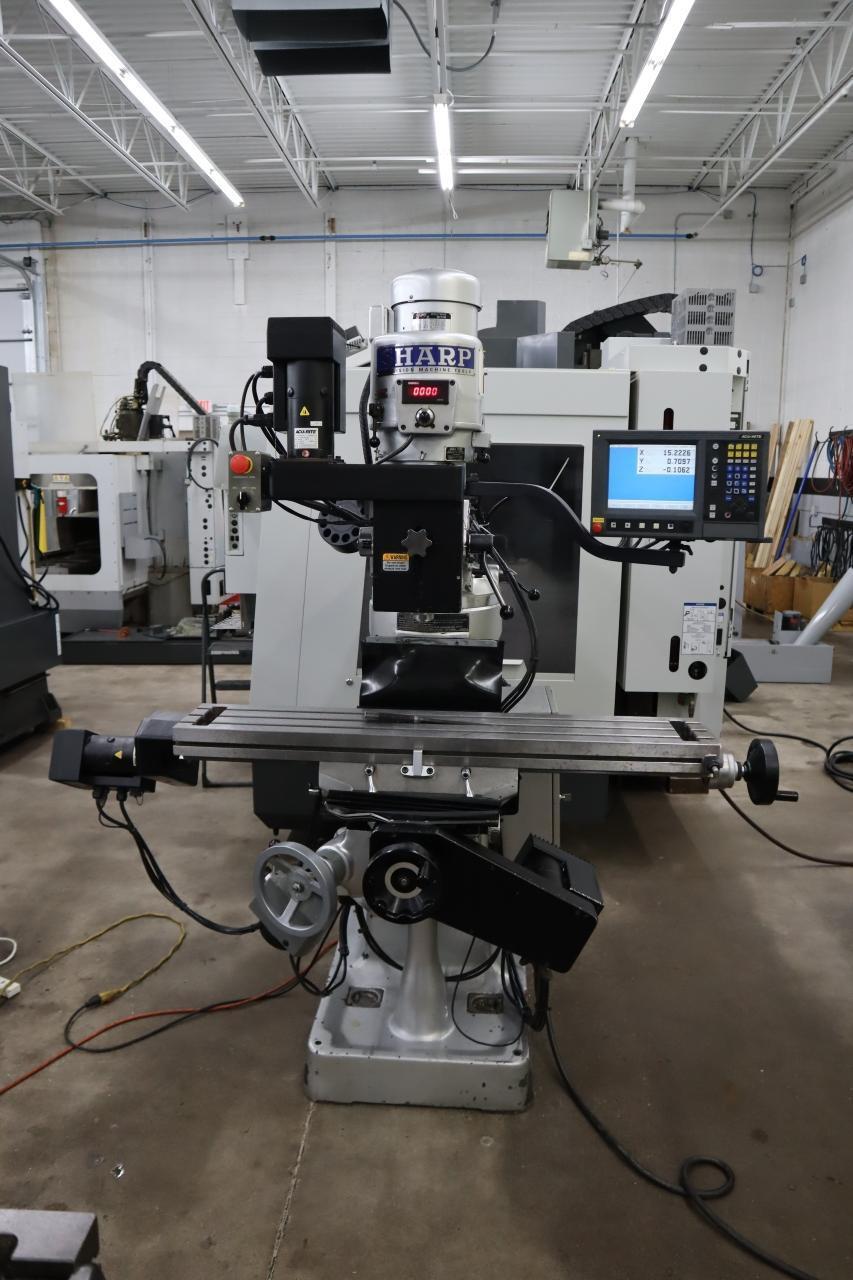

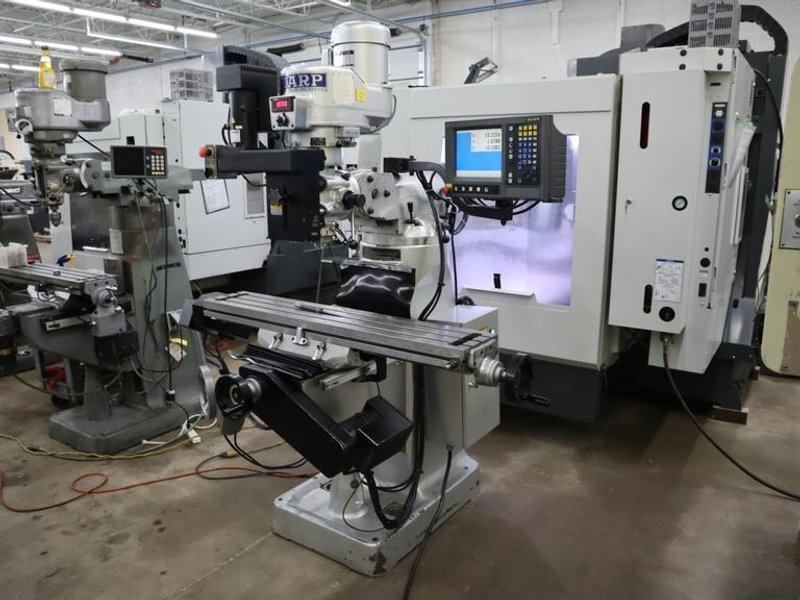

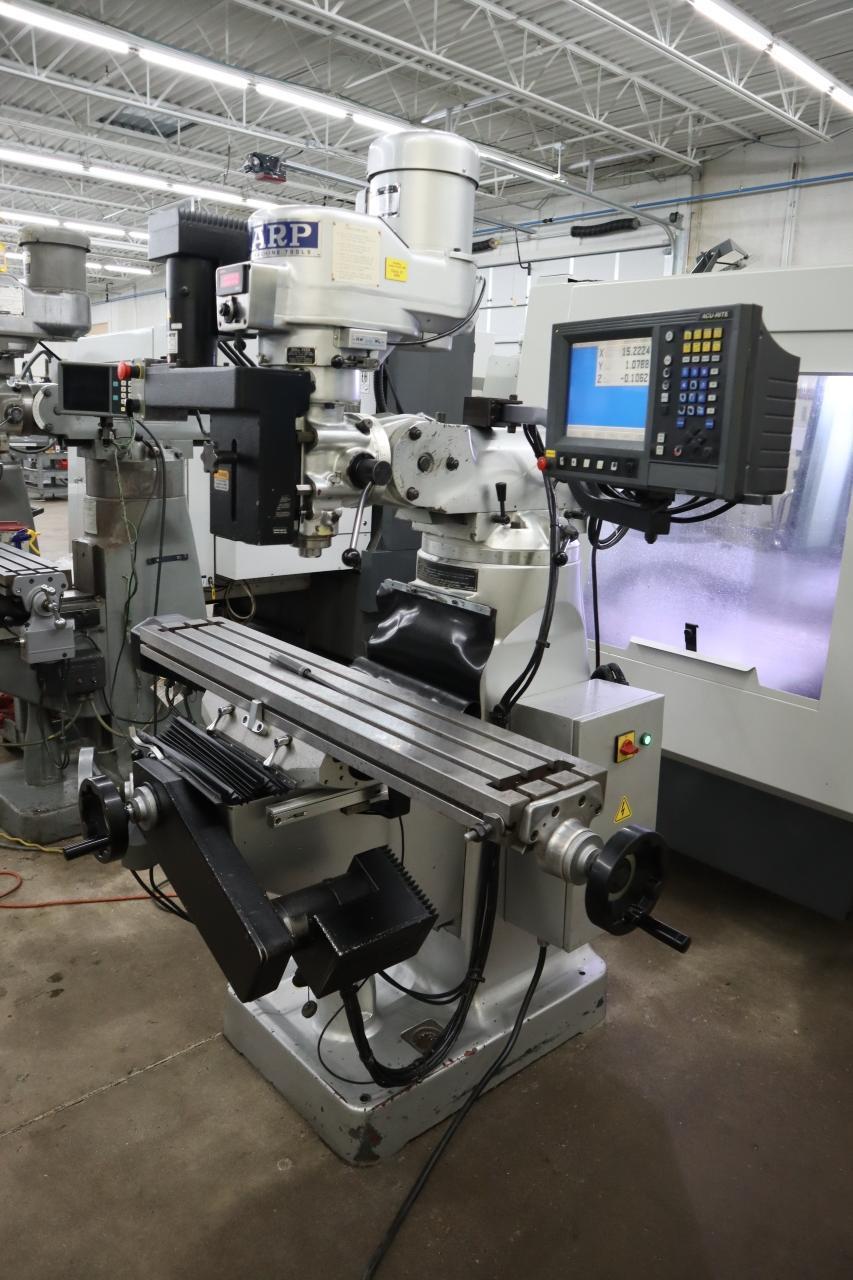

Sharp LMV-50/DVS 3-Axis CNC Vertical Knee Mill, Acu-Rite MILLPWR CNC Control, Electronic Variable Speed Drive

Sharp LMV-50/DVS 3-Axis CNC Vertical Knee Mill, Acu-Rite MILLPWR CNC Control, Electronic Variable Speed Drive

Name: Sharp LMV-50/DVS 3-Axis CNC Vertical Knee Mill, Acu-Rite MILLPWR CNC Control, Electronic Variable Speed Drive

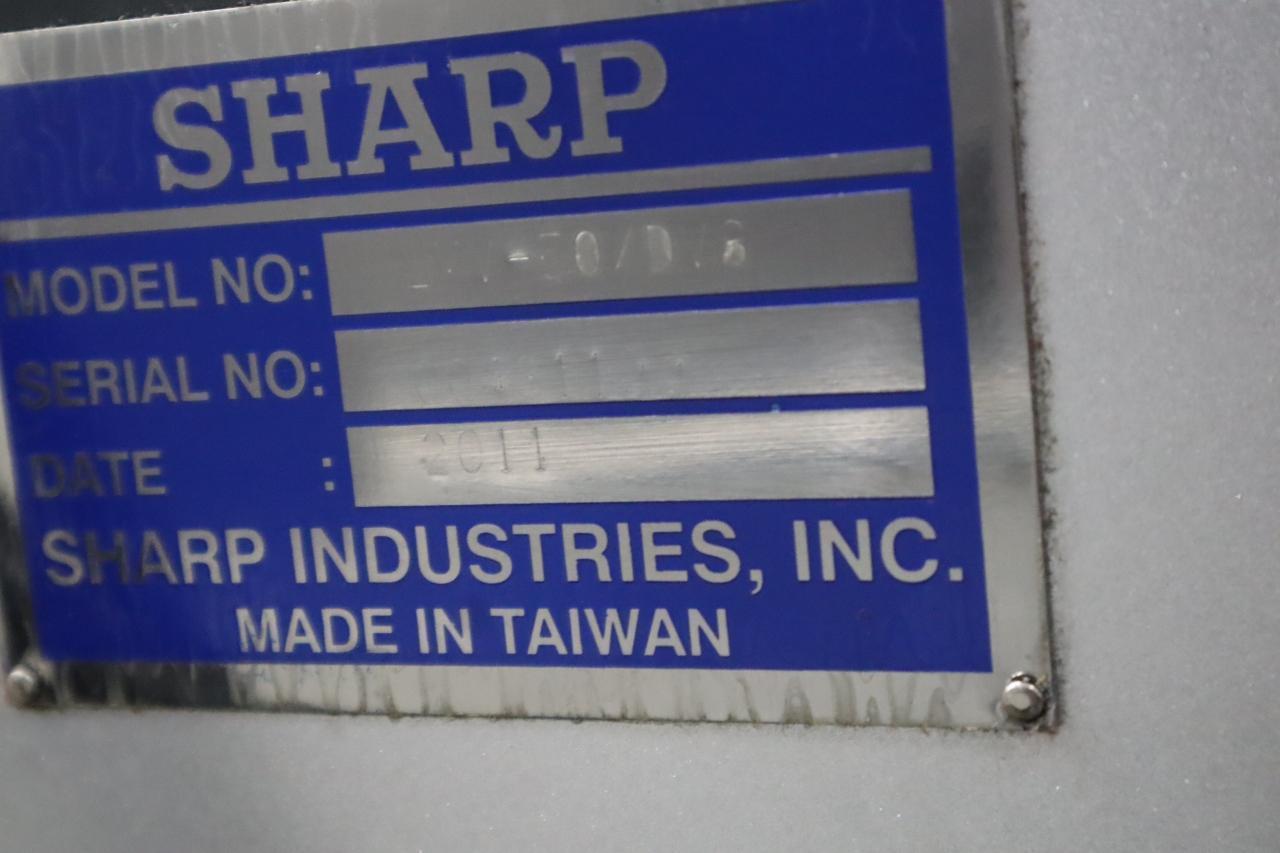

Brand: SHARP
SKU: 7433
Availability: InStock

Brand

SHARP

Location

Not specified

Specifications
Files & Videos

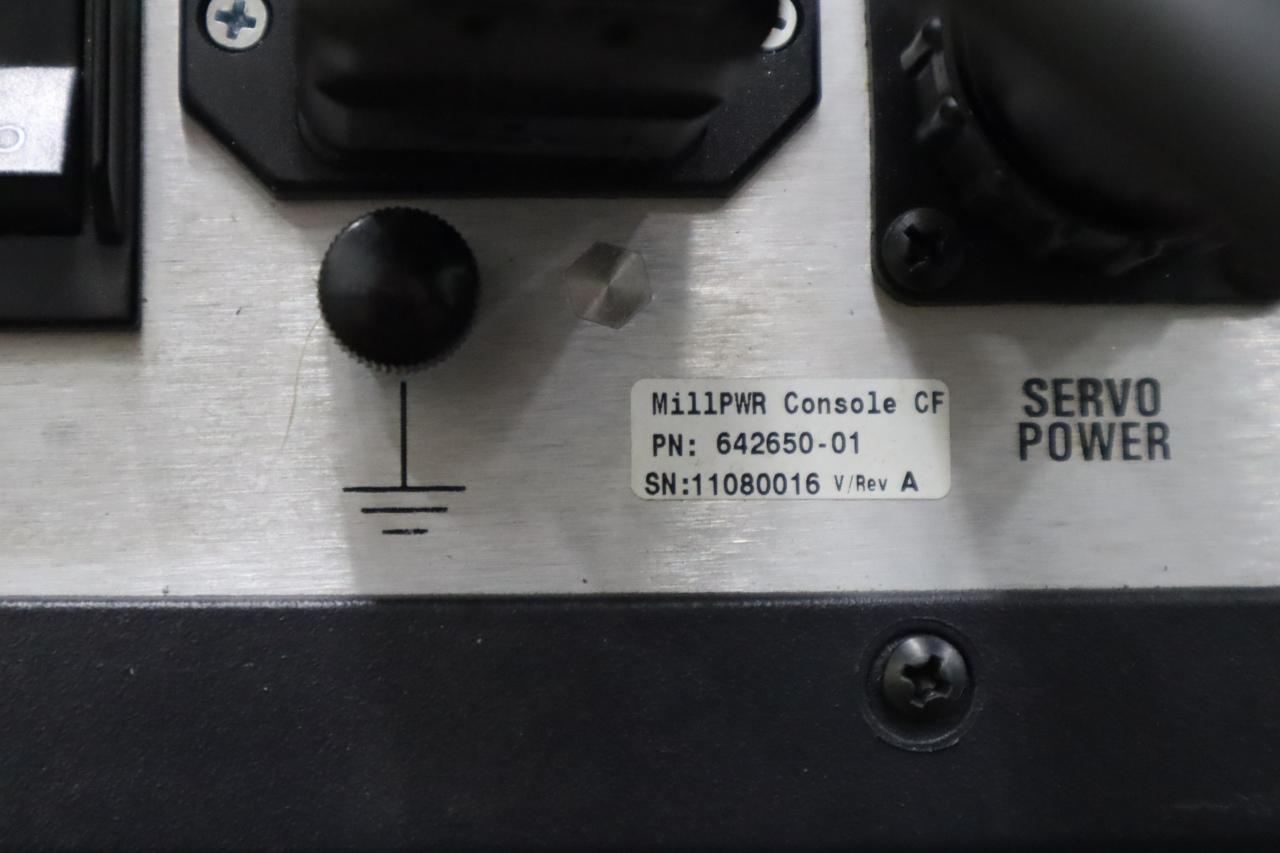

Control: Acu-Rite Millpwr 3-Axis CNC

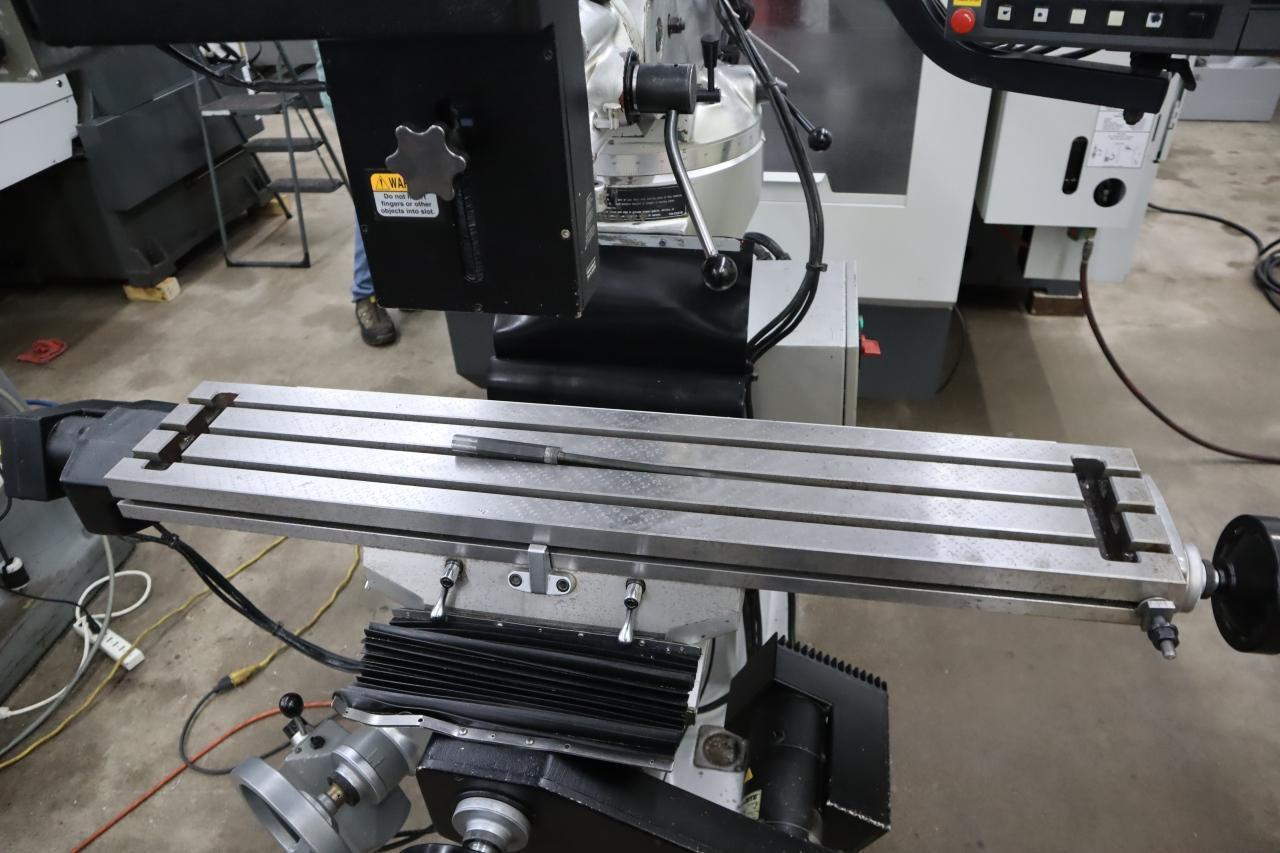

Table Size: 10" x 50"

Machine Travels (X/Y): 32" x 11" Programmable or Manual Travels

Programmable Z-Axis Travel: 5"

Quill Travel: 5" Programmable or Manual

Knee Travel: 16" (Manual)

Overarm Ram Adjustment: 12"

Spindle Center to Column: 6.75" - 18.5"

Spindle To Table Distance: 2.125" - 18"

Spindle Taper: R-8

Head Swivel Right to Left: +/- 90 Degrees

Head Tilt Front to Back: +/- 45 Degrees

Spindle Speeds: 60 - 4,500 RPM Electronic Digital Variable Speeds

Spindle Drive: 3 HP

Description:

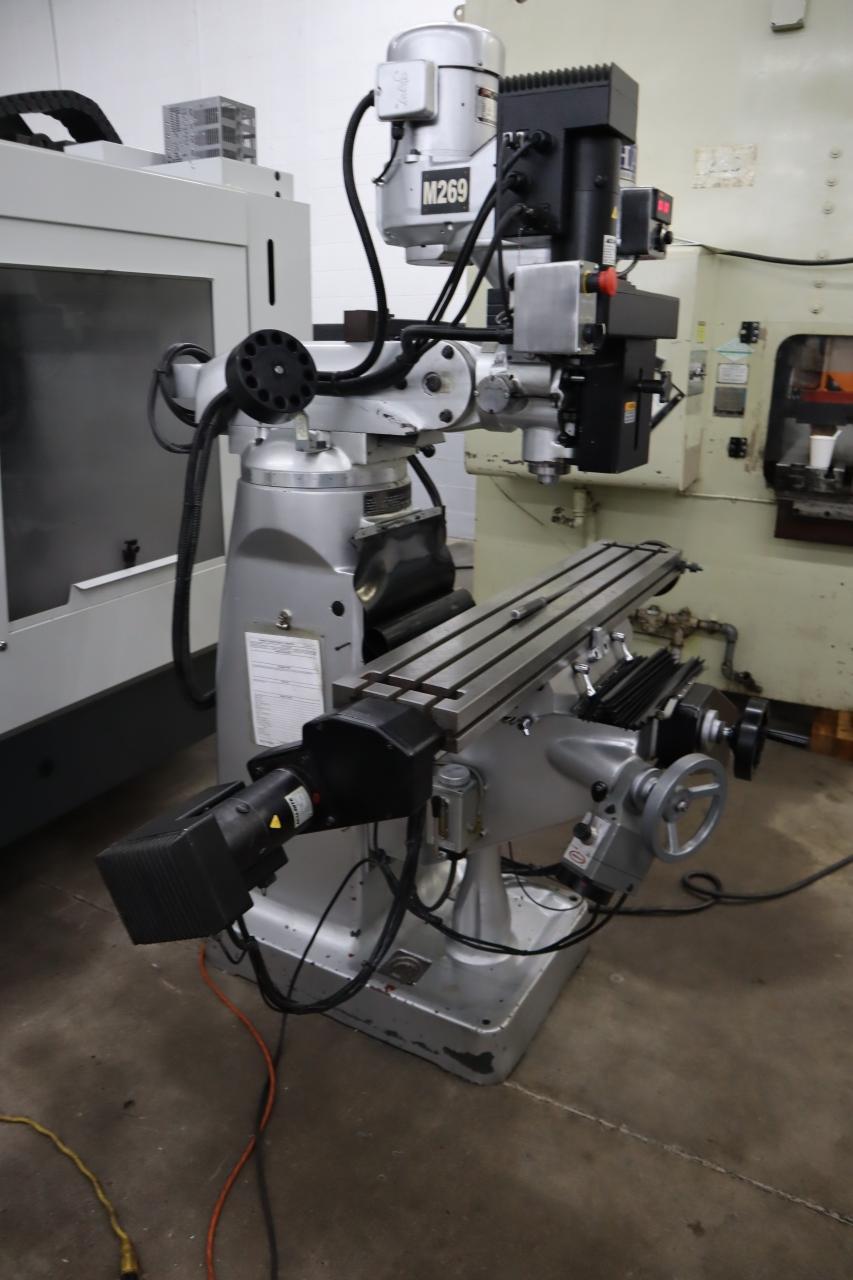

The Sharp LMV-50/DVS is a versatile vertical knee mill equipped with an Acu-Rite MillPWR 3-axis CNC control system, combining the flexibility of manual machining with the productivity of conversational CNC programming. Popular in toolrooms, maintenance departments, prototype shops, and job shops, the LMV-50/DVS offers precision machining capabilities without the complexity of a full machining center.

Equipped With:

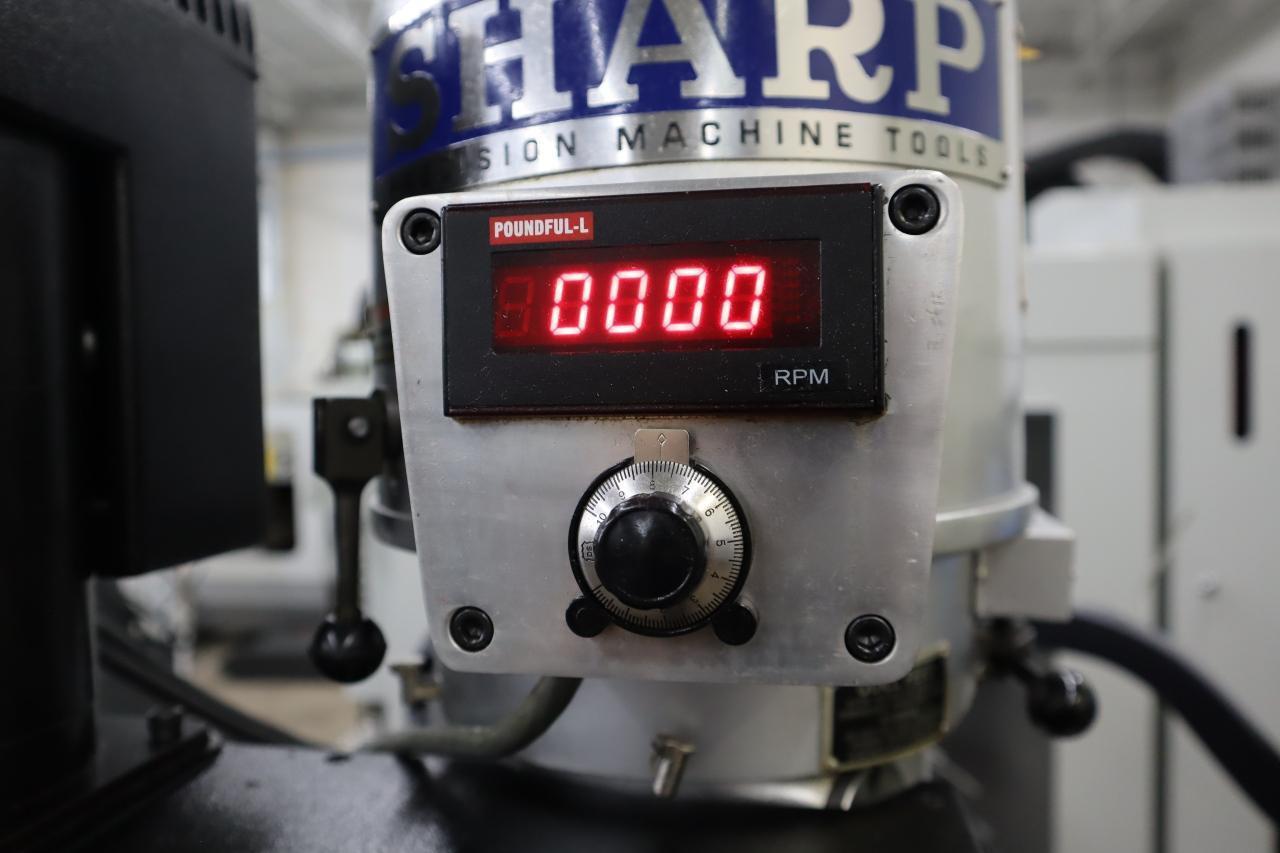

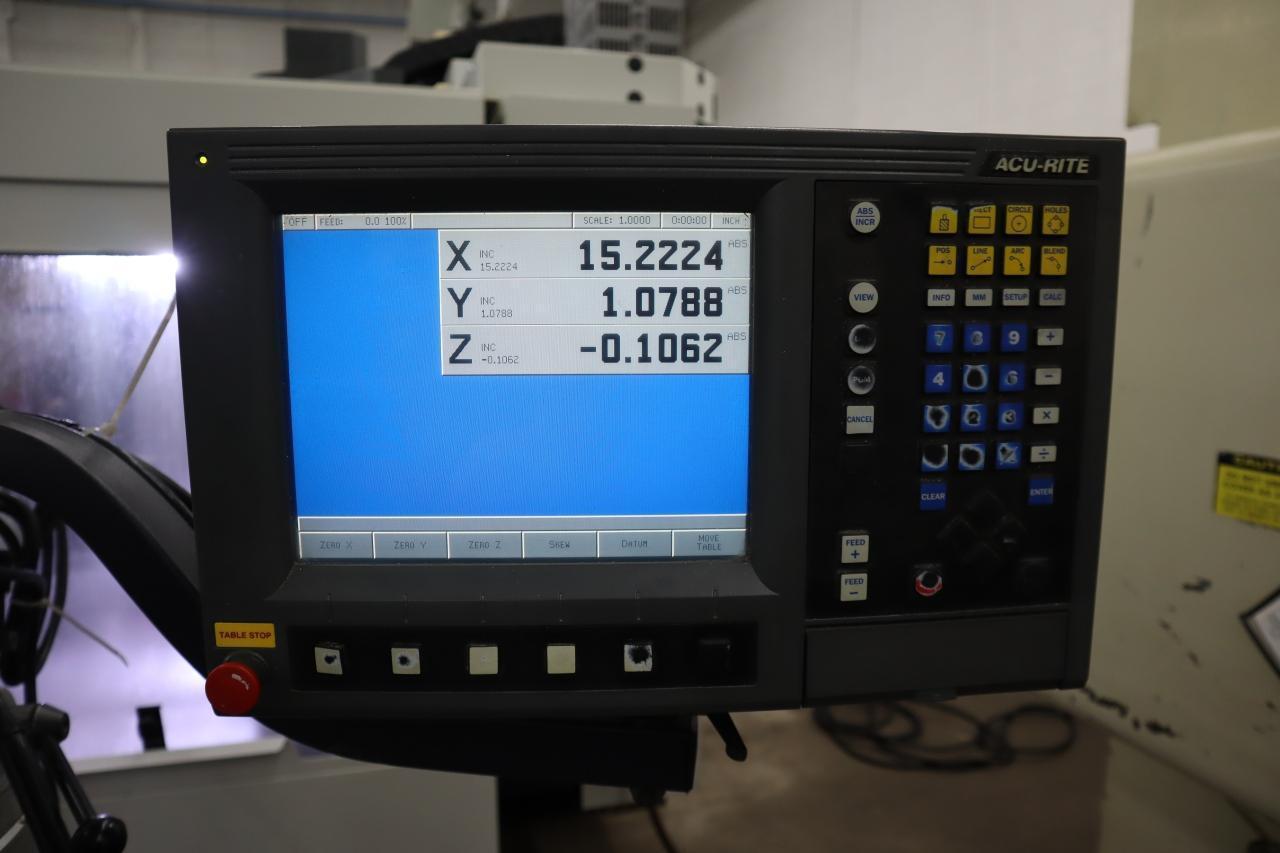

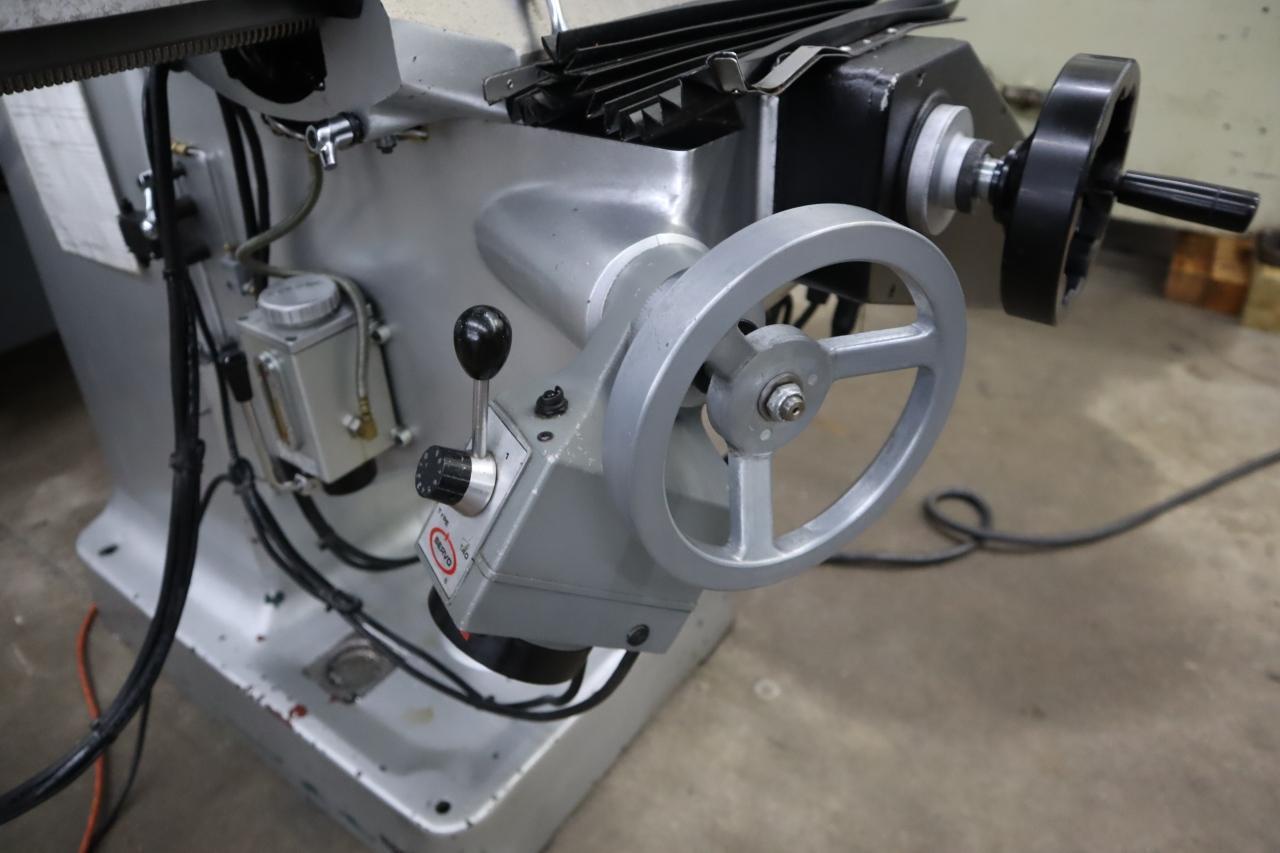

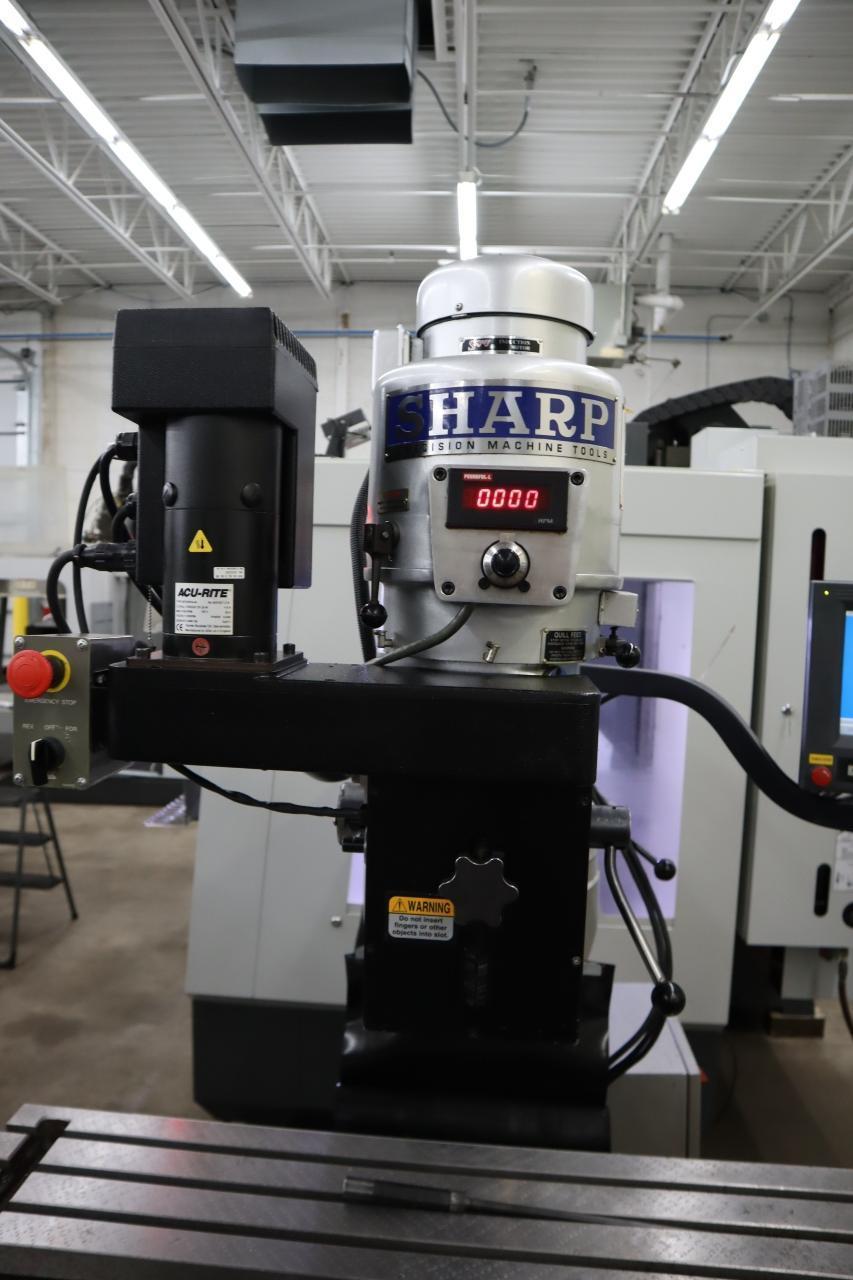

Acu-Rite MILLPWR 3-Axis CNC Control, Electronic Variable Speed Drive with LED Display, Programmable or Hand Quill Feed, Servo 140 Power Knee Feed, Draw Bar, Quill Handle

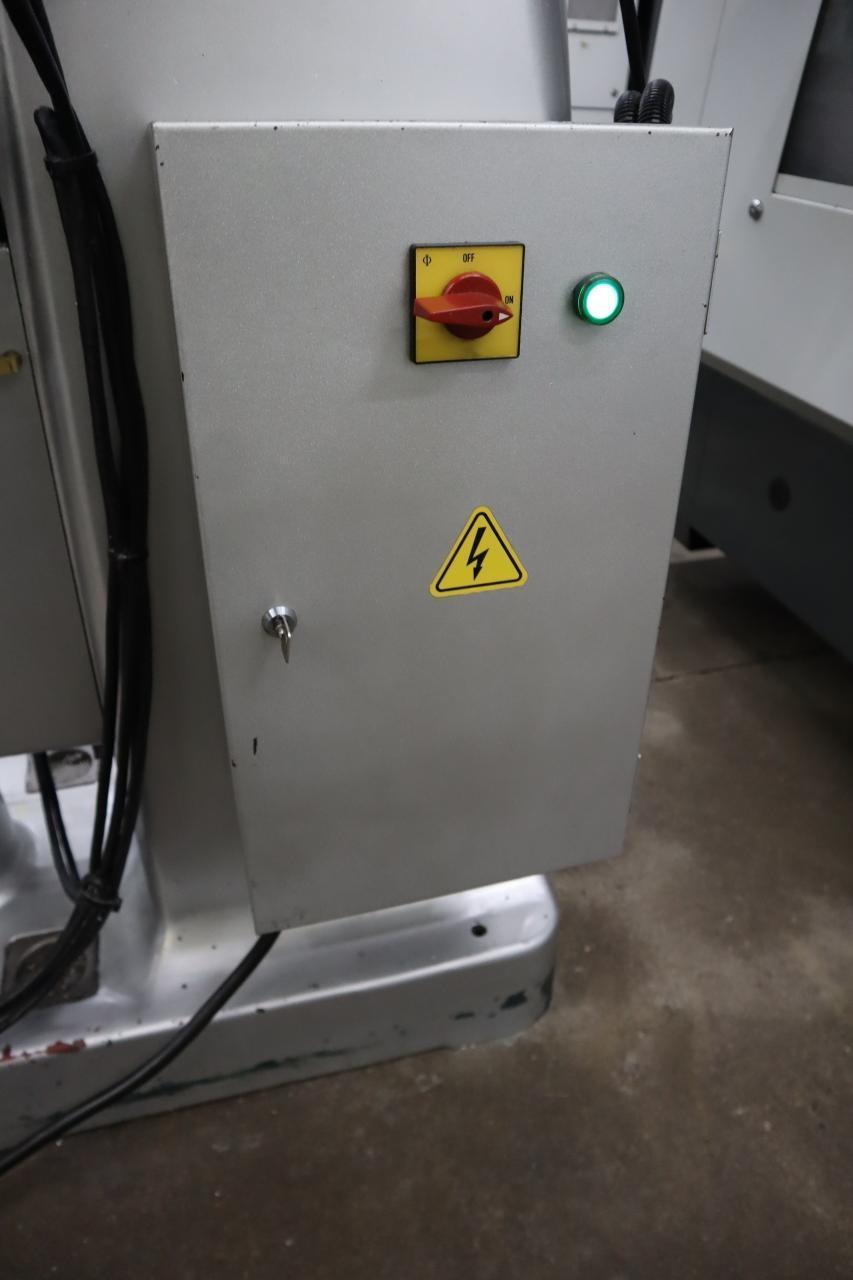

Electrics:

220/440 Volt, 3 Phase (Currently Wired 220 Volt)
