5,5 - 14mm KOCH WD 4 WIRE STRAIGHTENER & CUT OFF MACHINE (14721)

5,5 - 14mm KOCH WD 4 WIRE STRAIGHTENER & CUT OFF MACHINE
Stock #14721

Description

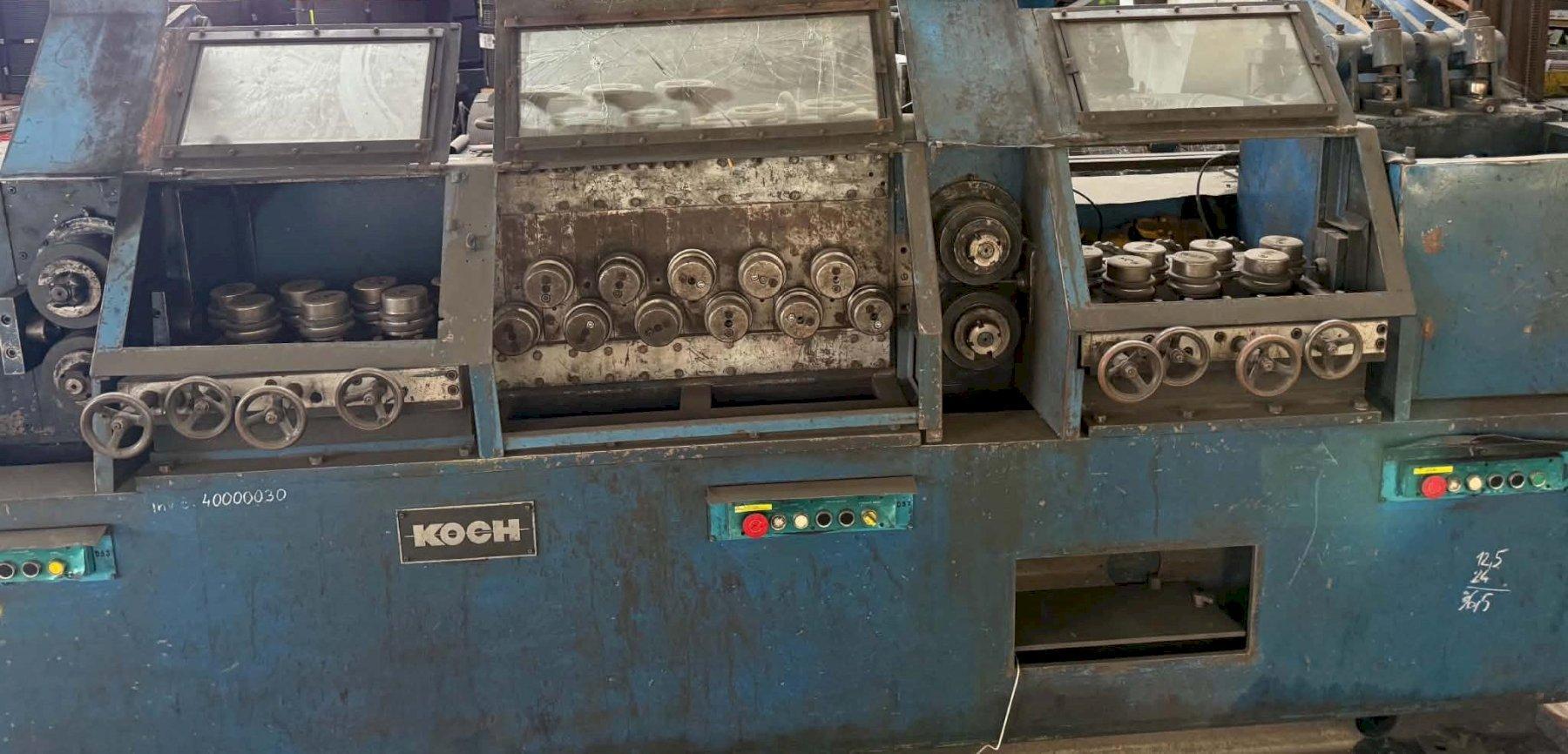

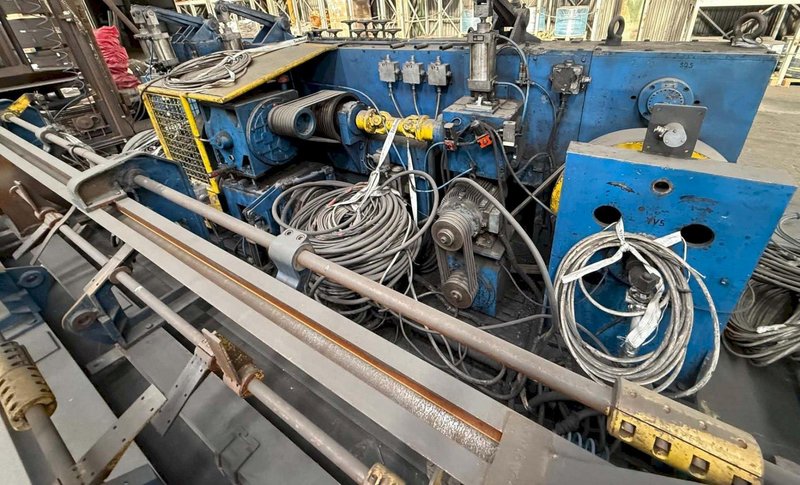

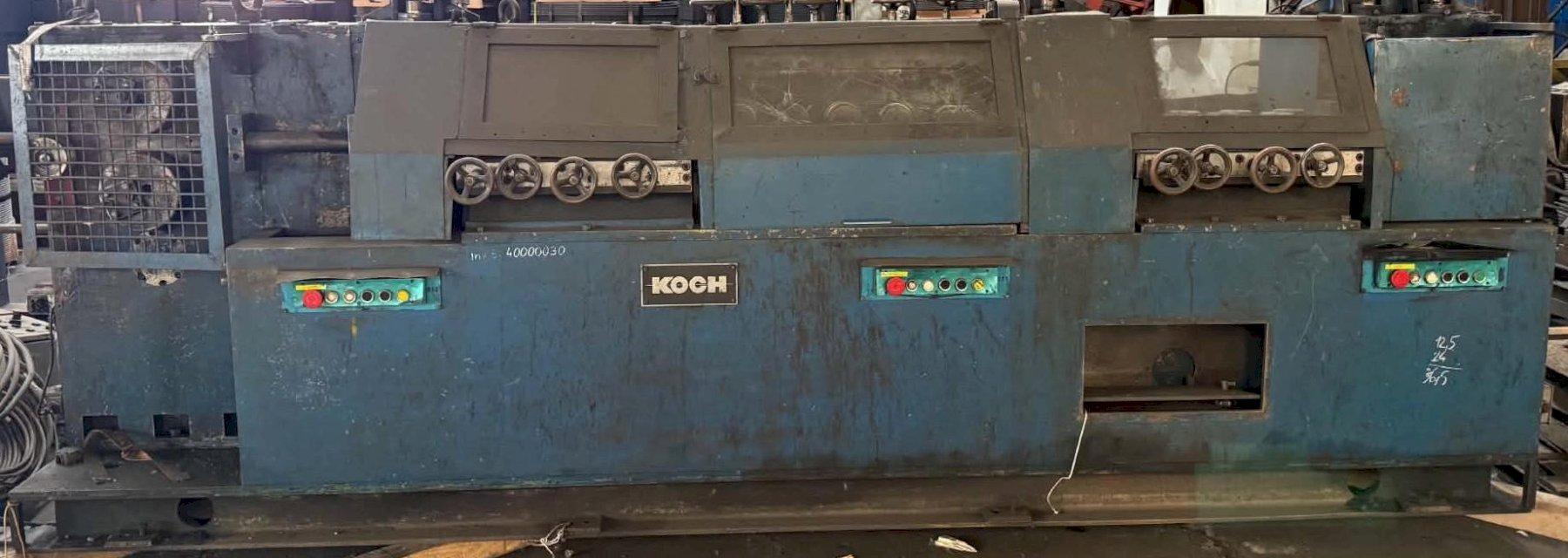

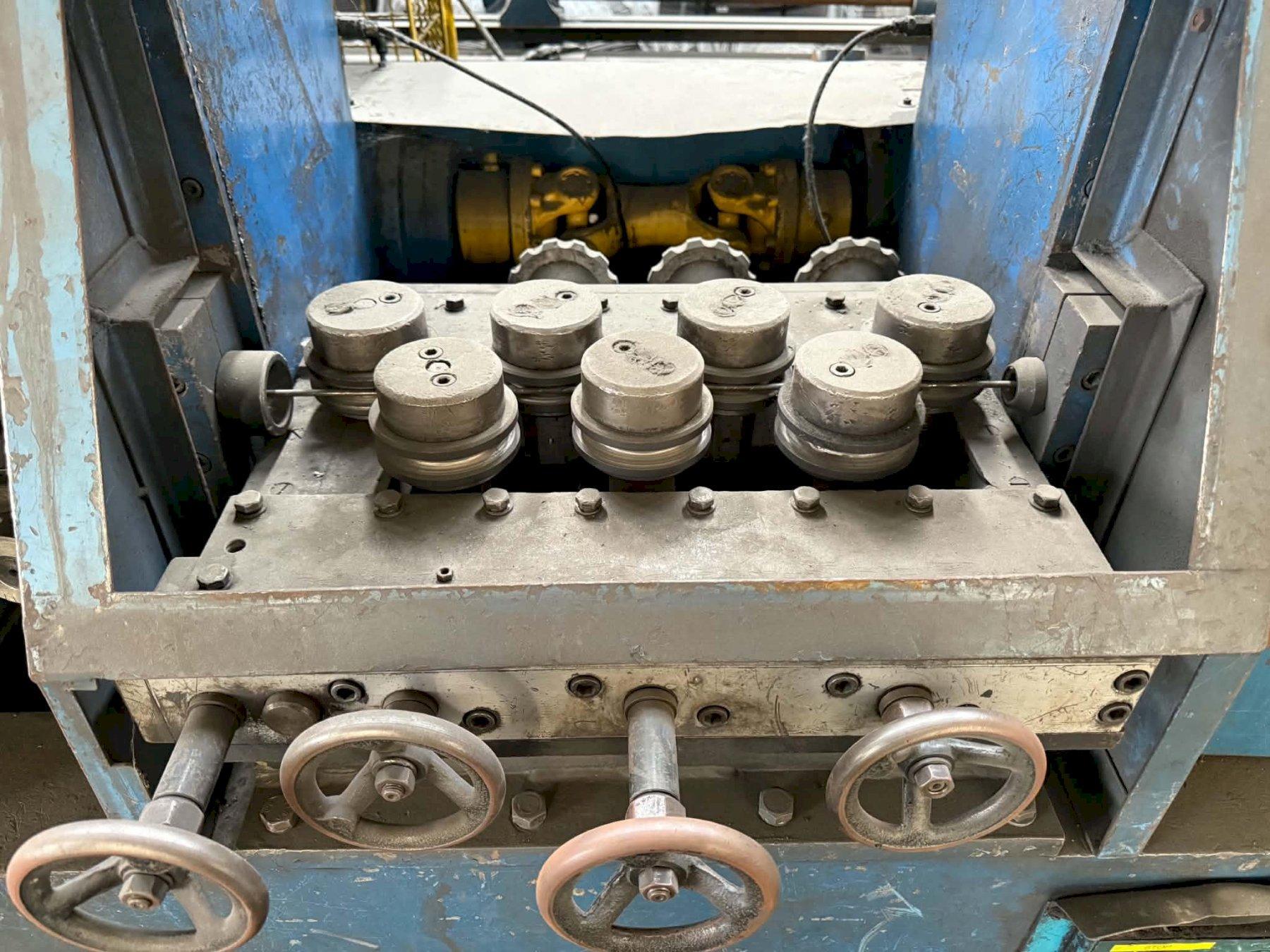

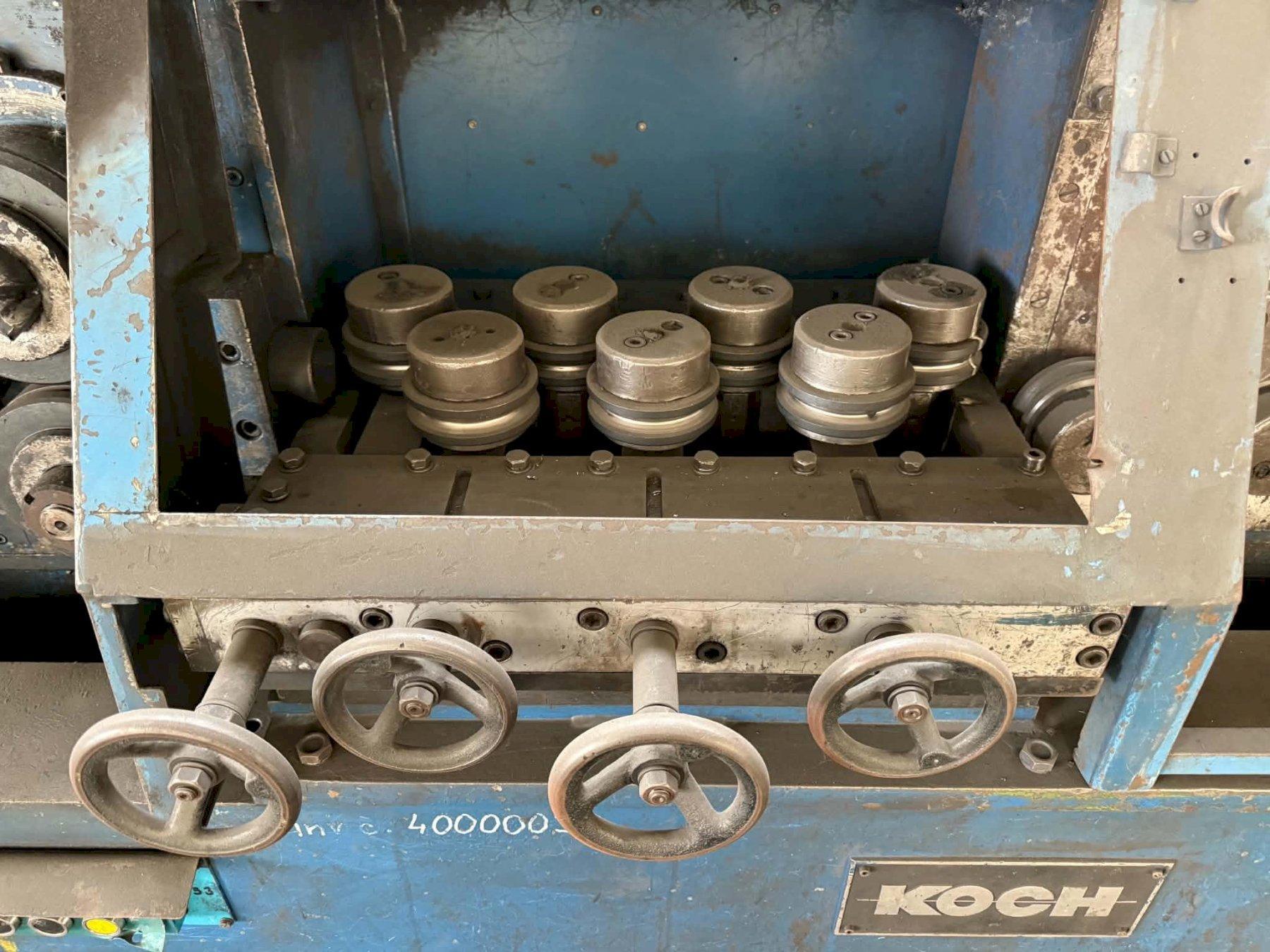

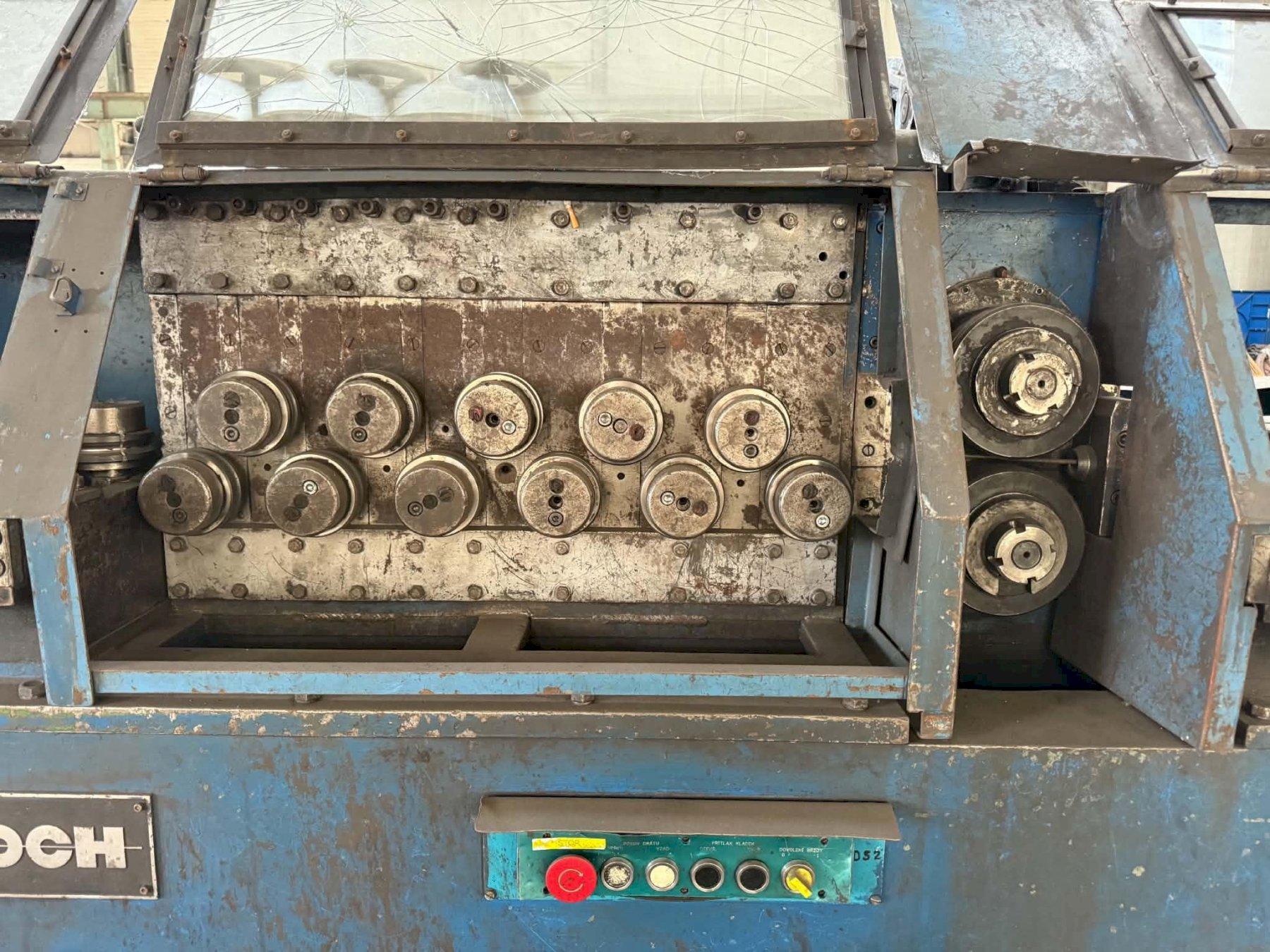

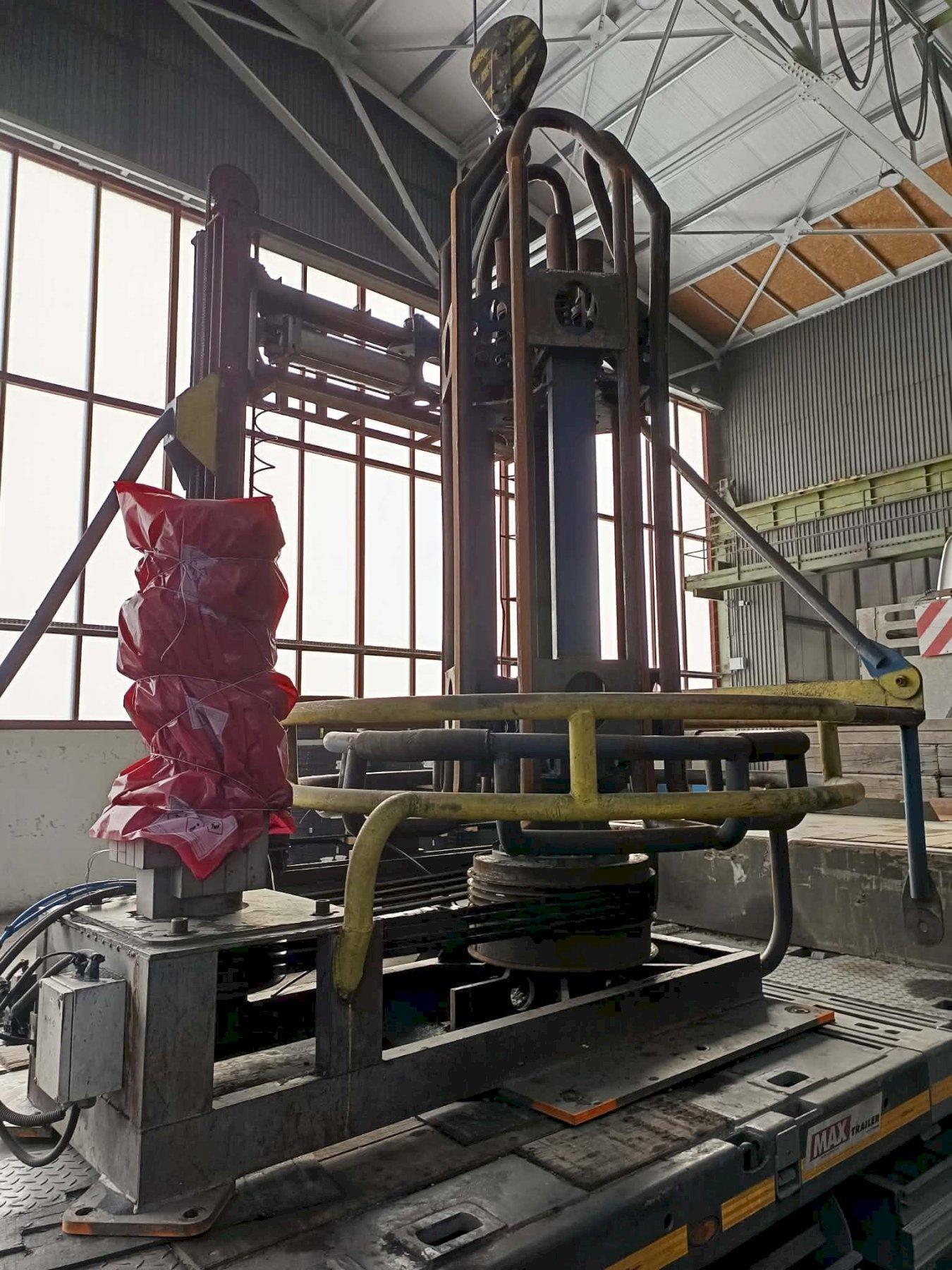

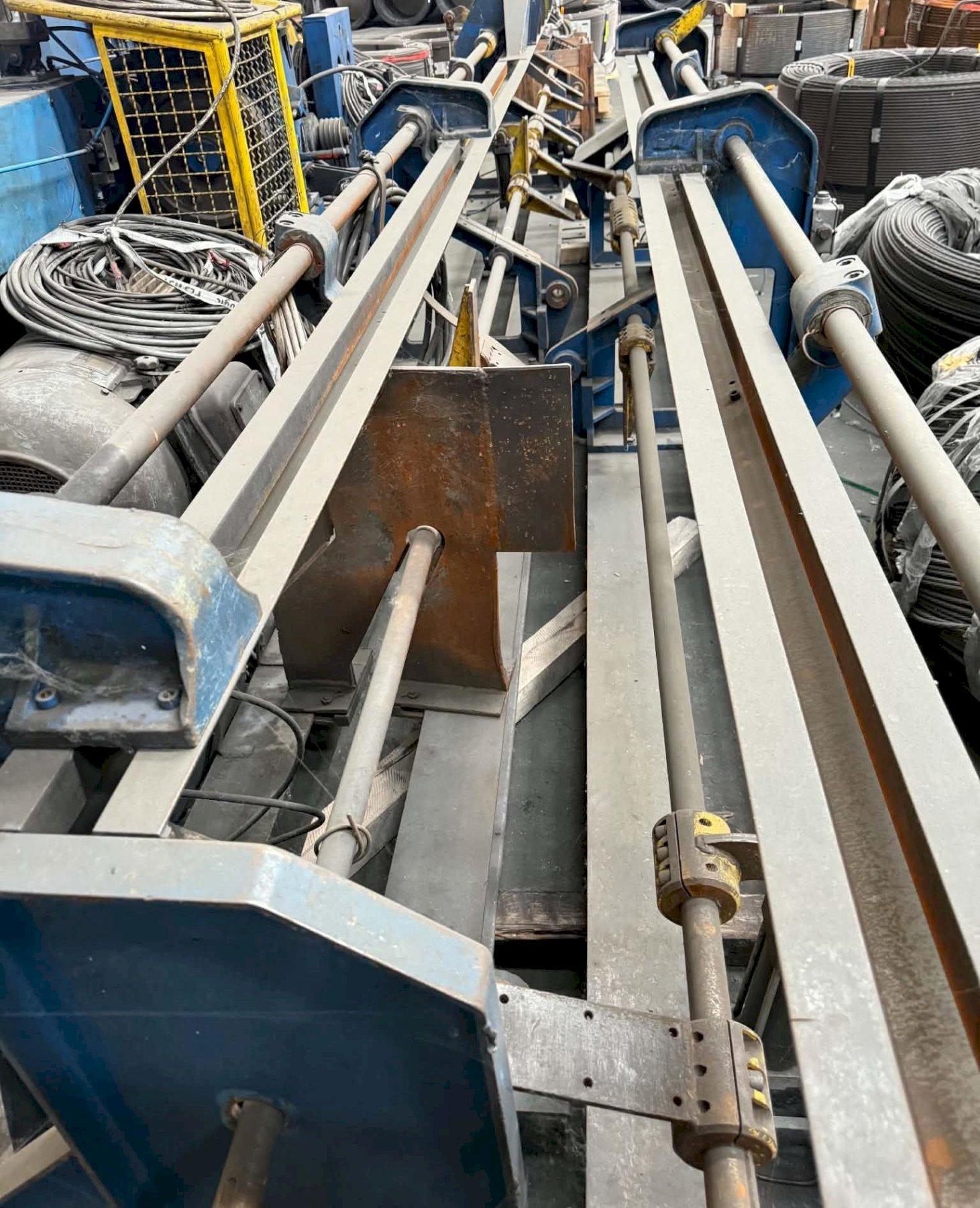

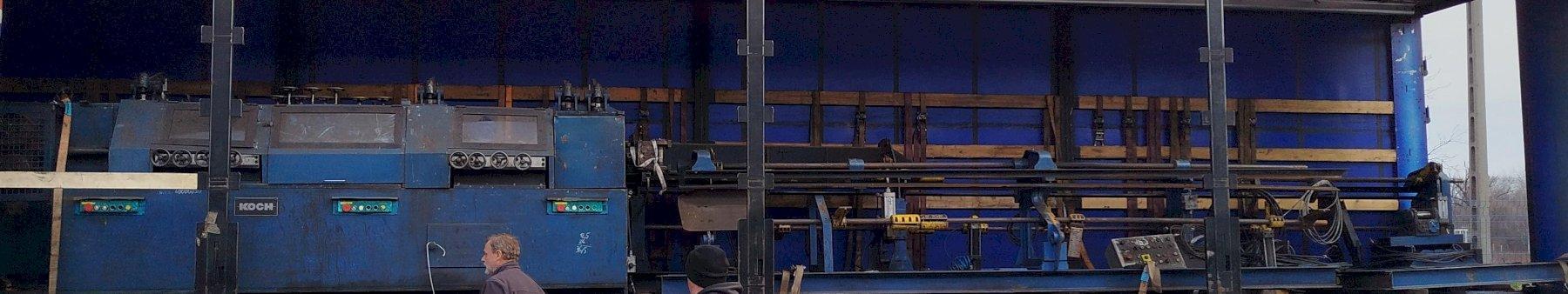

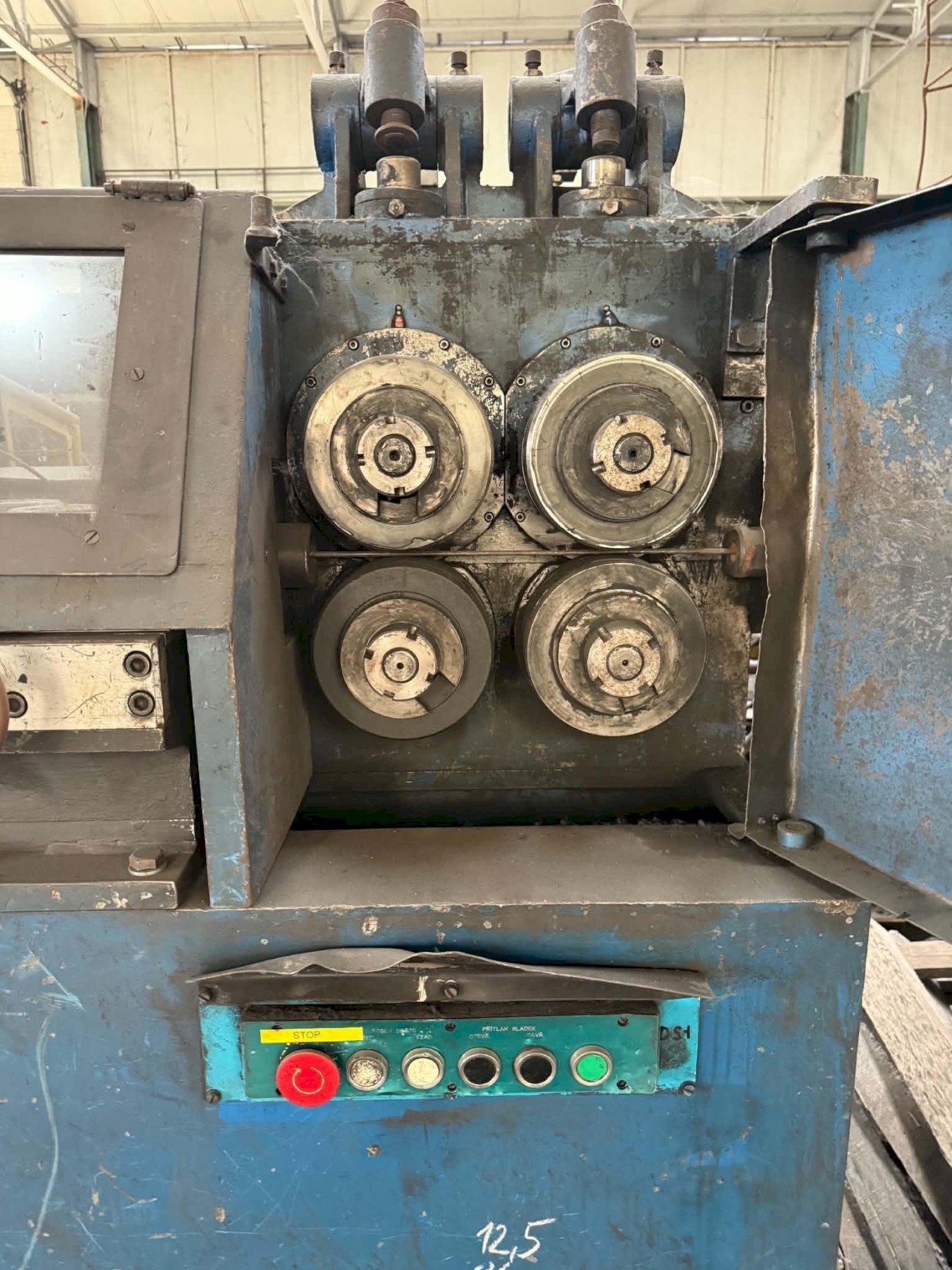

5,5 - 14mm KOCH WD 4 wire straightener & cut off machine with payoff unit for low carbon steel production.
Machine has been dismantled; there is no electrical control cabinet.

Machine Overview
•    Manufacturer:     Ernst Koch GmbH (Germany)
•    Category:         Wire straightening and cutting-off machine with infeed unit
•    Production direction: from right to left
Specifications
Min. wire dia.:            5,5 mm
Max. wire dia.:            14 mm
Manufacturer:            Ernst KOCH & Co GmbH, Germany
Model:                WD 4 A 134
Year:                1974
Capacity:            5,5 - 14 mm
Tensile strength:        max. 700 N/mm²
Cutting length:            4500 - 15.000 mm
Speed:                150 – 180 - 220 m/min
Power:                87 kW
Voltage:                        500 V, 50 Hz

Important Remarks

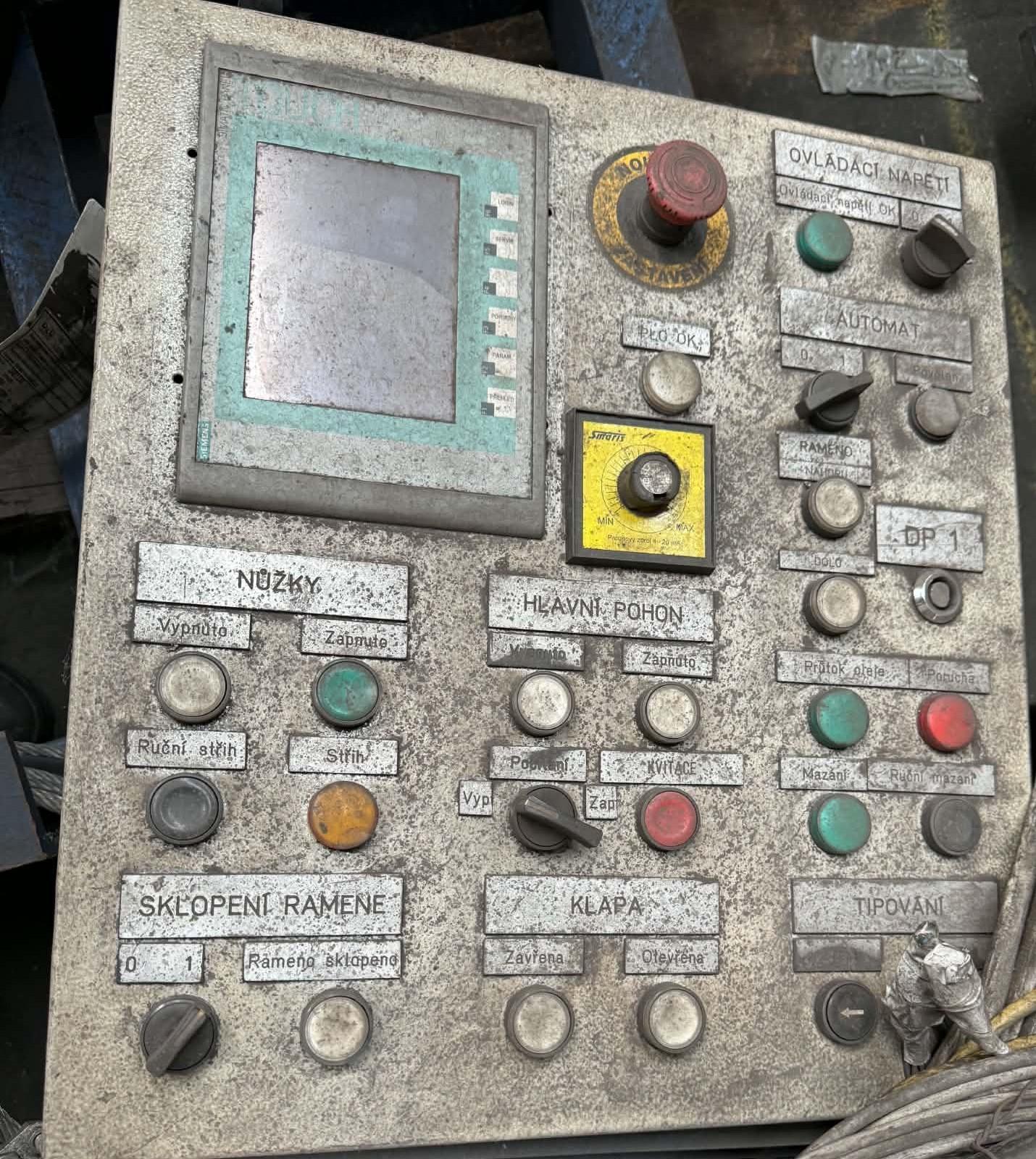

•    Without electronic board
•    Mechanic and electric manuals are available only in printed form.
•    Spare parts available.

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE US SUBJECT TO PRIOR SALE**
**ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION**
