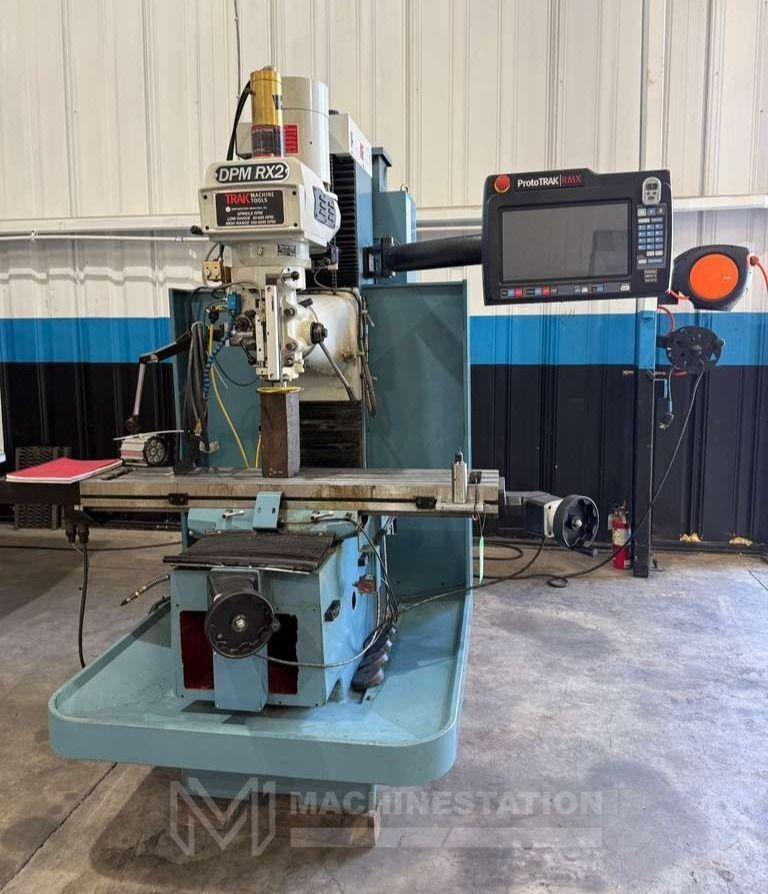

Name: Southwestern Industries TRAK DPM RX2 CNC Bed Type Milling – 2020
Brand: SUPERTEC
SKU: 113671
Availability: InStock

Brand

SUPERTEC

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Southwestern Industries
Model:	TRAK DPM RX2

Features:
ProtoTRAK RMX 3-Axis CNC Control
Electronic Handwheels
Programmable Spindle Speeds
Programmable Tapping
Two-Speed Variable-Speed Spindle Head
R8 Spindle Taper
Manual Quill with Power Feed
Operator and Programming Manuals

Table:
Table Size: 49.0 inch × 9.0 inch
Number of T-Slots: 3
T-Slot Width: 0.63 inch
T-Slot Spacing: 2.50 inch
Maximum Table Load: 1,320 lbs

Travels:
X-Axis Travel: 31.0 inch
Y-Axis Travel: 16.0 inch
Z-Axis Travel: 23.25 inch
Maximum Quill Travel: 5.0 inch

Spindle:
Spindle Taper: R8
Low-Speed Range: 40 – 600 RPM
High-Speed Range: 300 – 5,000 RPM
Spindle Motor: 3 HP
Quill Diameter: 3.375 inch
Spindle Center to Column Face: 18.5 inch
Maximum Spindle Nose to Table: 25.5 inch
Head Swivel: ±90 Degrees
Quill Feed Rates: 0.0015 / 0.003 / 0.006 IPR

Feedrate:
Rapid Traverse, X & Y Axes: 400 IPM
Rapid Traverse, Z Axis: 250 IPM

Machining Capacity:
Maximum Drilling Capacity: 1.0 inch Diameter
Maximum Tapping Capacity: 3/4 inch-10
Maximum Milling Capacity: 3 Cubic Inches per Minute

General:
Electrical Requirement: 208 Volts / 27 Amps / 3-Phase / 60 Hz
Approximate Overall Dimensions: 103 inch W × 94 inch D × 99 inch H
Approximate Net Weight: 3,300 lbs
