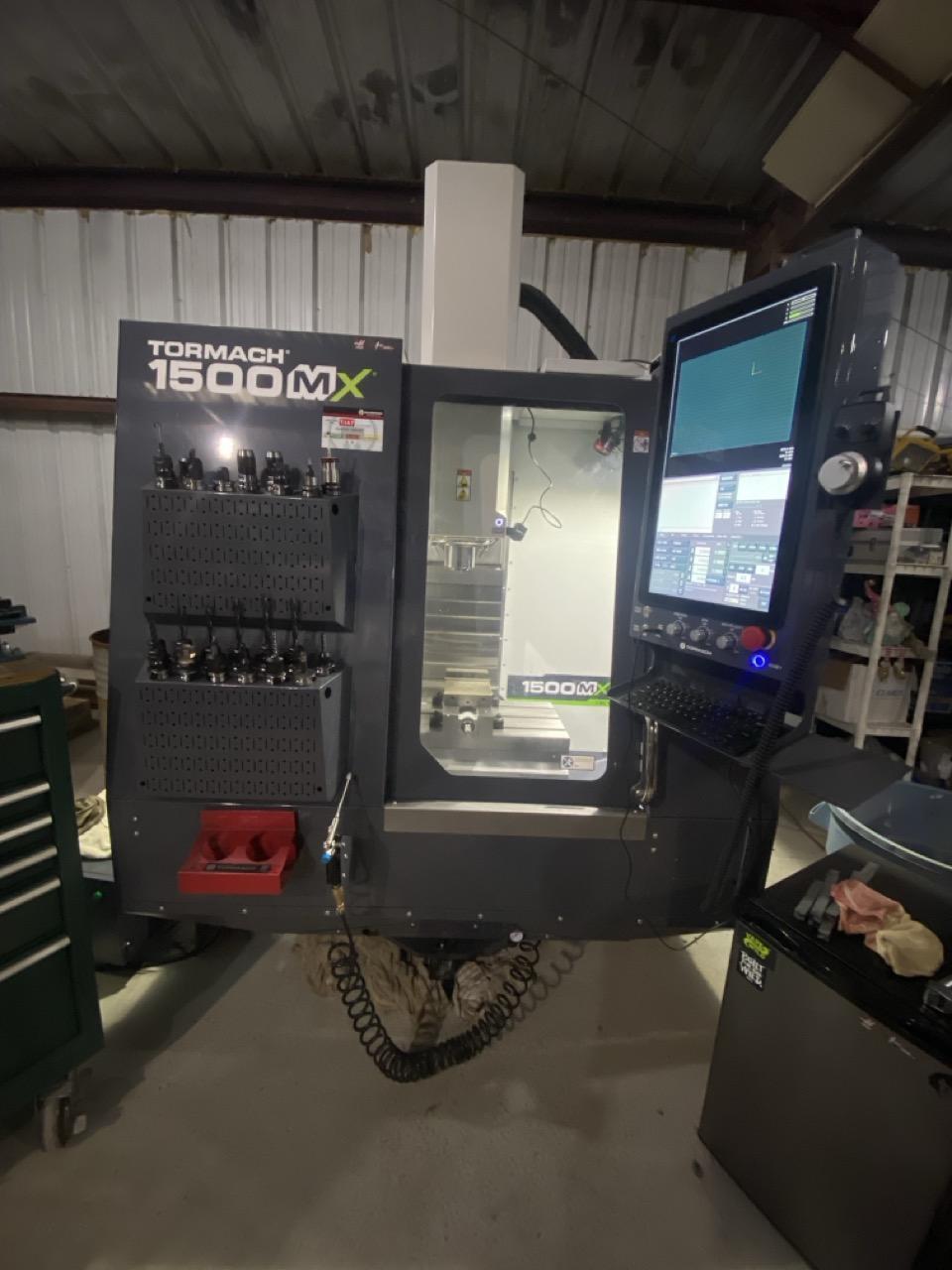

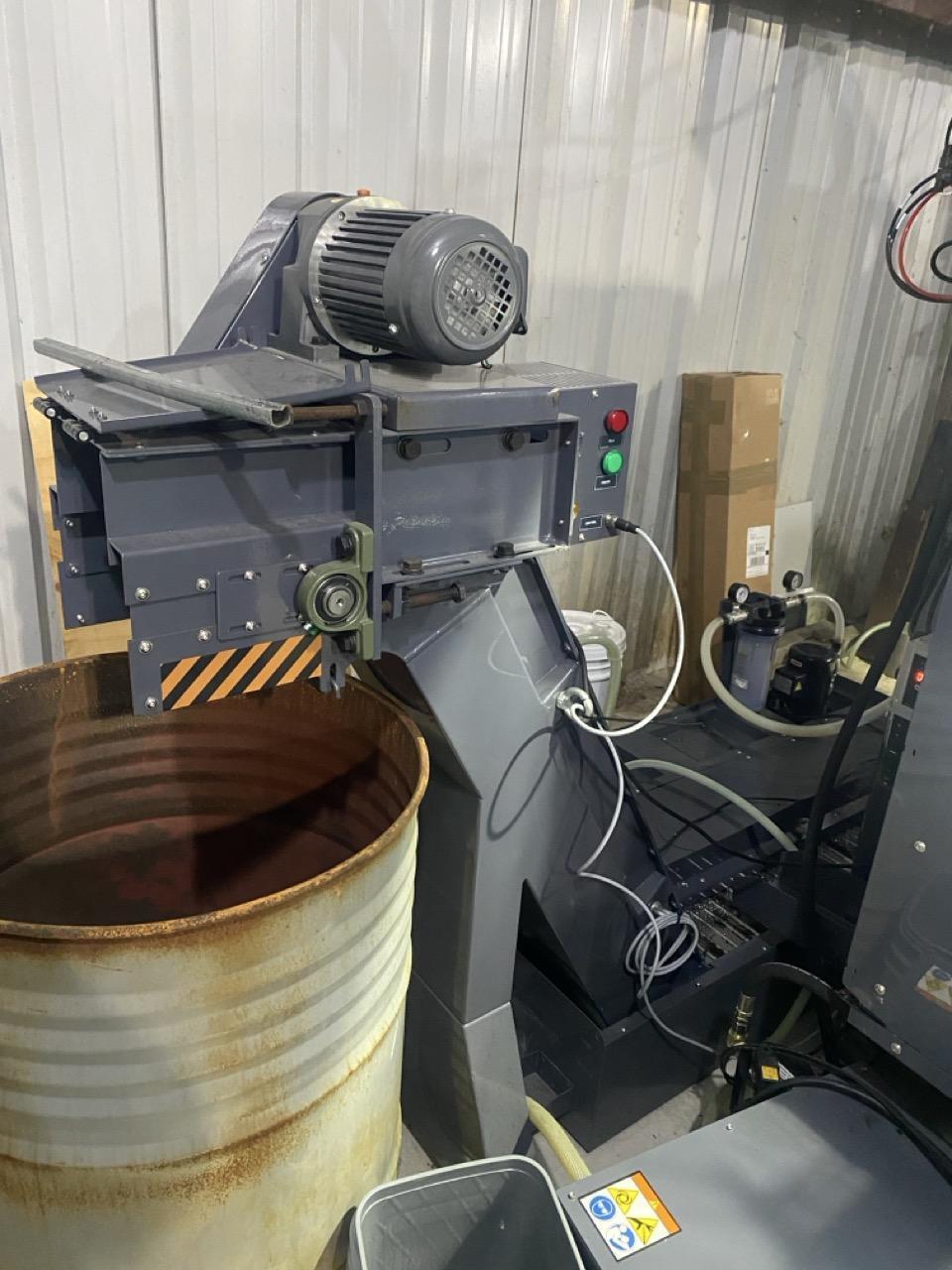

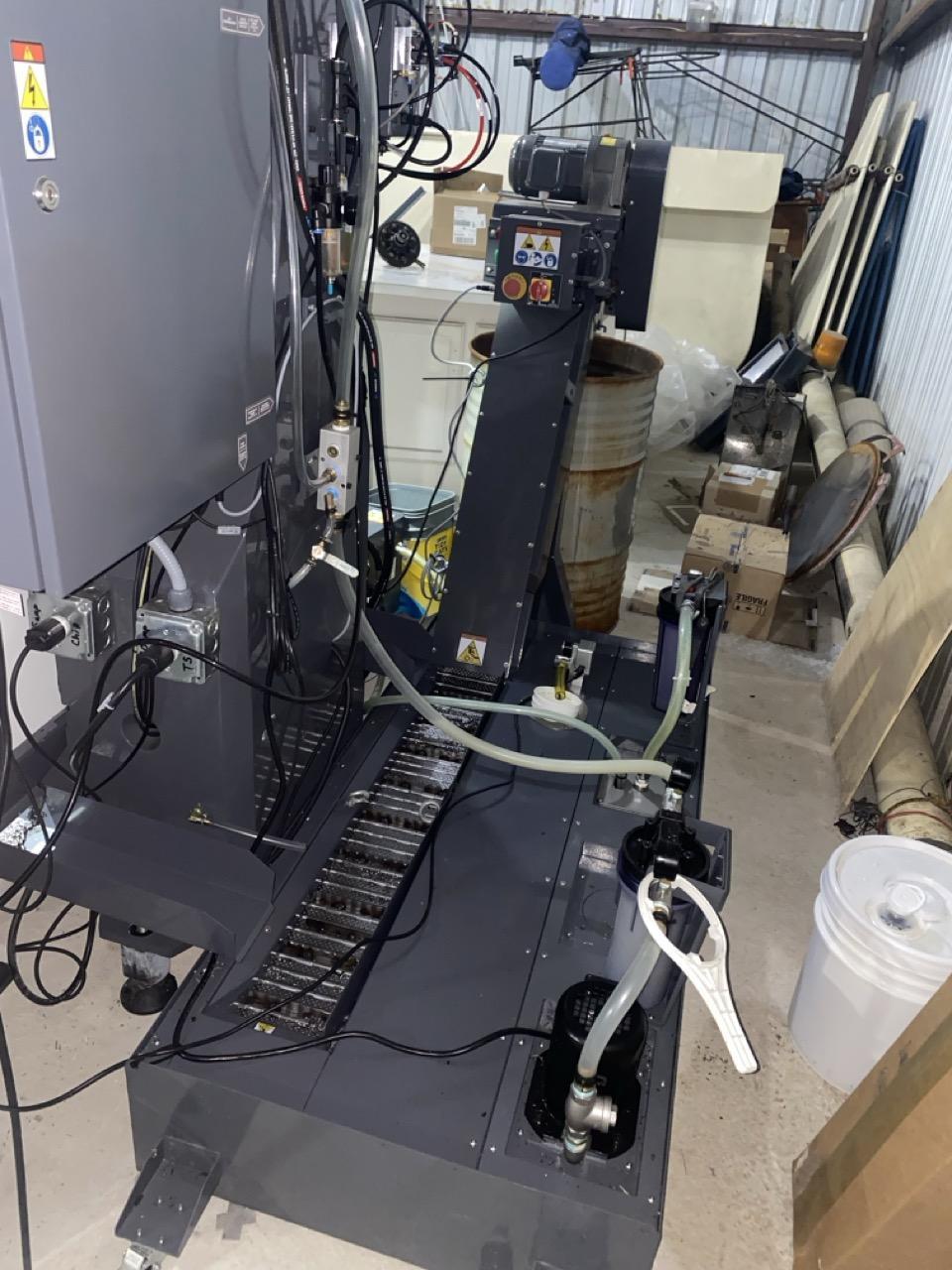

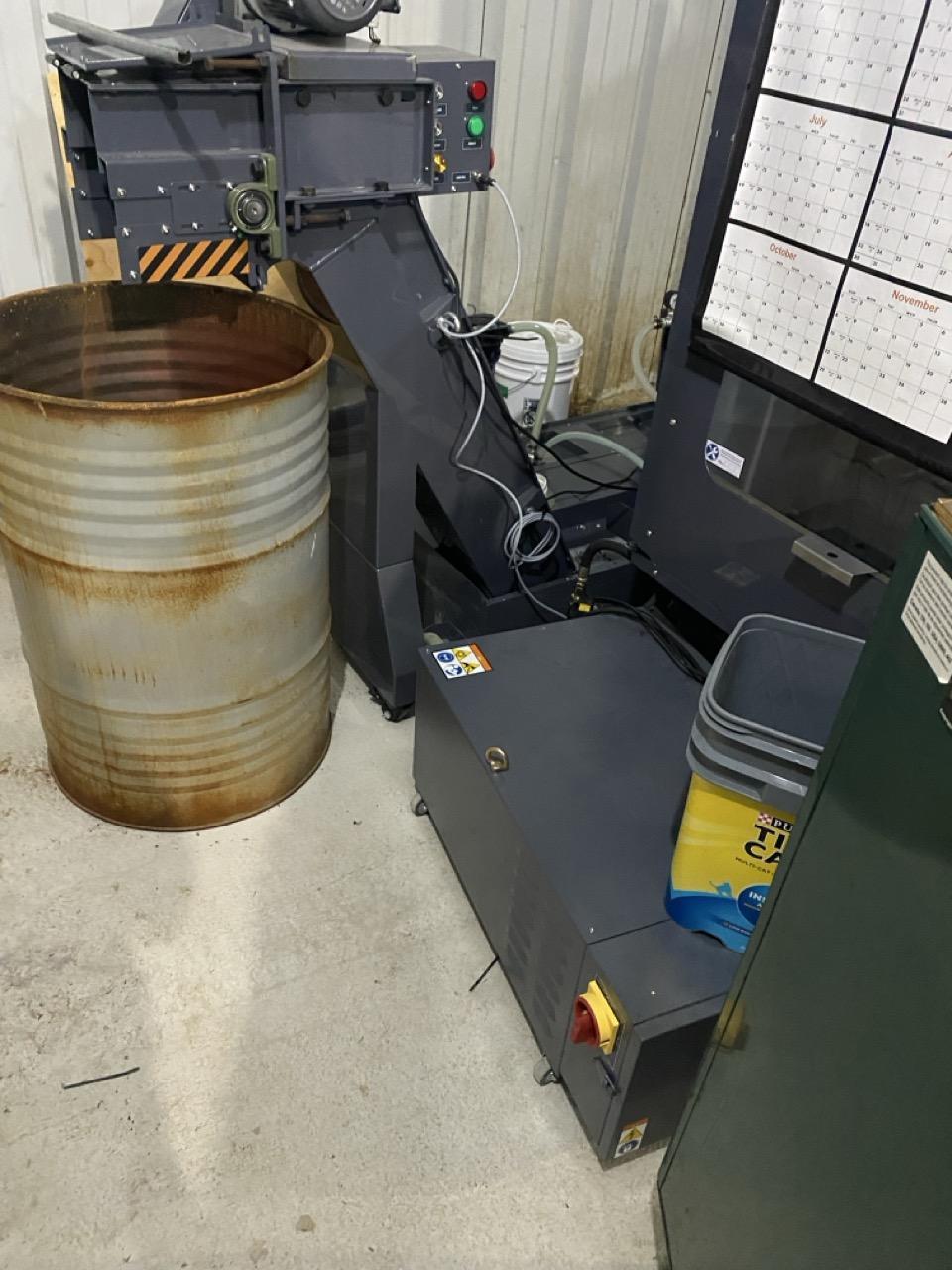

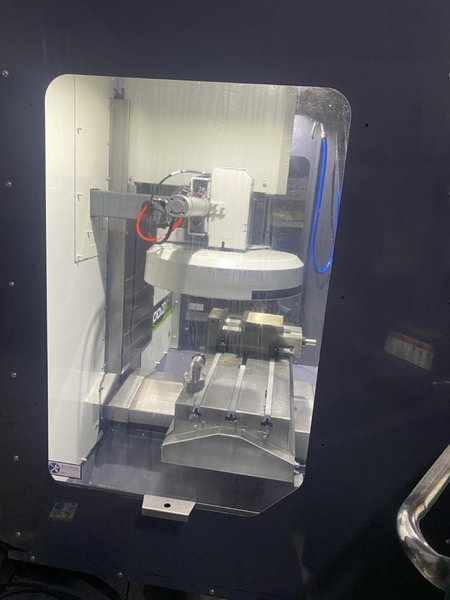

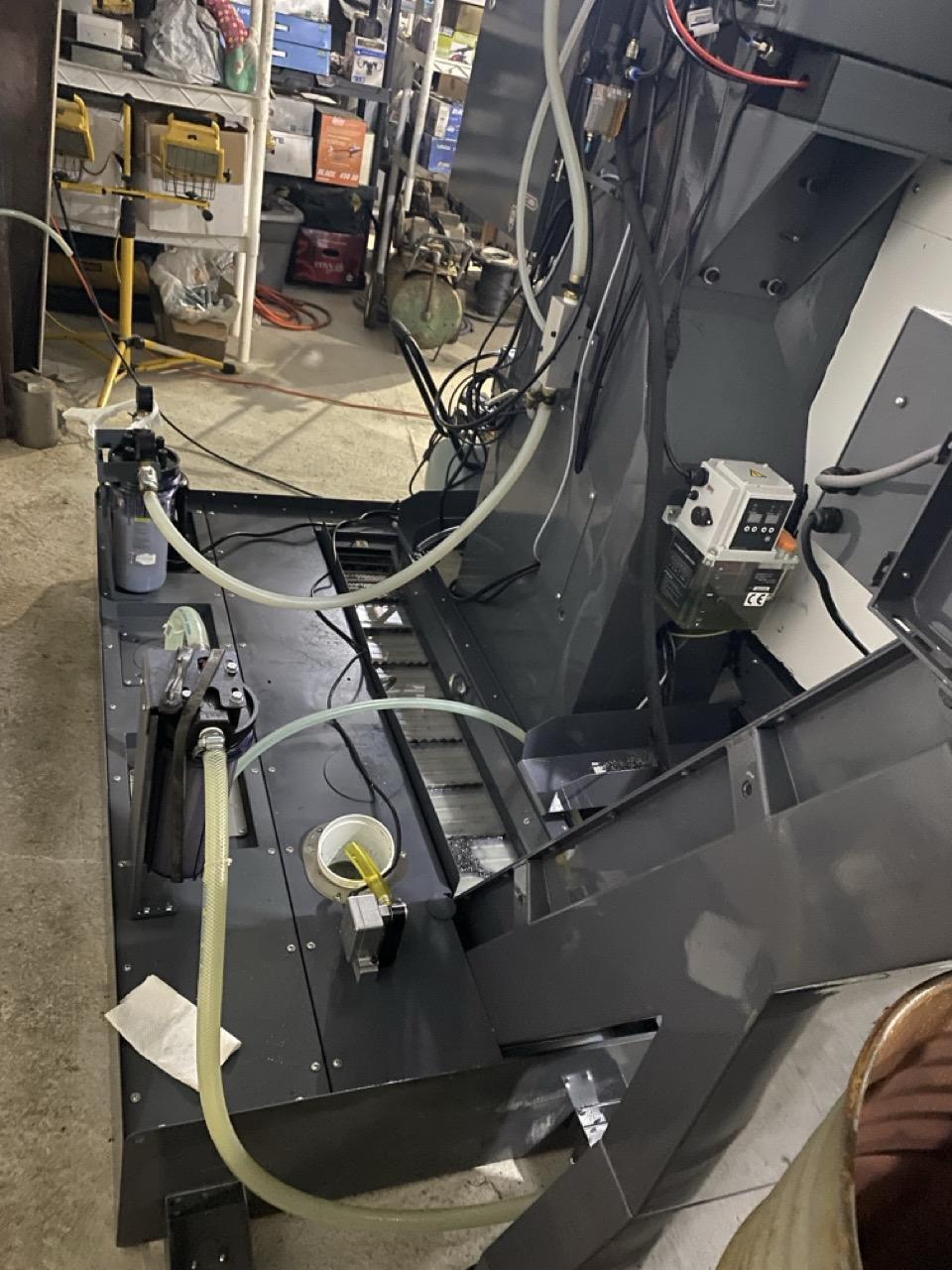

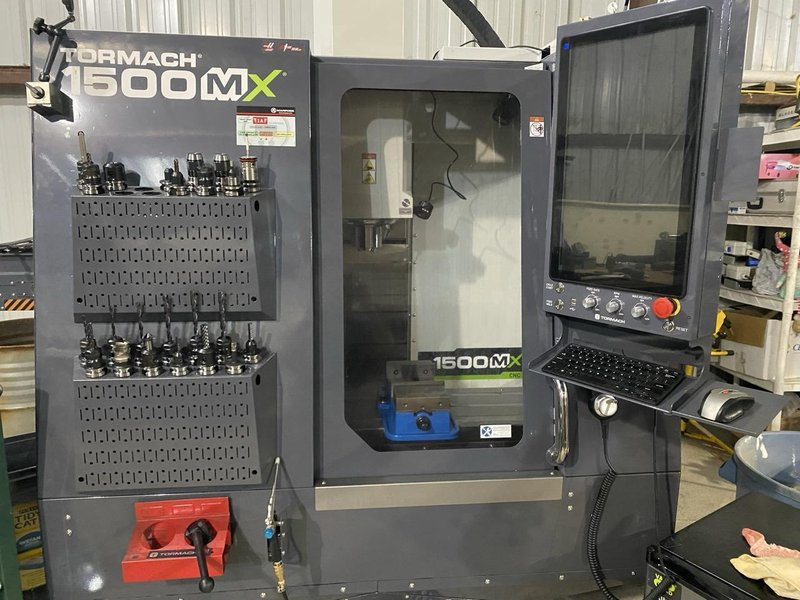

Tormach 1500MX VMC, 2025 – Chip Conveyor

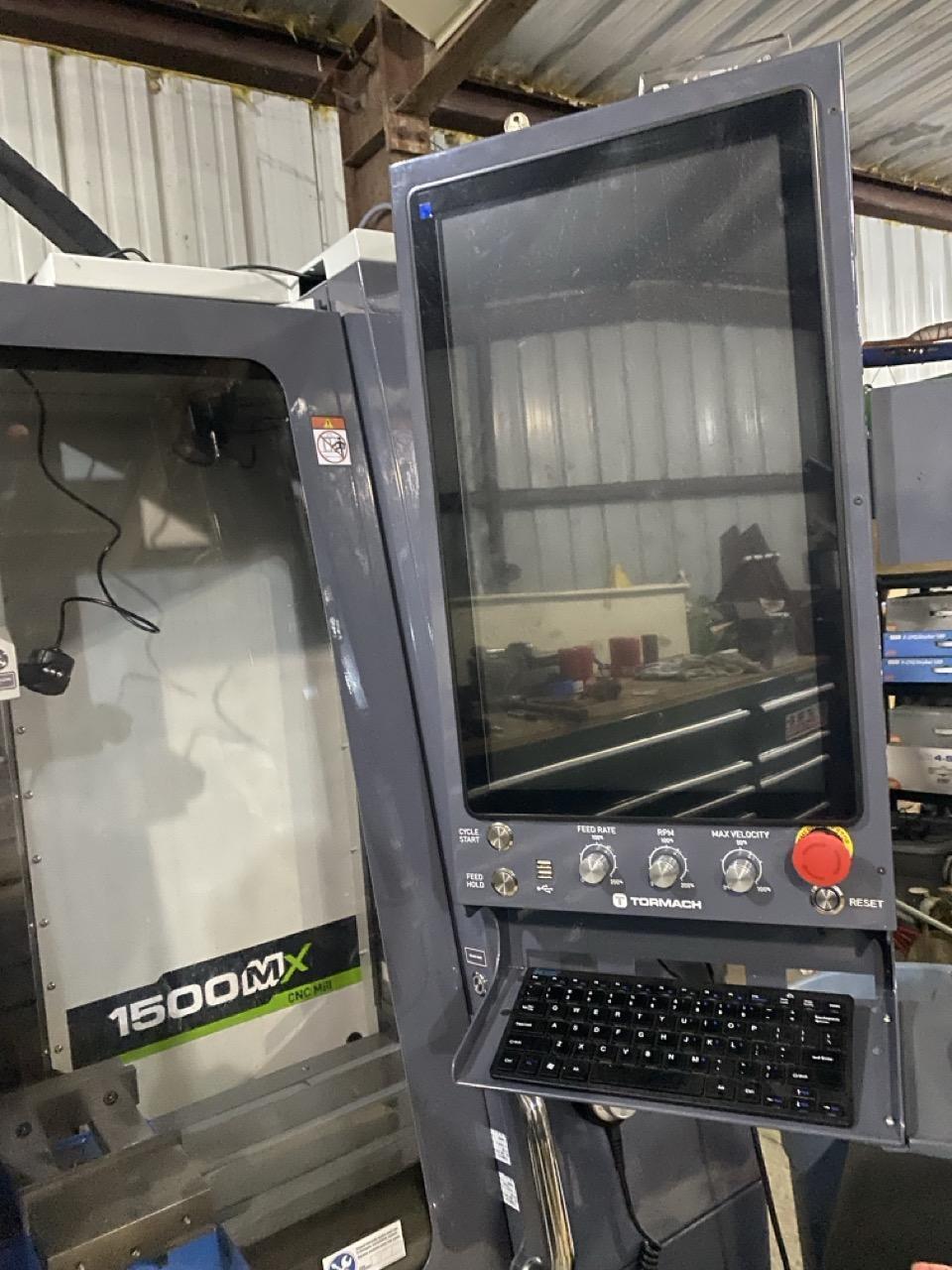

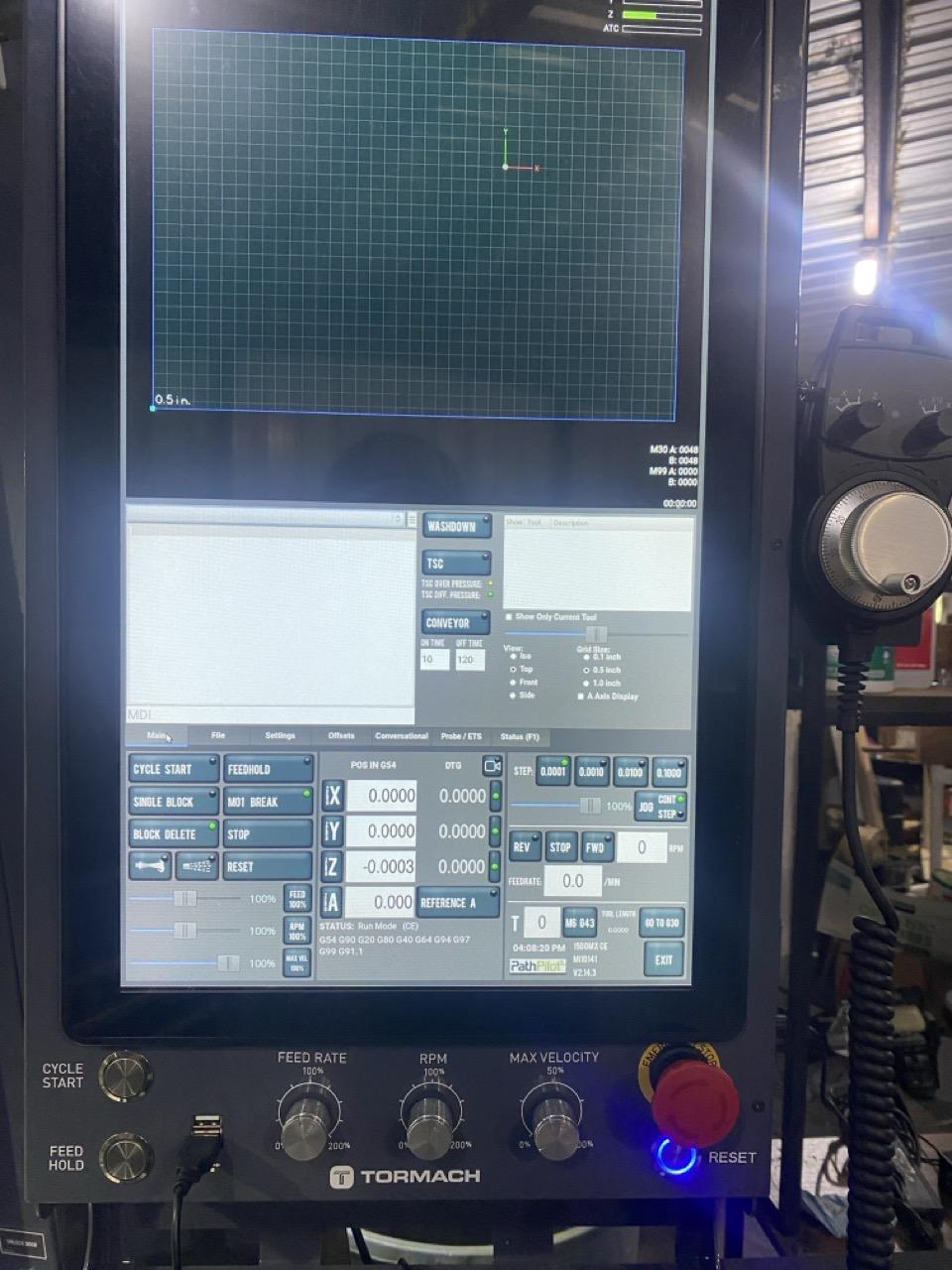

The 2025 Tormach 1500MX is a compact, high-performance CNC machining center designed for precision milling, prototyping, and production applications. The machine features servo-driven axes, a BT30 spindle capable of speeds up to 10,000 RPM, and PathPilot CNC control, with BobCAD-CAM software included for CAD/CAM programming.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Control: PathPilot CNC CAD/CAM Software: BobCAD-CAM Spindle Power: 4 HP Continuous / 6 HP 4-Minute Overload Spindle Speed: 250–10,000 RPM Spindle Taper: BT30 Transmission: 5M Toothed Belt X-Axis Travel: 19.7″ Y-Axis Travel: 13.8″ Z-Axis Travel: 14″ Spindle-to-Table Clearance: 3.7″–17.7″ Maximum Feed Rate X/Y: 1,200 IPM Maximum Feed Rate Z: 600 IPM Axis Drive: Servo Table Size: 35″ x 12.75″ T-Slot Size: 5/8″ Number of T-Slots: 3 T-Slot Spacing: 3.9″ Maximum Table Load: 300 LBS. Primary Power: 230 VAC, Single Phase, 50/60 Hz Recommended Circuit: 30 AMP Plug Type: NEMA L6-30P Air Requirement: 90–120 PSI Machine Dimensions: Approx. 86″ L x 104″ W Overall System Height: Approx. 94″ Typical System Weight: Approx. 2,800 LBS.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
