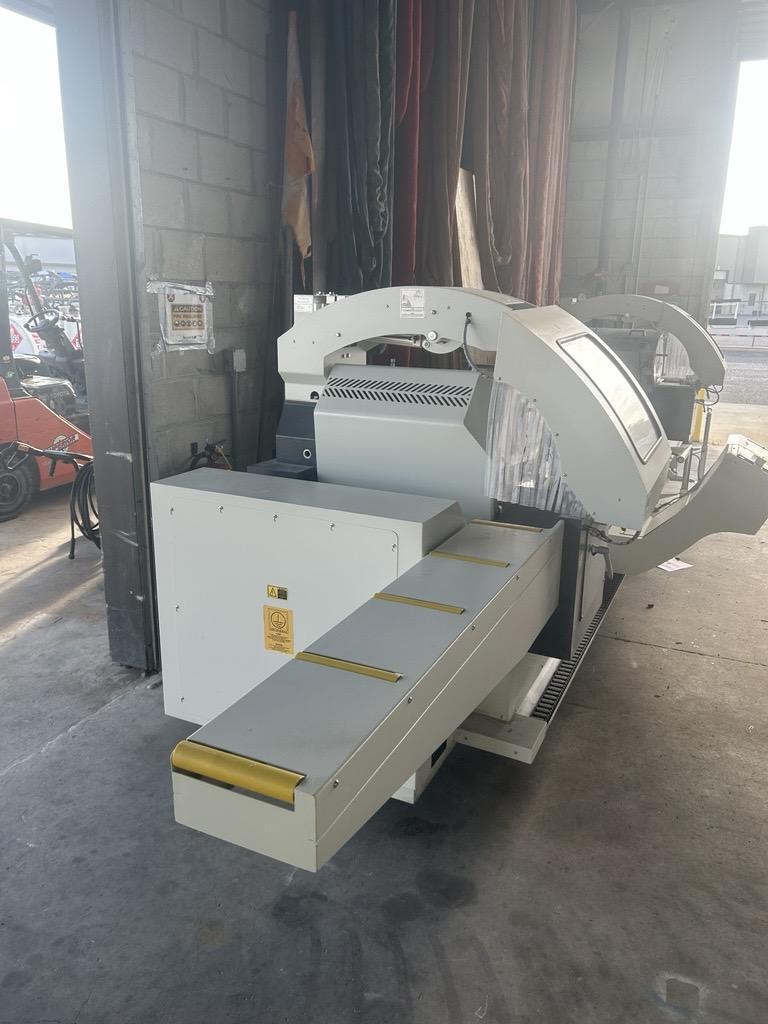

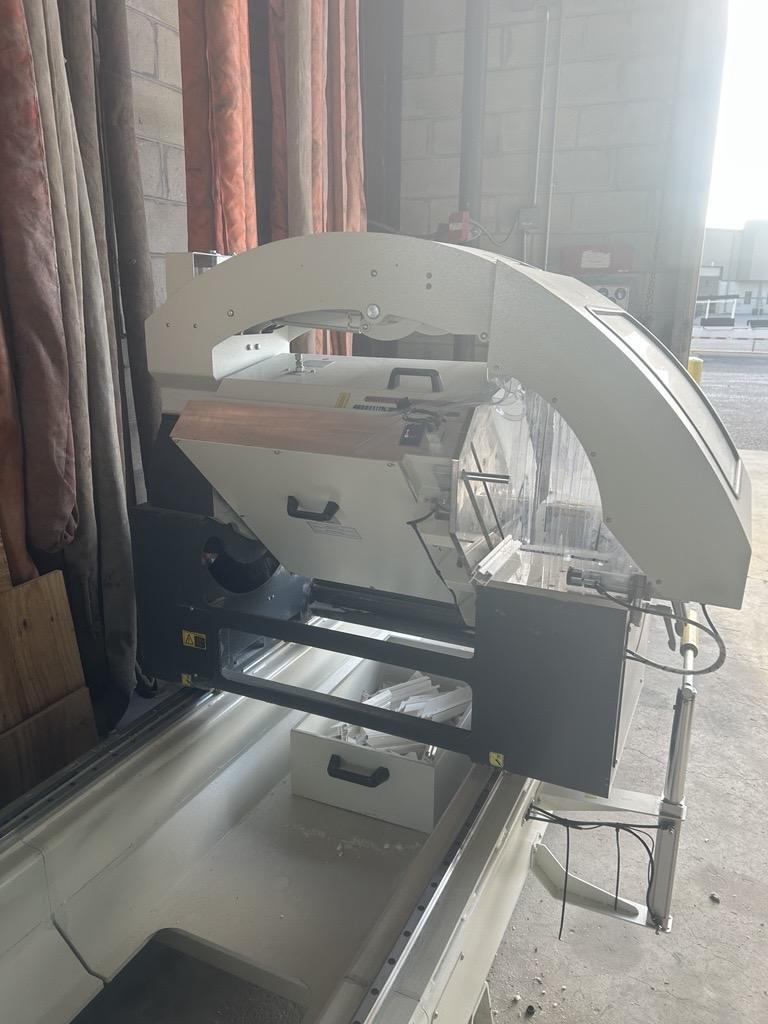

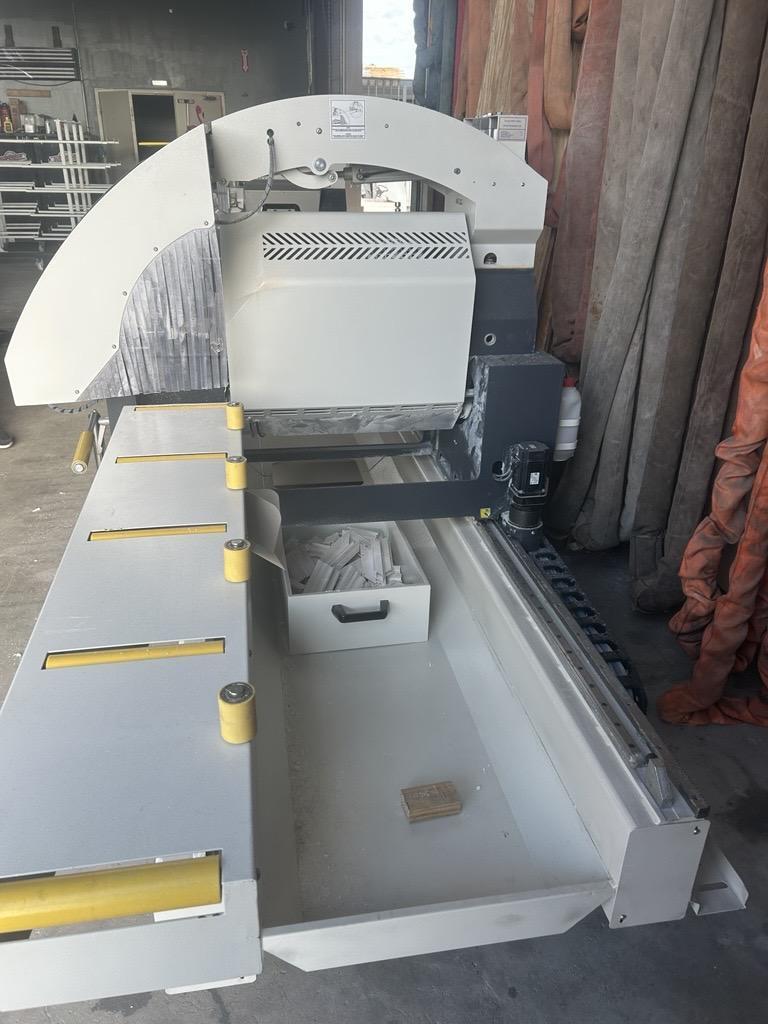

OZ Machine Gemini V-SA 22″ Double Head Aluminum Miter Saw, 2024 – 1-Axis Servo, 550mm Blades, 220V

OZ Machine Gemini V-SA semi-automatic double-head profile saw featuring twin 22″ (550 mm) blades, servo-controlled X-axis positioning, hydro-pneumatic cutting and angle positioning, touchscreen controls, pneumatic clamping and up to approximately 195″ double-head cutting capacity for aluminum, PVC/vinyl and wood profiles.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer OZ Machine / Özçelik Machinery Model Gemini V-SA Machine Type Semi-Automatic Double Head Miter / Profile Saw Control 1-Axis Servo Controlled Primary Applications Aluminum, PVC/vinyl and wood profile cutting Saw Heads 2 Saw Blade Diameter 22″ / 550 mm Saw Blade Motor Power 3 kW per head Blade Speed 3,000 RPM (machine nameplate) X-Axis Positioning Electronically / servo controlled X-Axis Positioning Speed Up to 40,000 mm/min / 1,575 in./min Minimum Double-Head Cut – 90° Approx. 360 mm / 16″ Minimum Double-Head Cut – 45° Approx. 590 mm / 21″ Maximum Double-Head Cut Approx. 4,930 mm / 195″ Maximum Profile Loading Length Approx. 8,000 mm / 314″ Angle Positioning Hydro-pneumatic rapid positioning Intermediate Angles Manual positioning Maximum Internal Rotation 90° Maximum External Rotation -22.5° Cutting Feed Hydro-pneumatic Clamping Horizontal & vertical pneumatic clamps Intermediate Supports Automatic profile support Blade Stroke Adjustable Cutting Speed Adjustable Cooling Cooling / lubrication system Control Interface Smart touchscreen / industrial control Data Transfer Ethernet, USB and network connection Slicing Mode Yes Safety Enclosed cutting zones with safety covers/sensors Electrical – Your Machine 220V AC, 3 Phase, PE Total Power – Your Machine 6.8 kW Rated Current – Your Machine 27 A Air Pressure – Your Machine 6–8 bar Air Consumption – Your Machine 75 L/min Machine Dimensions – Nameplate 7,710 × 1,970 × 1,635 mm Approx. Dimensions 303.5″ × 77.6″ × 64.4″ Machine Weight – Nameplate 1,840 kg / approx. 4,057 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
