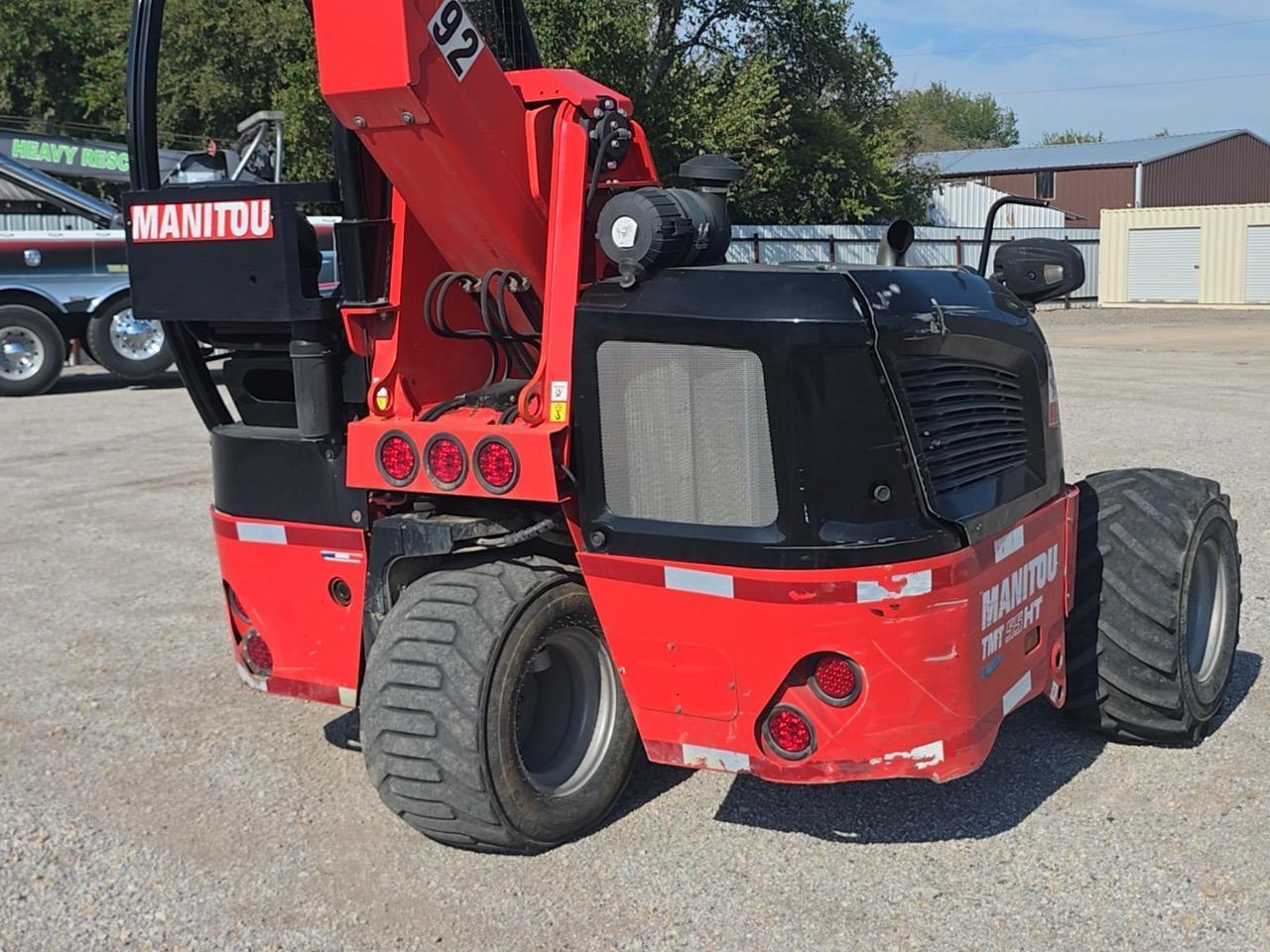

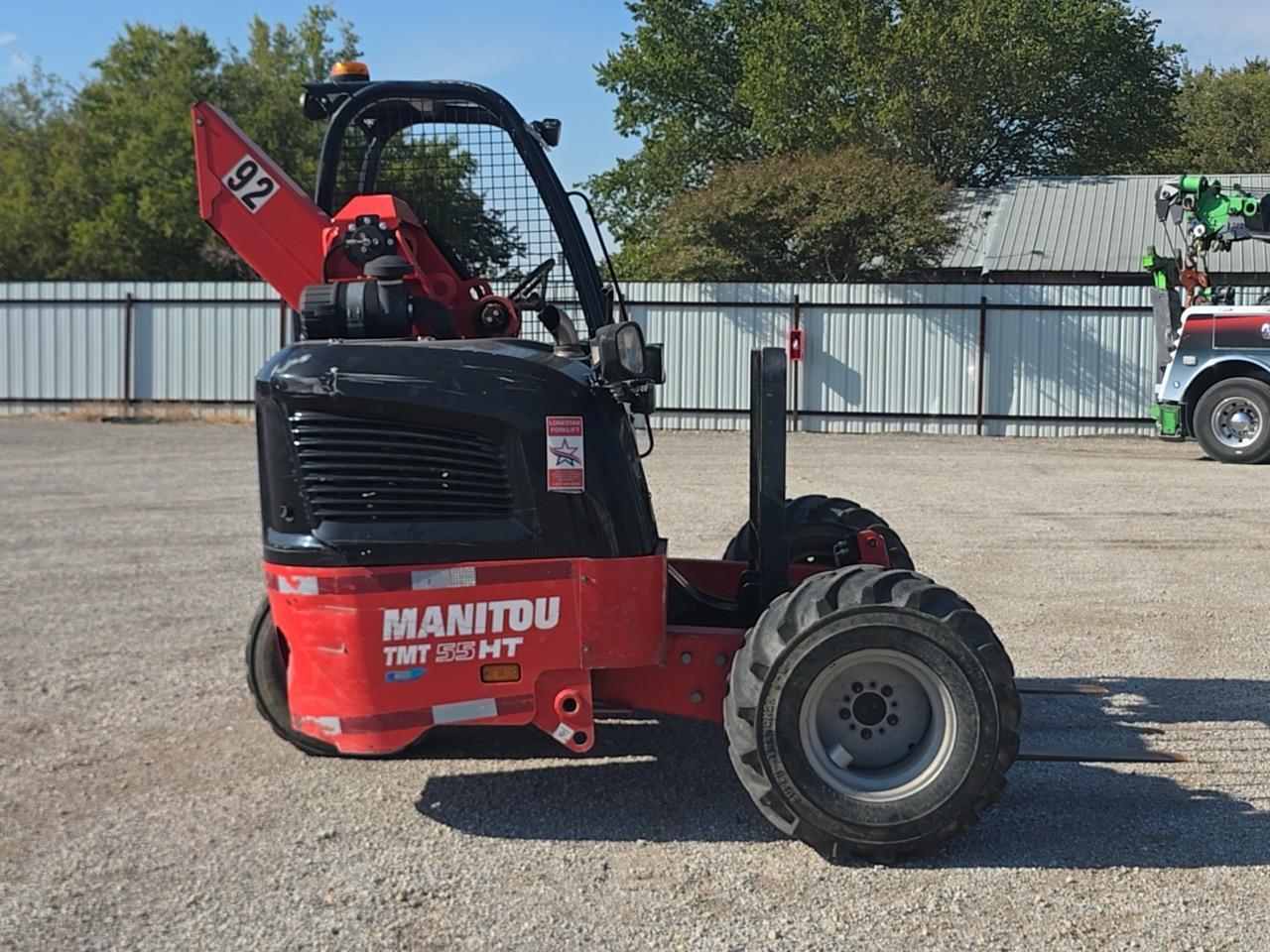

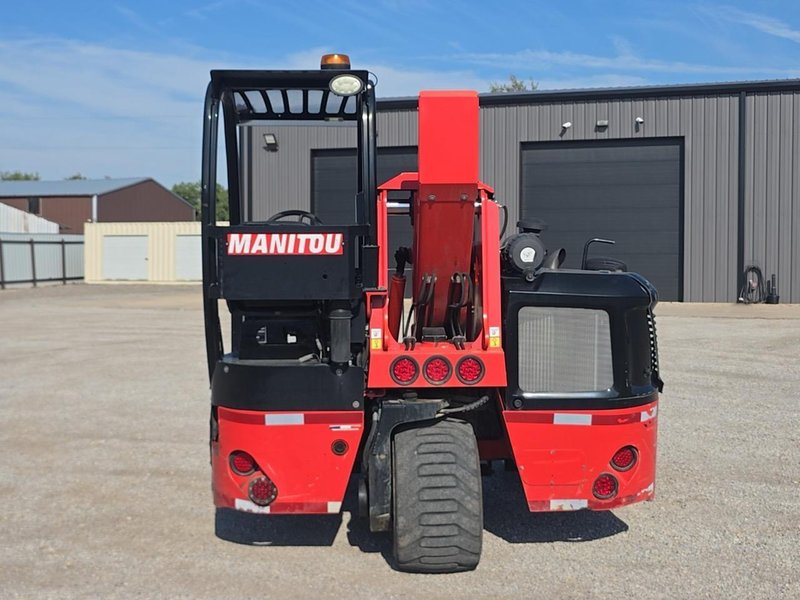

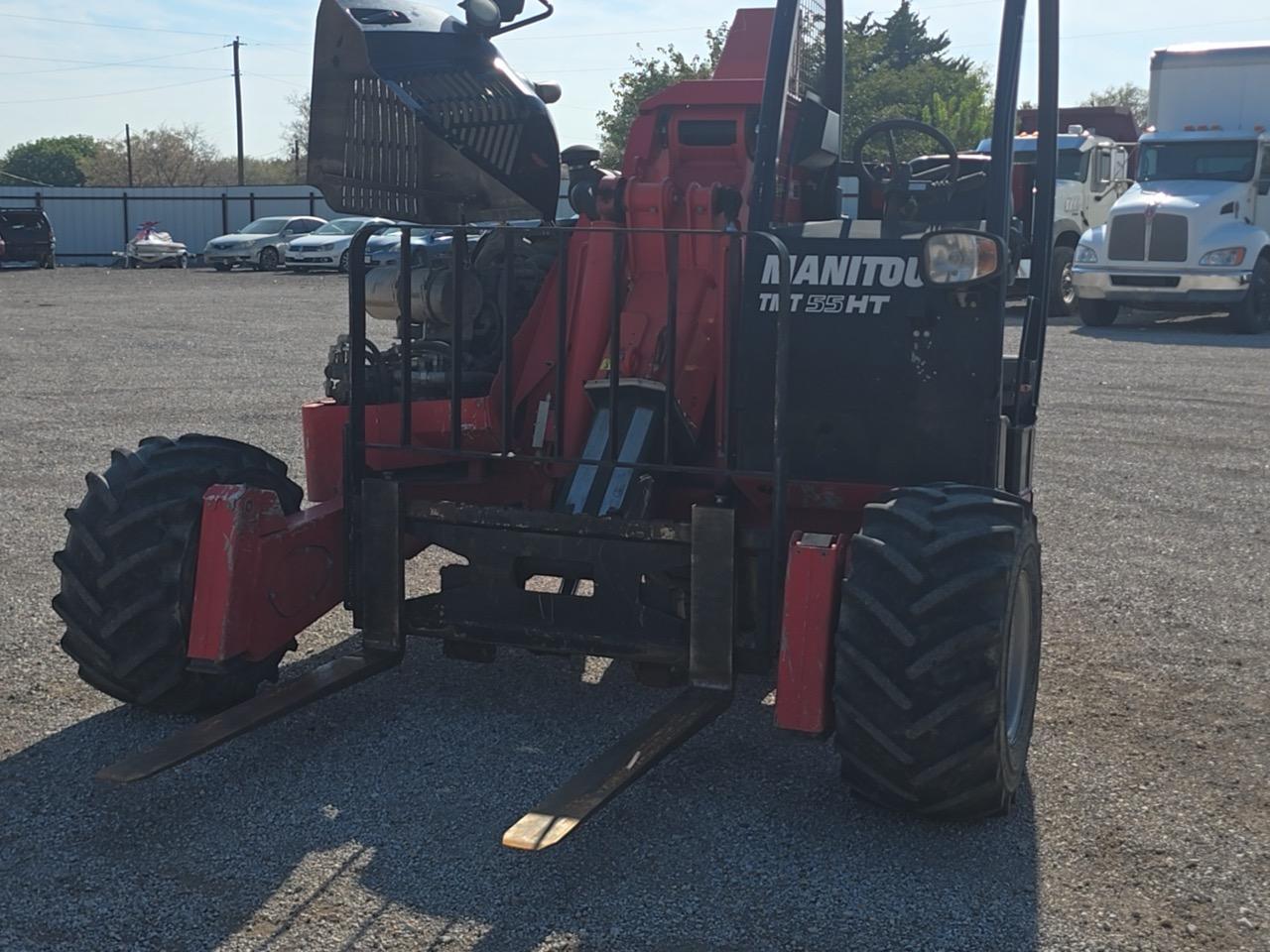

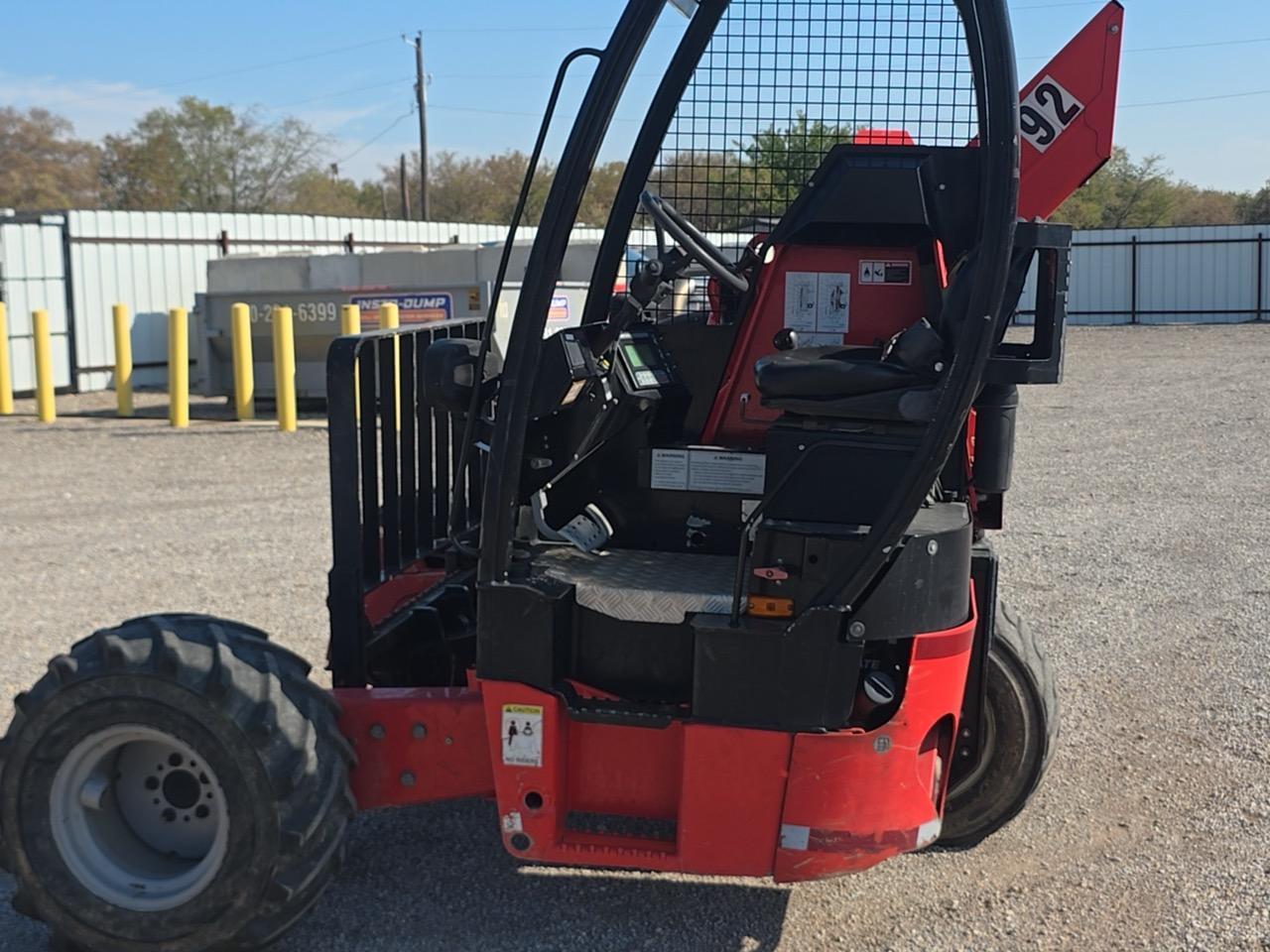

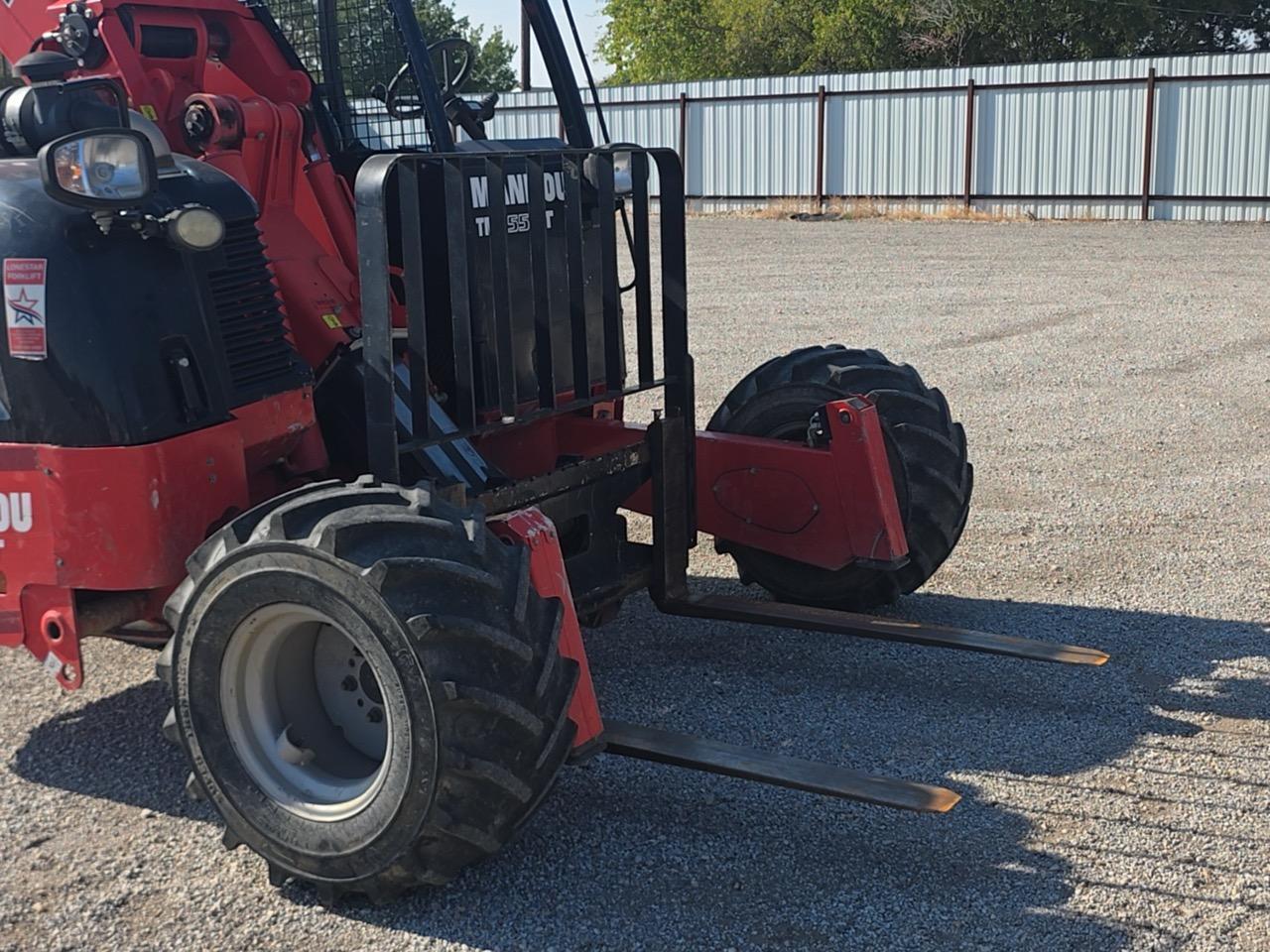

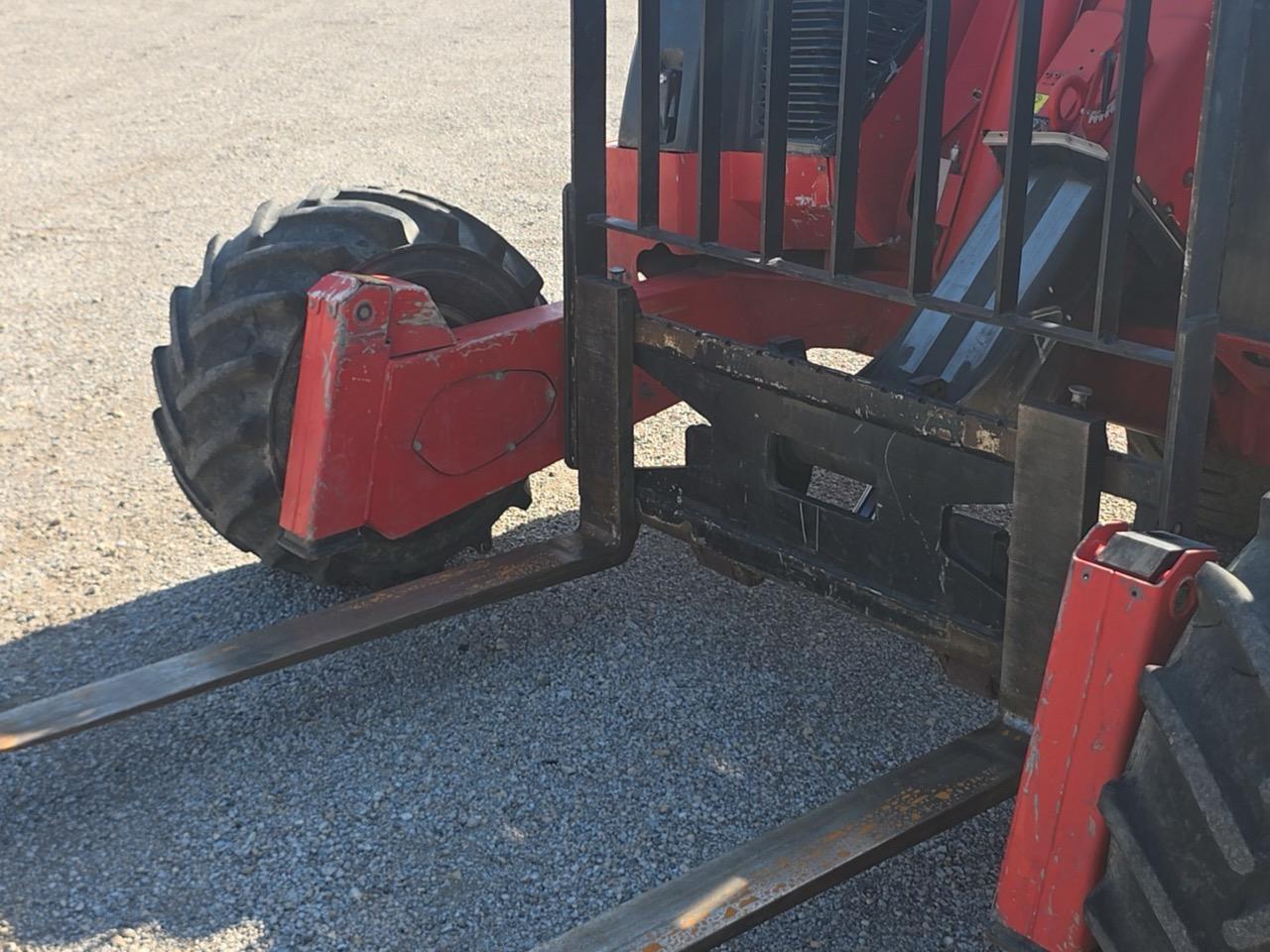

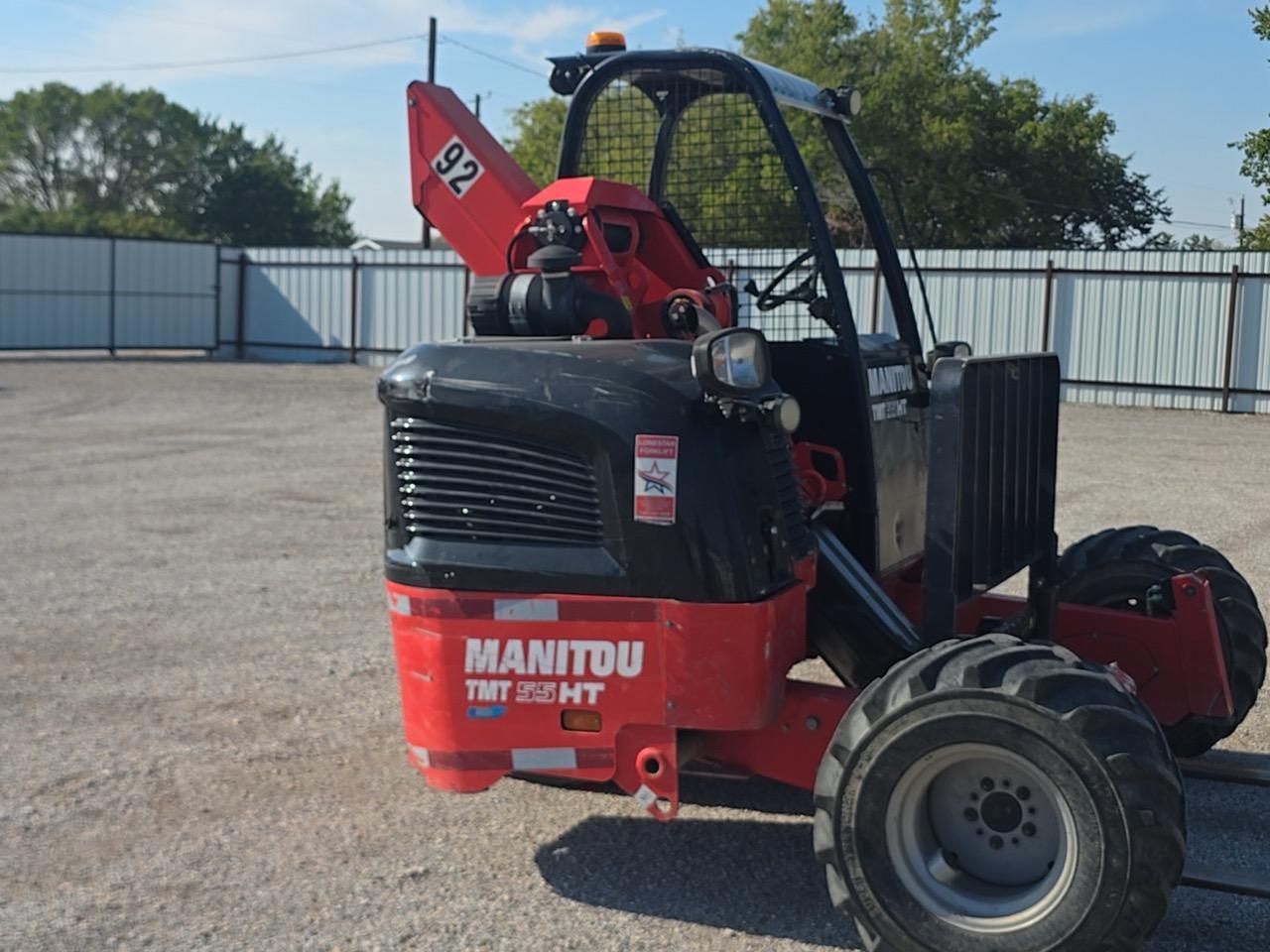

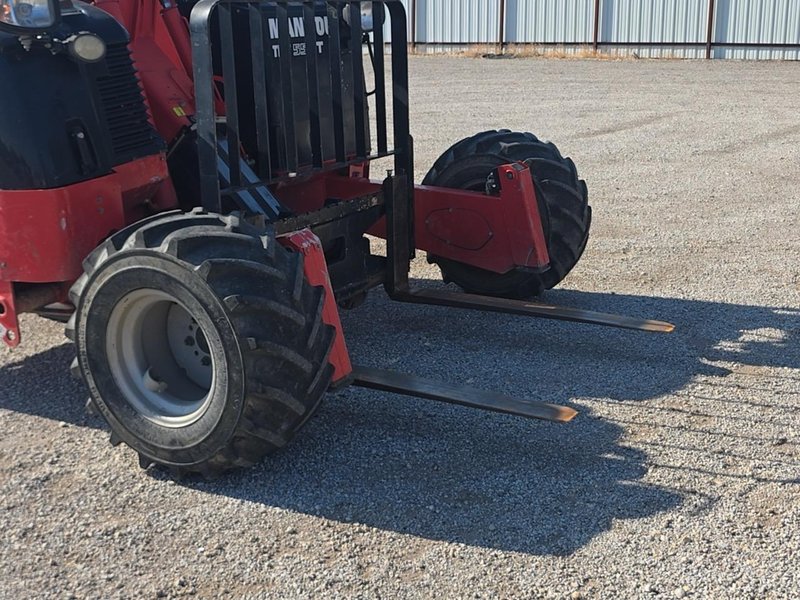

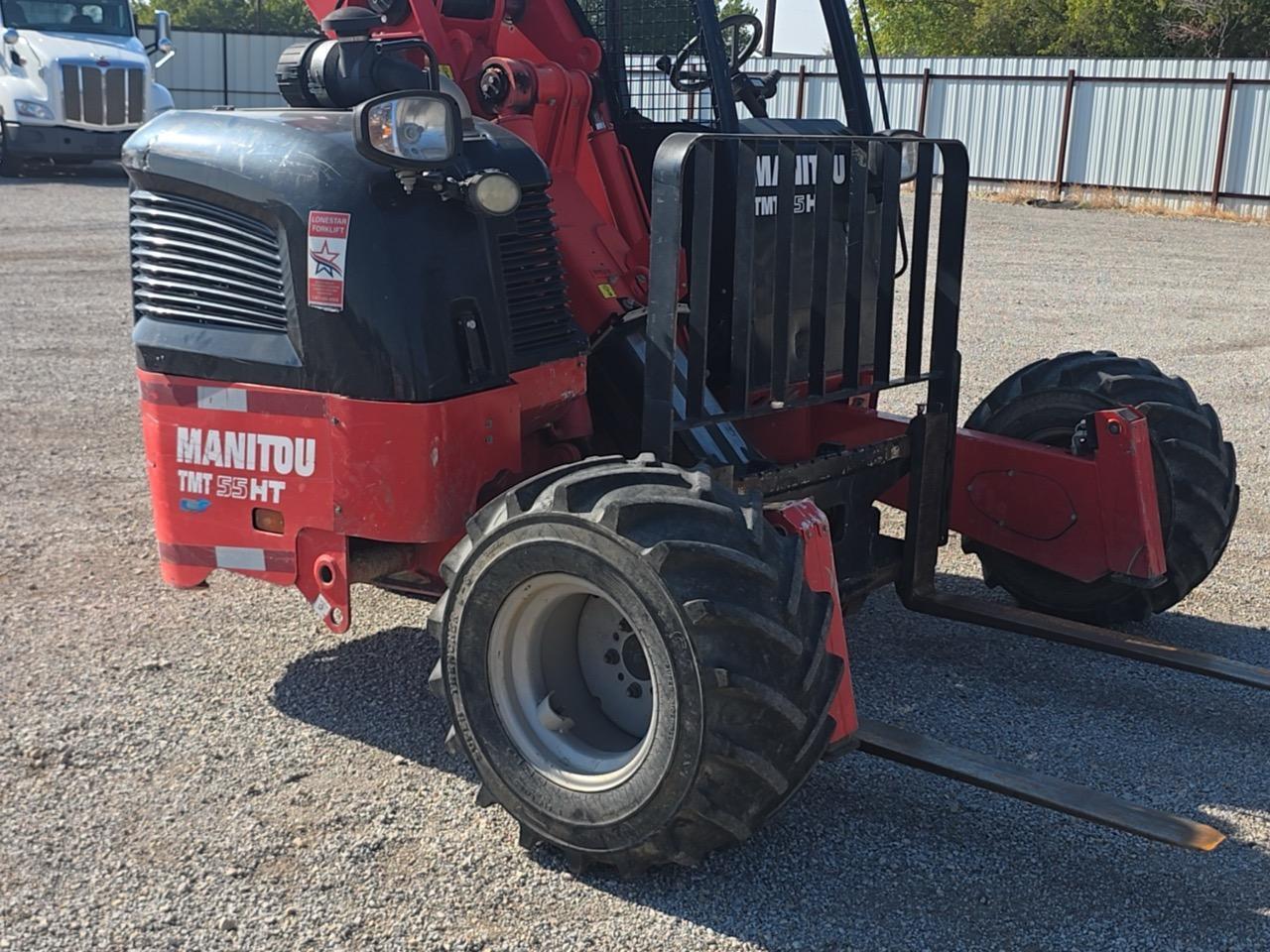

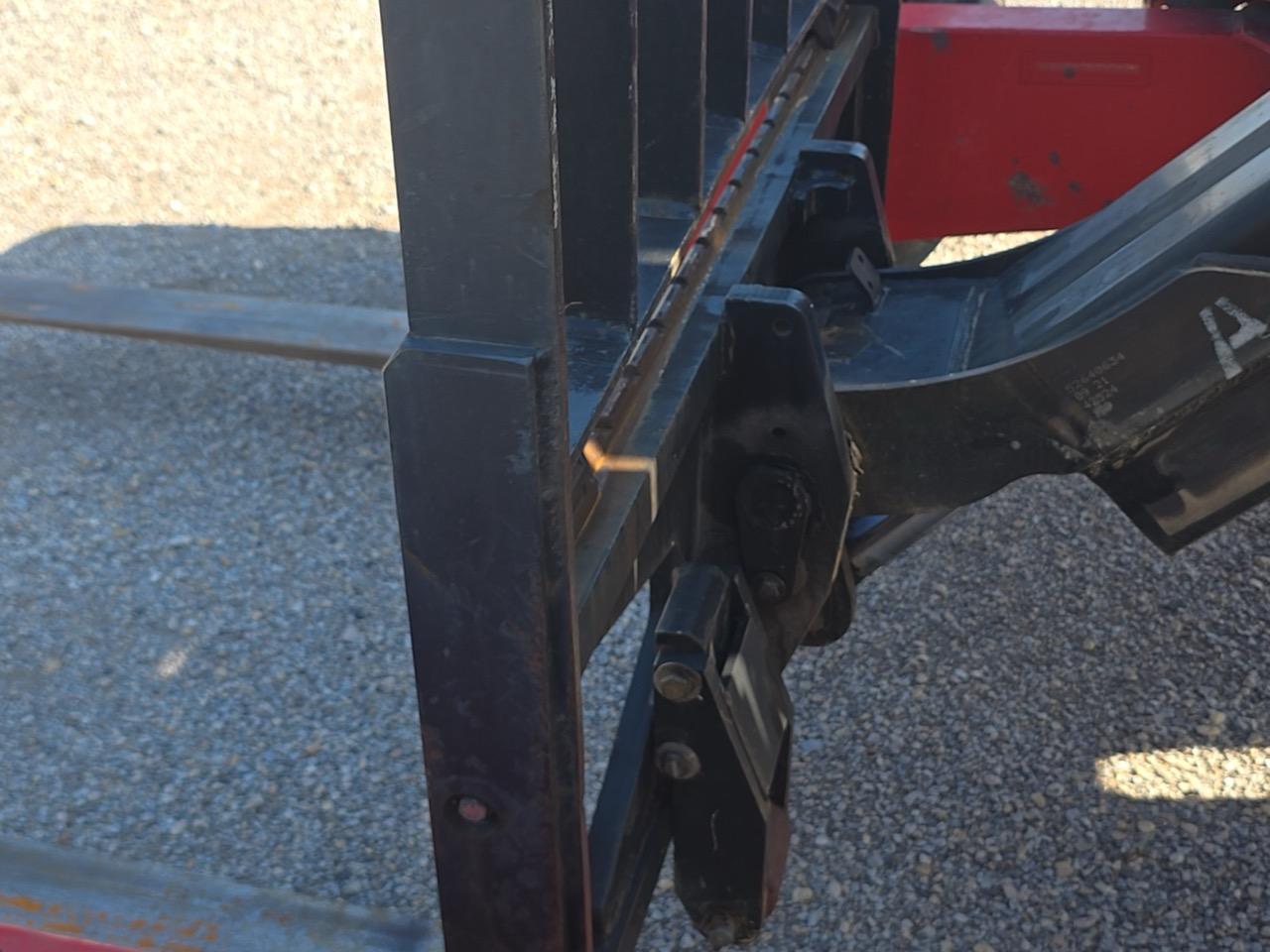

New Manitou TMT55 Forklift, 2021

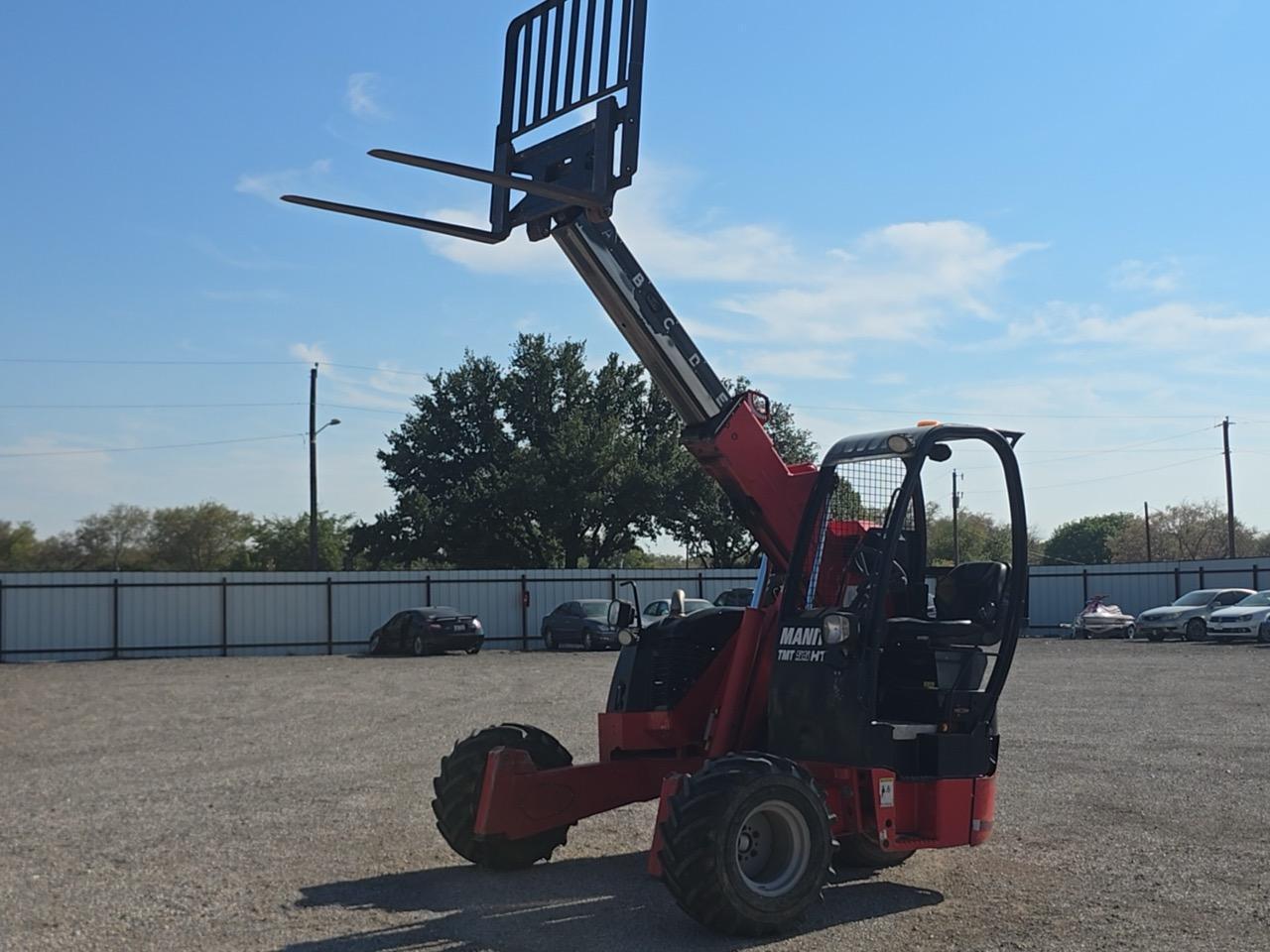

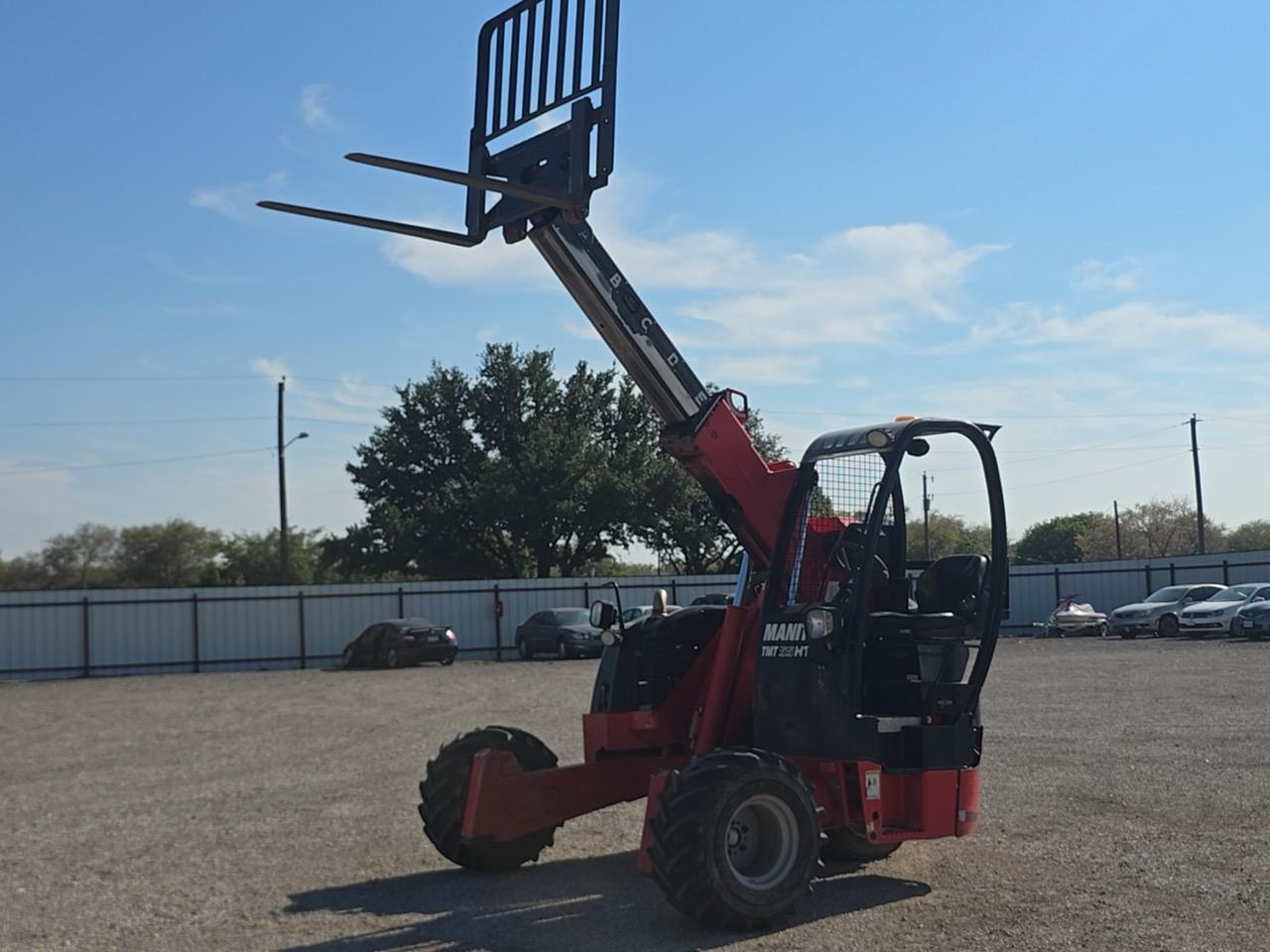

The Manitou TMT 55 is a compact, truck-mounted forklift designed for loading and unloading materials where traditional loading docks are unavailable. Its telescopic boom and compact footprint allow operators to unload from a single side of a truck, making it well suited for construction, building-material delivery, and logistics applications. Manitou’s published TMT 55 specifications identify a 5,512-lb. capacity, diesel power, and approximately 11′ 3″ maximum lifting height.

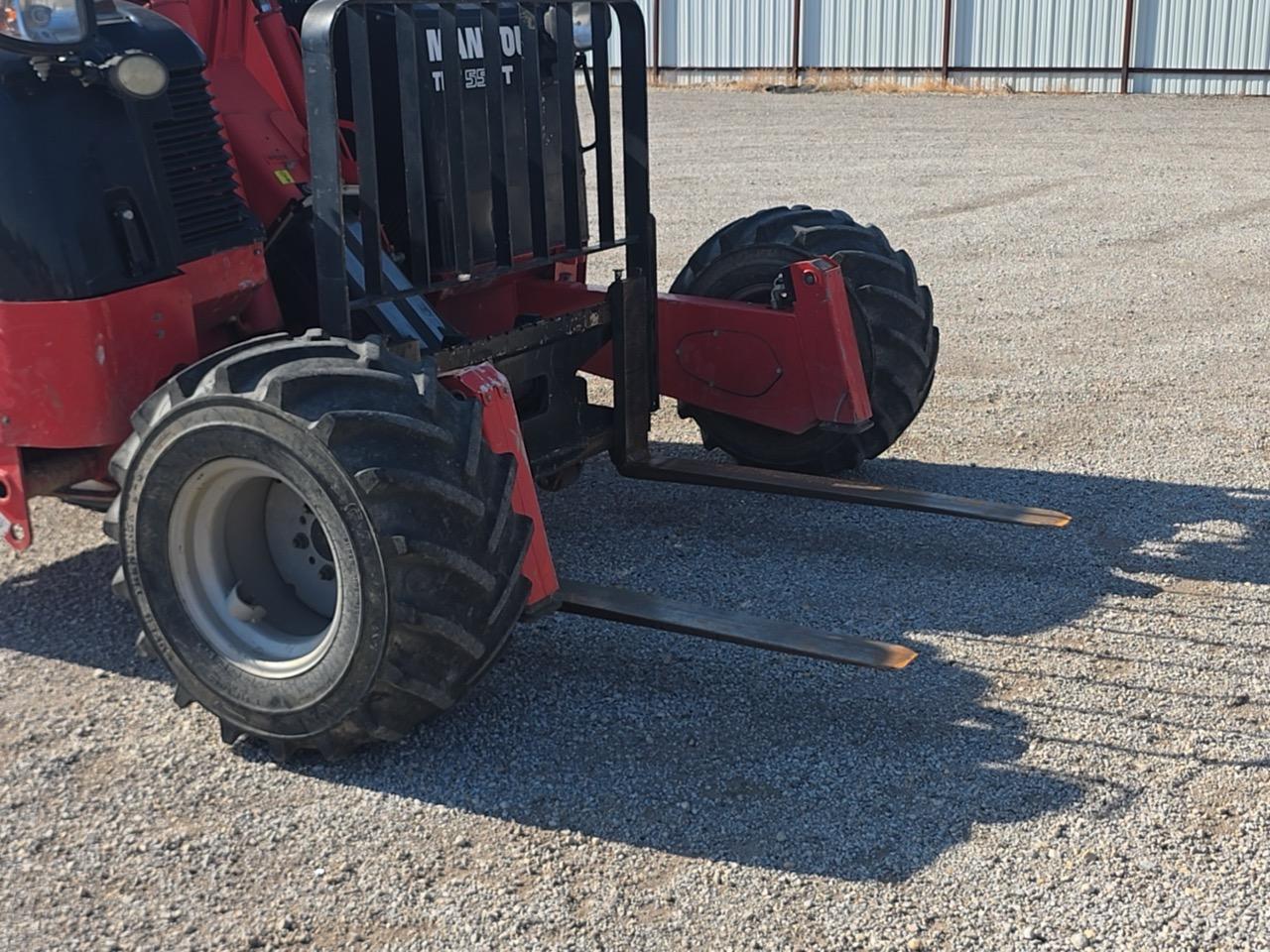

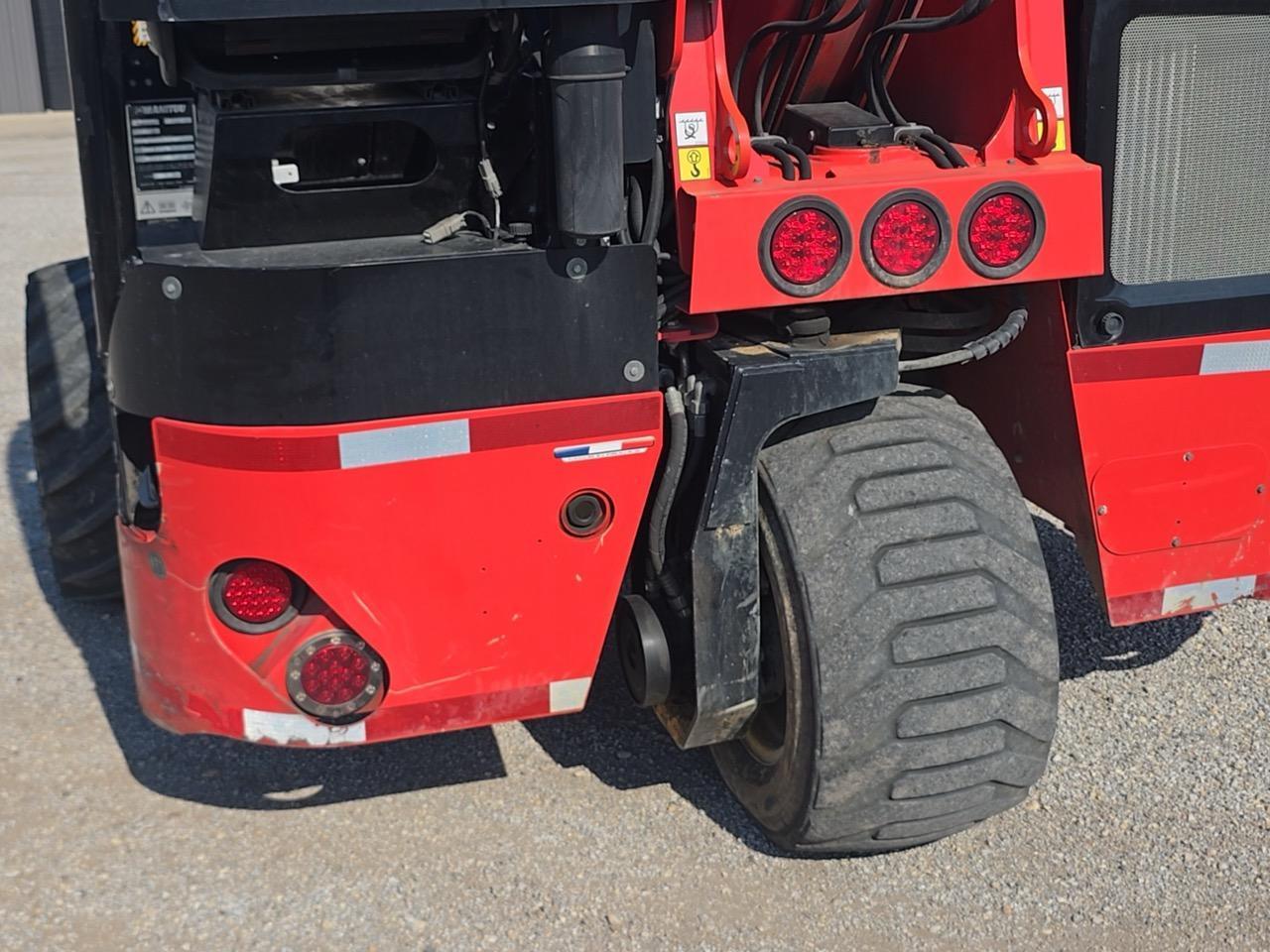

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: Truck-Mounted Forklift Power Source: Diesel Operator Type: Seated Rated Capacity: 5,512 LBS. Load Center: 24″ Lift Type: Telescopic Boom Maximum Lift Height: 11′ 3″ Telescopic Boom Height – Lowered: 89″ Telescopic Boom Height – Extended: 12′ 11″ Mast Free Lift: 57″ Overall Length: 111″ Length to Fork Face: 63″ Overall Width: Approx. 101″ Overhead Guard Height: 93″ Wheelbase: 65″ Ground Clearance: 16″ Turning Radius: 118″ Fork Dimensions: 2″ x 4″ x 48″ Fork Carriage: FEM 2A Fork Carriage Width: 50″ Horizontal Extension at 24″ Load Center: 52″ Front Tires: 31 x 15.5-15 Pneumatic Rear Tires: 31 x 15.5-15 Pneumatic Front/Rear Wheels: 2 / 1 Drive Wheels: Front Travel Speed: Approx. 7 MPH Lift Speed – Laden: 0.82 FT/SEC Lift Speed – Unladen: 0.89 FT/SEC Lowering Speed – Laden: 0.95 FT/SEC Lowering Speed – Unladen: 1.0 FT/SEC Service Brake: Hydraulic Engine: Yanmar 3TNV86CT Engine Power: 42 HP / 31 kW Engine Speed: 2,800 RPM Number of Cylinders: 3 Engine Displacement: 1.568 L Hydraulic Pressure: 3,916 PSI Hydraulic Flow: 12 GPM Service Weight: Approx. 6,019 LBS.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
