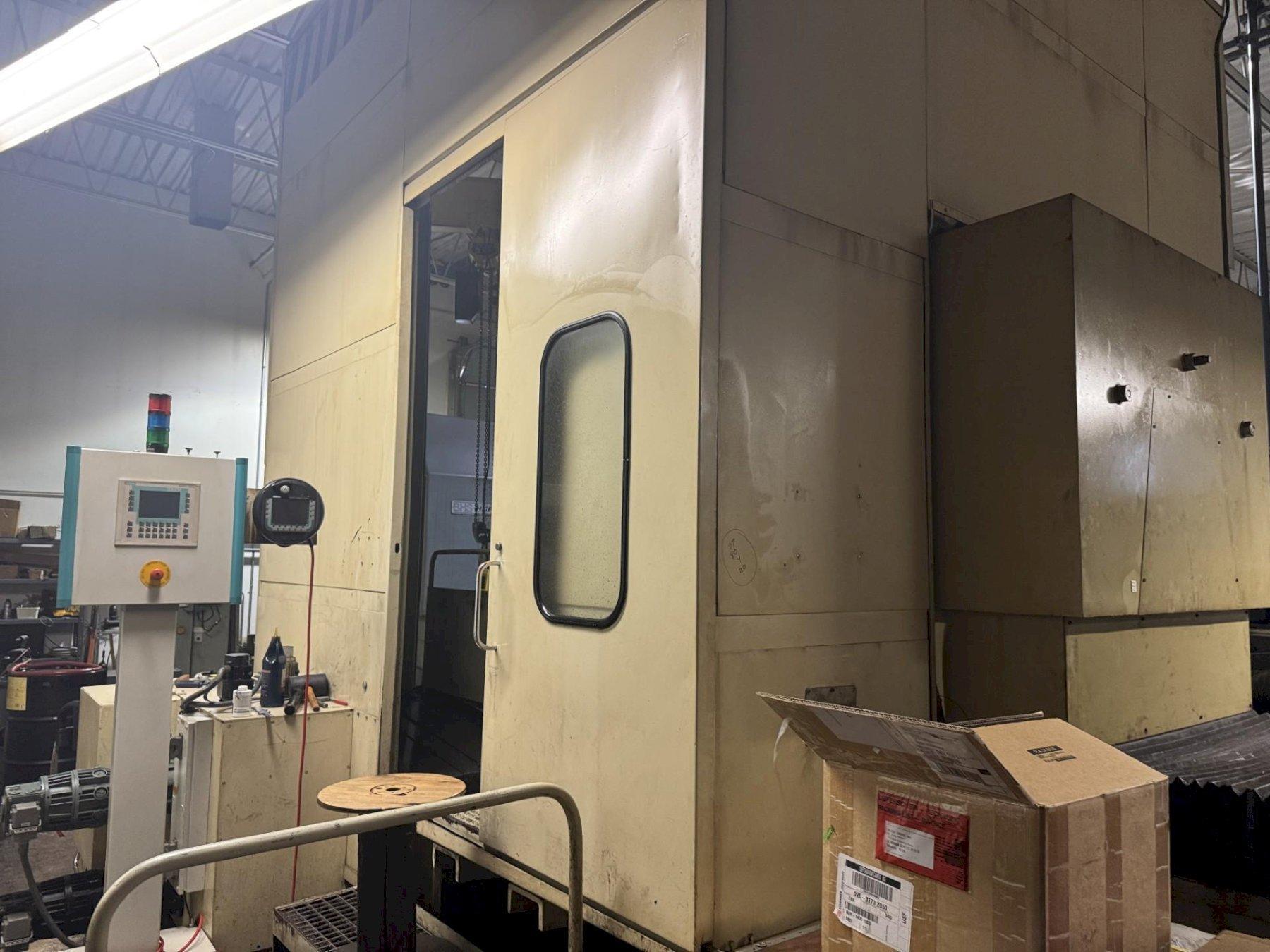

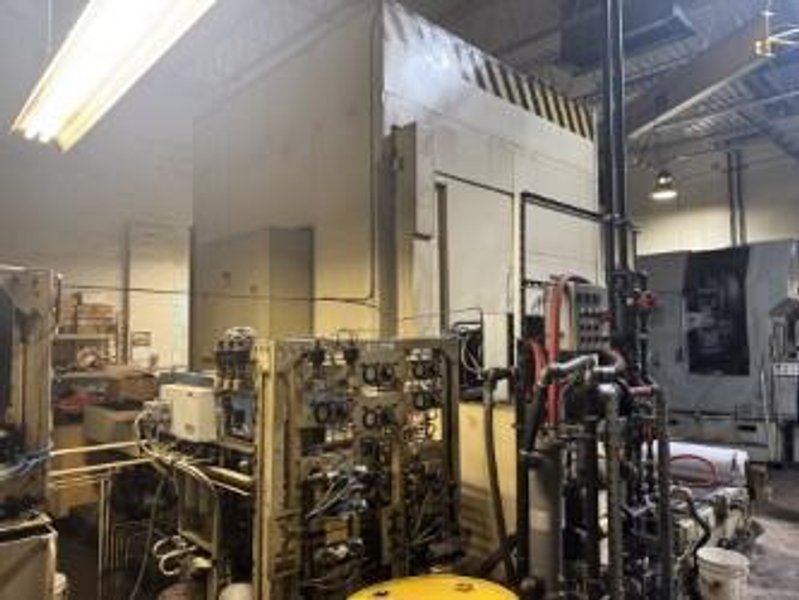

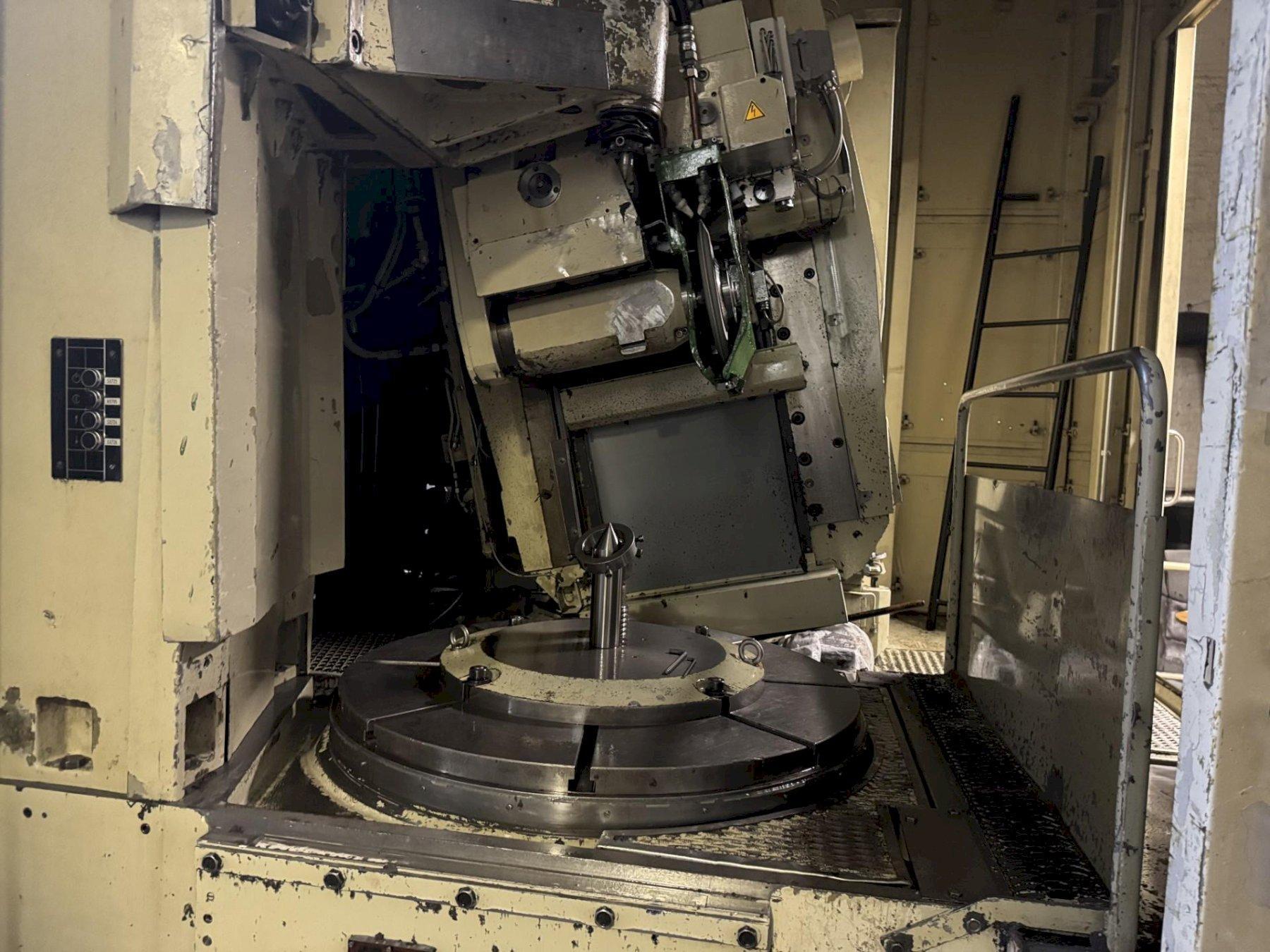

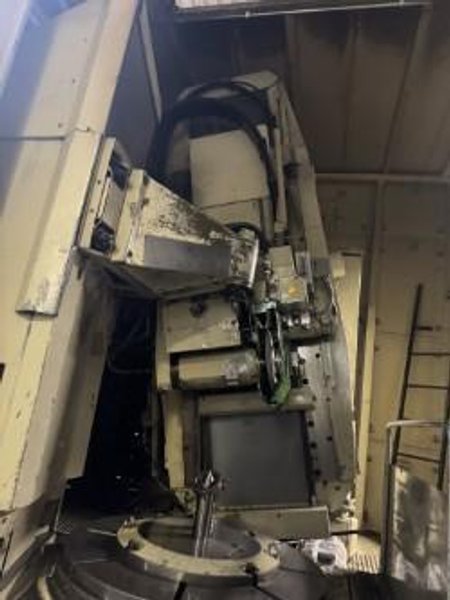

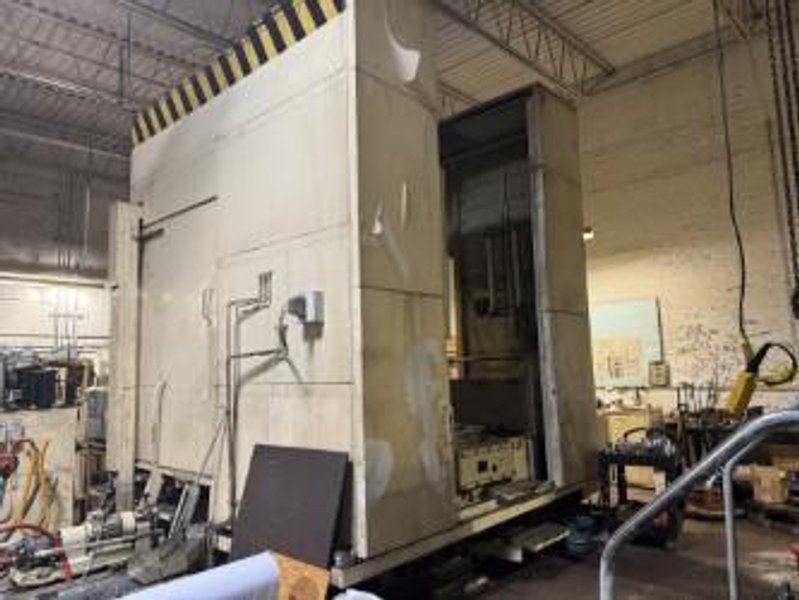

1500mm Niles ZSTZ 15 CNC Single Flank Gear Grinder
Brand
Category
Type
Model
ZSTZ 15
Stock #
MR15
Year
Not specified
Condition
Very Good
Location
Illinois
| Max Tip Dia | 1500mm |
| Max Root Circle Dia | 450mm |
| Normal Module Min/max | 2/25 |
| Number Of Teeth Min/max | 12/600 |
| Max Helix Angle (either Side) | 35 degree |
| Wheel Pressure Angle | 14/31 degrees |
| Max FaceWidth | 710mm |
| Max Table Load | 6000 Kg |
| Grinding Wheel Dia (min/max) | 300-400mm |
| Grinding Wheel Bore | 127mm |
| Grinding Wheel Speed | 2150 rpm |
| Number Of Double Strokes (Variable) | 20-120 dspm |
| Rolling Feed Rate | 40-1250 mmpm |
| Stroke Length Of Ram | 100-760 mm |
| Approx Weight | 31000 Kg |
|

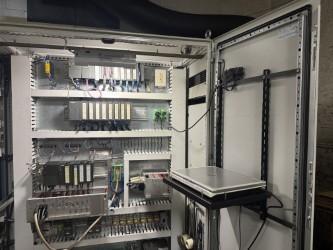

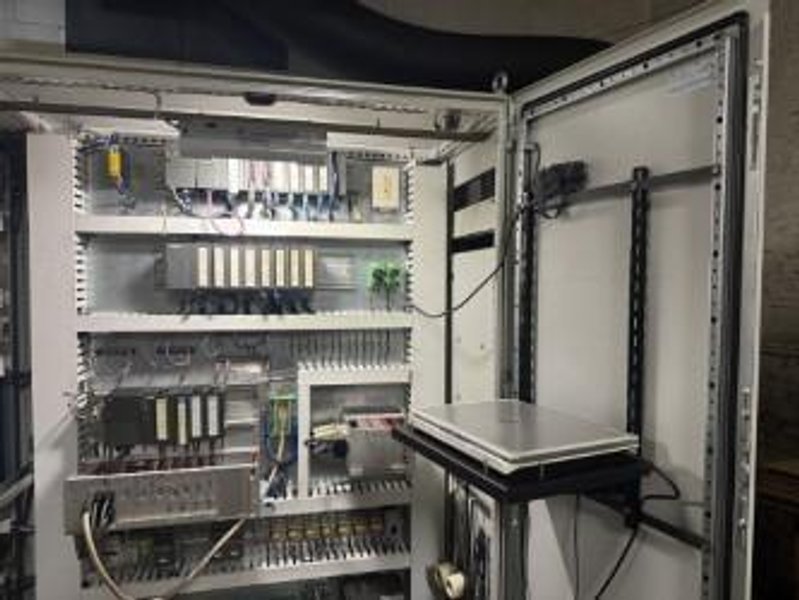

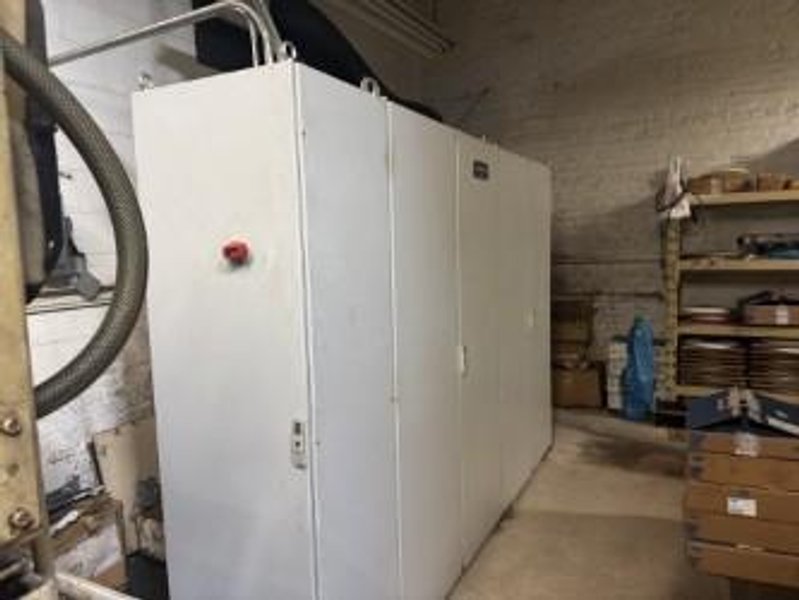

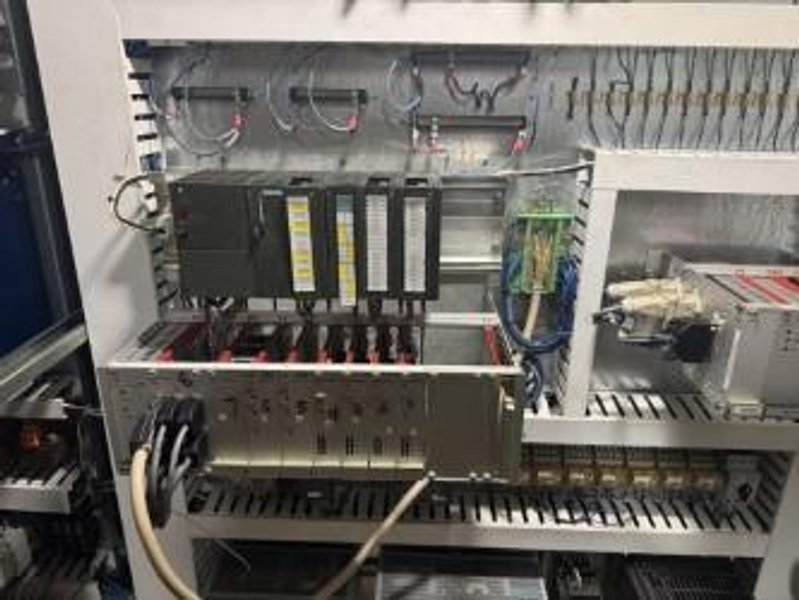

Equipped With: Retrofit with all new controls in 1999. Upgraded with CNC Contol of Top, Bottom, Length of Stroke. Angle of Grinding Wheel. All other set-up is managed through PC with program calculating set-up through gearboxes.

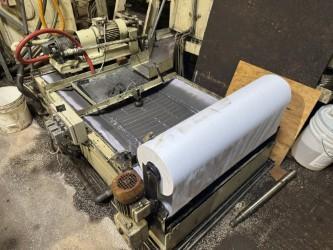

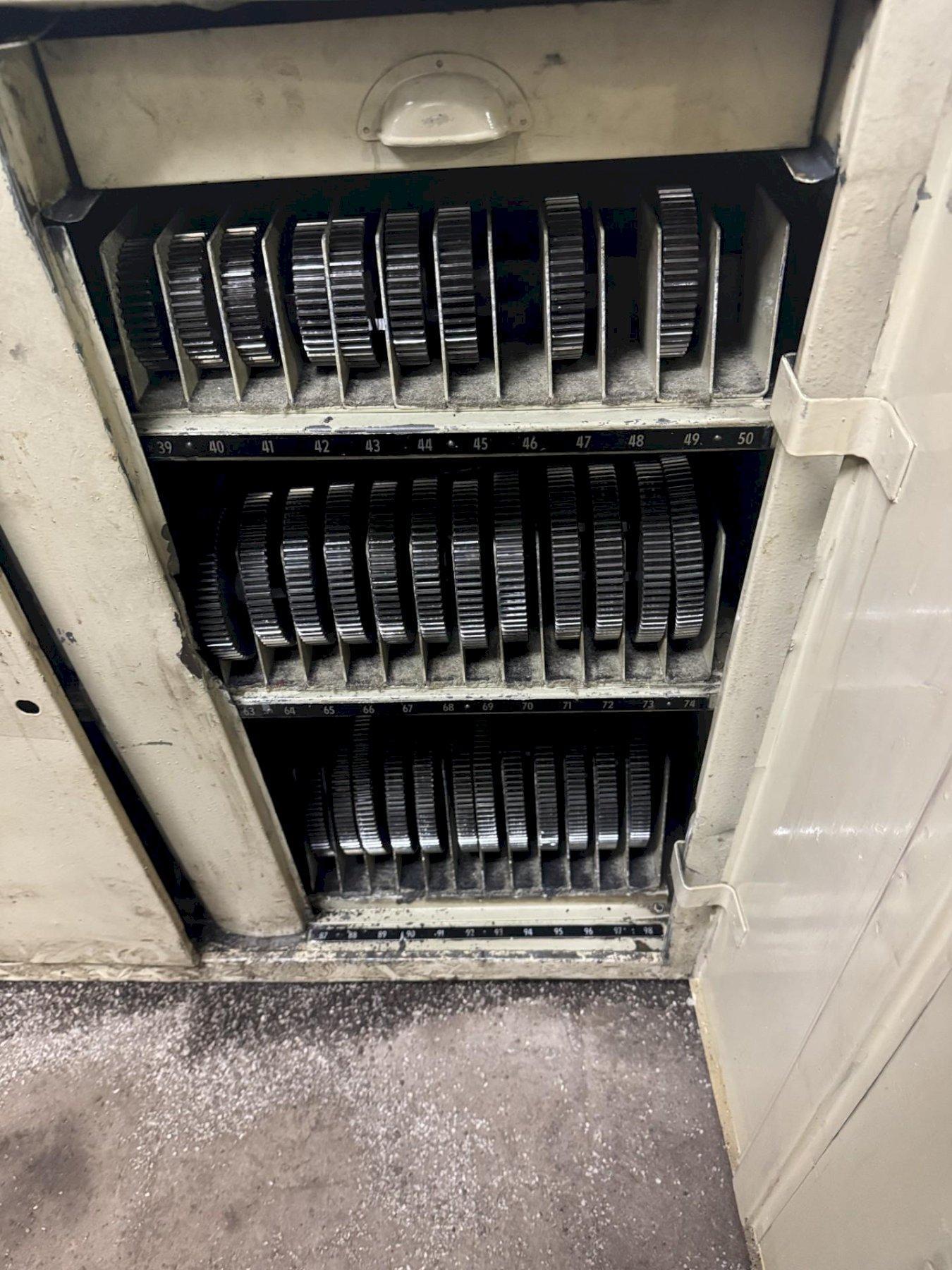

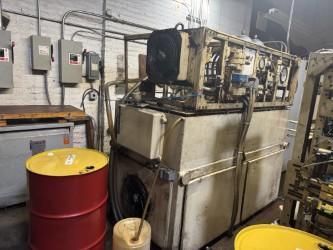

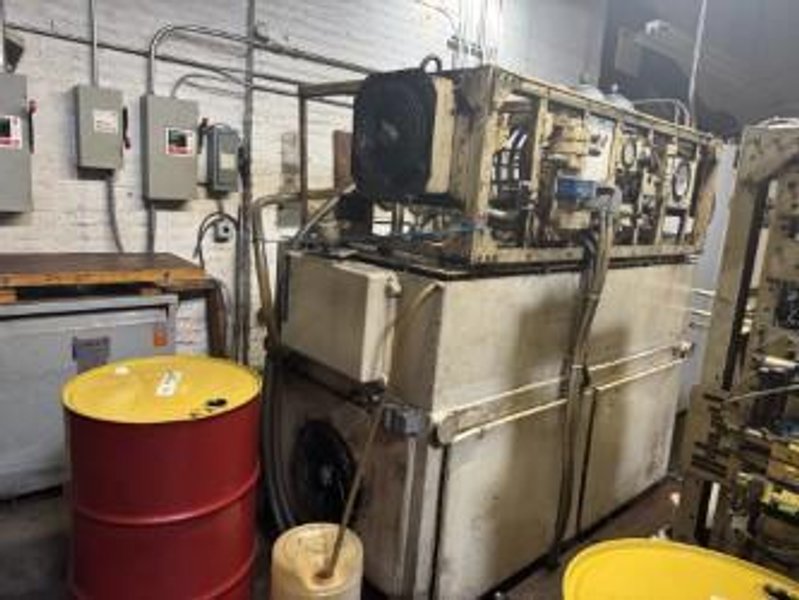

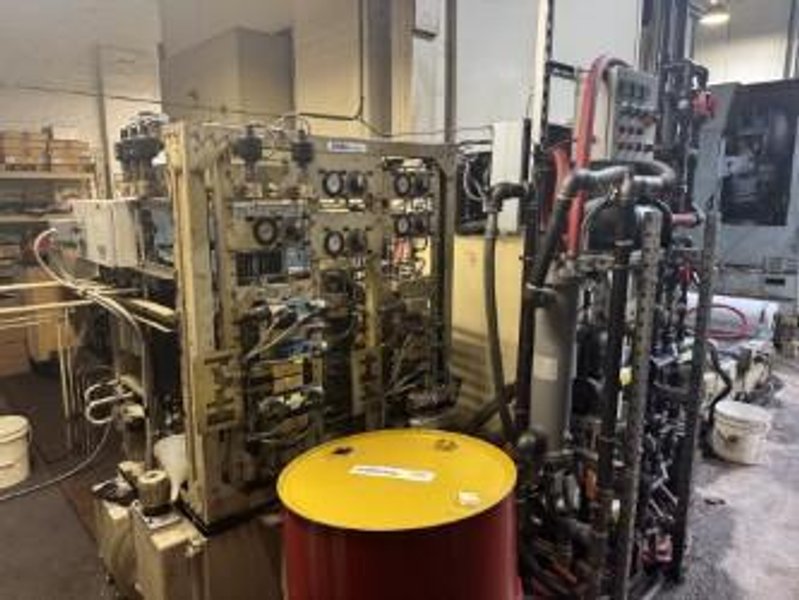

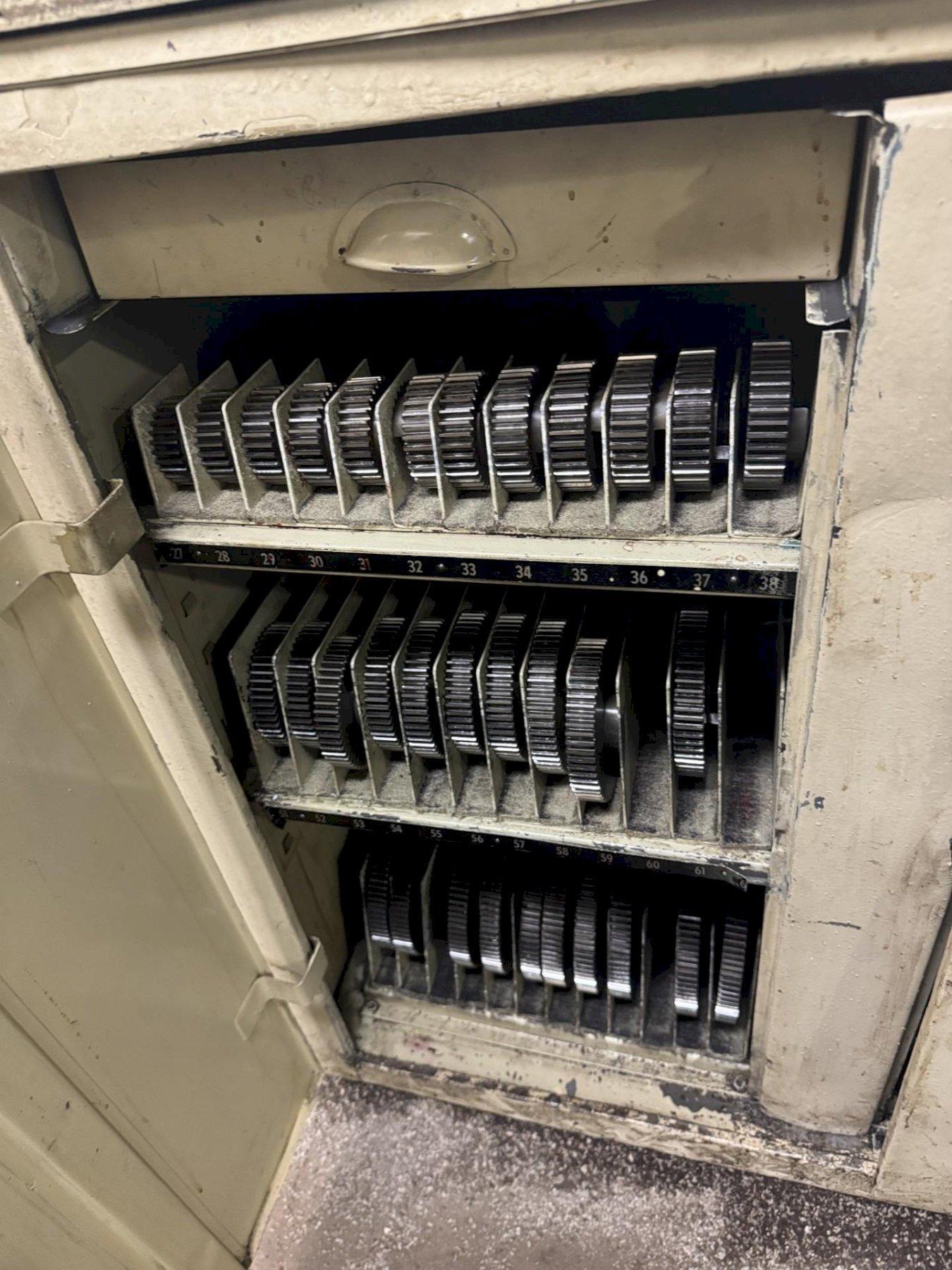

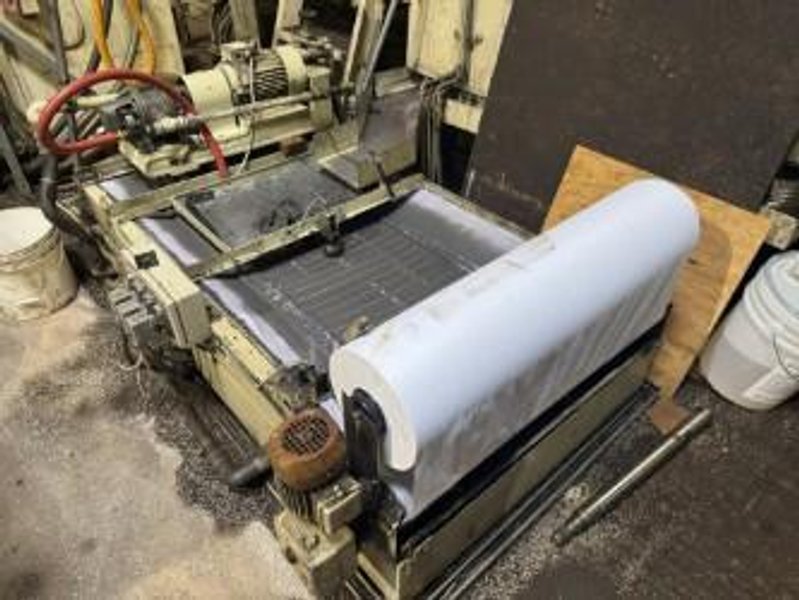

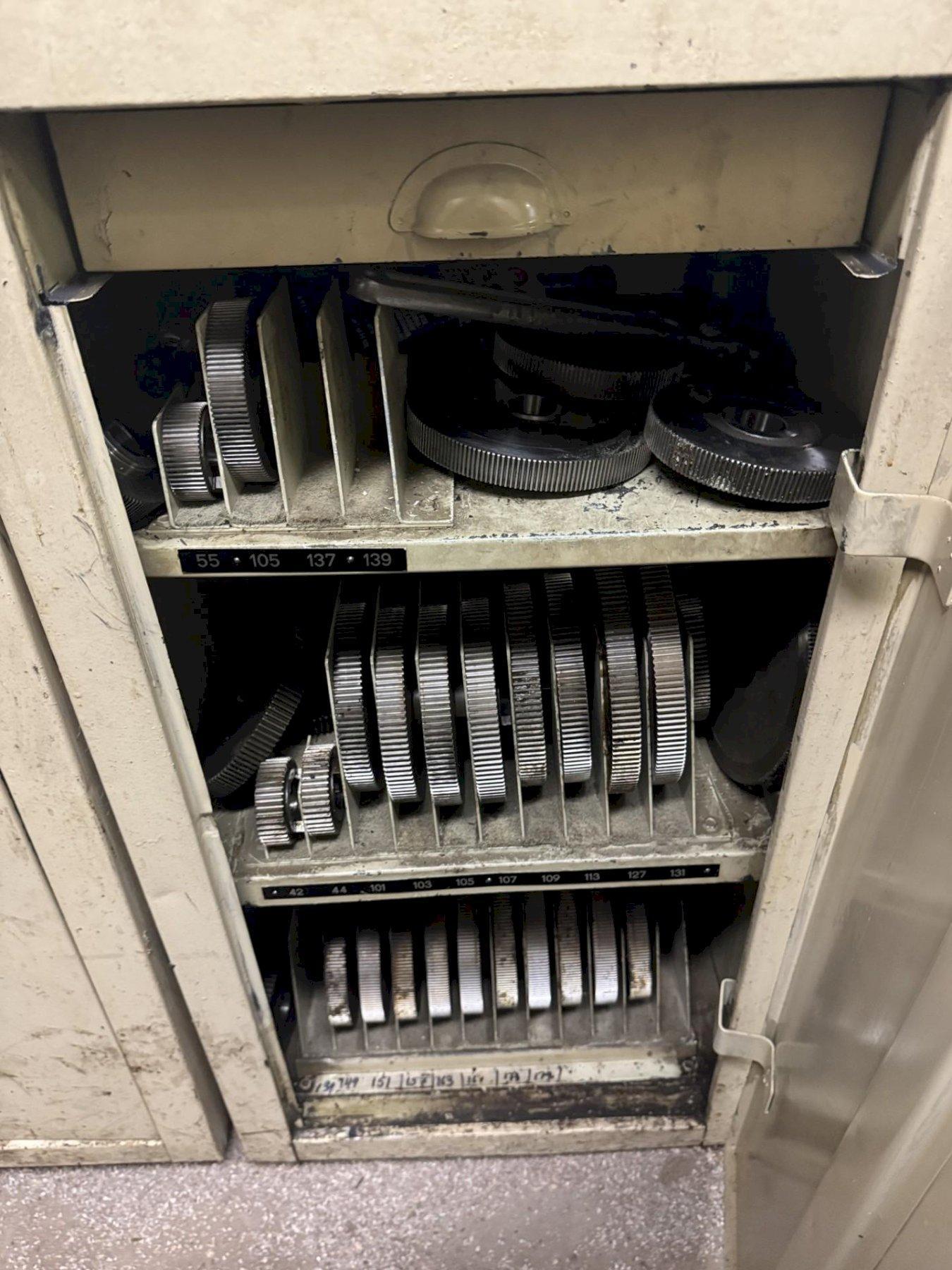

Tip and Root Relieving Mechanism. Lead Crowning Mechanism. Oil Chiller. Coolant System with Paper Filtration. Hydraulic System for machine control and Lubrication. Change Gear Transmission with Change Gears for Rolling and Indexing. Dresser. Tailstock with Removable Center. Tailstock Support can be removed for Large Diameter work. Hole Through Table. Machine is Currently in pit for cable and hose management with large work hole. |
|
