Name: Haas VF-4SS CNC Vertical Machining Center – 2020, WIPS, HSM, 4th Axis MIll
Brand: HAAS
SKU: 113702
Availability: InStock

Brand

HAAS

Location

Not specified

Specifications
Files & Videos

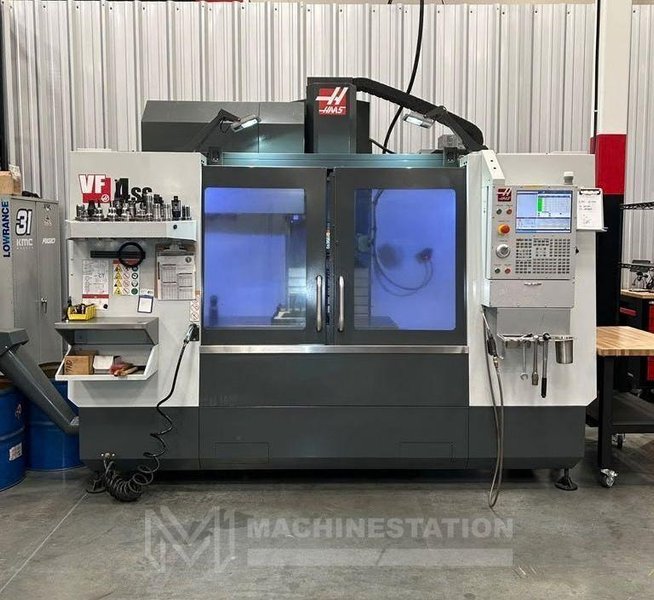

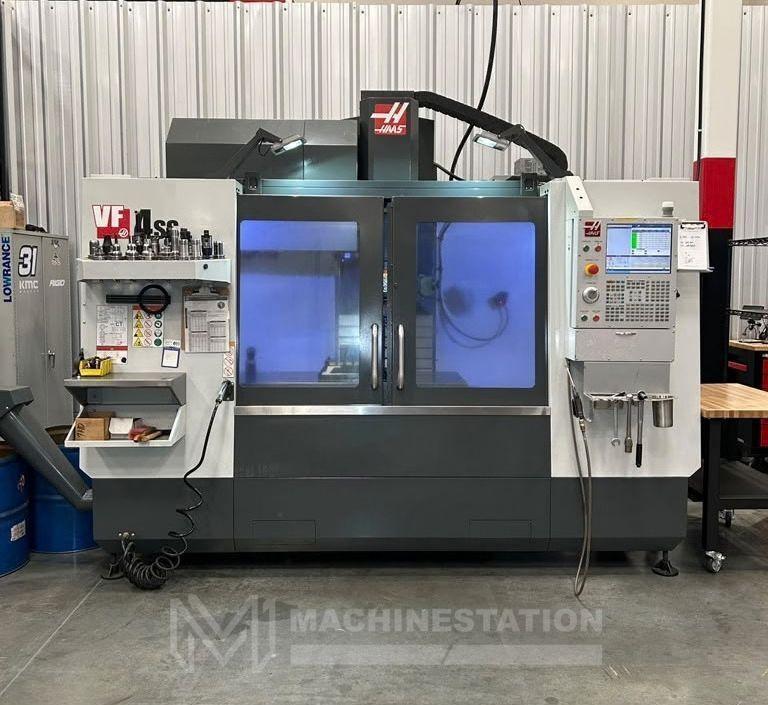

2020 Haas VF-4SS CNC Vertical Machining Center. Features WIPS, HSM, 4th Axis Drive and Rotary Table, 12,000 RPM spindle, and 30-Tool Changer. Ideal for multi-sided machining. High-intensity lighting and chip auger included.

“Replacement Cost Over $148,000 with Similar Options”

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Features:
Haas CNC Control
4th Axis Drive and Wiring (Upgraded $3,795 Value Included) – Allows the Use of a 4th-Axis Haas Rotary Table for Multi-Sided Machining
Haas 4th Axis Rotary Table with 8-1/4″ 3-Jaw Chuck (Upgraded $17,495 Approx. Value Included) – 4th-Axis Haas Rotary Table for Multi-Sided Machining
12,000 RPM Inline Direct Drive Spindle
WIPS-R Renishaw Probing System (Probe Included) (Upgraded $6,795 Value Included) – Reduced Scrap Rates, Minimized Downtime
Probe Riser Block (Upgraded $795 Value Included) – Provides Additional Height for the Tool Probe
30 Station Super Speed Side Mount Tool Changer
Programmable Coolant Nozzle (Upgraded $2,595 Value Included) – Automatically Directs Coolant Precisely at the Cutting Tool
High Speed Machining (Upgraded $3,995 Value Included) – Allows Faster Feedrates and More Complex Toolpaths
1,400 IPM Fast Rapid
User-Definable Macros
Coordinate Rotation and Scaling
Spindle Orientation
Rigid Tapping
VPS Editing
Media Display
1 GB Max Memory
Wireless Networking
Compensation Tables
High-Intensity Lighting (Upgraded $1,395 Value Included)
Coolant Tank
Chip Auger (Upgraded $4,295 Value Included) – Automatically Removes Chips from the Machine
Note: Tool Holders & Vice are Not Included with the Machine

Travels:
X-Axis: 50.0 inch
Y-Axis: 20.0 inch
Z-Axis: 25.0 inch
Rapid Traverse Rates Axis: 1,400 IPM
Cutting Feed Rates: 833 IPM
Spindle Nose to Table (Min.-Max.): 4.2 inch – 29.2 inch

Table:
Length: 52.0 inch
Width: 19.5 inch
Max Weight on Table: 1,750 lbs

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter: 2.5 inch – 5.0 inch
Max Tool Length: 13.0 inch
Tool Changing Time: 1.8 Seconds
