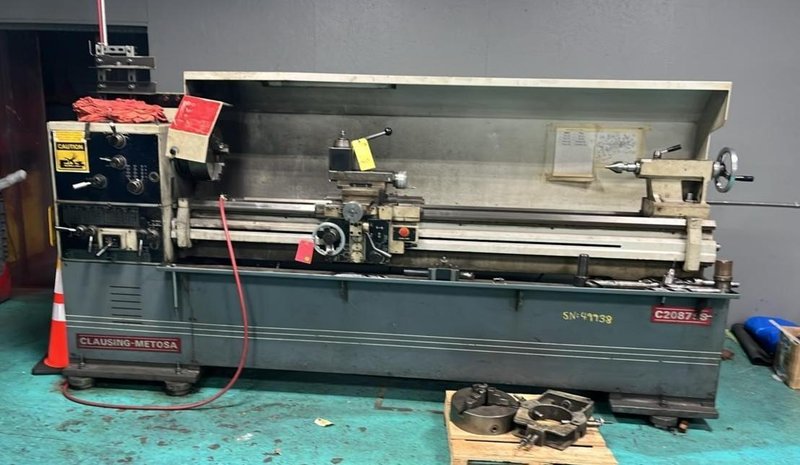

20" X 87" CLAUSING - METOSA MODEL C2087SS ENGINE LATHE, 3.3" SPINDLE HOLE: YOBRO #26380

20" X 87" CLAUSING - METOSA MODEL C2087SS ENGINE LATHE, 3.3" SPINDLE HOLE: YOBRO #26380

Name: 20" X 87" CLAUSING - METOSA MODEL C2087SS ENGINE LATHE, 3.3" SPINDLE HOLE: YOBRO #26380
Brand: CLAUSING METOSA
SKU: 26380
Availability: InStock

Brand

CLAUSING METOSA

Location

Ohio

Specifications
Files & Videos

YEAR NEW... 1998
SERIAL NUMBER .......................
MODEL ............................... C2087SS
SWING OVER BED ...................... 20.87"
CENTER DISTANCE ..................... 87"
CENTER HEIGHT ....................... 10.24"
SWING IN GAP ........................ 30.71"
GAP LENGTH .......................... 8.66"
SWING OVER CARRIAGE ................. 18.70"
SWING OVER CROSS SLIDE .............. 12.80"
BED WIDTH ........................... 13.78"
SPINDLE BORE ........................ 3.15"
SPINDLE NOSE ........................ D1-8"
CHUCK ............................... 12" 3 JAW
SPINDLE SPEEDS ...................... (12) 30 -1500 RPM
NO. OF LONGITUDINAL FEEDS ........... (55) 0.0018- 0.052 IPR
NO. OF CROSS FEEDS .................. (55) 0.0005- 0.015 IPR
NO OF METRIC THREADS ................ (55) 0.5" -15 TPMM
NO. OF INCH THREADS ................. (55) 2 - 60 TPI
TAILSTOCK RAM DIAMETER & TRAVEL ..... 2.83"/7.09"
TAILSTOCK TAPER ..................... 5 MT

No files or videos to display
