1.5mm x 350mm x5ton Continuous Copper Strip Tinning Line

General specifications:

YOM: originally 1995

Manufacturer: KME

Speed: 100m/min

Strip thickness: 0.15mm – 1.5mm

Strip width: 250mm – 350mm

Coating thickness: 1micron – 20micron

Coil weight: 5ton

Coil OD: 1600mm

Coil ID: 400mm

Pay-Off:

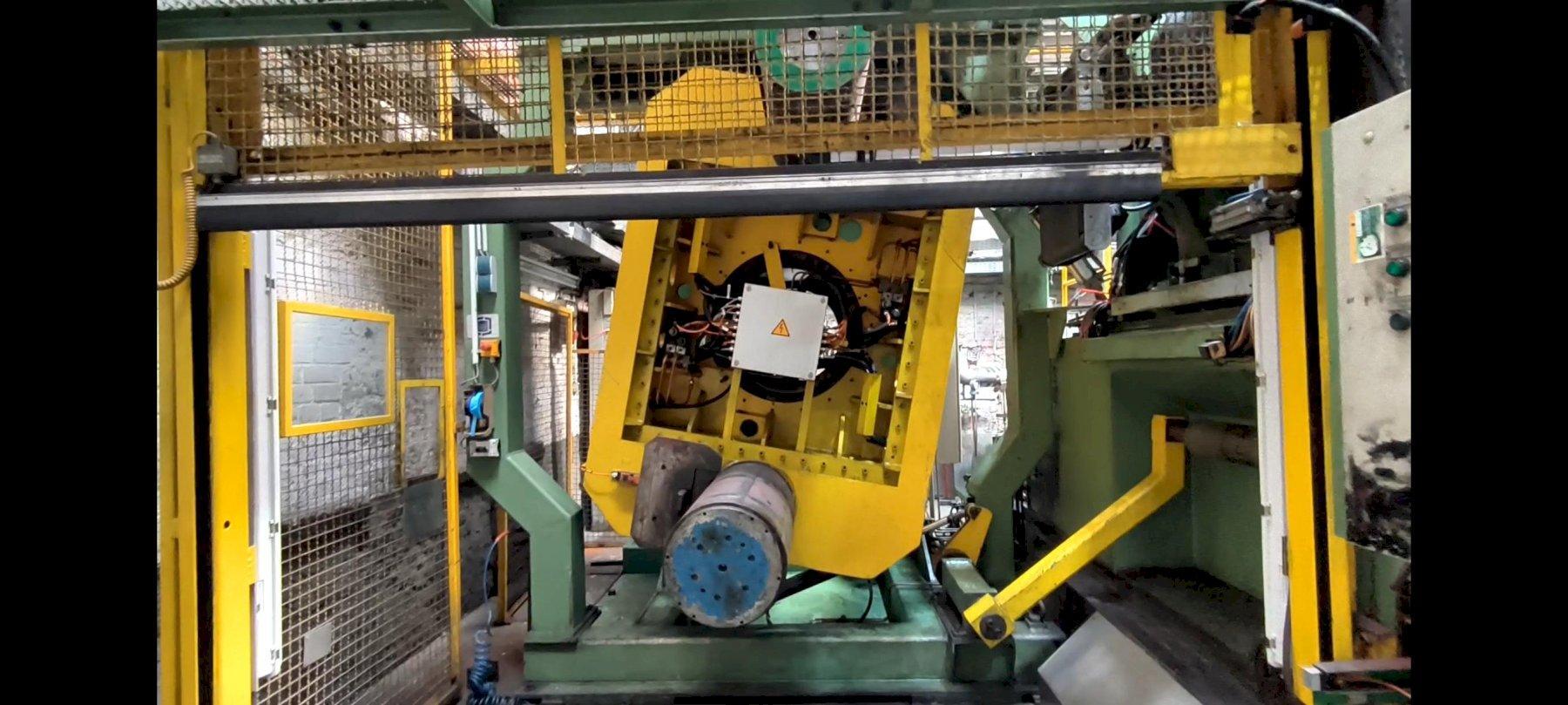

Underground coil car with hold down

HPL rotating double de-coiler

Winder drive: 2x 20Kw DC

2x Strip transfer table

2x Horizontal guide rolls

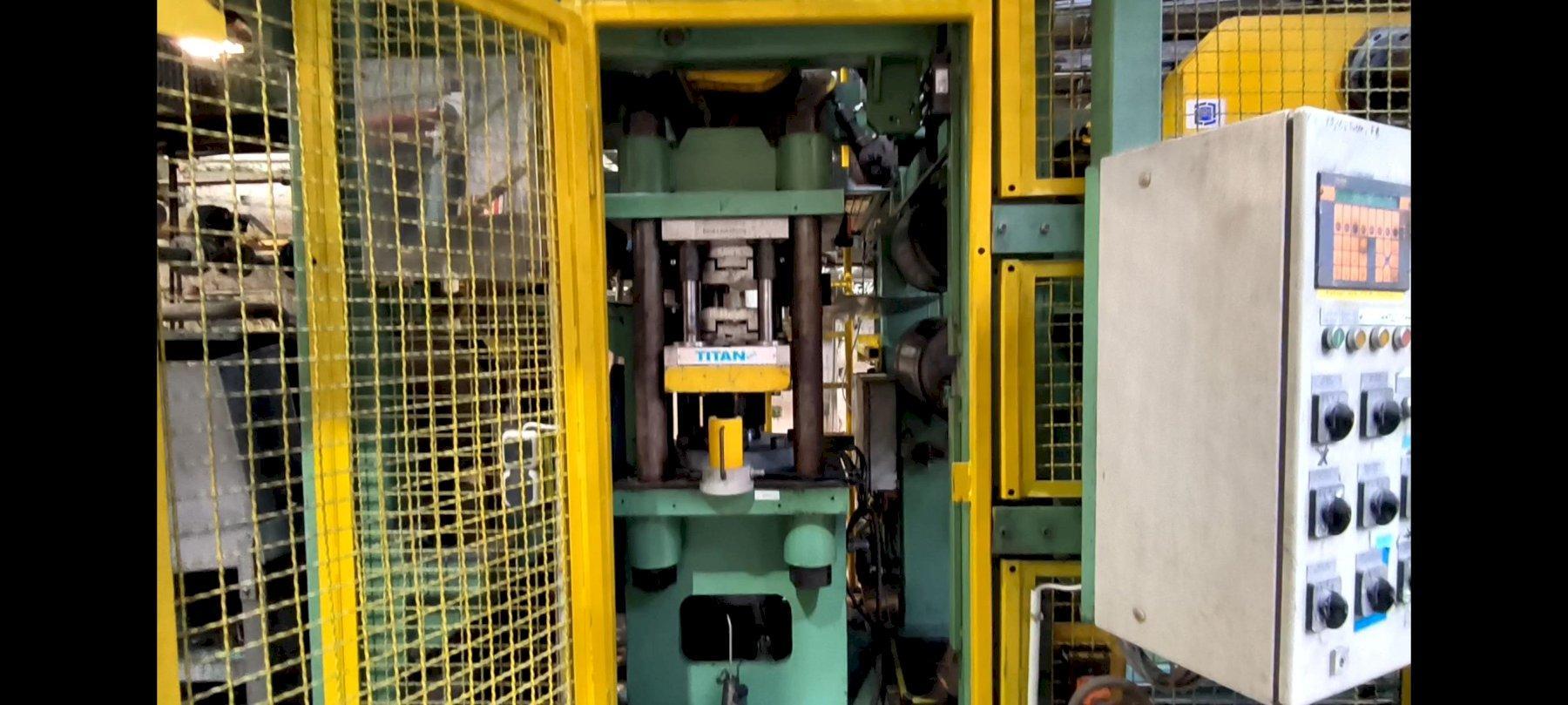

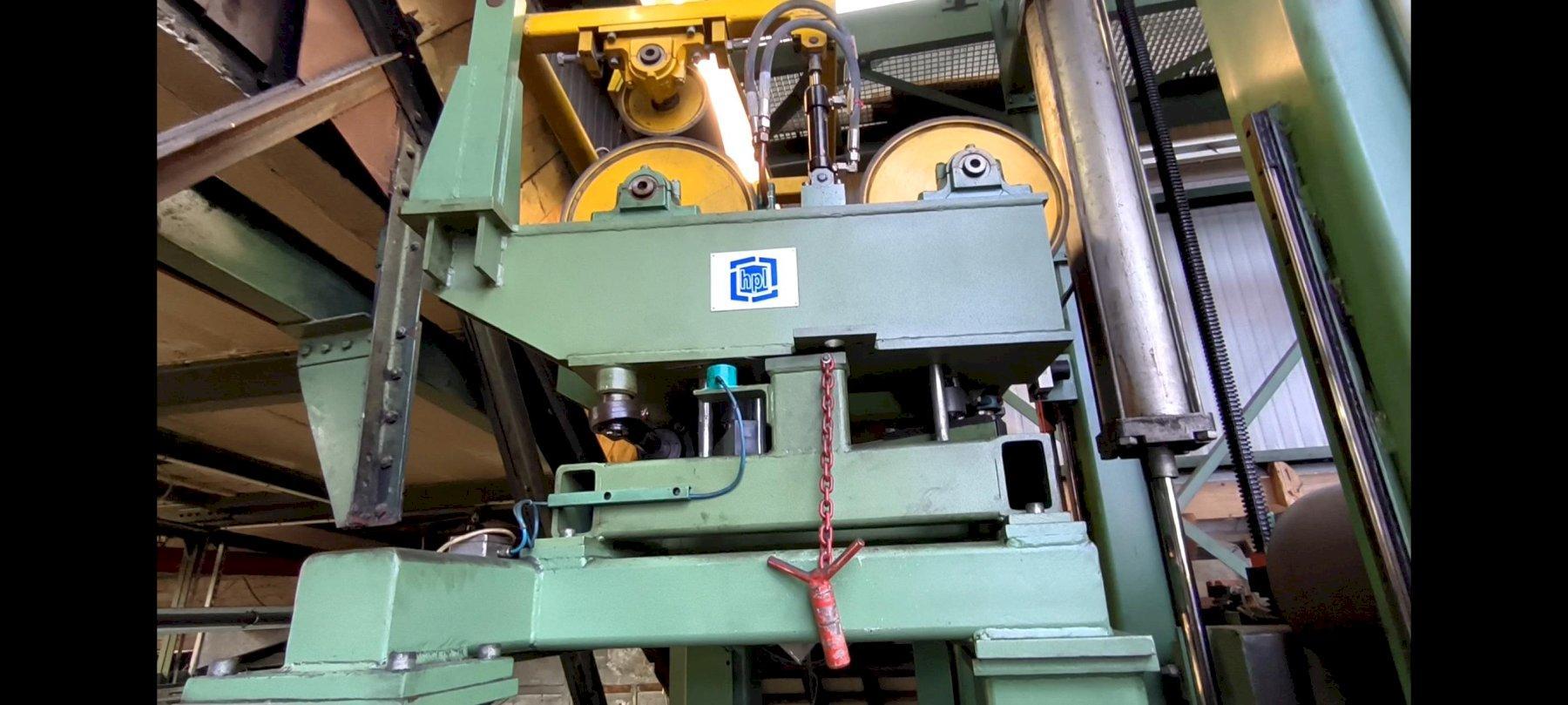

Titan stitcher

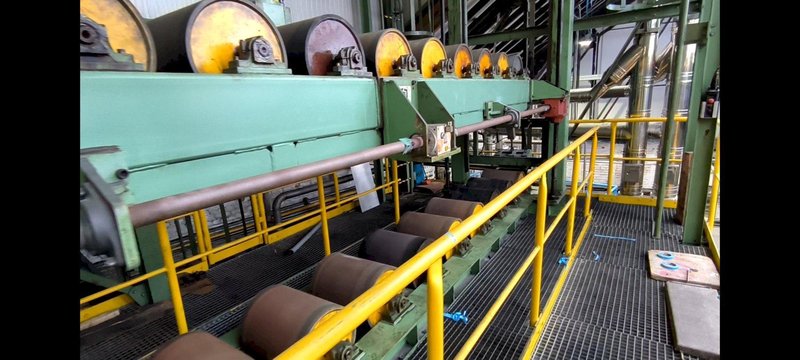

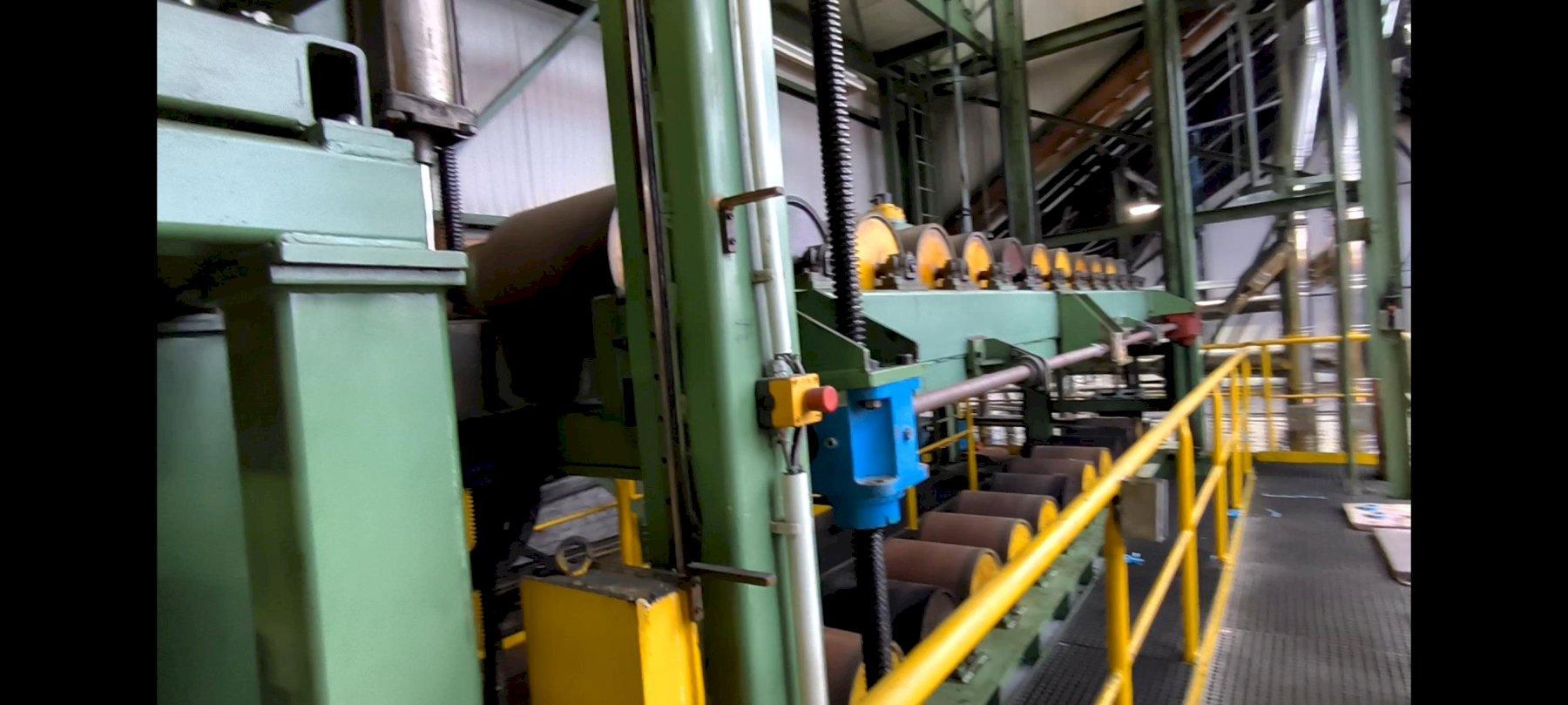

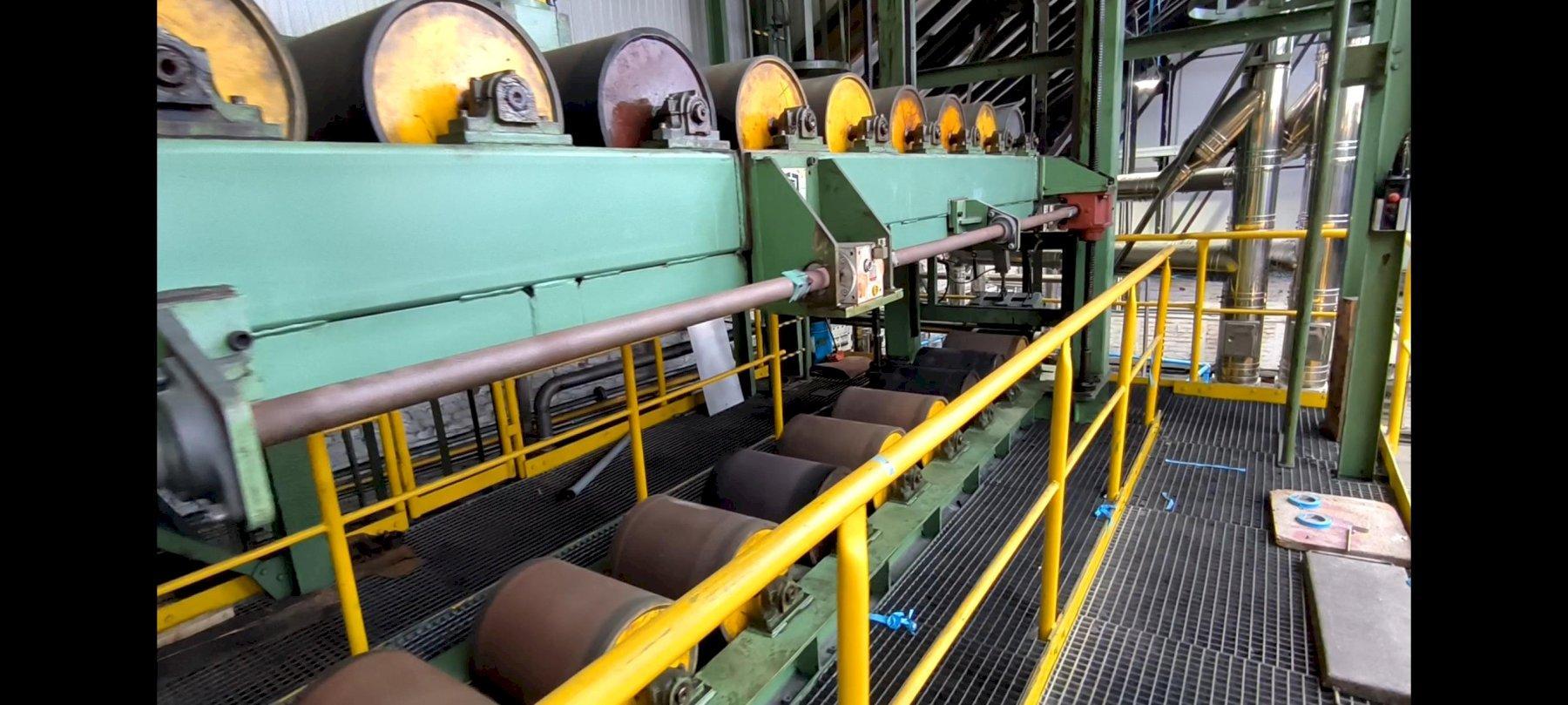

Looper:

1x EMG steering roll + Dancing roll

HPL 24 Roll looping section

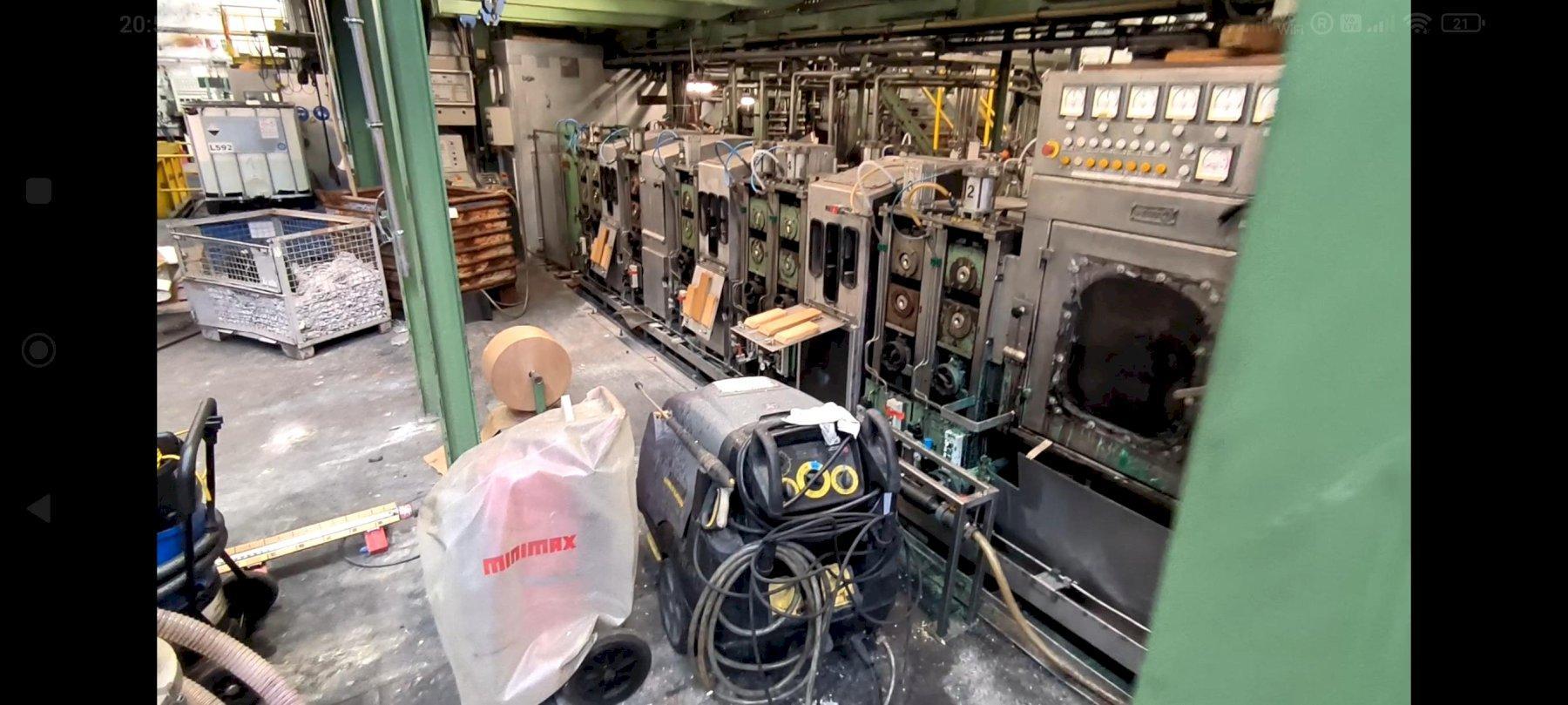

Degreasing/Pickling:

Degreasing:

4x Brushes

4x Jet cleaning stations

8x Separation roll sets

Hot air dryer

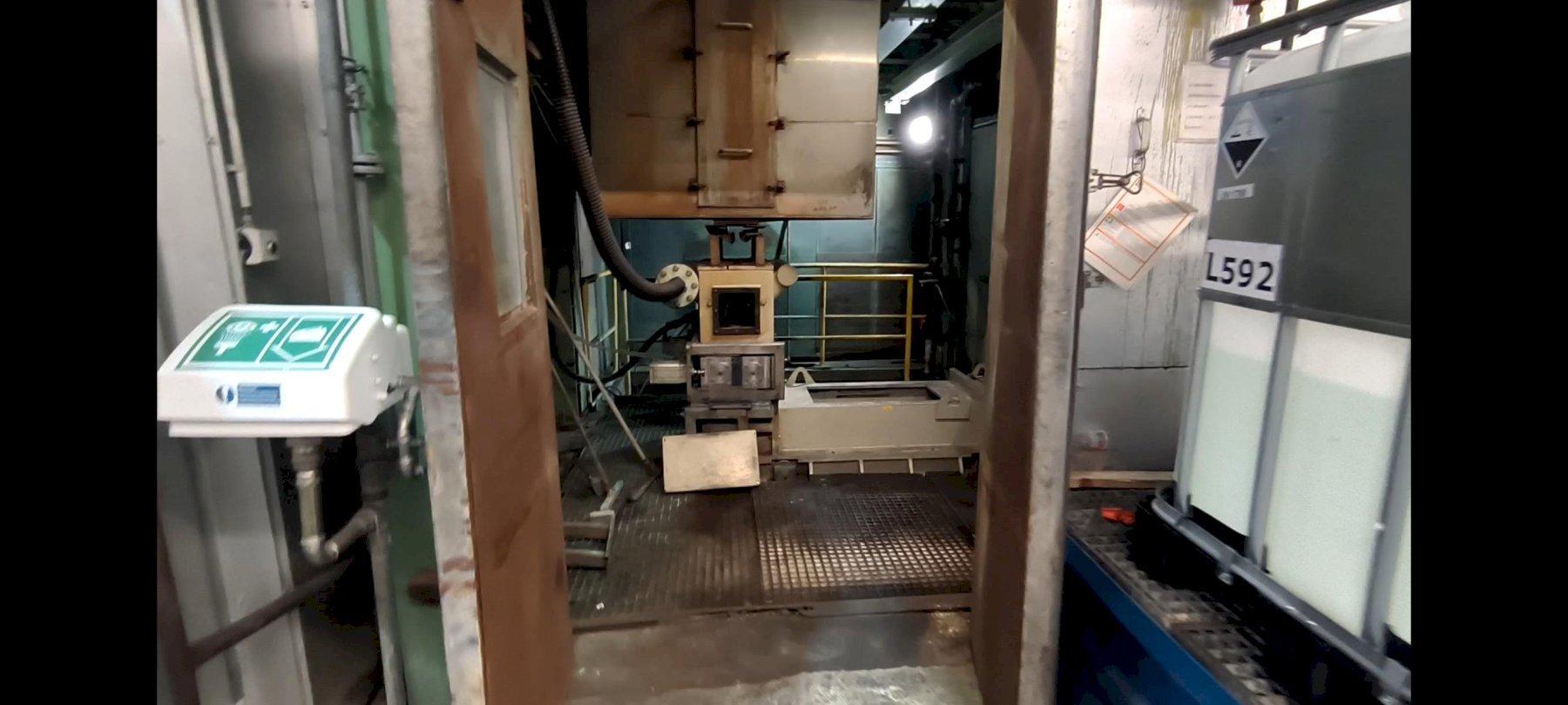

Pickling:

Acid: Sulfuric

2x Brushes

4x Separation rolls

2x Jet cleaning station

Air knive dryers

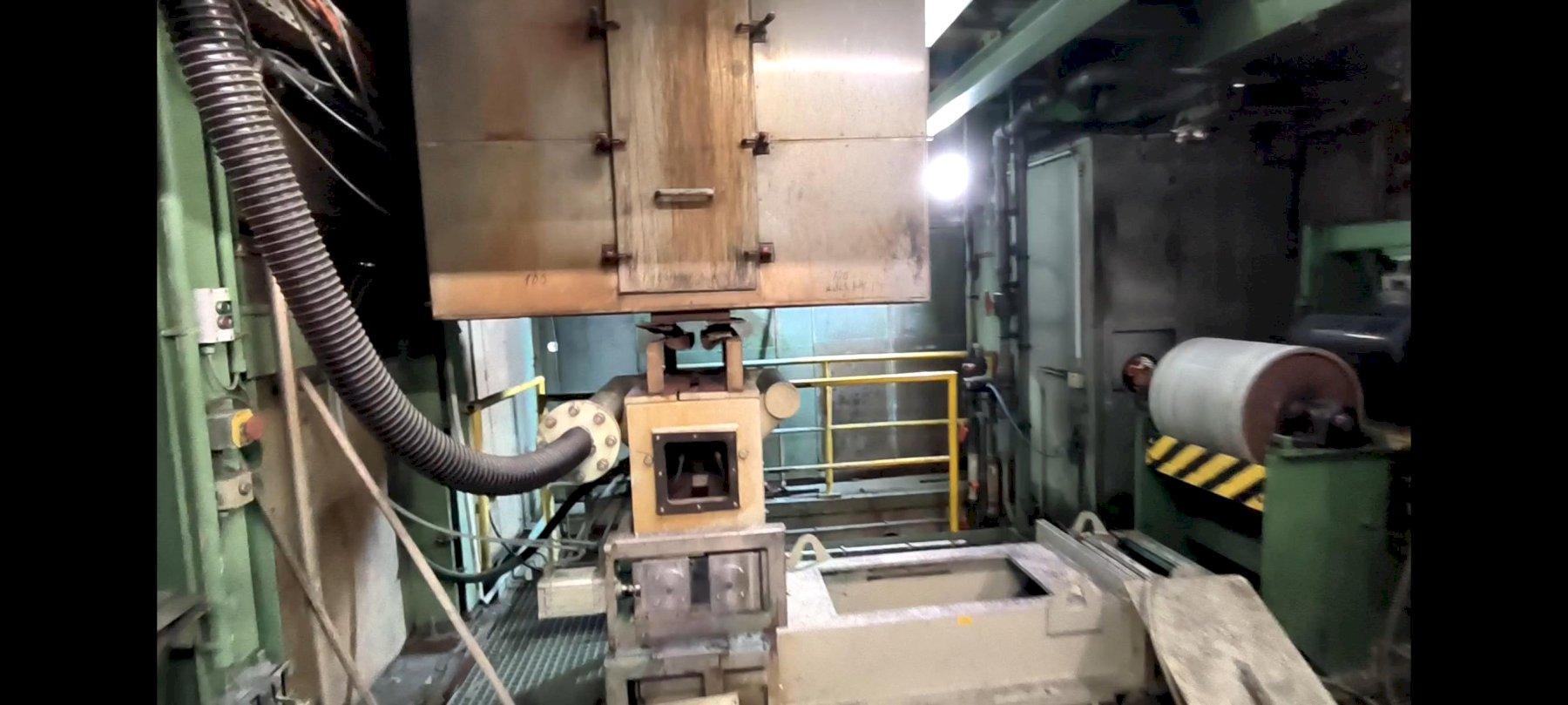

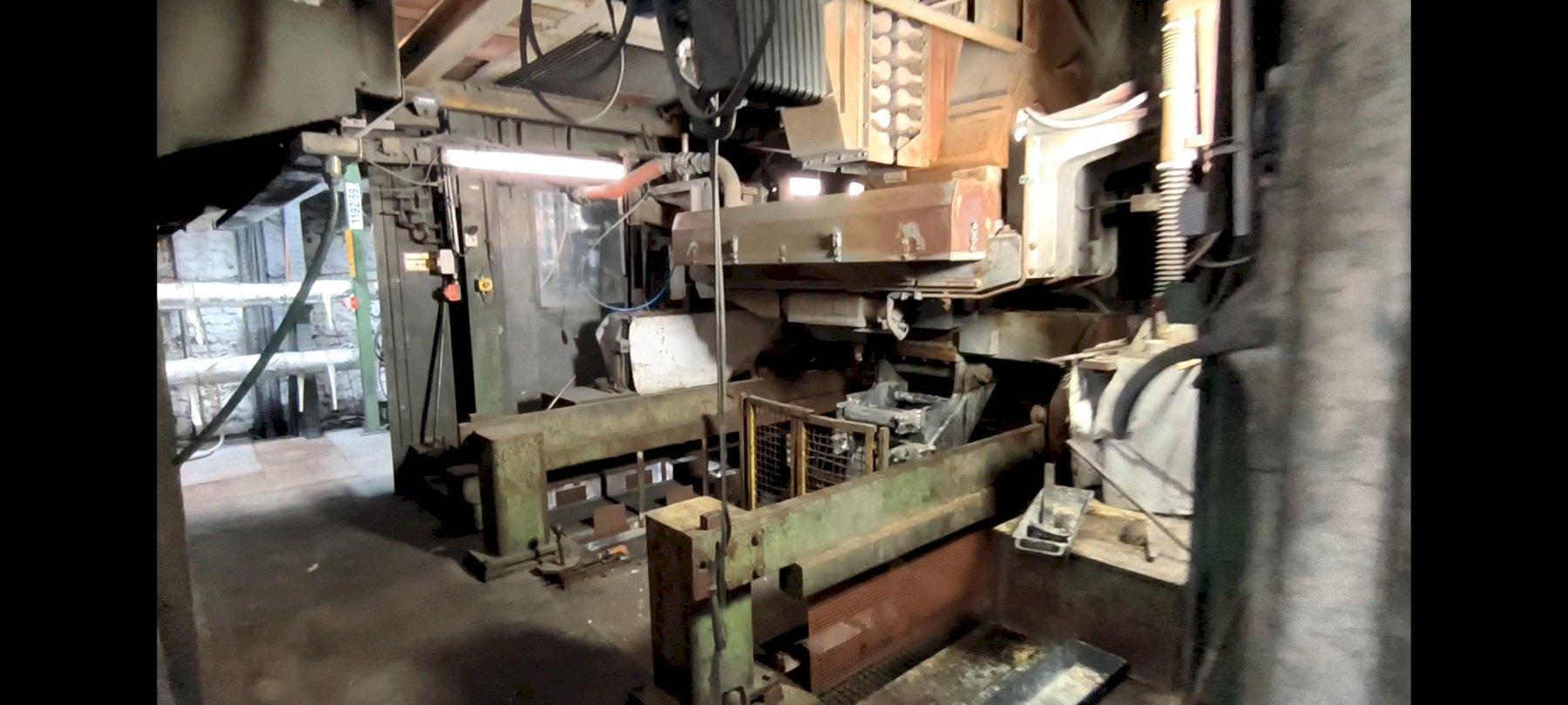

Coating:

Air knive dryers

1x set of rubber separation rolls

Flux bath

Tin container has been removed

Adjustable air knives after tinning bath

Steering roll at tinning

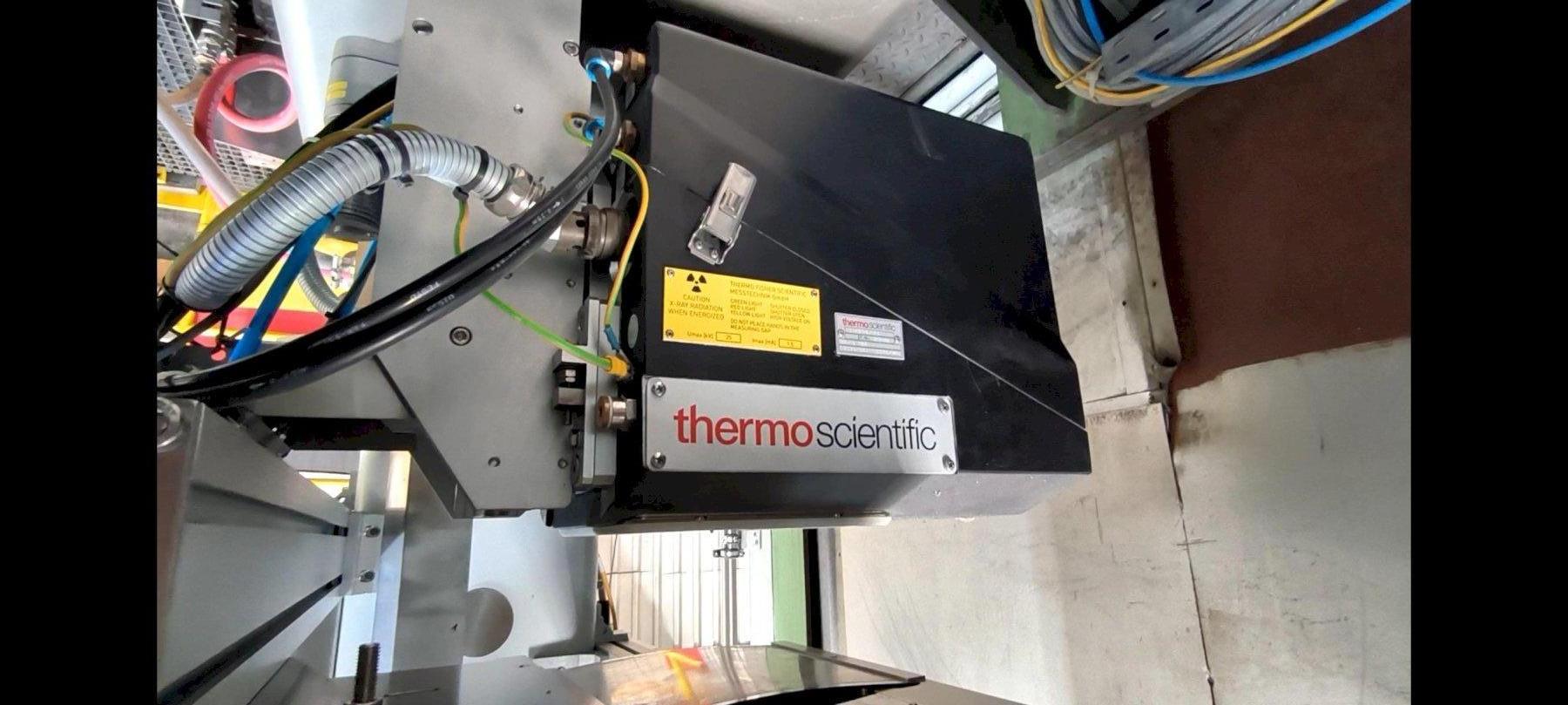

Thermofisher scientific X-Ray surface control/Hole detection/thickness measurement

Exit steering roll with EMG system + hold down roll

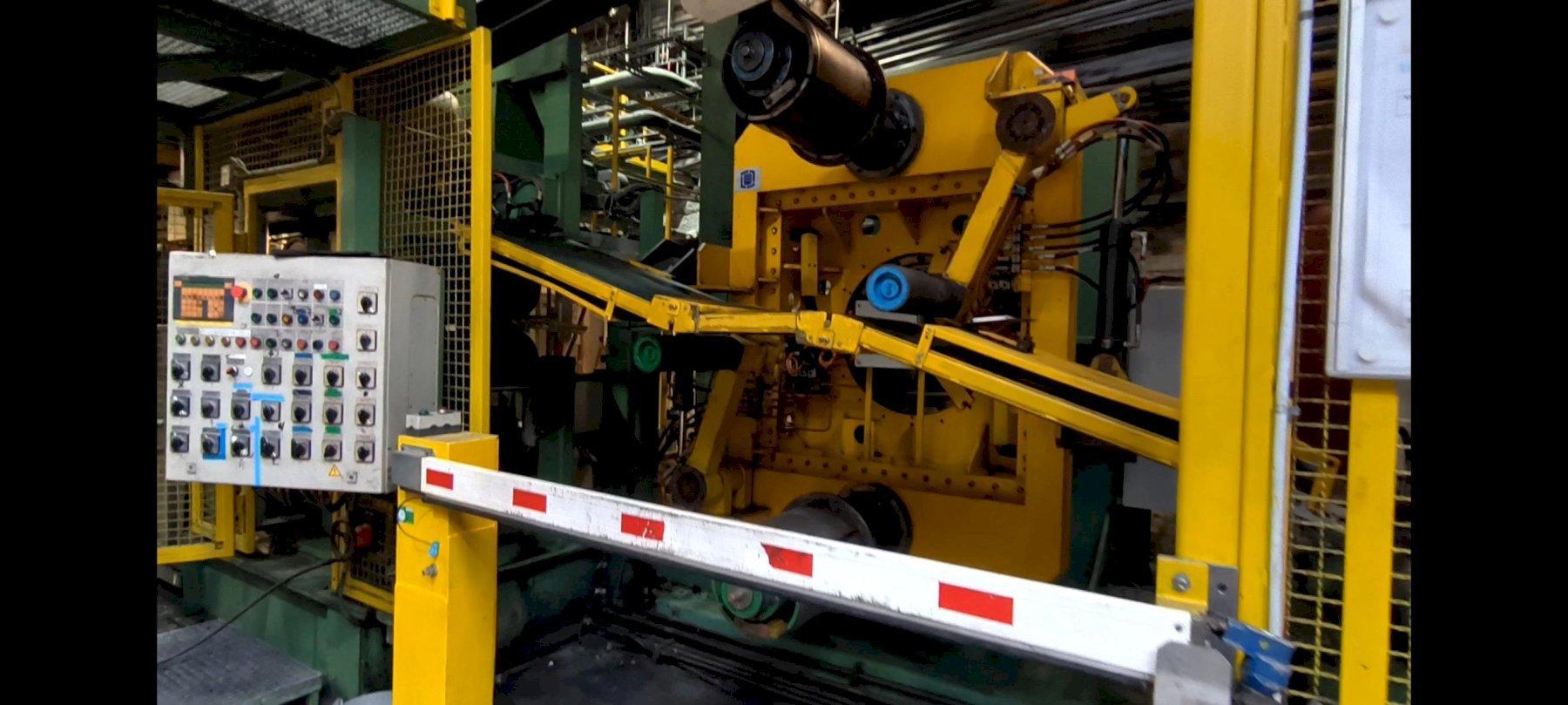

Re-coiling:

Hydraulic crop shear

Belt conveyor

1x set of bridle rolls

HPL double rotating re-coiler with push off plates

Belt wrapper

U-Type underground coil car
