USED DONALDSON TORIT MODEL DFT2-8 1,020–6,300 CFM DOWNFLO II DUST COLLECTOR

USED DONALDSON TORIT MODEL DFT2-8 1,020–6,300 CFM DOWNFLO II DUST COLLECTOR

Name: USED DONALDSON TORIT MODEL DFT2-8 1,020–6,300 CFM DOWNFLO II DUST COLLECTOR
Brand: Unknown
SKU: 11291
Availability: InStock

Brand

Not specified

Location

Not specified

Specifications
Files & Videos

Overview

Type:

Dust Collectors

Manufacturer:

DONALDSON TORIT

Model:

DFT2-8

Year:

2012

Stock #:

11291

Status:

For Sale

Description

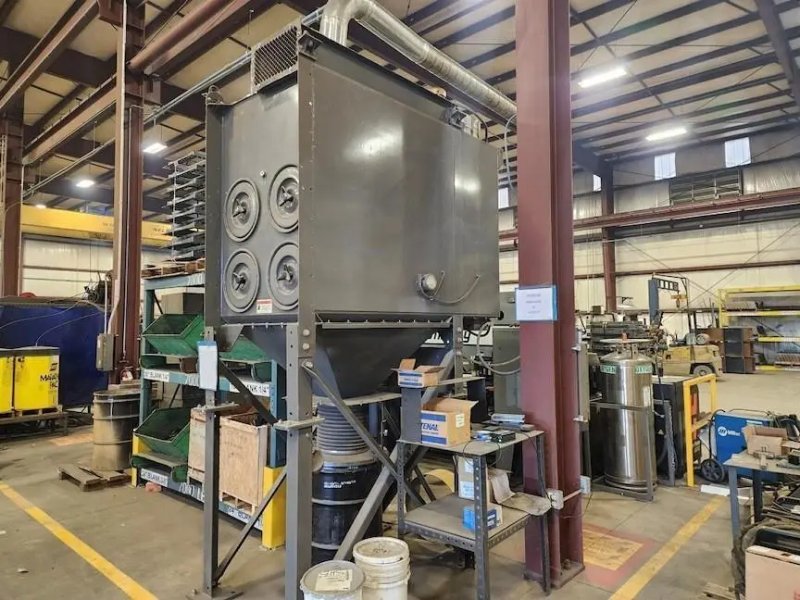

2012 Donaldson Torit Model DFT2-8 Downflo II dust collector offers a 1,020–6,300 CFM flow rate. Features automatic pulse-jet cleaning, integrated fan, and hopper discharge. Specifications include 5 HP motor, 8 cartridges, and TEFC enclosure.

ImperialMetric

Flow Rate	6,300 ft³/min.	6,300 ft³/min.
Hood Type	Filtered Recirculating (Ductless)	Filtered Recirculating (Ductless)
Dimensions	40" W × 94.5" D × 132.7" H	40" W × 94.5" D × 132.7" H
Weight	1,700 lbs.	1,700 lbs.

Brand: Donalson Torit
Model: DFT2-8 Downflo II

Specifications:
Type: Downflow Cartridge Dust Collector
Number of Cartridges: 8
Filter Area: 2,032 sq. ft. with standard Ultra-Web filters
Nominal Airflow Range: 1,020–6,300 CFM
Pulse Valves: 4
Compressed Air: 90–100 PSI
Collector Housing Rating: ±20 in. w.g.

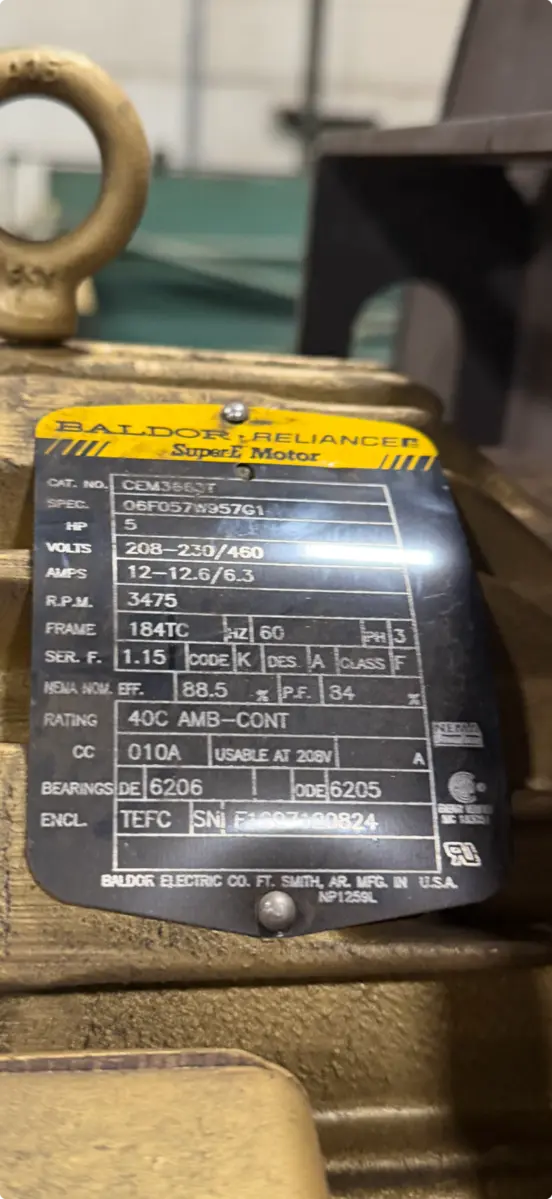

Blower Motor: 5 HP Baldor Reliance Super-E
Motor Speed: 3,475 RPM
Electrical: 230/460V, 3-Phase
Motor Amps: 12.6 / 6.3 A
Motor Enclosure: TEFC
Approx. Collector Dimensions: 40" W × 94.5" D × 132.7" H
Approx. Shipping Weight: 1,700 lbs.
