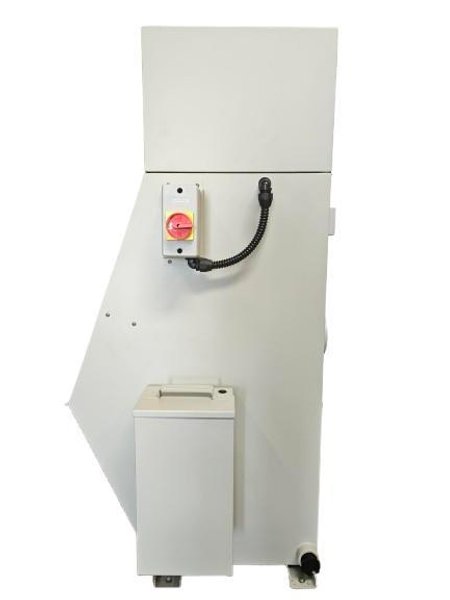

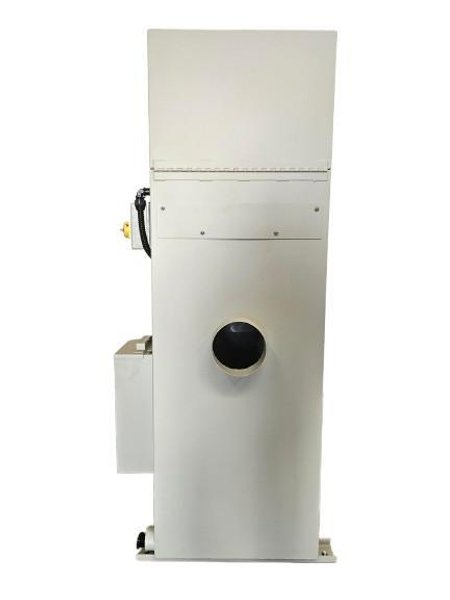

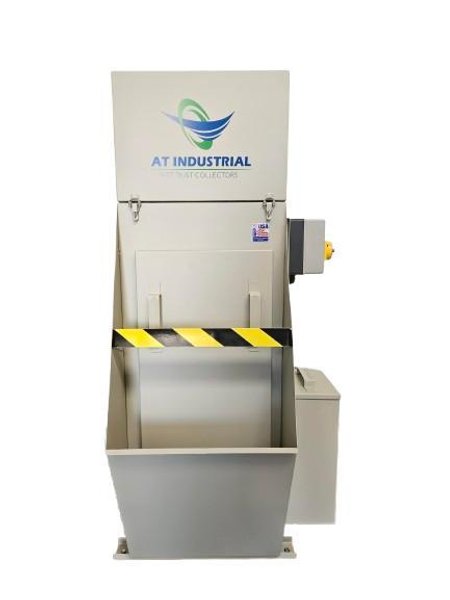

NEW AT INDUSTRIAL MODEL C3-800 WET DUST COLLECTOR

Name: NEW AT INDUSTRIAL MODEL C3-800 WET DUST COLLECTOR
Brand: AT INDUSTRIAL
SKU: 30611
Availability: InStock

Brand

AT INDUSTRIAL

California

NEW AT INDUSTRIAL MODEL C3-800 WET DUST COLLECTOR

Machining, Sawing, Grinding, Deburring, Sanding

Component	Specification	Benefit
Housing	304 Stainless Steel	Corrosion resistance, long service life
Motor	TEFC 230V–460V/60Hz/3ph	Enclosed protection in dusty/wet environments
Impeller	Precision-balanced SS, direct coupled	Maximum CFM with minimum vibration
Maintenance Door	Front access	Service without moving the unit
Starter	Manual dial type	Simple, on-unit operation
Water Level Controller	Automatic	Maintains proper level without operator input
Panels	Sound suppression	Reduced operating noise
Exterior	Powder coated	Durable, cleanable finish
Sludge Rake	Stainless steel	Simplified sediment removal

NEMA electrical package
- Starts collector when process machinery is turned on
- Monitors water level to ensure proper CFM production
- Shuts down processing equipment and wet collector when water level is too low or too high.

Extended sump, stainless steel cover and flange
- Moves inlet from vertical to horizontal position
- Eliminates 45° & 90° elbow off the back of the unit
- Allows straight duct to attach to the flange located on top of the sump cover
