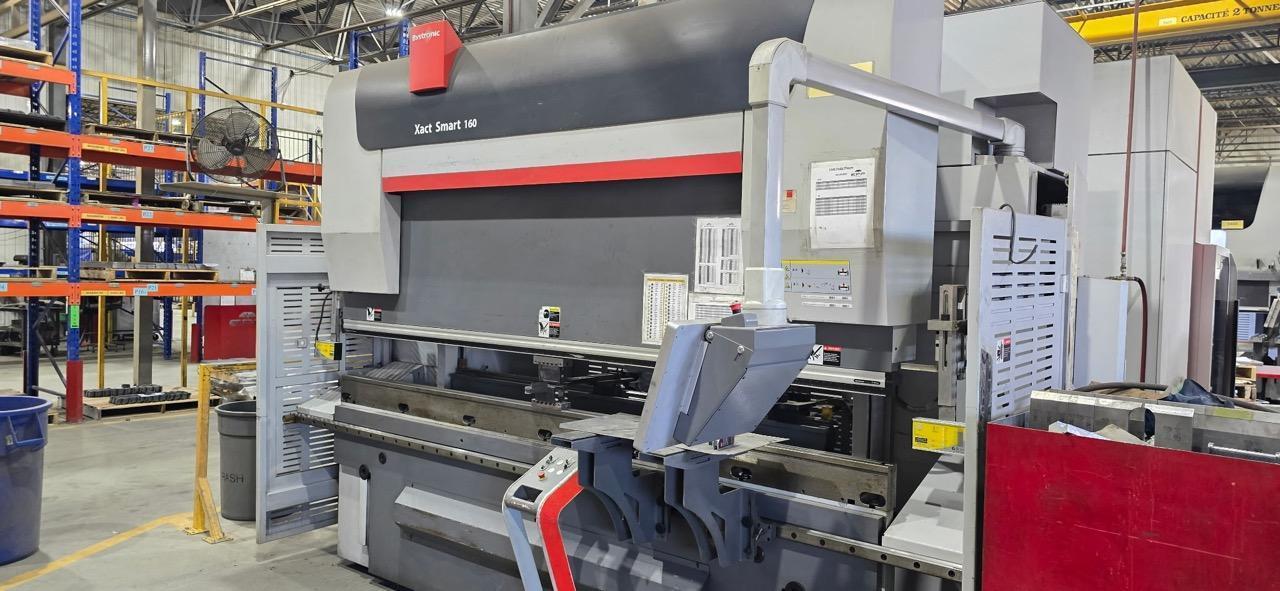

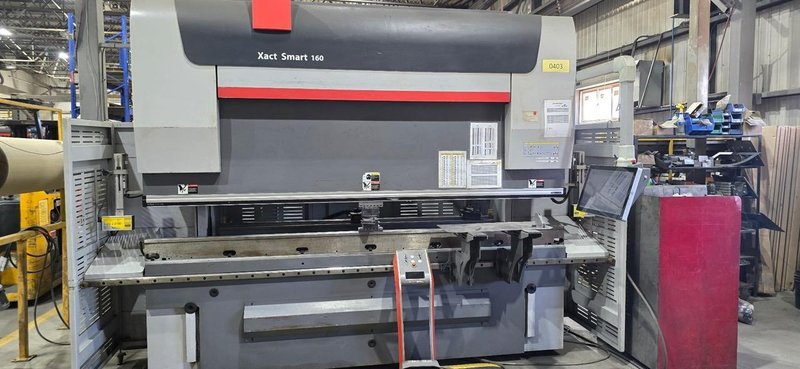

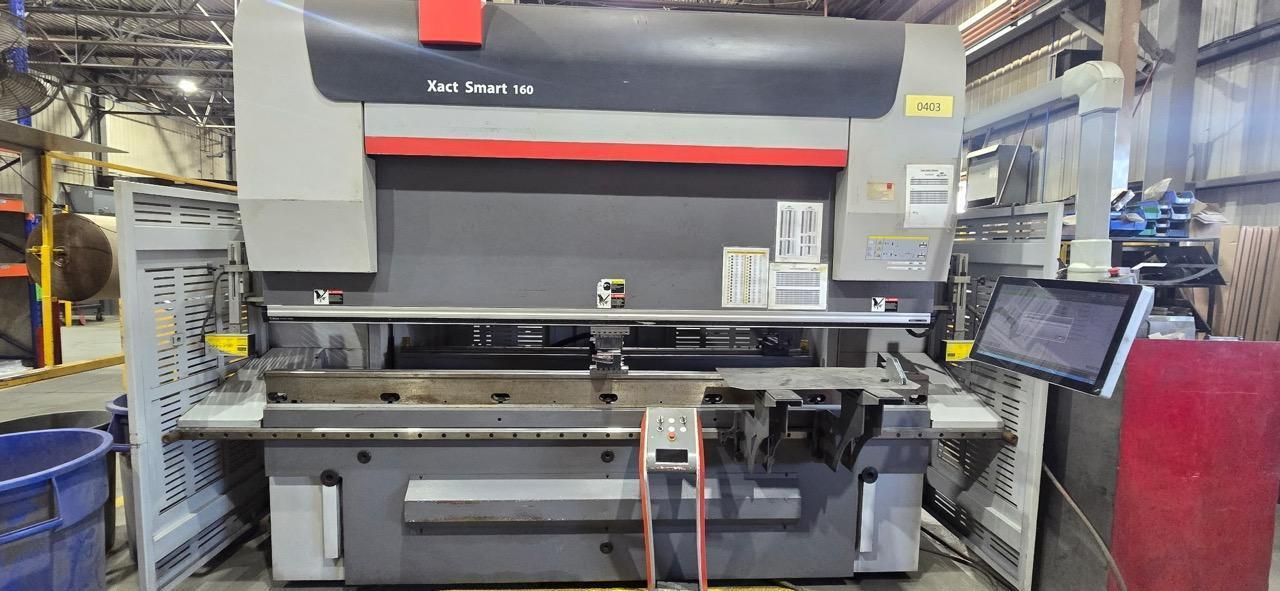

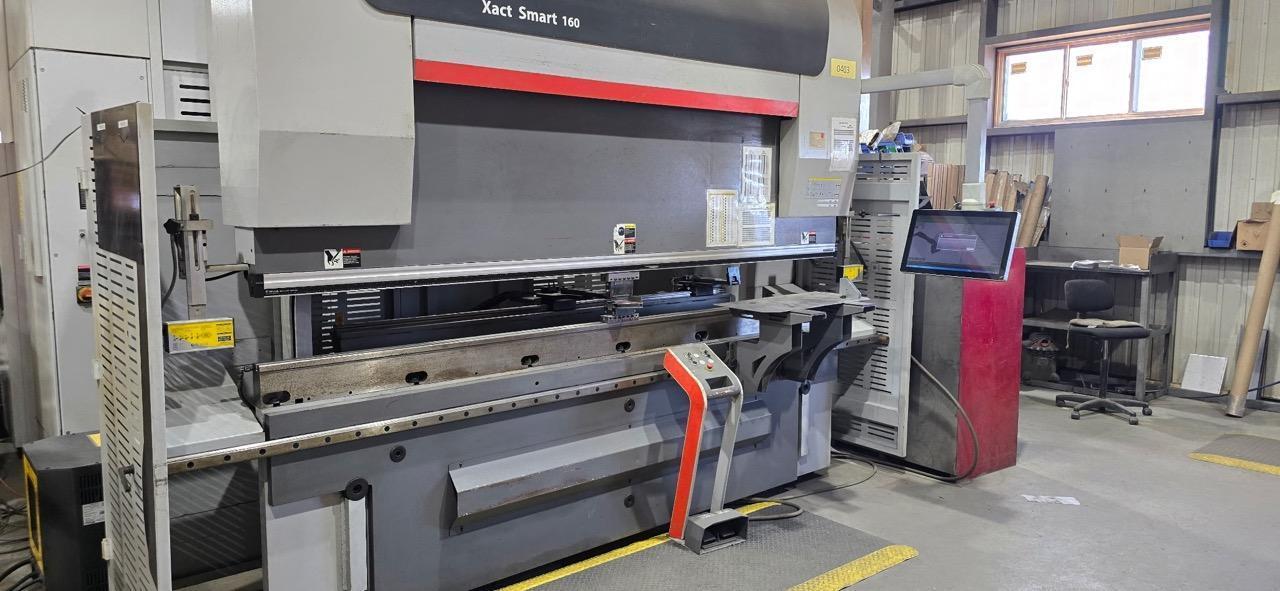

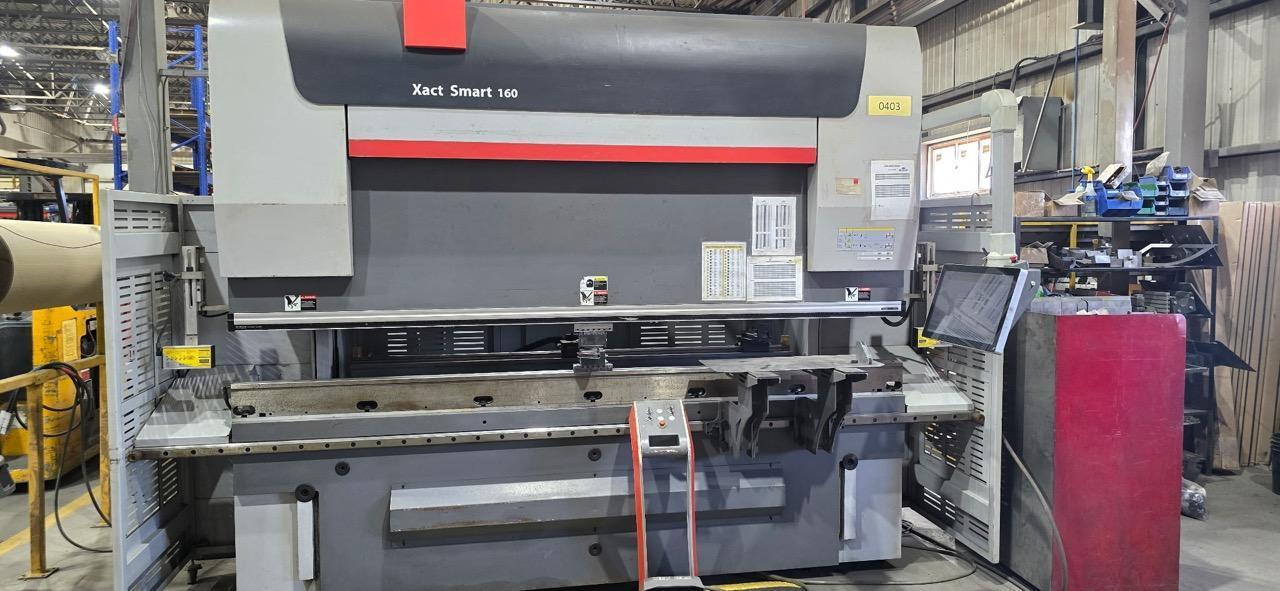

176 Ton x 10′ Bystronic Xact 160/3100 CNC Press Brake, 2015
Brand
Category
Model
Xact 160/3100
Stock #
300177
Year
2015
Condition
Not specified
Location
Not specified
|
Max. Press Force: 160 Tons (1600 kN)
Working/Bending Length: 122 inches (3,100 mm)
Distance Between Housings: 96 inches (2,450 mm)
Standard Stroke: 7.9 to 10 inches depending on the model year (200 to 250 mm)
Open Height: 18.9 inches (480 mm)
Throat Depth: 15.75 inches (400 mm)
Speeds: Rapid approach of up to 425 ipm (150 mm/s), and working speeds of 1 to 13 mm/s
Standard Axes: Y1, Y2 (synchronized hydraulic cylinders), and X-axis (backgauge)

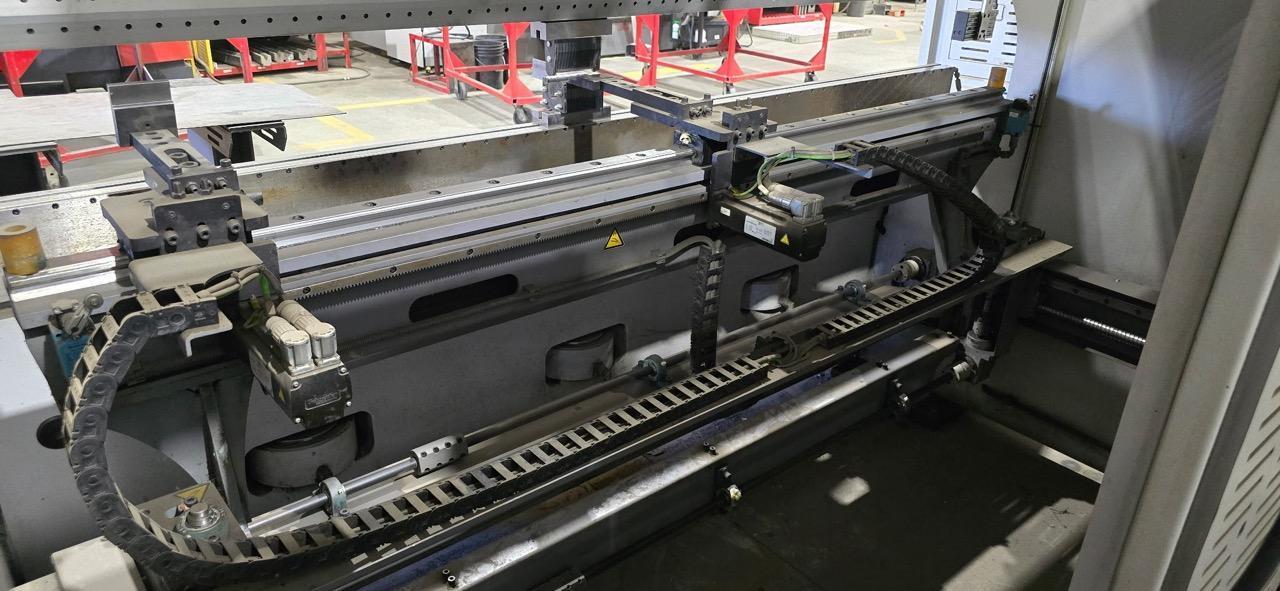

X-Axis Travel: Up to 23.6 inches (600 mm) with speeds up to 1417 ipm
R-Axis Travel: 5.9 inches (150 mm)
Backgauge Accuracy: ± 0.05 mm (0.002 inches)

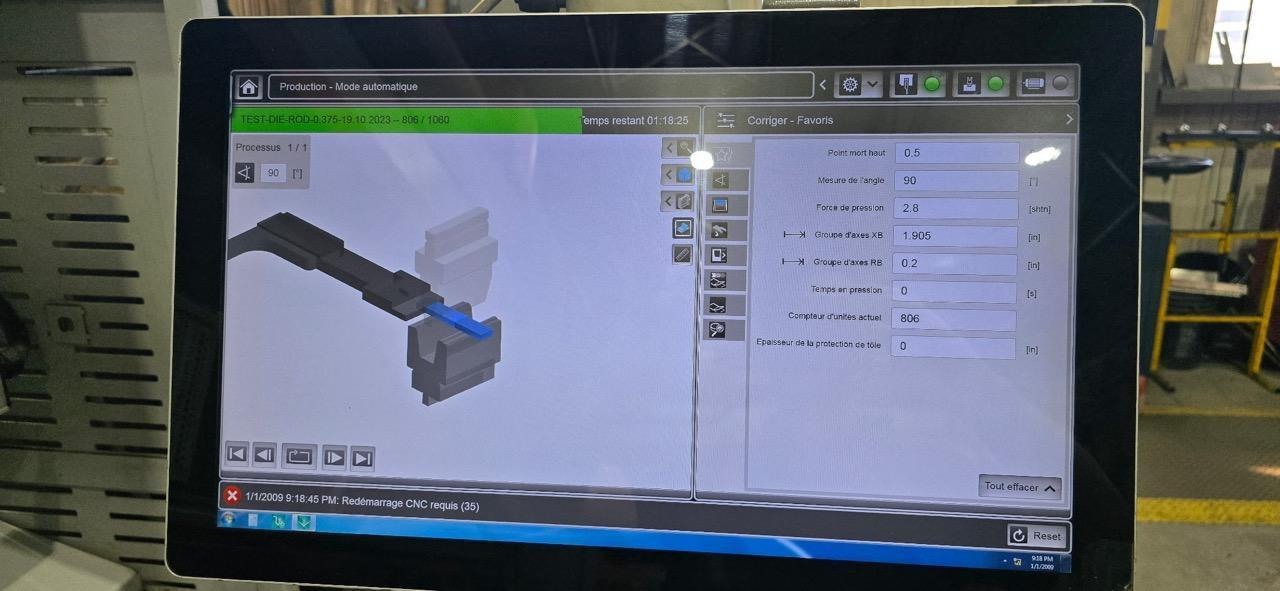

CNC Control: Bystronic ByVision Bending Control
Motor Power: 18.5 kW
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
