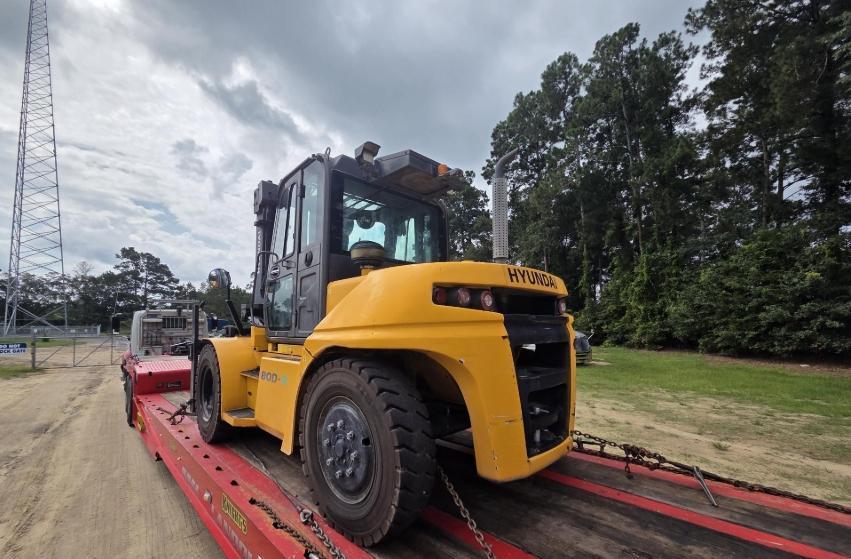

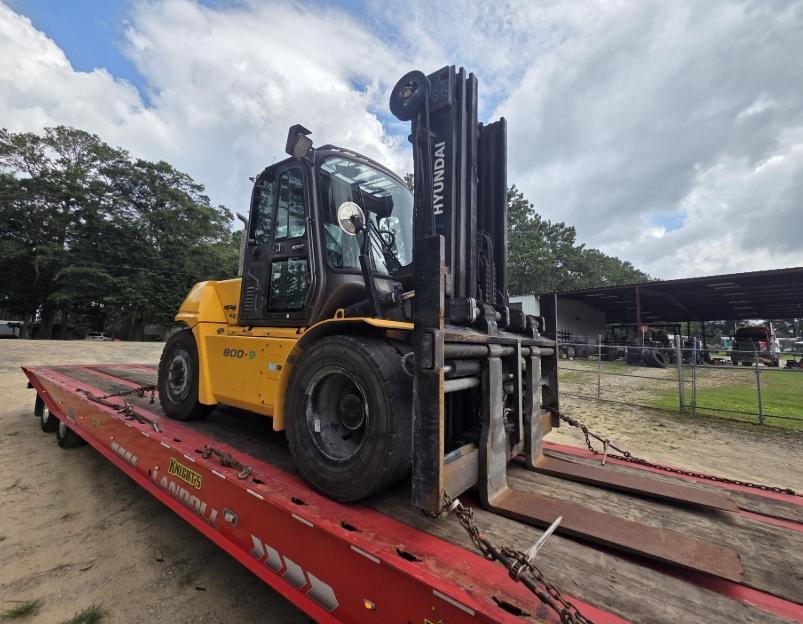

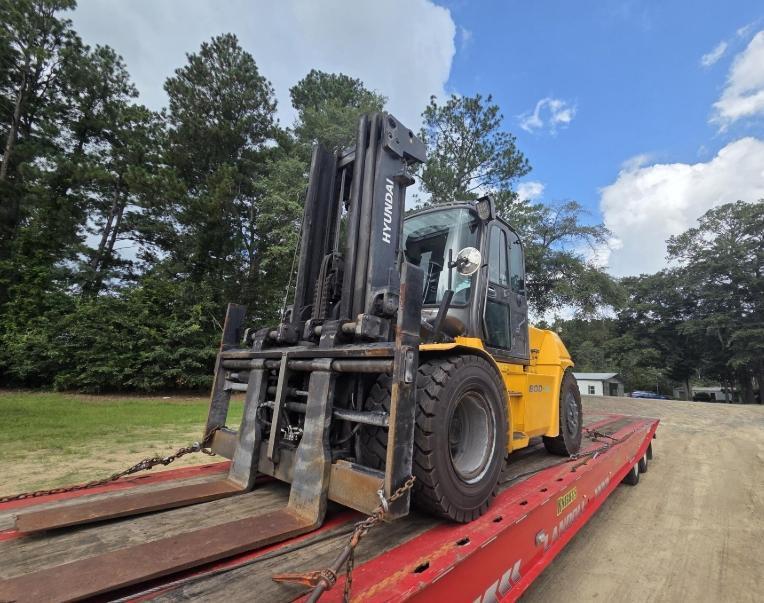

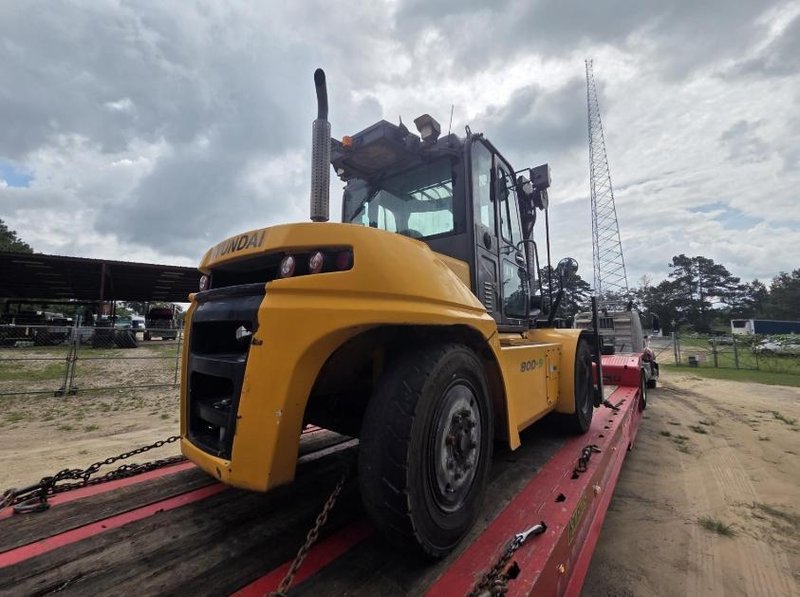

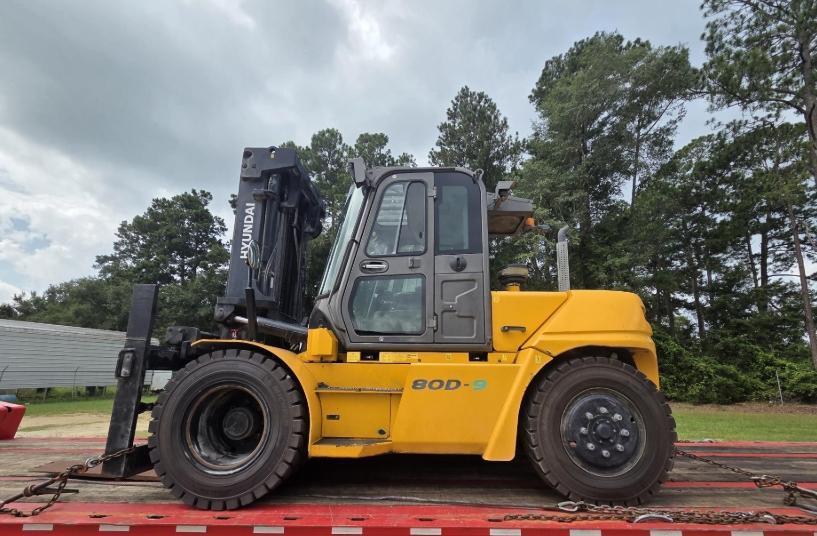

Hyundai 80 D-9 Forklift, 2022

The Hyundai 80D-9 is a heavy-duty diesel counterbalance forklift designed for demanding material-handling applications requiring high lifting capacity and durability. With an 8,000 kg (17,400 lb) rated capacity, Cummins QSF3.8 Tier 4 Final engine, full-automatic transmission, and pneumatic tires, the 80D-9 is well suited for heavy manufacturing, steel, lumber, fabrication, and outdoor material-handling operations.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The 80D-9 combines a 600 mm (24″) load center with a 3,040 mm (120″) standard lift height, 35 km/h travel speed, and approximately 35% gradeability. The model is also available with various mast, fork, carriage, and operator-comfort configurations, so the exact mast height and installed options should be verified against the specific unit.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Type: Diesel Counterbalance Forklift Fuel Type: Diesel Rated Load Capacity: 17,400 lbs. (8,000 kg) Load Center: 24″ (600 mm) Engine: Cummins QSF3.8 Engine Type: 4-Cylinder Turbocharged Diesel Engine Power: 100.6 HP @ 2,200 RPM Displacement: 3.8 L Transmission: Full Automatic Drive Configuration: 4-Wheel Drive / 2-Wheel Steering Tires: Pneumatic Front Tire Size: 9.00-20-14PR Rear Tire Size: 9.00-20-14PR Wheelbase: 98.4″ (2,500 mm) Standard Lift Height: 120″ (3,040 mm) Lowered Mast Height: 105.3″ (2,675 mm) Extended Mast Height: 172.2″ (4,375 mm) Free Lift: 5.7″ (145 mm) Fork Dimensions: 47.2″ × 7.1″ × 2.8″ (1,200 × 180 × 70 mm) Fork Carriage: Class IV Fork Carriage Width: 89.3″ (2,268 mm) Overall Length: Approximately 209.3″ (5,316 mm) Length to Face of Forks: 156.3″ (3,971 mm) Overall Width: 86.4″ (2,194 mm) Overhead Guard Height: Approximately 104″ (2,640 mm) Turning Radius: 145.7″ (3,700 mm) Ground Clearance Under Mast: 9.8″ (250 mm) Ground Clearance at Center of Wheelbase: 11.9″ (302 mm) Travel Speed, Unloaded: 21.7 MPH (35 km/h) Lift Speed, Loaded/Unloaded: 410 / 480 mm/sec Lowering Speed, Loaded/Unloaded: 500 / 500 mm/sec Maximum Gradeability: 35.2% Maximum Drawbar Pull: 70,010 N Service Brake: Foot-Operated Hydraulic Hydraulic System Pressure: 210 bar Attachment Hydraulic Pressure: 150 bar Operating Weight: Approximately 25,591 lbs. (11,608 kg) Fuel Consumption: Approximately 8.5 L/hr Sound Level at Operator’s Ear: 78.6 dB(A)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
