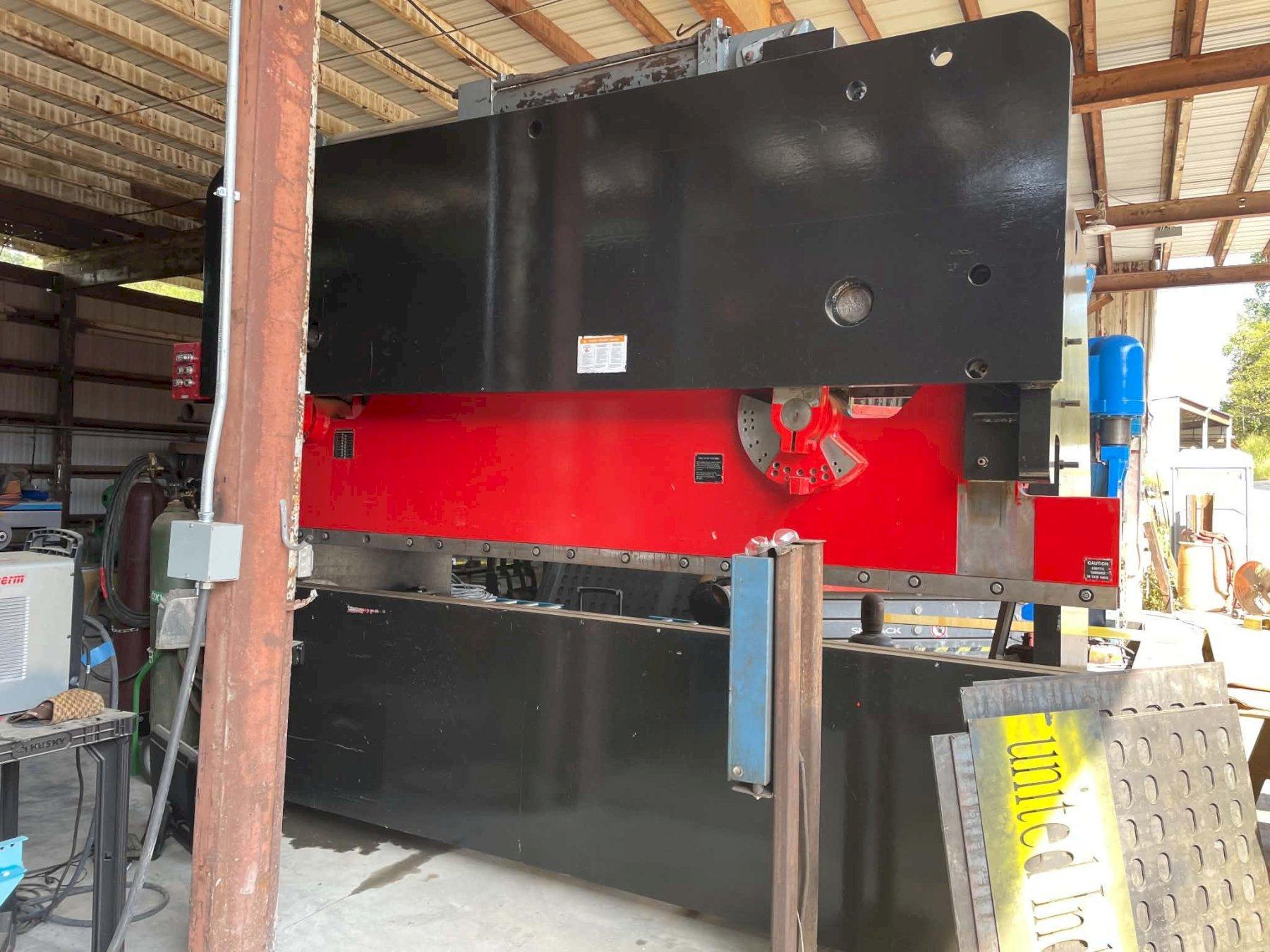

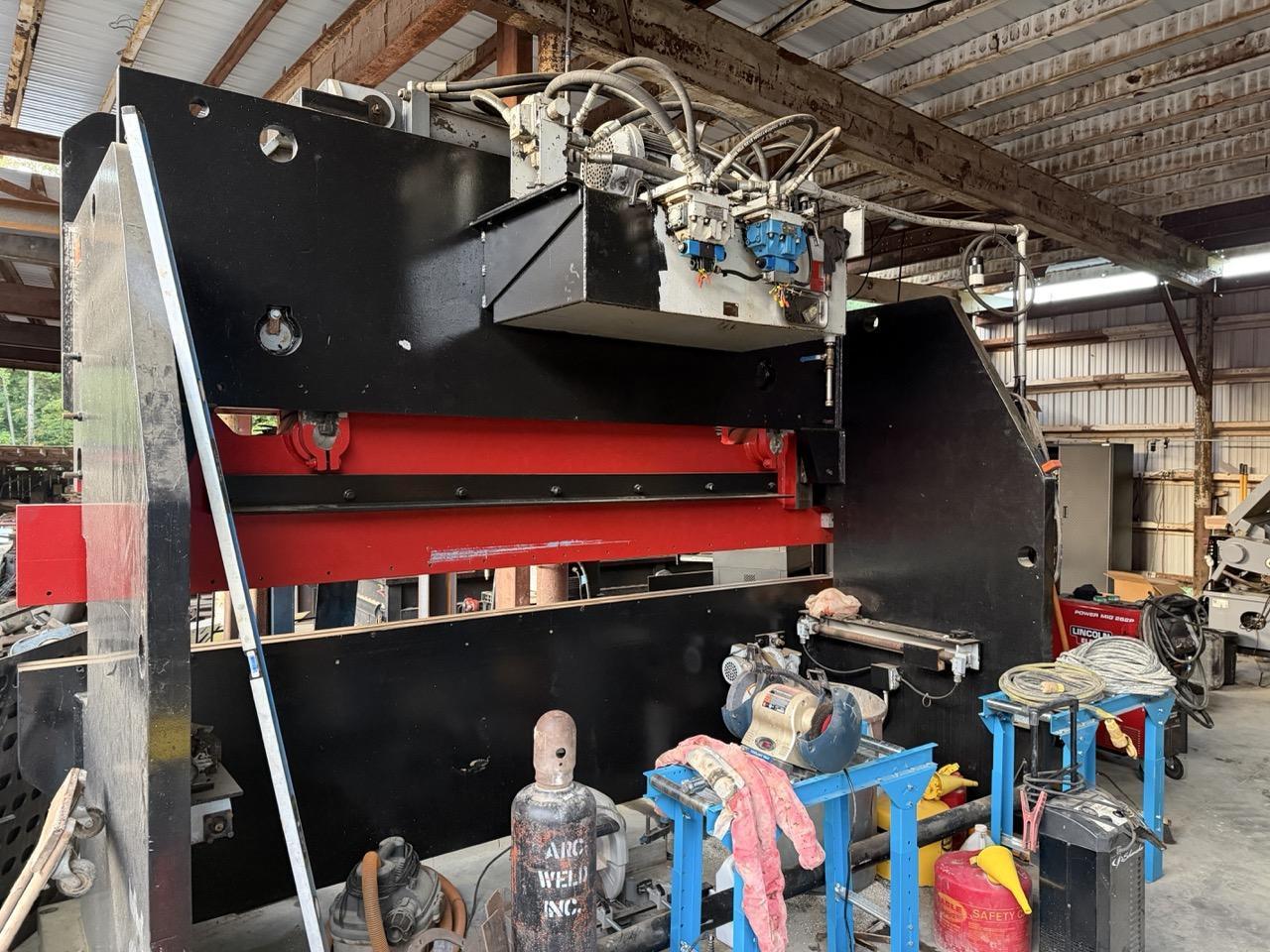

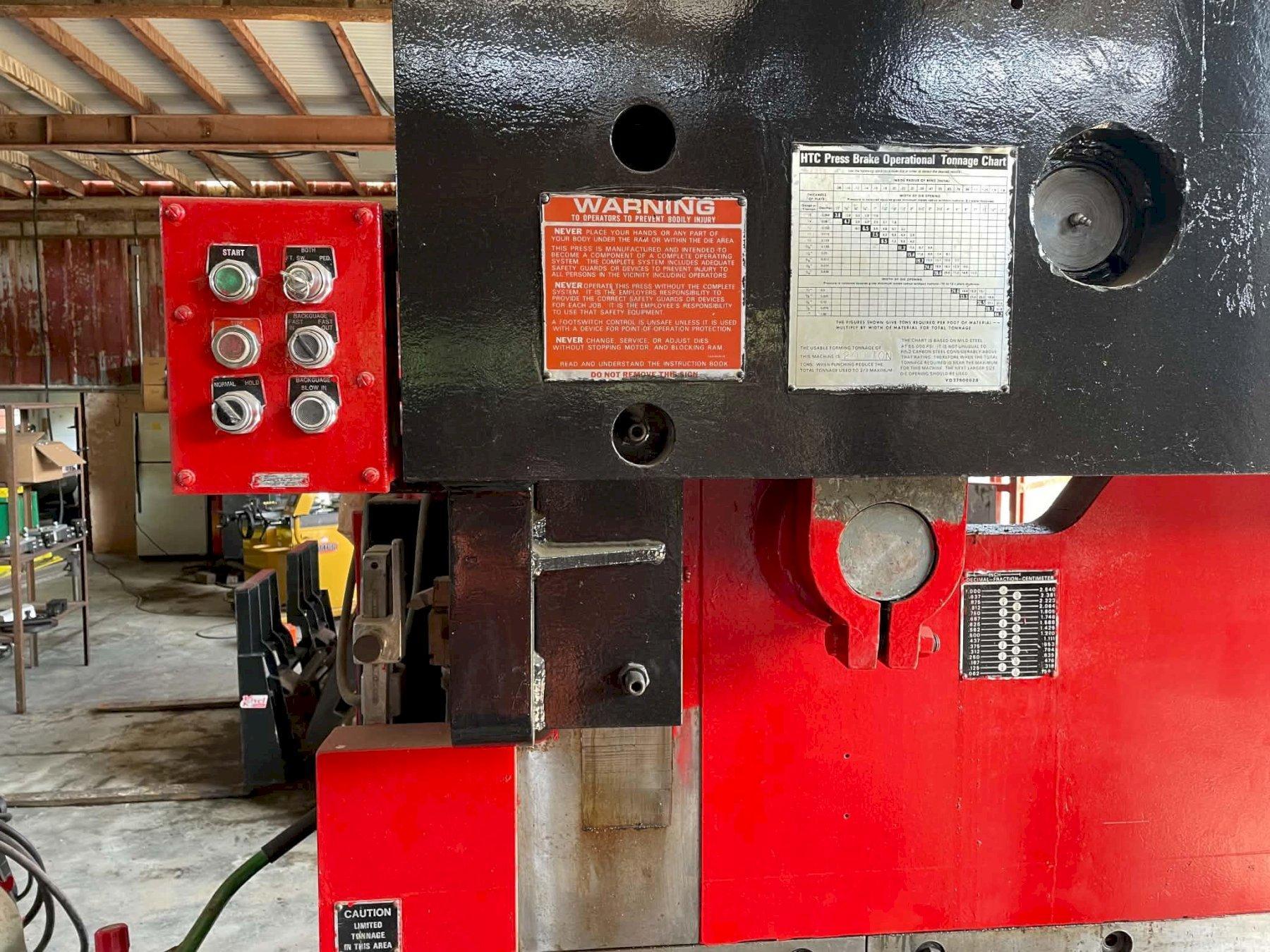

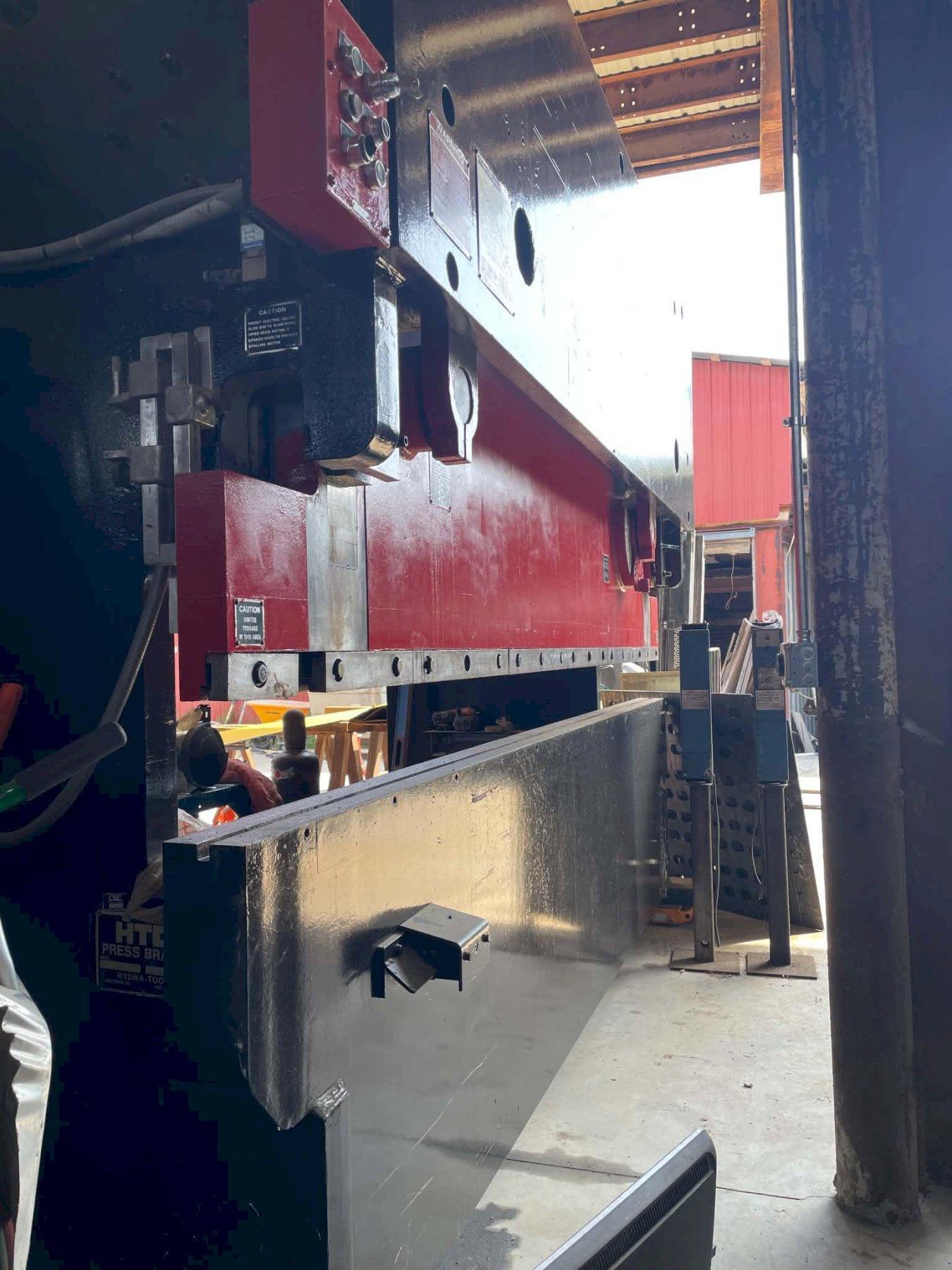

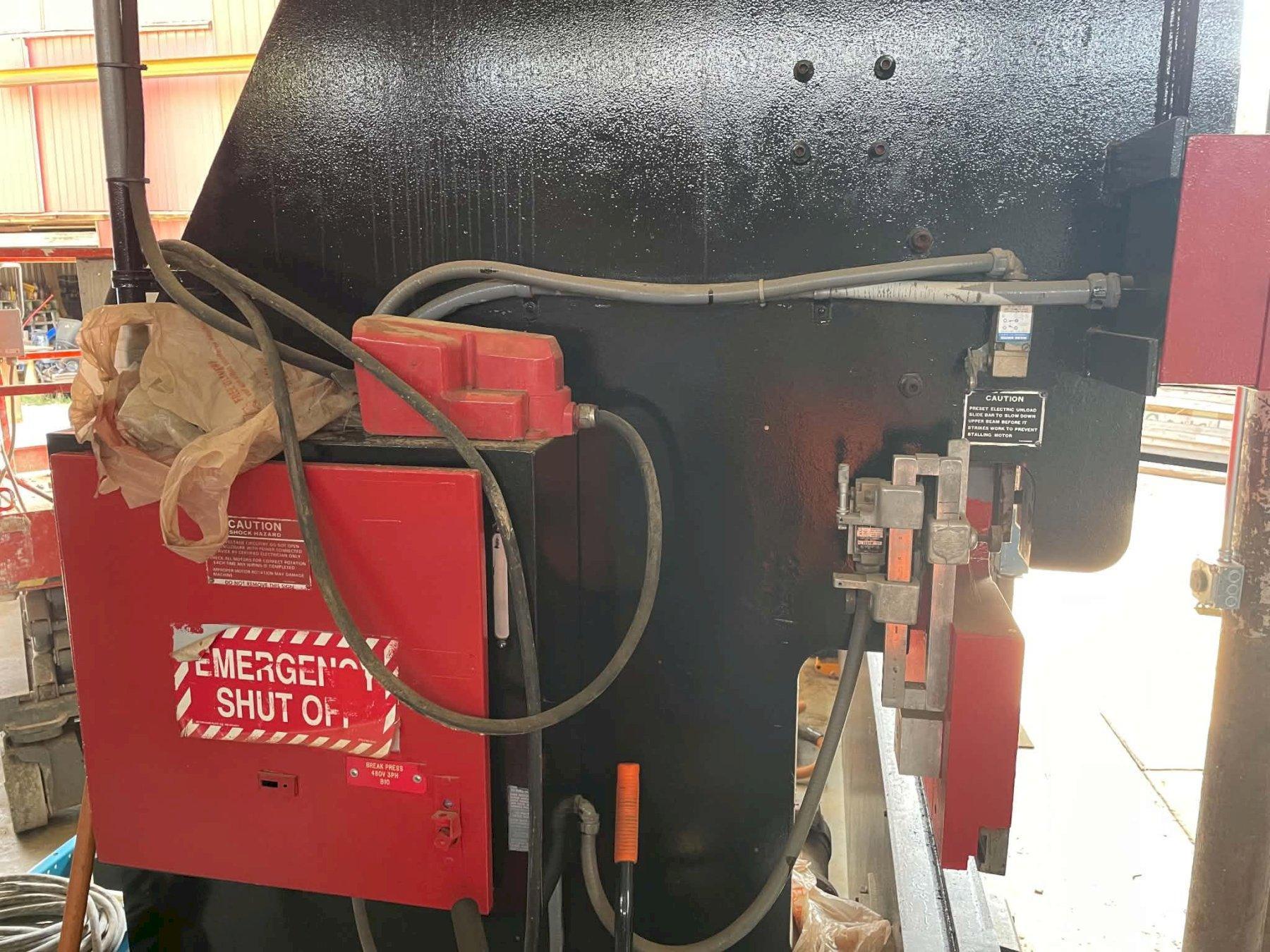

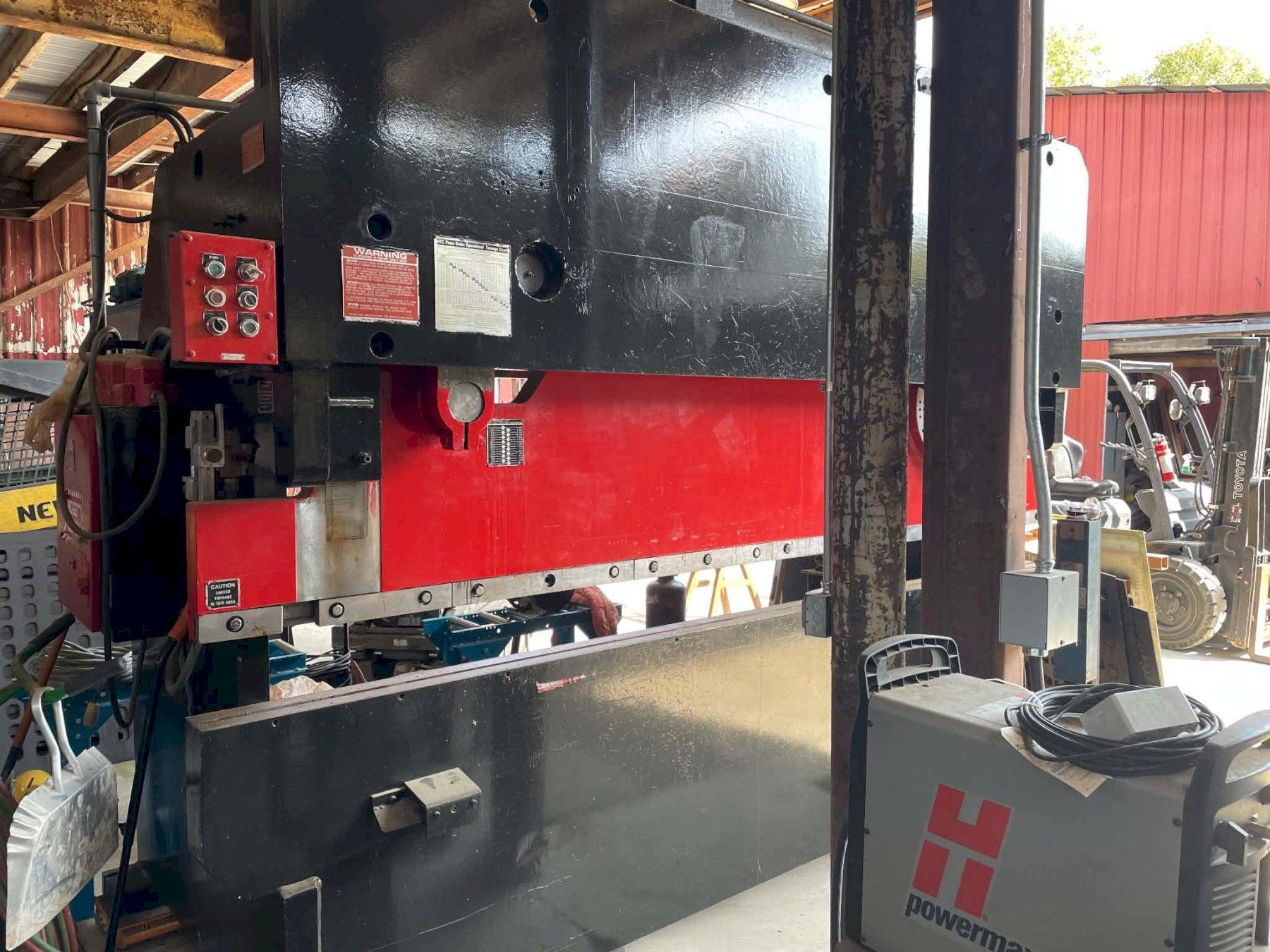

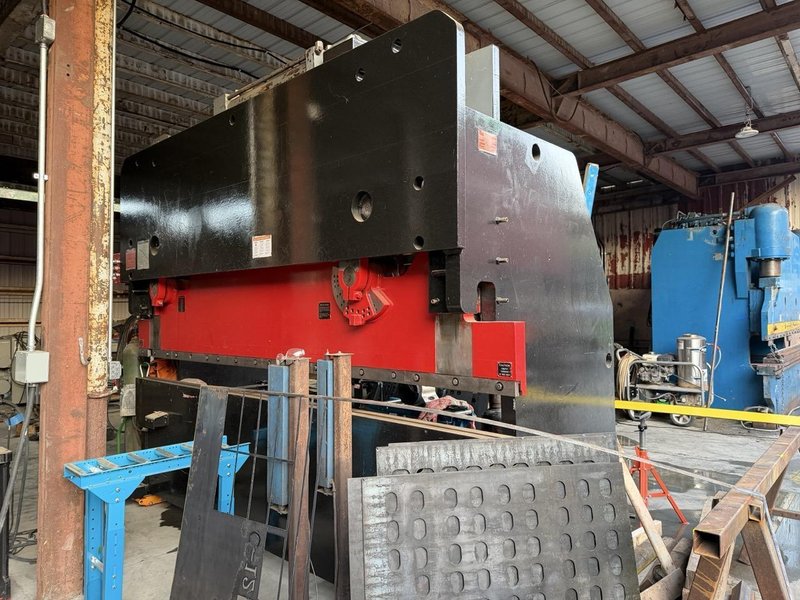

200 Ton x 12′ 200-12H HTC Hydraulic Press Brake, 1980

Tonnage Capacity: 200 Tons Overall Bed Length: 12′ Distance Between Housings: 10′ 5″ Bending Capacity: 12′ X 1/4″ Mild Steel Bending Capacity At 10′: 5/16″ Mild Steel Ram Stroke: 5″ Open Height: 11 1/2″ Closed Height: 6 1/2″ Throat Depth: 8″ – 9″ Main Motor: 20 HP Motor Speed: 1,750 RPM Voltage: 230/460 V Phase: 3 Phase Frequency: 60 Hz Approximate Dimensions: 148″ L X 63″ W X 119″ H Approximate Weight: 30,000 – 32,000 Lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electric Foot Control Adjustable Stroke Length Manual Ram Adjustment Sectional Ram Die Clamps Hydraulic Power Unit

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
