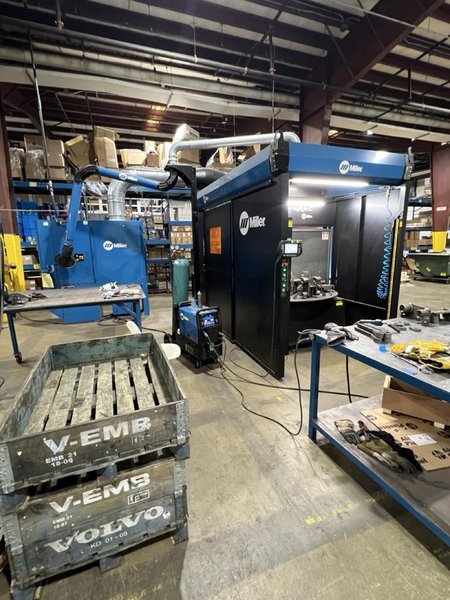

Miller PerformArc PA350S 6-Axis Robotic Welding Cell, 2020 – Fume Extractor and Hood Arm, Indexing Rotary, Tregakiss Torch-Reamer-Sprayer

Robot Payload: 6 Kg Robot Reach: 54.1″ Robot Axes: 6 Turntable Type: Servo Driven Turntable Stations: 2 Turntable Index: 180° Turntable Index Time: Approximately 3.5 Seconds Turntable Capacity: 700 Lbs. Total Capacity Per Station: 350 Lbs. Turntable Sweep Diameter: 66″ Main Axis Through Hole: 70 Mm Welder Output: 350 Amp Welder Duty Cycle: 100% Welding Processes: Pulse And CV Input Power: 480 V, 3 Phase Suggested Service: 35 Amp Fume Collector Motor: 7.5 HP Fume Collector Bin Capacity: 22 Gal.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Panasonic TM-1400 6-Axis Robot Panasonic G3 Robot Controller Panasonic G3 7″ Color Teach Pendant Miller Auto-Continuum 350 Digital Welder Tregaskiss TA3 500 Amp Air-Cooled Torch Dual-Station Servo Indexing Turntable Tregaskiss Reamer With Sprayer Wire Cutter Anti-Spatter Sprayer FILTAIR 4000 Fume Collector FILTAIR Fume Hood FILTAIR Spark Cooler Light Curtain Protection Perimeter Guarding Dual Interlocked Safety Gates Arc Screen Task Lighting Step-Down Transformer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
