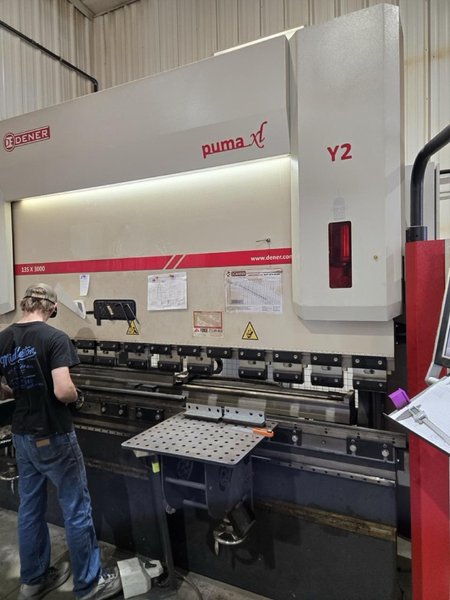

135 Ton x 10′ Dener Puma XL CNC Press Brake, 2021 – X Prime Backgauge, Delem DA-60 Touch Control
Brand
Category
Model
Puma
Stock #
528385
Year
2021
Condition
Not specified
Location
Not specified
|
– Manufacturer: Dener
– Model: Puma XL 135 x 3000 (30135)
– Year: 2021
– Bending Capacity: 135 Tons
– Bending Length: 10′ (3,020 mm)
– Ram Stroke: 12.6″ (320 mm)
– Throat Depth: 17.7″ (450 mm)
– Open Height: 21.7″ (550 mm)
– Distance Between Frames: 100.6″ (2,555 mm)
– X-Axis Travel: 29.5″ (750 mm)
– Main Motor: 20 HP (15 kW)
– Oil Tank Capacity: 50 gal (190 L)
– Machine Weight: ~20,900 lbs (9,500 kg)

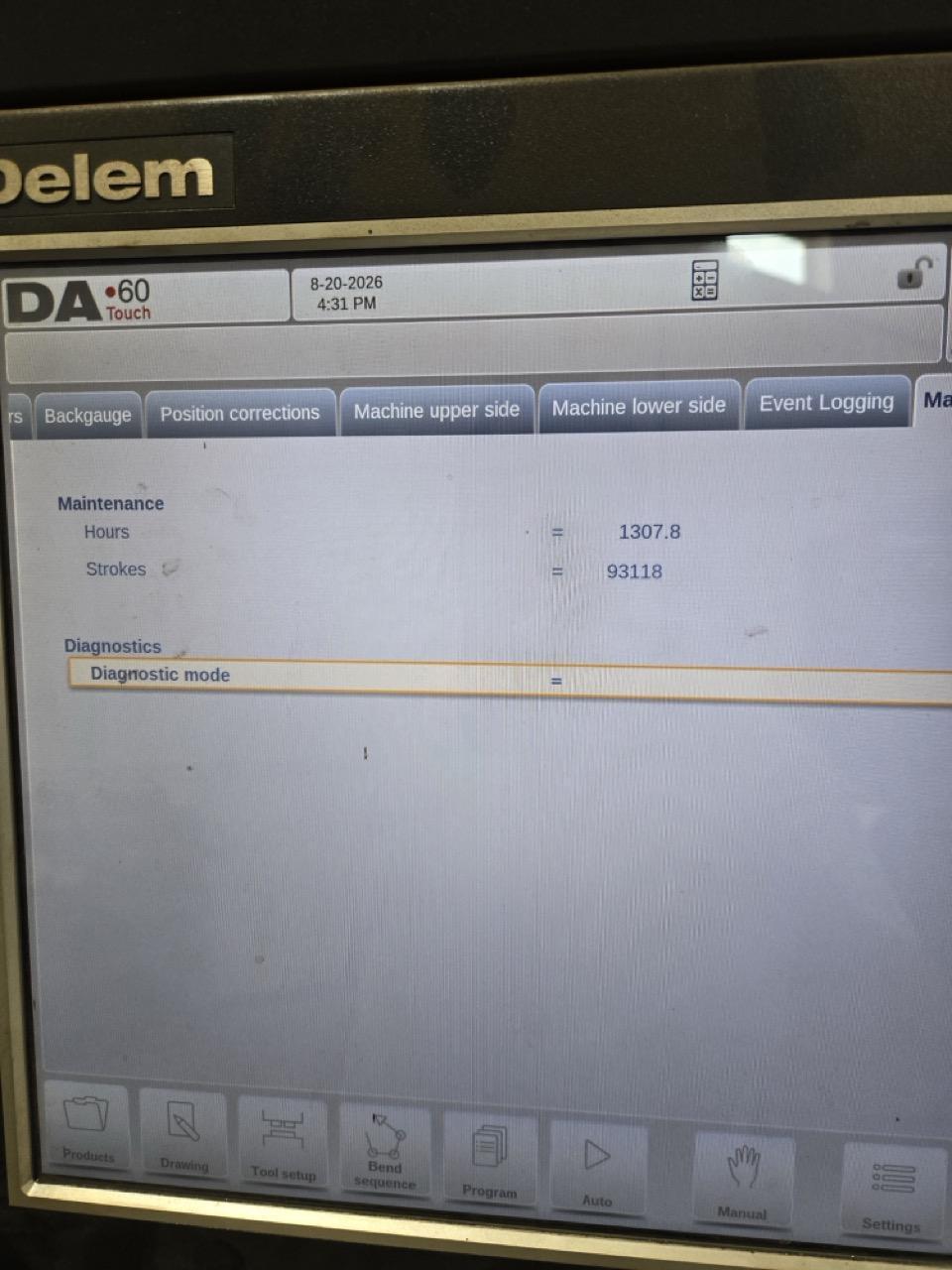

– Hours: 1,307.8
– Strokes: 93,118

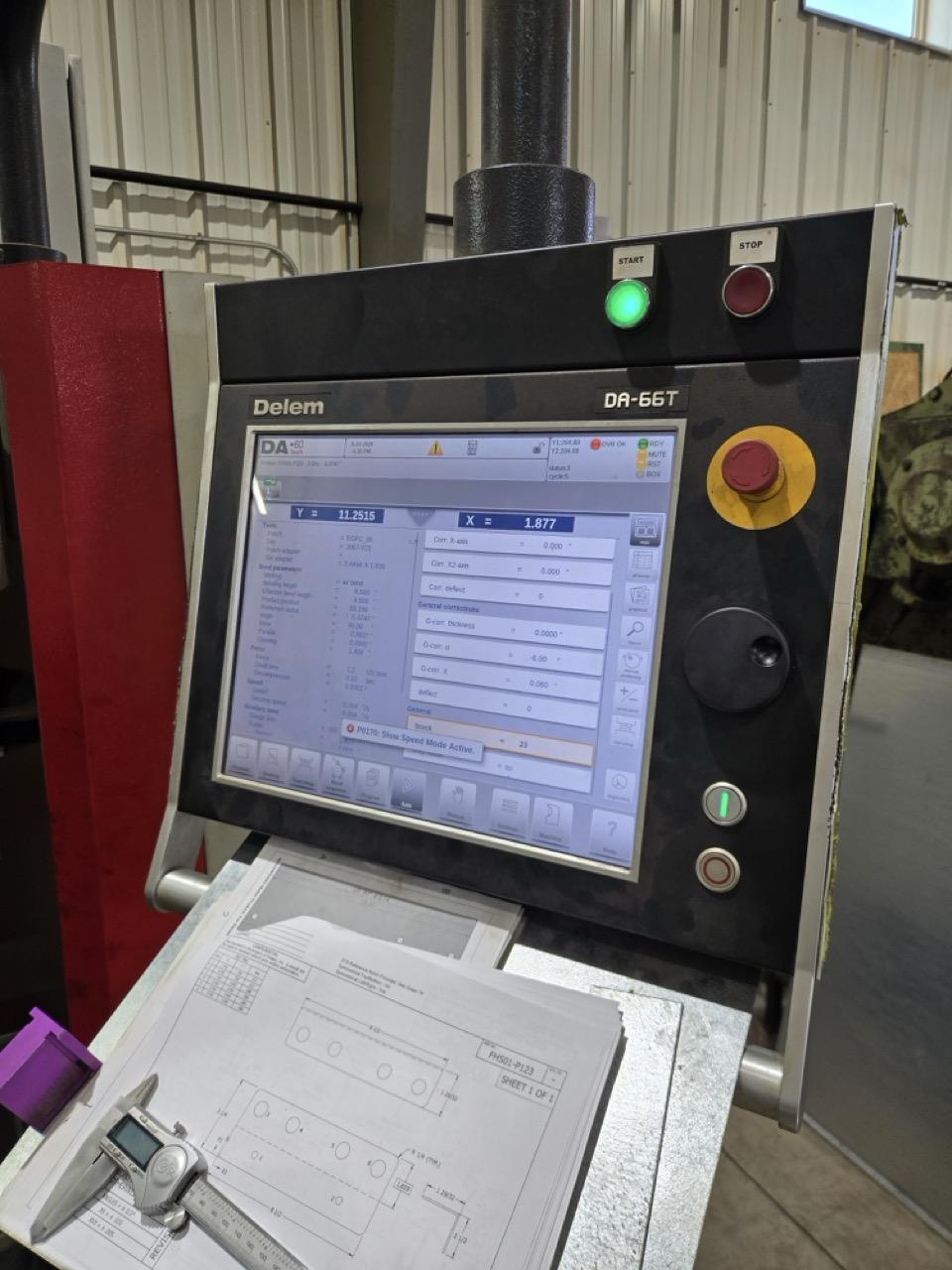

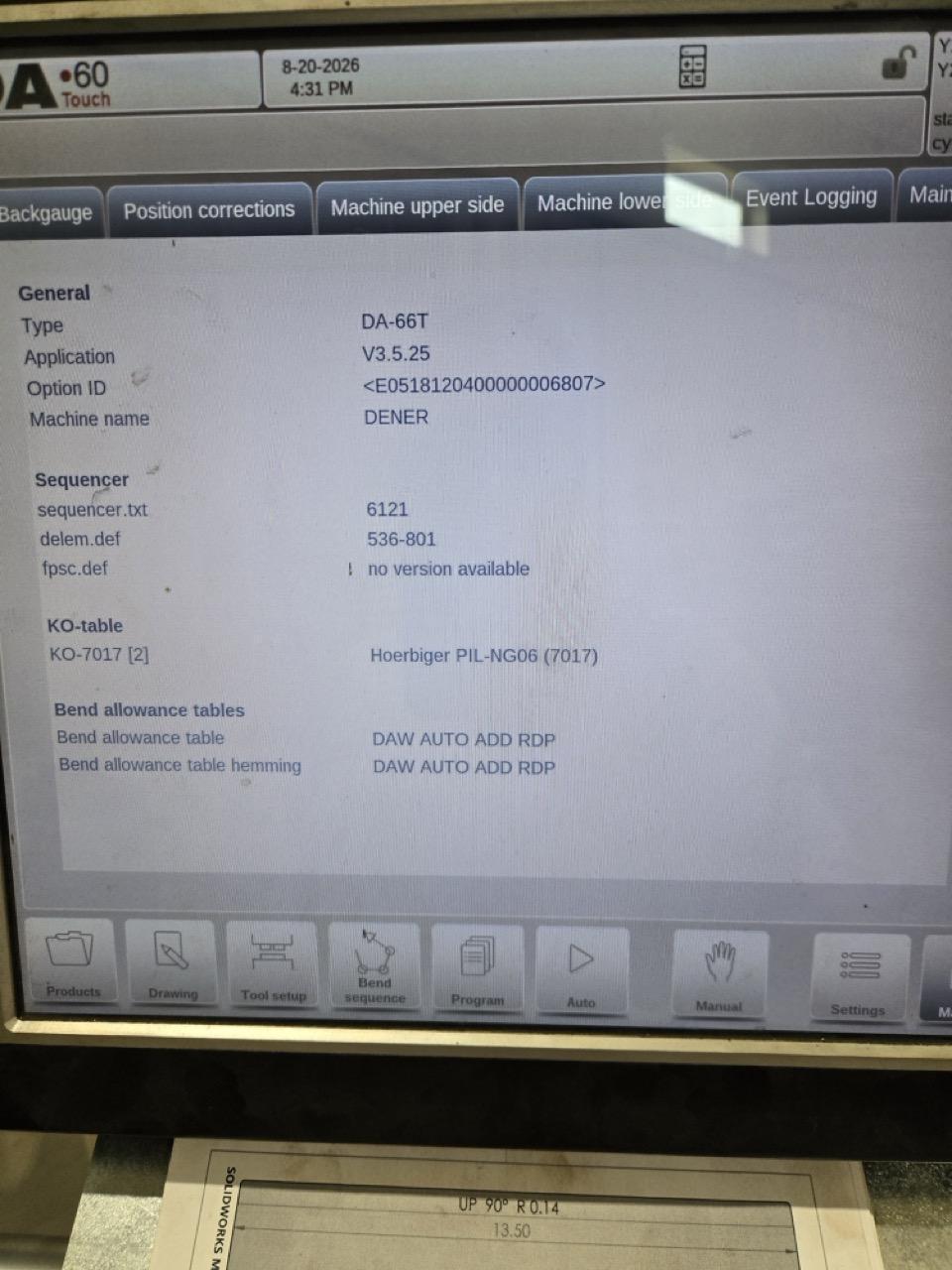

– Control: Delem DA-60 Touch
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With – Y1/Y2 independent CNC crowning axes – X-Prime CNC backgauge – Front support arms All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
