Mills Bridge & Planer Type Manual & CNC

TRAVELS:
X-Axis Table Travel 200.79"
Y-Axis Head Cross Travel 125.98"
Z-Axis Ram Vertical Travel 39.37"
W-Axis Cross Rail Vertical Travel 43.31"
SPECIFICATIONS:
Width Between Columns 106.3"
Working Surface 86.61" x 196.85"
Table Load Capacity 39,683 Lbs.
Working Height 78.74"
Spindle Speeds (2-Range) 0-6,000 RPM
Spindle Taper BT-50
Spindle Drive Motor 34.86 HP/29.5 HP
CNC Angle Head, Indexing 1 degree
CNC Angle Head, Max Speed 4,000 RPM
Ram Dimensions 14.96" x 14.96"
Approximate Floor Space 440.9" x 304.3"
Approximate Height 266.75"
Approximate Weight 143,300 lbs



Equipped With:
Fanuc 31i-MB CNC Controls

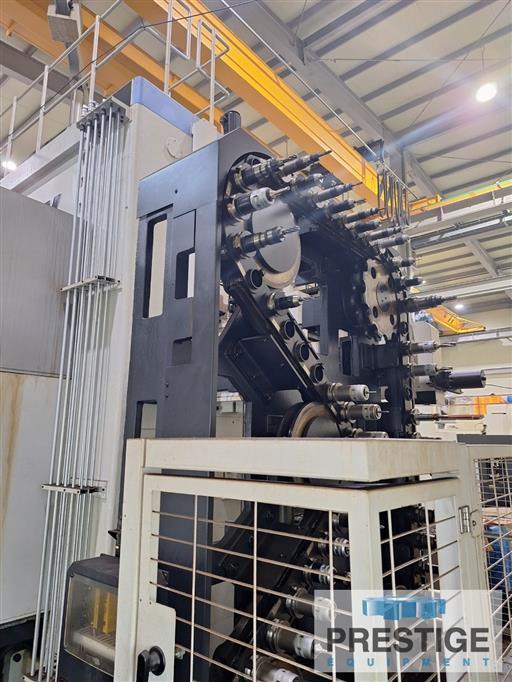

60-Station Automatic Tool Changer
2-Station Automatic Head Changer
Additional Rail Height and Z-Axis Stroke
CNC Angle Head with 1-Degree Indexing
Thru-Spindle Coolant Main Spindle & Rt Angle Head
Elevating Rail
Scales on X,Y,Z & W Axis
Auto Tool Length Measurement
DSQ2 {AICC 200 Blocks & Data Server(1GB)}
MPG with LCD Display
Dual Chip Conveyors
