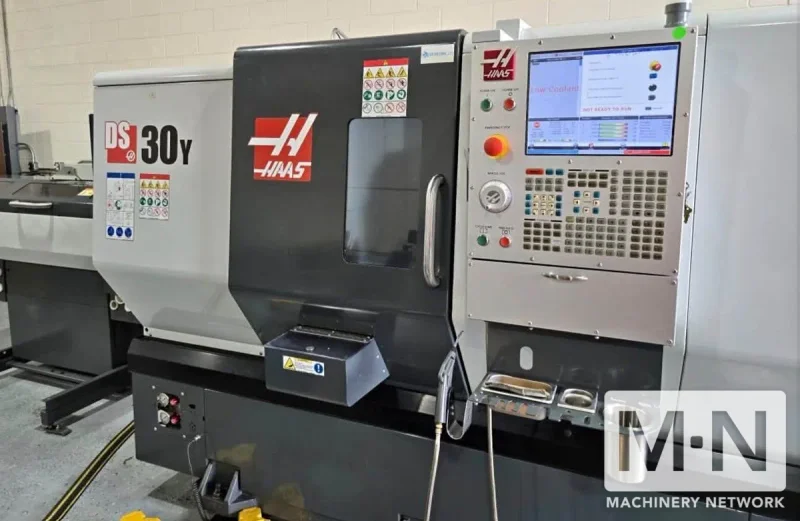

HAAS DS-30Y W/ Barfeed CNC Lathe, 2019

Name: HAAS DS-30Y W/ Barfeed CNC Lathe, 2019
Brand: HAAS
SKU: 2019
Availability: InStock

Brand

HAAS

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

HAAS

Model:

DS-30Y

Year:

2019

Stock #:

53468

Status:

For Sale

ImperialMetric

Swing	31.75"	806.45 mm
Machining Length	584.2 mm	23"
Max. Turning Length	23"	584.2 mm
Max. Turning Diameter	18"	457.2 mm
Center Distance	32.5"	825.5 mm
Distance Between Centers	32.5"	825.5 mm
X-Axis	9.4"	238.76 mm
Y-Axis	±2.0	±2.0
Z-Axis	32.5"	825.5 mm
B-Axis	32.5	32.5
C-Axis	Full	Full
Rapid Traverse X-Axis	472 ipm
Rapid Traverse Y-Axis	472 ipm
Rapid Traverse Z-Axis	945 ipm
ATC	12-station BMT65	12-station BMT65
# Axis	5	5
Chuck Size	8.3"	210.82 mm
Chuck Size Right	8.3	8.3
Bar Capacity Left Head	3	3
Bar Capacity Right Head	2	2
Bar Capacity	2"	50.8 mm
Spindle Bore	3.5 in
Spindle Nose	A2-6	A2-6
Power	30 hp	22.4 kW
Max RPM	4,000 RPM	4,000 RPM
Spindle Speed Left Head	4,500 RPM	4,500 RPM
Spindle Speed Right Head	4,800 RPM	4,800 RPM
Turret Stations	12	12
Tailstock	No	No
Live Tooling	Yes	Yes
Live Milling Power	5 hp
Live Milling Max RPM	4000 rpm	4,000 RPM
Sub Spindle	Yes	Yes
Sub Spindle Power	20 hp
Sub Spindle Max RPM	4800 rpm	4,800 RPM
Sub Spindle Chuck	8.3 in
Sub Spindle Bar Capacity	2	2
Sub Spindle Bore	2.0	2.0
Sub Spindle Nose	A2-5	A2-5
Dimensions	171 x 90 x 98	171 x 90 x 98
Weight	13000	13000

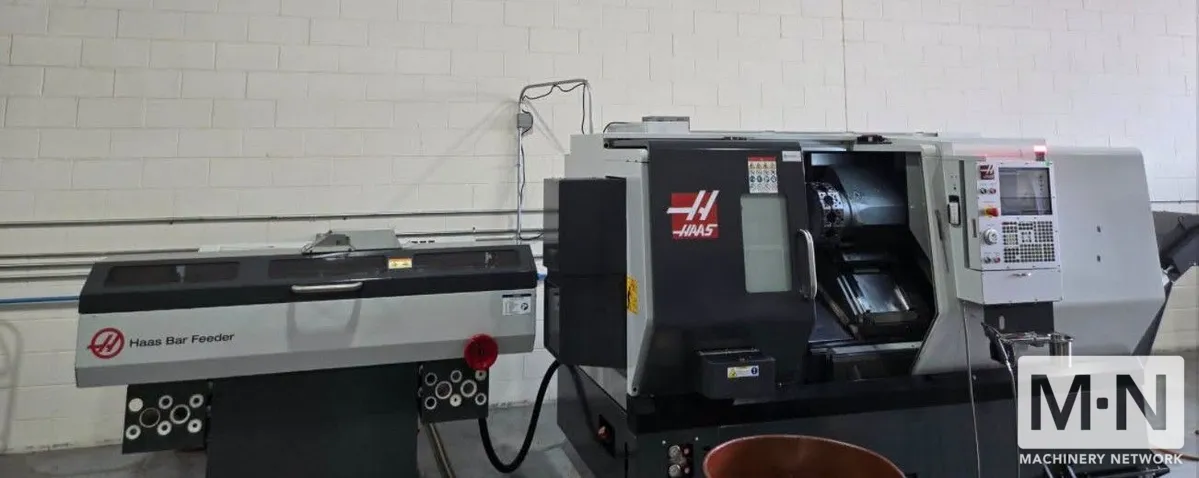

Haas Bar Feeder with liners

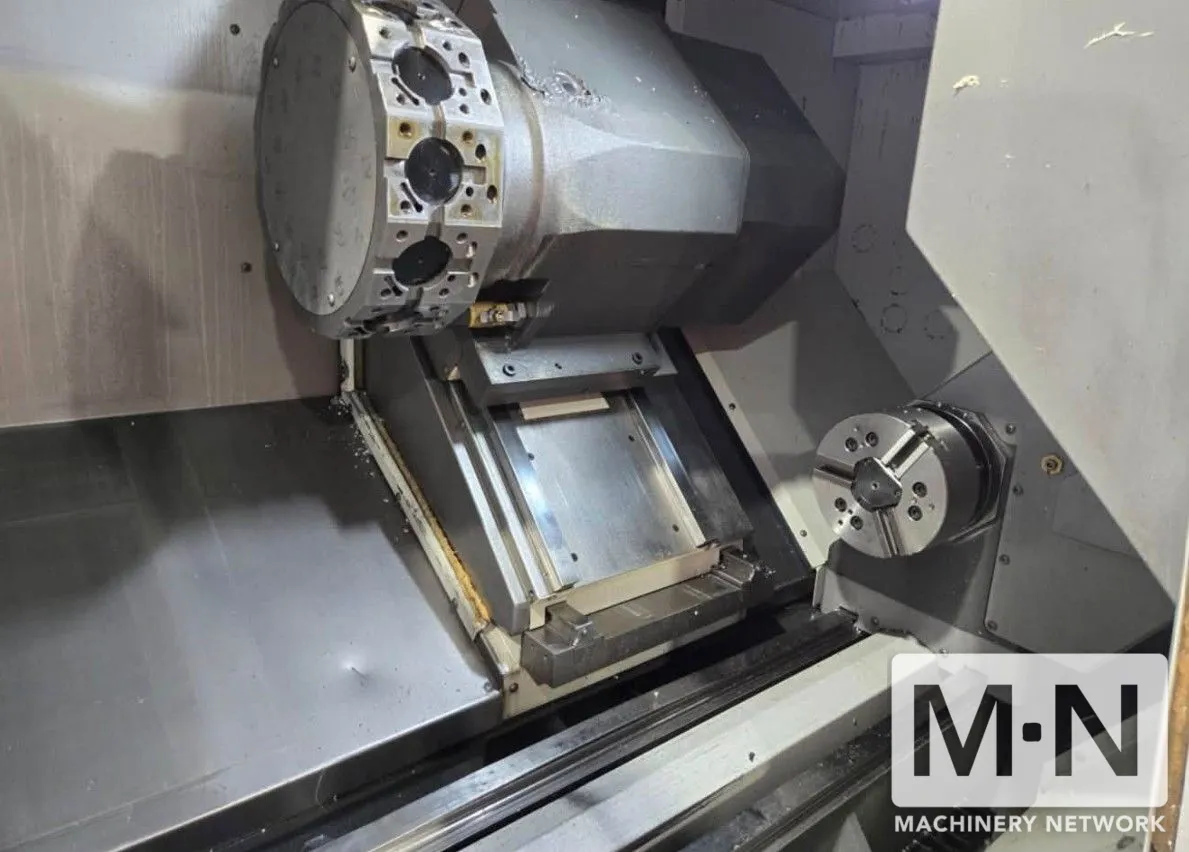

4000-rpm Live Tooling with 24-Station BMT65 Turret and C Axis
Automatic Tool Presetter

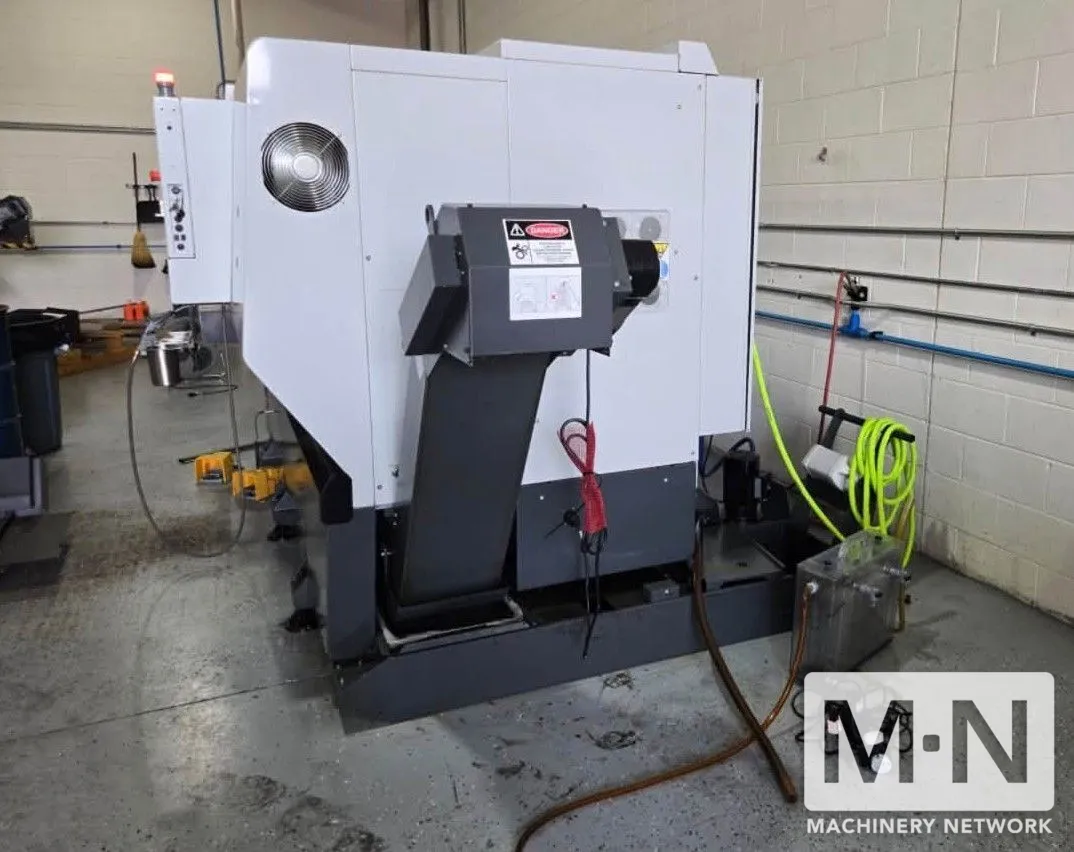

Belt-Type Chip Conveyor, Lathe
55-Gallon Coolant Tank
CNC Control Cabinet Cooler
Standard Program Memory, 1 GB
Early Power-Failure Detection Module
Ethernet Interface
HaasConnect: Remote monitoring
Media Display M-Code; M130
Rigid Tapping
Spindle Orientation
Visual Part Programming System
WiFi Connection for the Haas Control
Parts Catcher
10" Hydraulic Chuck, A2-6

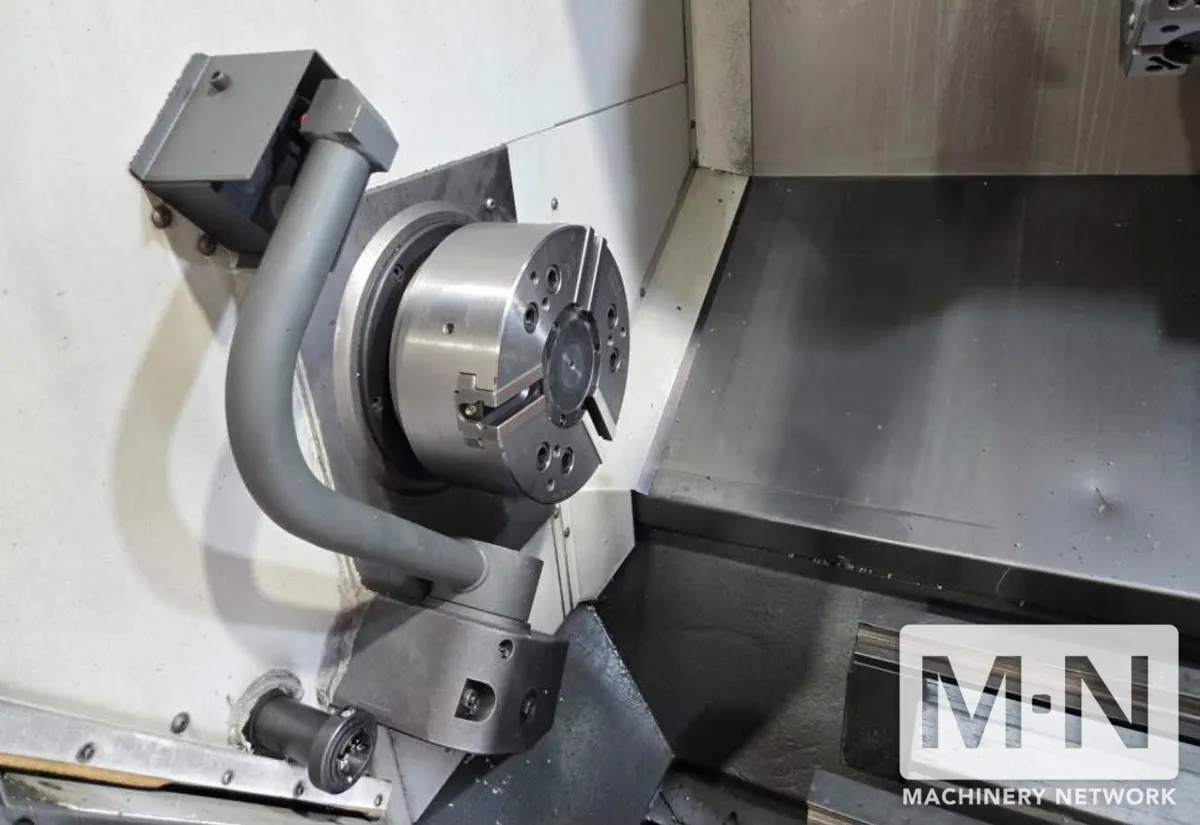

8.3" Hydraulic Chuck, A2-5
3" (76 mm) Bar Option, SS
Inch Sub-Spindle 24-Stn Tool K
4800-rpm, A2-5, 20 hp, 2.0" sub
