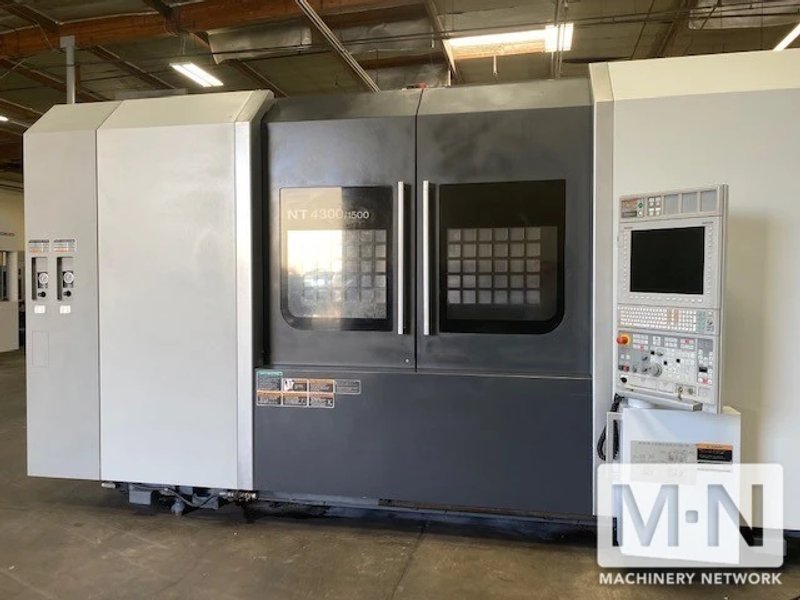

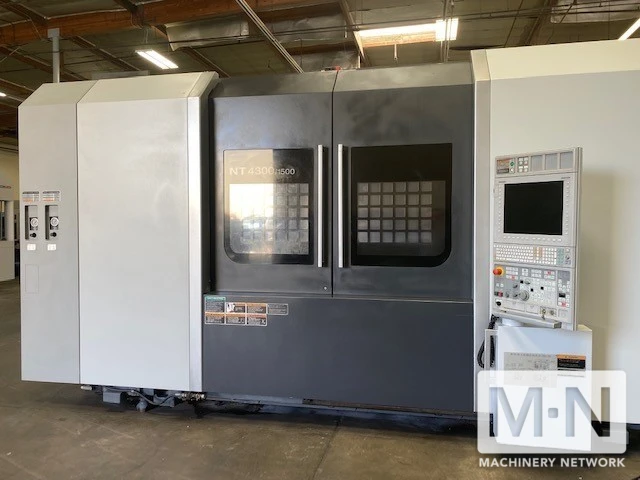

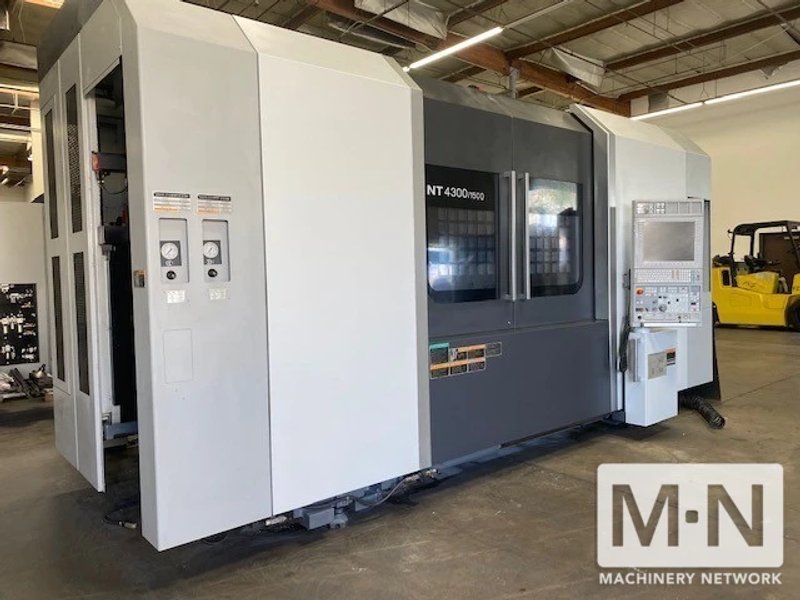

Mori Seiki NT 4300 DCG/1500 CNC Turning & Milling Center

Mori Seiki NT 4300 DCG/1500 CNC Turning & Milling Center

Name: Mori Seiki NT 4300 DCG/1500 CNC Turning & Milling Center
Brand: MORI SEIKI
SKU: 40779
Availability: InStock

Brand

MORI SEIKI

Location

Not specified

Specifications
Files & Videos

Overview

Type:

CNC Lathes

Manufacturer:

MORI SEIKI

Model:

NT-4300DCG/1500SZ

Year:

2014

Stock #:

40779

Status:

For Sale

Description

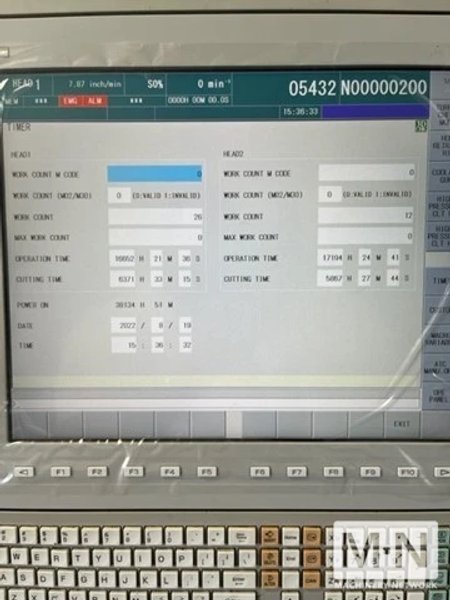

58.9 max turning length, 3.54" bar work capacity, Mori F31iA5 control, Renishaw probe, 100 ATC, 10 station lower turret, Cool Jet HP coolant, chip conveyor, associated spares [spindle, drives, sensors, cable tracks, pumps hoses], recertified by Mori technicians in the last six months.

Chuck Size:.................................... (2) 12"
Maximum Spindle Speed:......................... 3000 RPM
Spindle 2 Maximum Speed:....................... 3000 RPM
Minimum Spindle Indexing Increment:............ .0001°
Milling Spindle Maximum Speed:................. 12,000 RPM with Capto C6
Maximum Swing: 28.74" , Swing Over Turret 2:... 15.75"
Maximum Turning Length:........................ 58.9"
Bar Work Capacity:............................. 3.54"
Y-Axis Travel:................................. 8.27"
X1-Axis Travel:................................ 29.53"
Z1-Axis Travel:................................ 61.02" + 3.94"
X2-Axis (Turret 2) Travel:..................... 7.68"
Z2-Axis (Turret 2) Travel:..................... 60.04"
B-Axis Range:.................................. +/- 120°

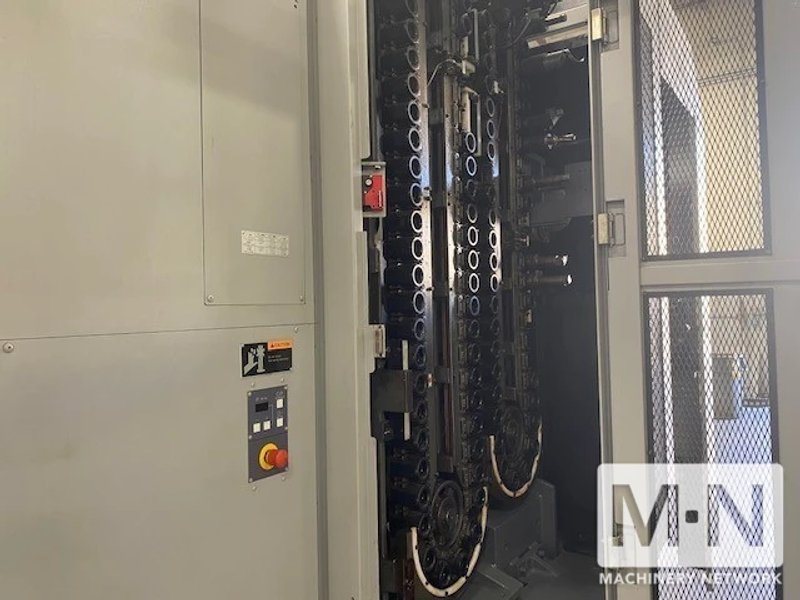

100-Tool Automatic Tool Changer

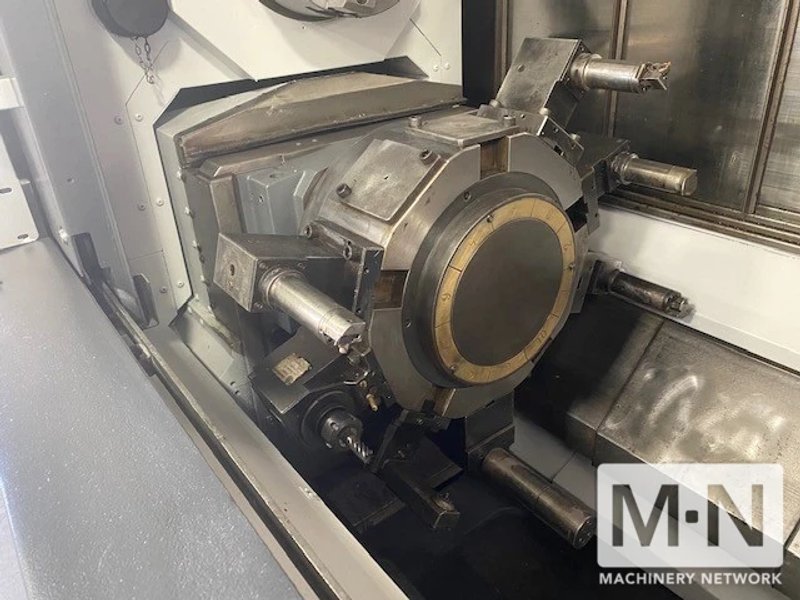

Lower turret 10 Station

Turning Dia: 25.9"

Renishaw probe
Cool Jet HP coolant system
Chip conveyor
