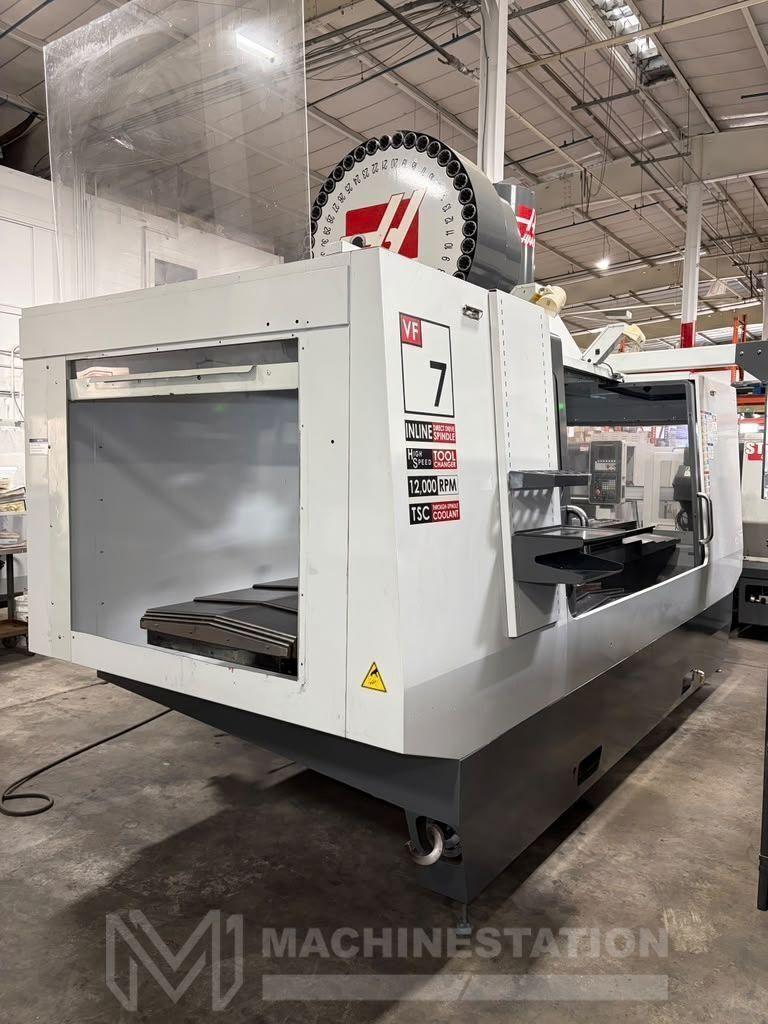

Haas VF-7/40 CNC Vertical Machining Center – 12,000 RPM, TSC, 4th & 5th Axis Ready Mill

Haas VF-7/40 CNC Vertical Machining Center – 12,000 RPM, TSC, 4th & 5th Axis Ready Mill

Name: Haas VF-7/40 CNC Vertical Machining Center – 12,000 RPM, TSC, 4th & 5th Axis Ready Mill
Brand: HAAS
SKU: 113529
Availability: InStock

Brand

HAAS

Location

Not specified

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Make:	Haas
Model:	VF-7/40
Year:	2008

Equipped With:
Haas CNC Control
4th Axis Drive and Wiring
12,000 RPM High-Speed Spindle
40-Station High-Speed Tool Changer
Through-Spindle Coolant
Inline Direct Drive Spindle
Renishaw Receiver Installed
Tool Presetter
Remote Jog Handle
Rigid Tapping
Coolant Tank
Chip Auger

Table:
Length: 84″
Width: 28″
Number of Standard T-Slots: 5
T-Slot Width: 5/8″
Maximum Weight on Table: 4,000 lbs

Travels:
X-Axis Travel: 84″
Y-Axis Travel: 32″
Z-Axis Travel: 30″
Rapid Traverse Rates: 600 IPM
Cutting Feed Rates: 500 IPM
Spindle Nose to Table (Min.-Max.): 4″ – 34″

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 40-Station Side Mounted
Maximum Tool Weight: 12 lbs
Maximum Tool Diameter (Full): 2.5″
Maximum Tool Diameter (Adjacent Empty): 5″
Maximum Tool Length: 16″
