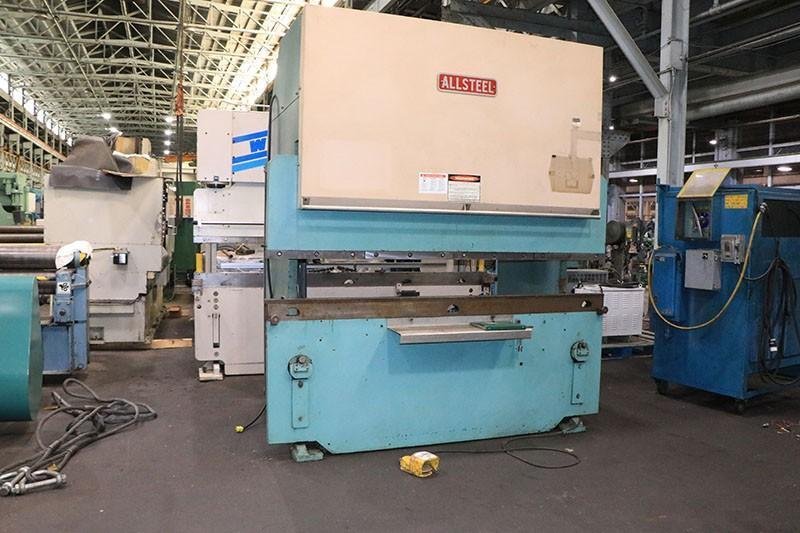

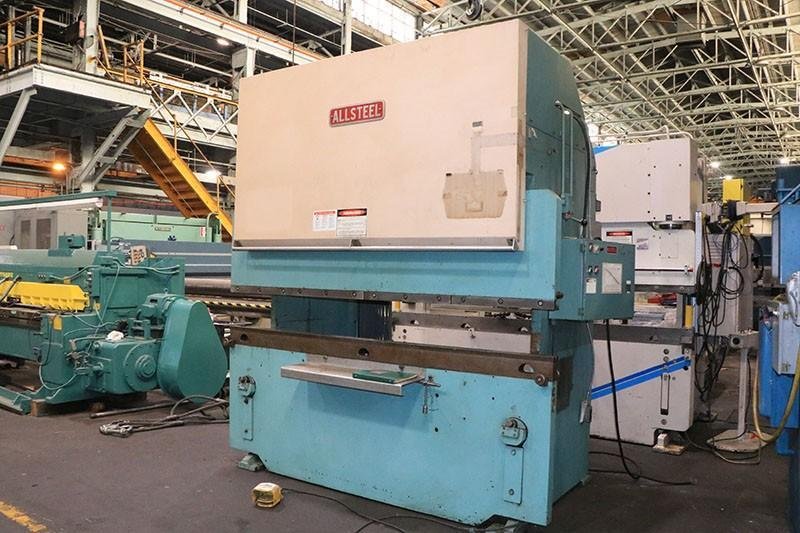

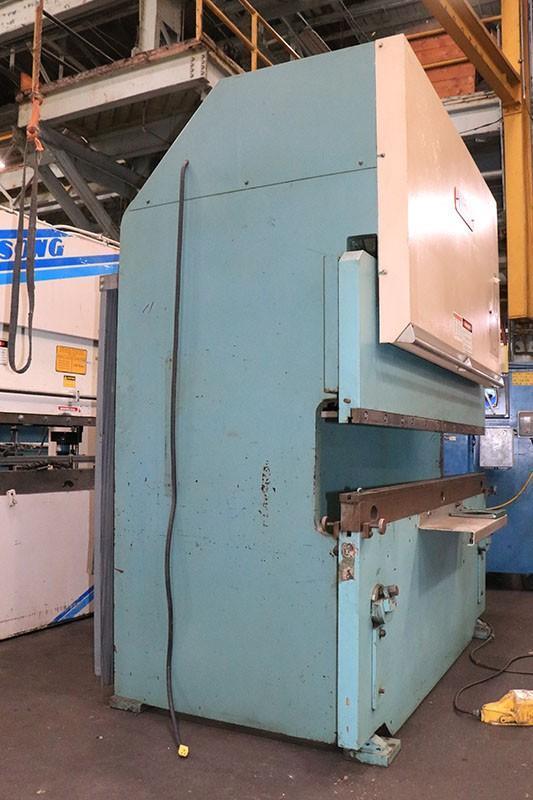

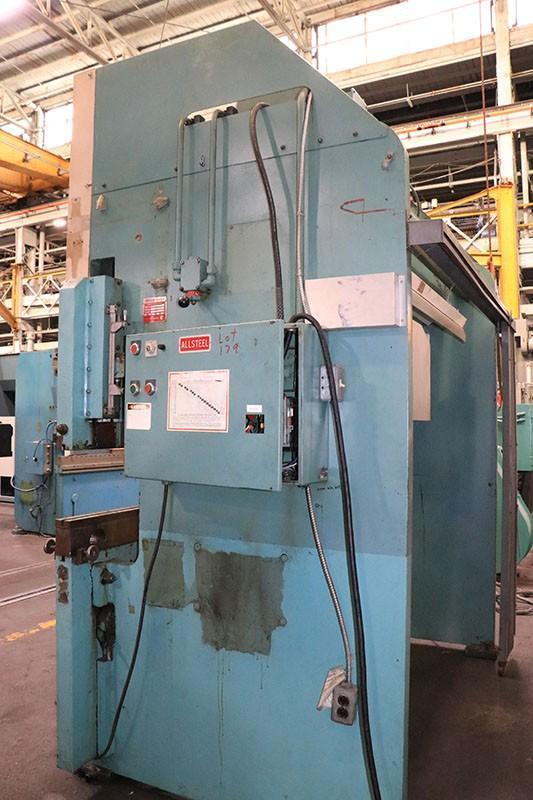

ALLSTEEL 120-8 HYDRAULIC PRESS BRAKE
Brand
Category
Model
120-8
Stock #
117504
Year
1988
Condition
Used
Location
Not specified
|
SPECIFICATIONS:
Capacity ..................................... 120 tons Bending capacity ............................. 8' x 3/16" Distance between housings .................... 78" Stroke ....................................... 0"- 8" Throat ....................................... 8" Overall die surface .......................... 96" Die space - open ............................. 17" closed ....................................... 9" Ram speeds ................................... 190 ipm app ............................................. 12-35 ipm form ............................................. 190 ipm ret Motor ........................................ 25 HP
Approximate overall dimensions 96" W x 53" D x 108" H Approximate weight 18,000 lbs.

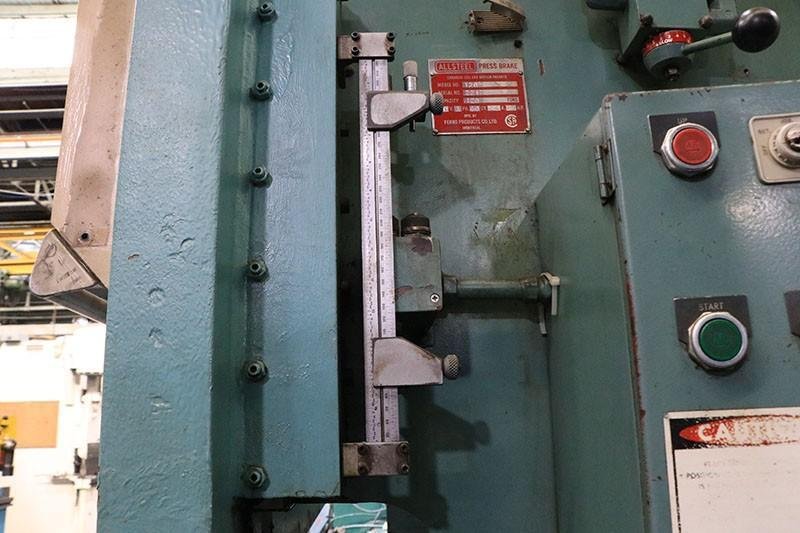

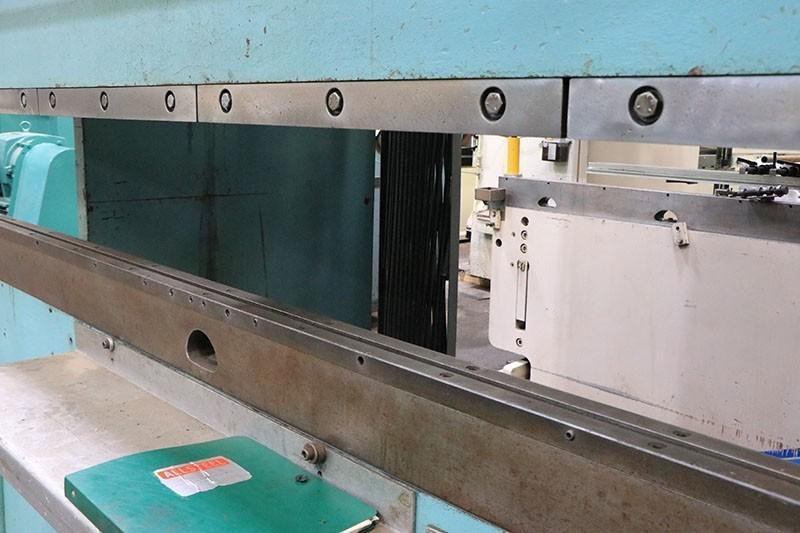

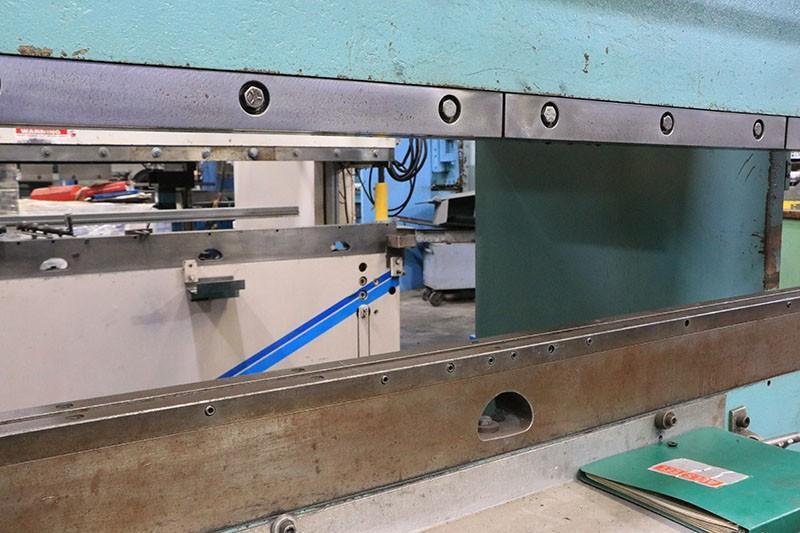

Machine is equipped with: - Lower die rail - Dual remote foot pedal - Adjustable Stroke & Speed
|
