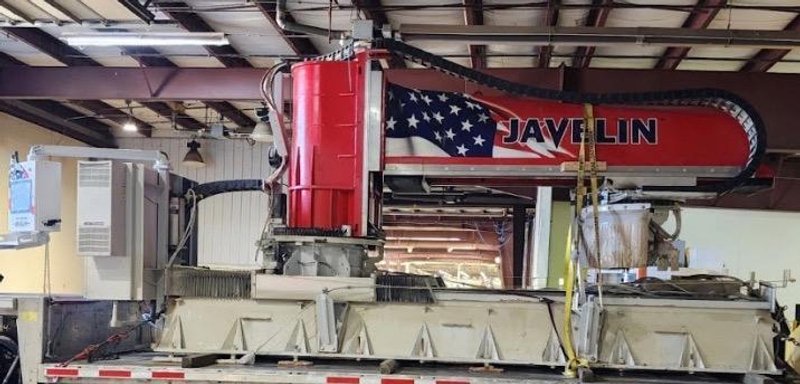

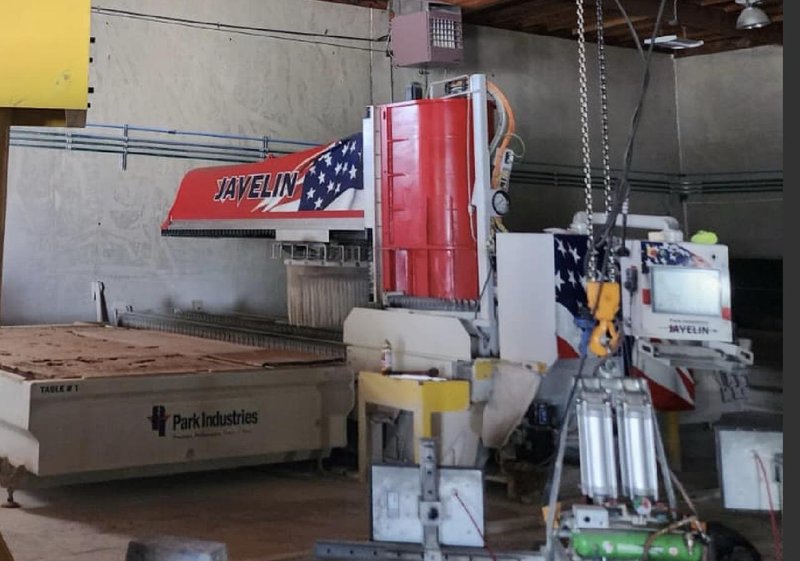

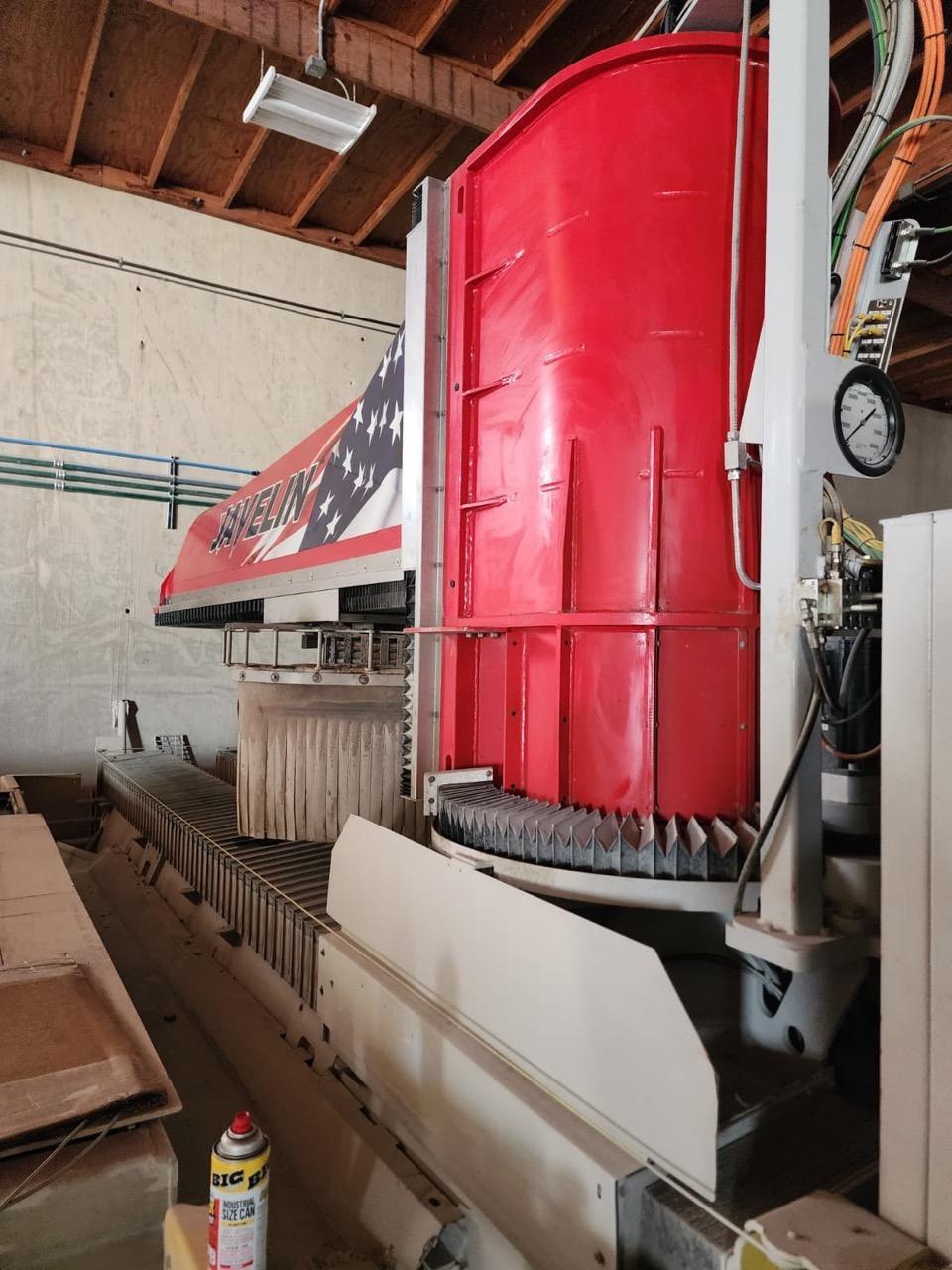

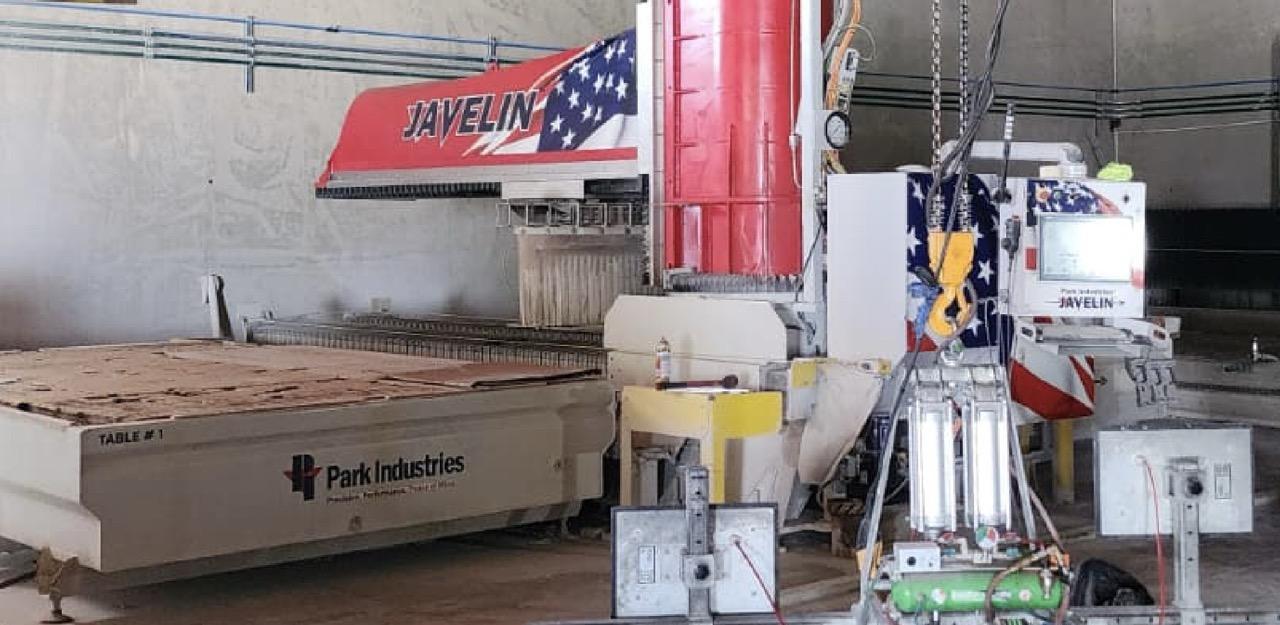

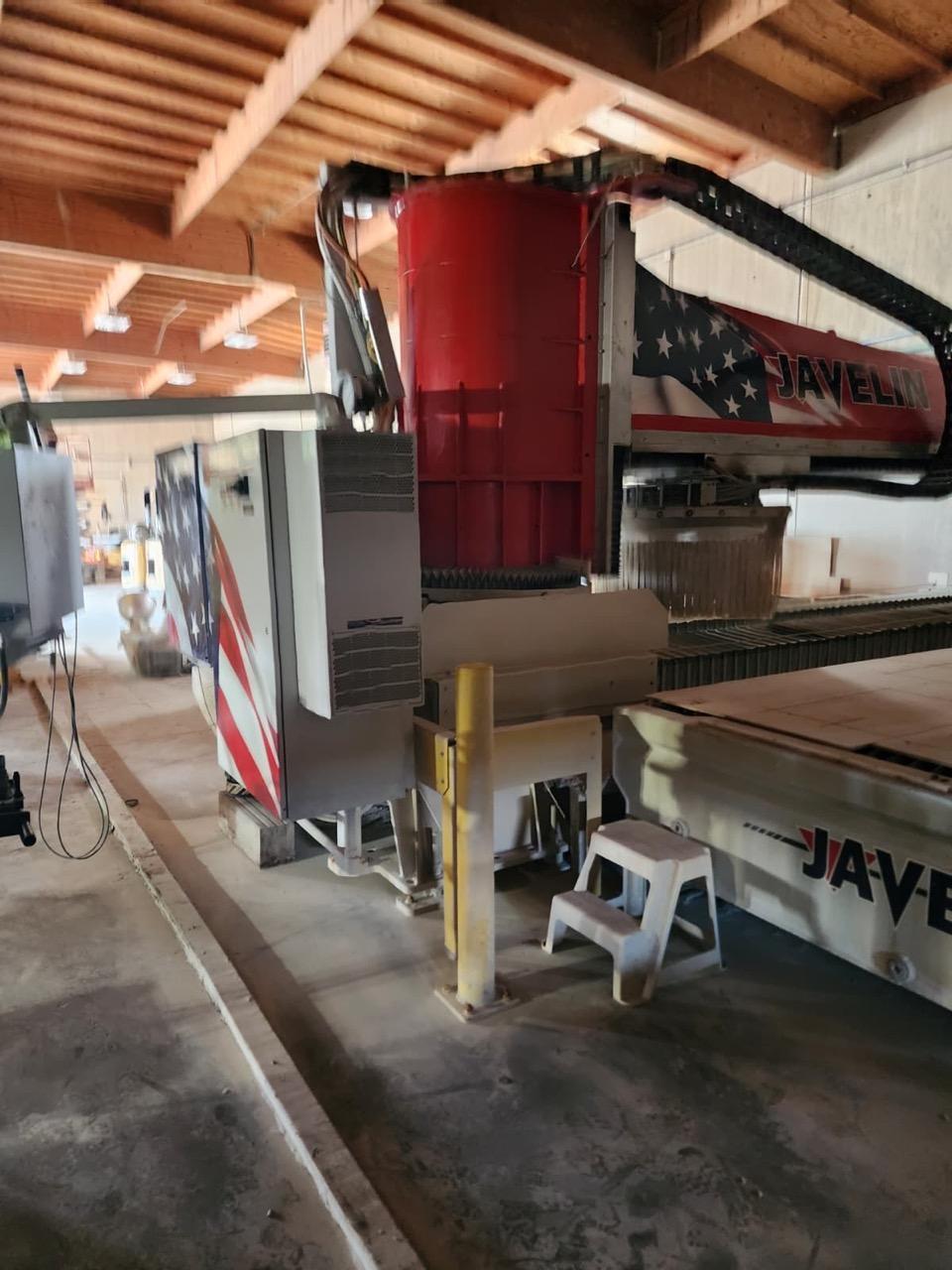

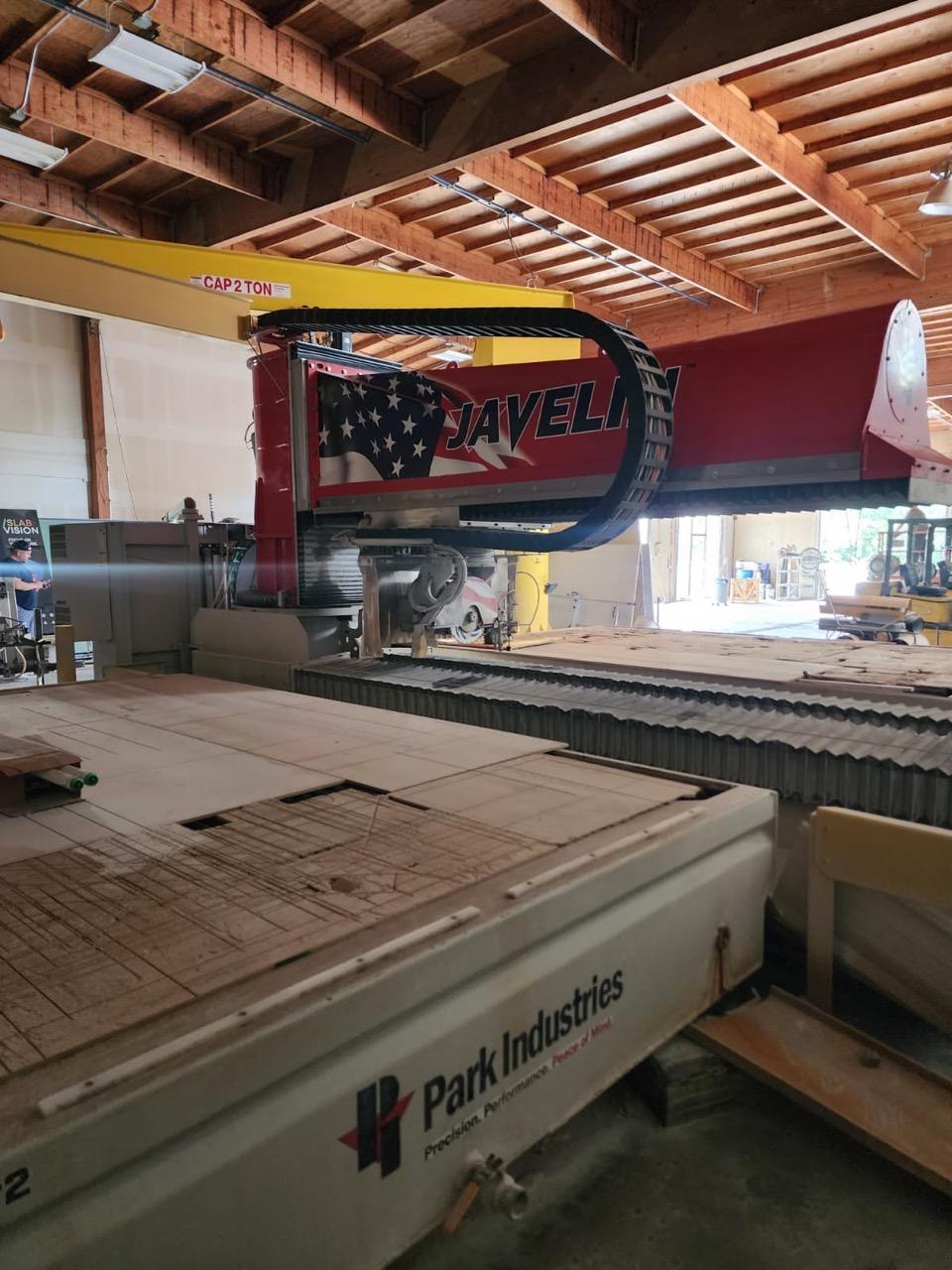

Park Industries JAVELIN Dual Table 5-Axis CNC Sawjet Stone Cutting Machine, 2024

2024 Park Industries JAVELIN dual-table 5-axis CNC Sawjet featuring a 27 HP saw spindle, integrated high-pressure abrasive waterjet, automated miter cutting, and a large 144″ x 88″ work envelope for high-production granite, quartz, quartzite, porcelain, and engineered-stone fabrication.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: Park Industries Model: JAVELIN Year: 2024 Machine Type: CNC Sawjet / Stone Cutting Machine Configuration: Dual Table Axes: 5-Axis Waterjet Cutting Applications: Granite, quartz, quartzite, marble, porcelain, engineered stone, and countertop fabrication

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting System CNC-controlled circular saw and abrasive waterjet 5-axis waterjet cutting capability Saw arbor motor: 27 HP Blade diameter capacity: 14″–16″ Maximum cutting/work area: 144″ x 88″ Saw blade miter range: approximately 0–47° Waterjet miter range: approximately 0–58° Spindle speed: up to approximately 4,500 RPM Variable-frequency spindle drive Automatic CNC cutting and profiling Integrated high-pressure abrasive waterjet Automatic blade-to-waterjet calibration Precision X/Y positioning system Precision Z-axis movement Machine Configuration Dual cutting tables Three-sided machine access Heavy-duty bridge construction CNC touchscreen/operator control Automatic cutting sequence capability Nesting and programming capability Designed for high-production countertop and architectural stone fabrication Approximate Machine Specifications Work envelope: 144″ x 88″ Blade capacity: 14″–16″ Saw motor: 27 HP Machine weight: approximately 21,000 lb. excluding ancillary equipment Electrical requirements: configuration dependent Waterjet pump horsepower: configuration dependent

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
