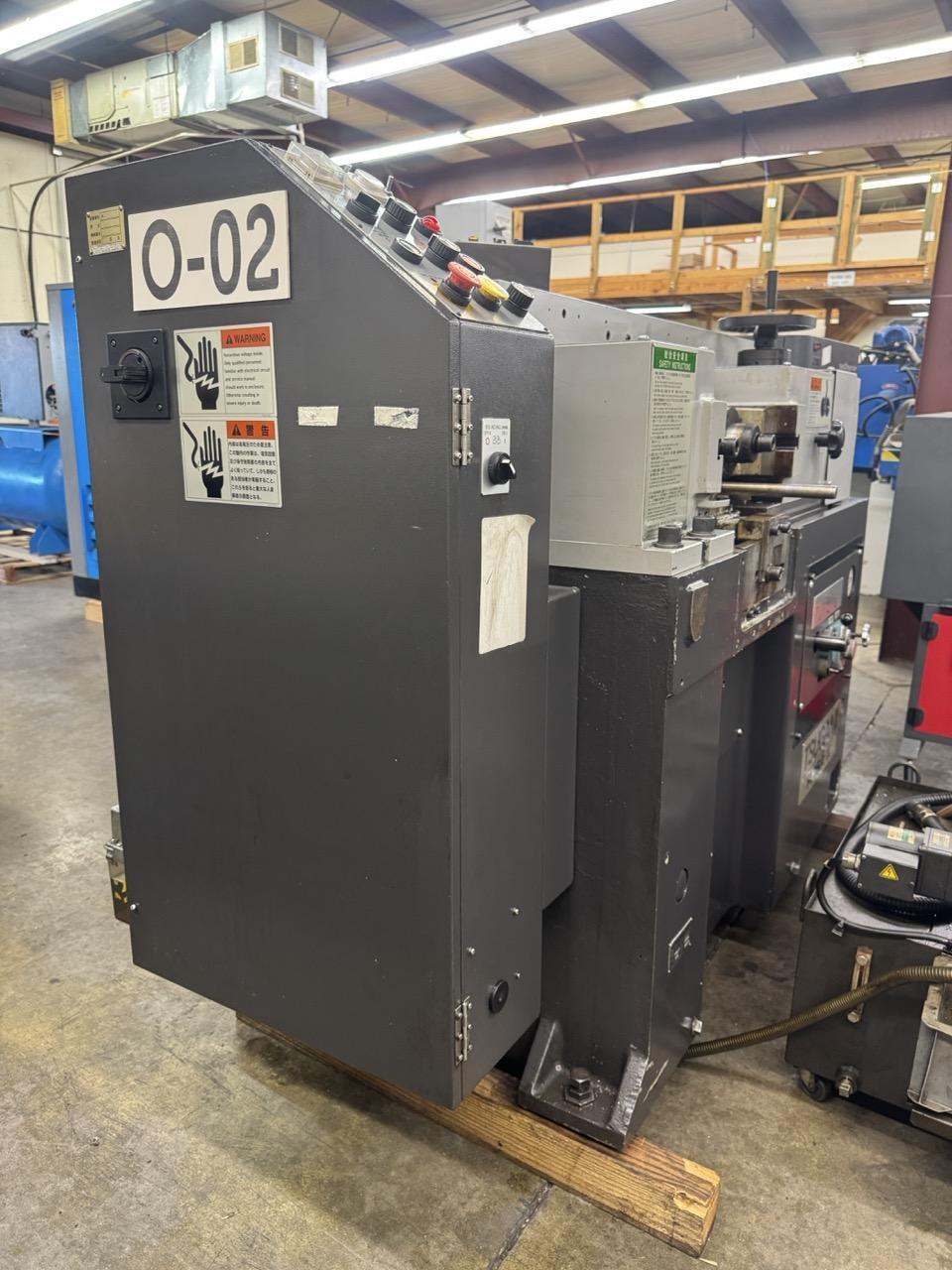

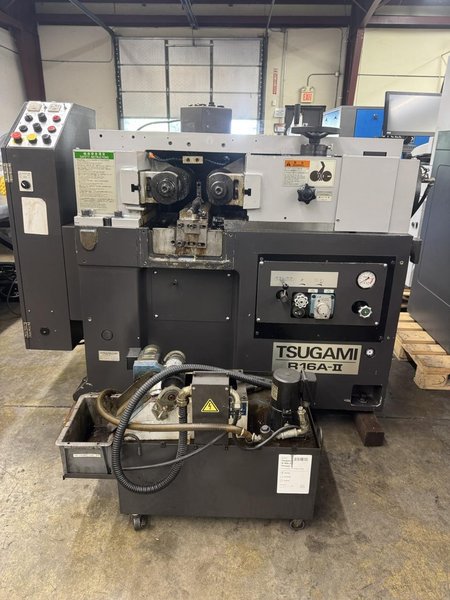

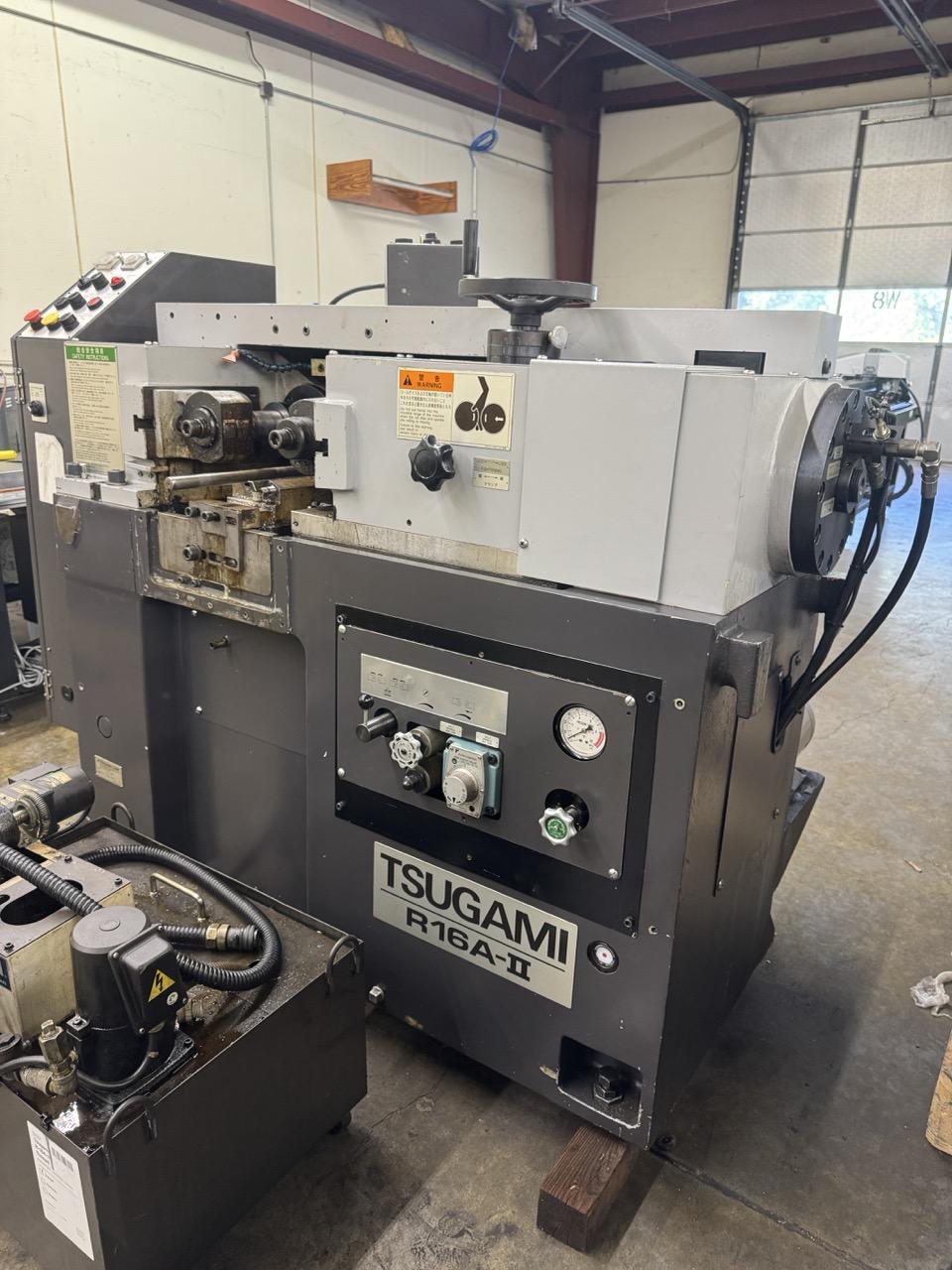

Tsugami R16A-II 16-Ton Two-Die Precision Thread Rolling Machine, 2015 – 75mm Capacity

2015 Tsugami R16A-II heavy-duty two-die precision thread rolling machine featuring up to 16 tons of rolling force, 75 mm maximum in-feed rolling diameter, 150 mm maximum rolling length, and four selectable spindle speeds for high-accuracy production of threads, splines, serrations, and formed profiles.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Specifications

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: Tsugami Model: R16A-II Year: 2015 Machine Type: Precision Thread & Form Rolling Machine Configuration: Two-Die Cylindrical / In-Feed Thread Roller Country of Manufacture: Japan

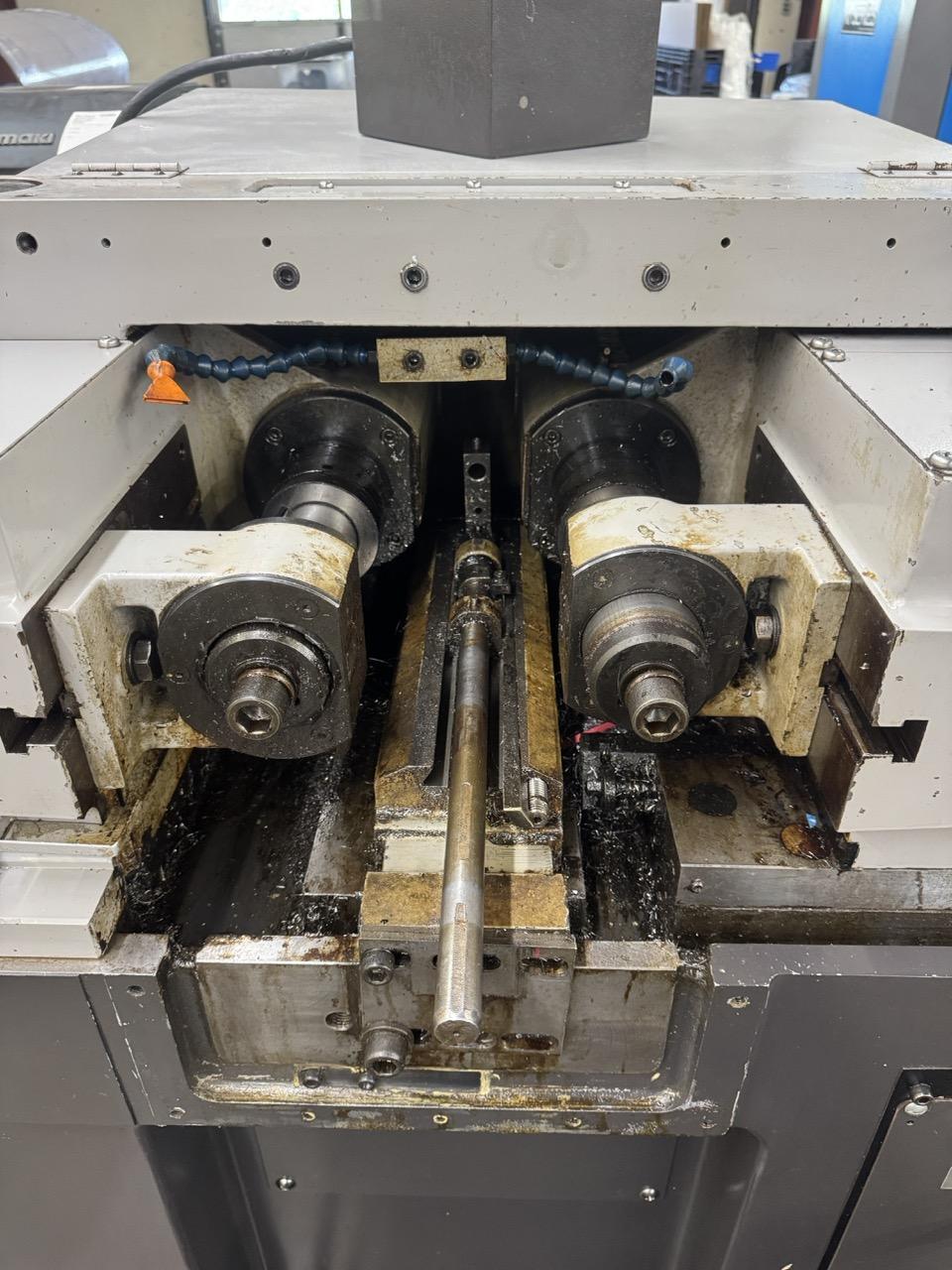

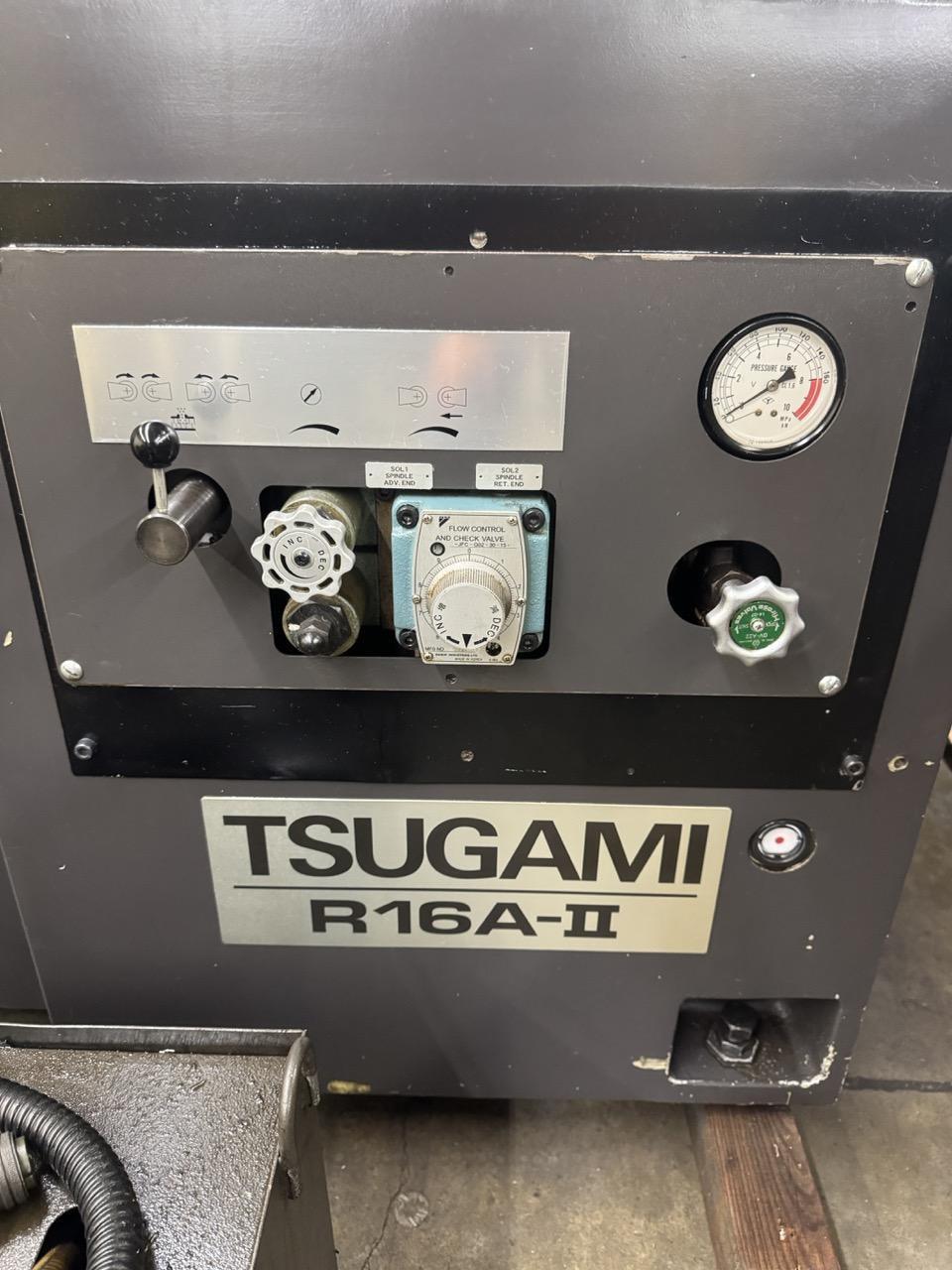

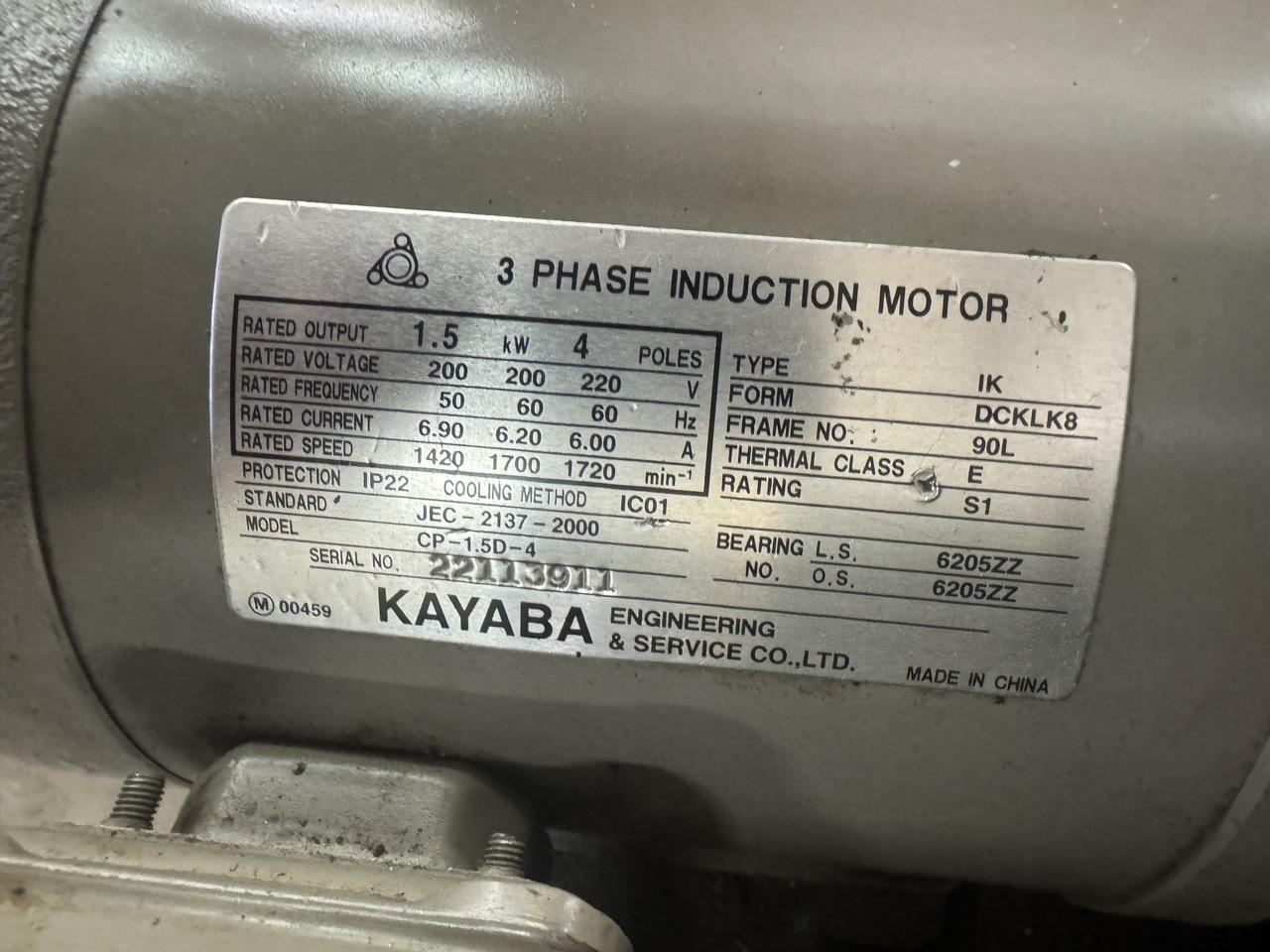

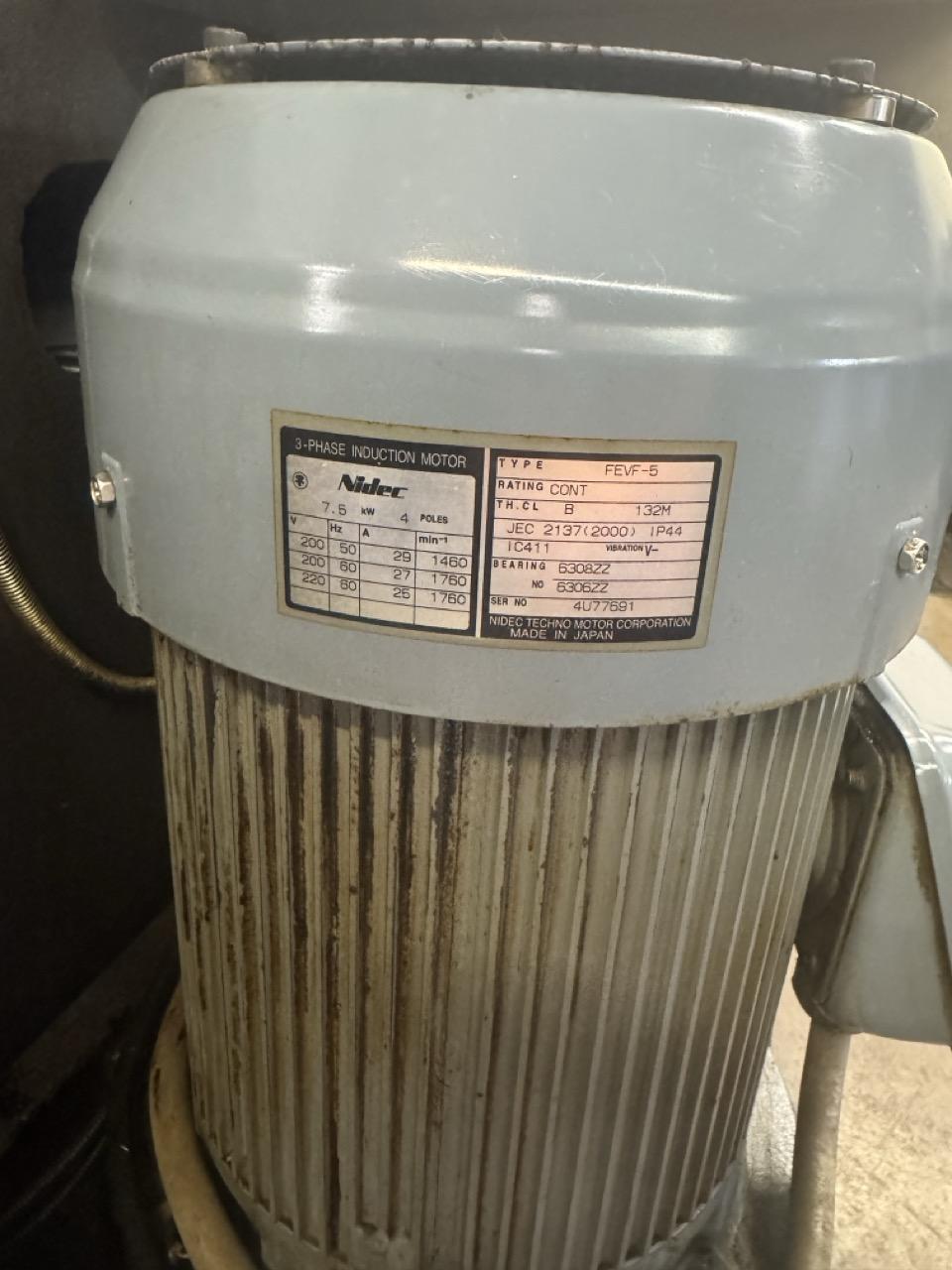

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacity Maximum Rolling Force: 160 kN / approx. 16 Tons Maximum Rolling Diameter: 75 mm / 2.95″ Maximum In-Feed Thread Length: 150 mm / 5.91″ Maximum Thread Pitch: 5 mm Rolling Method: In-Feed Number of Rolling Dies: 2 Maximum Rolling Die OD: 200 mm Rolling Die Bore / Spindle Diameter: 54 mm / 2.13″ Spindle Spindle Speeds: 16 / 30 / 48 / 71 RPM Maximum Spindle Speed: 71 RPM Spindle Drive: approximately 5 HP on documented 2015 configuration Heavy-duty opposed rolling spindle design Features Hydraulic two-die thread rolling system Precision in-feed rolling Adjustable rolling pressure Adjustable spindle position Center workrest capability Designed for high-accuracy, repeatable production Compatible with R15A tooling components including rolling dies, support blades and centers Suitable for threads, splines, serrations, knurling and other cold-formed profiles Approximate Dimensions & Weight Floor Space: approximately 65″ x 54″ Manufacturer literature dimensions: approximately 69″ x 43″ x 51″ Machine Weight: approximately 5,700–5,950 lbs.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
