Gnutti Transfer & Eurofimet Tunnel Wash Machine
Brand
Type
Model
FMF-12-125CNC
Stock #
117481
Year
2009
Condition
Used
Location
Not specified
|

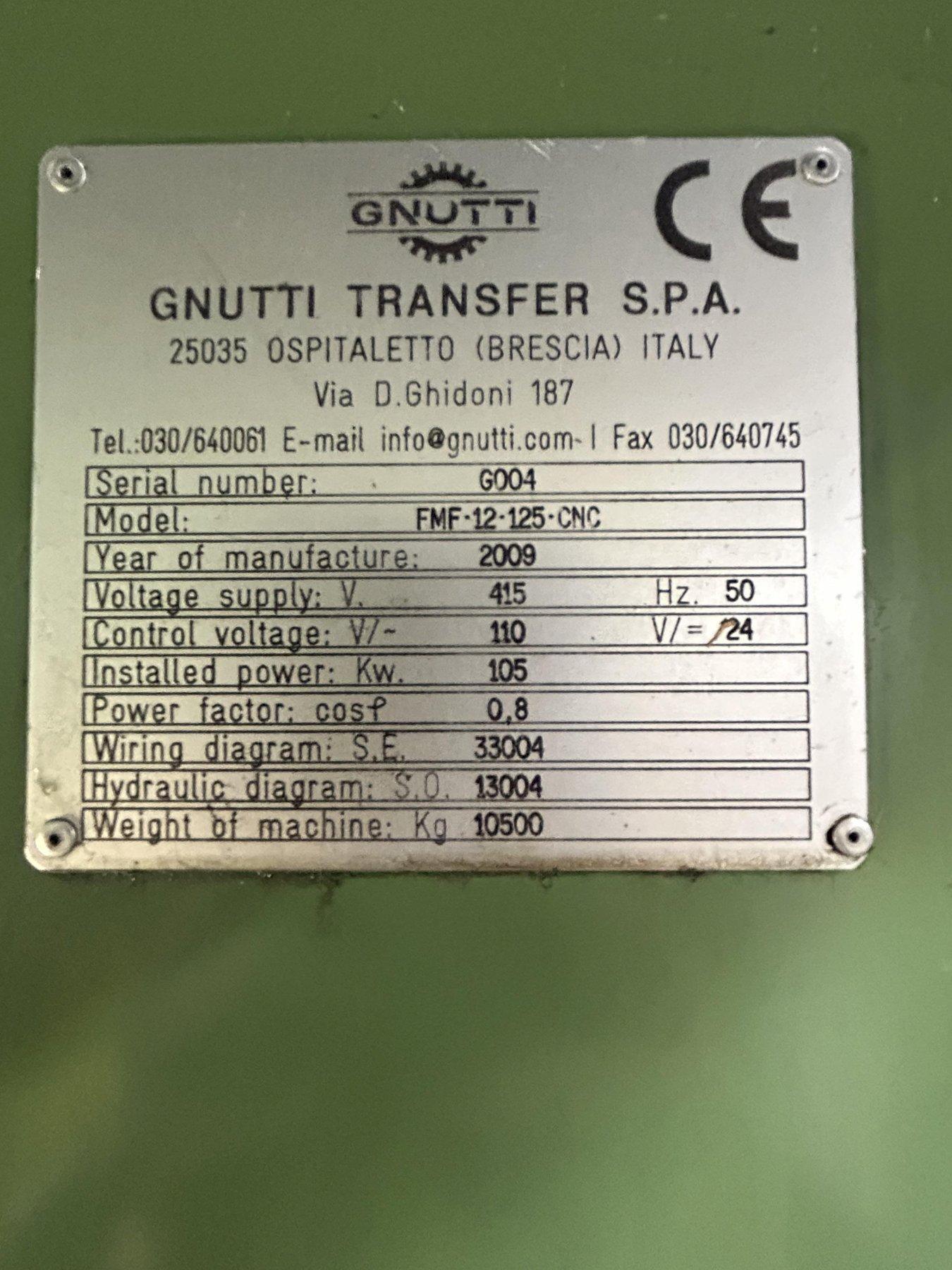

ManufacturerGnutti
ModelFMF -12 - 125 - CNC
Year of Manufacture2009
Serial NumberG004
ConditionUsed/See Description
Lot Number32458-49
Inventory IDMACH1- M95

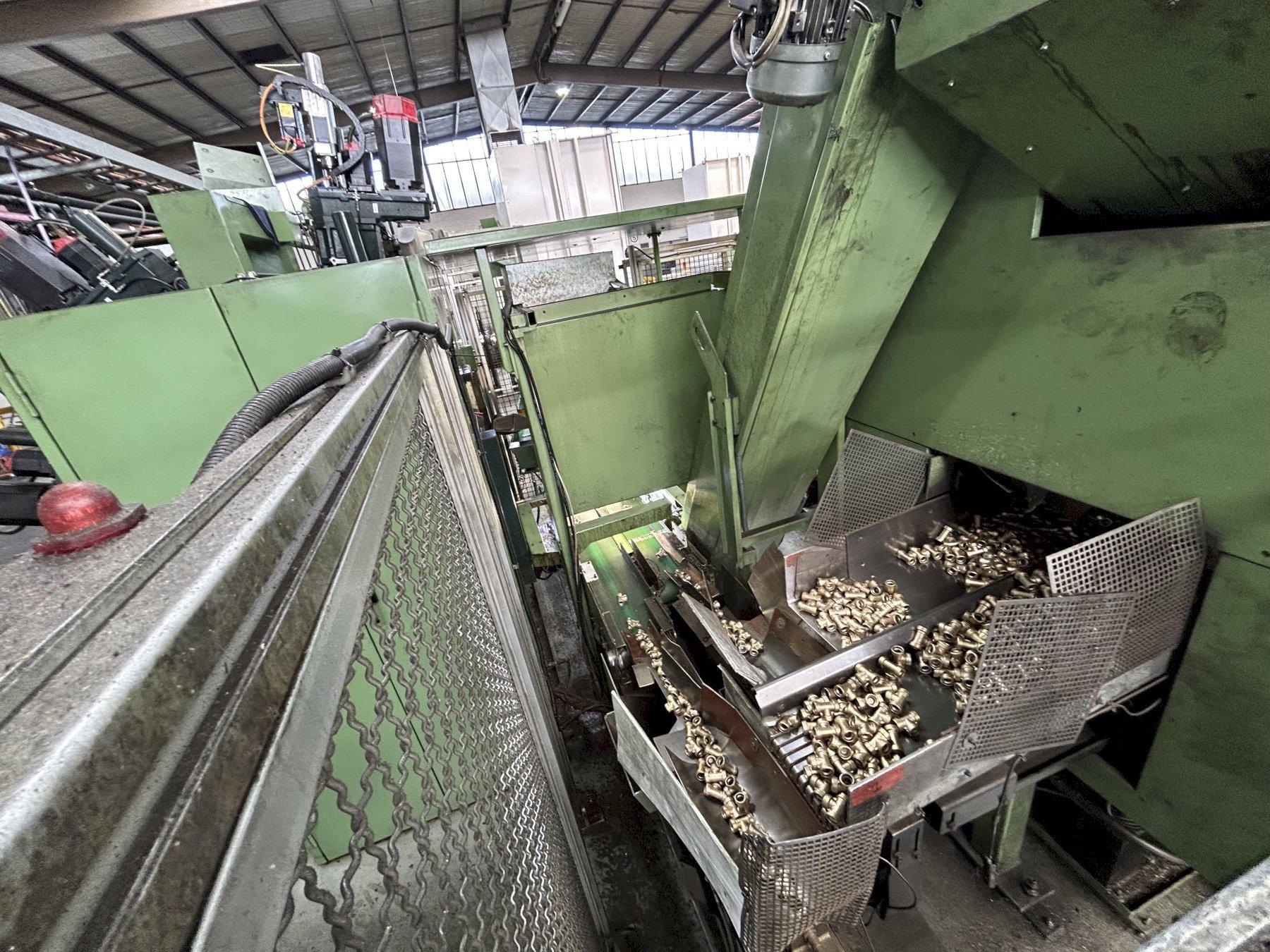

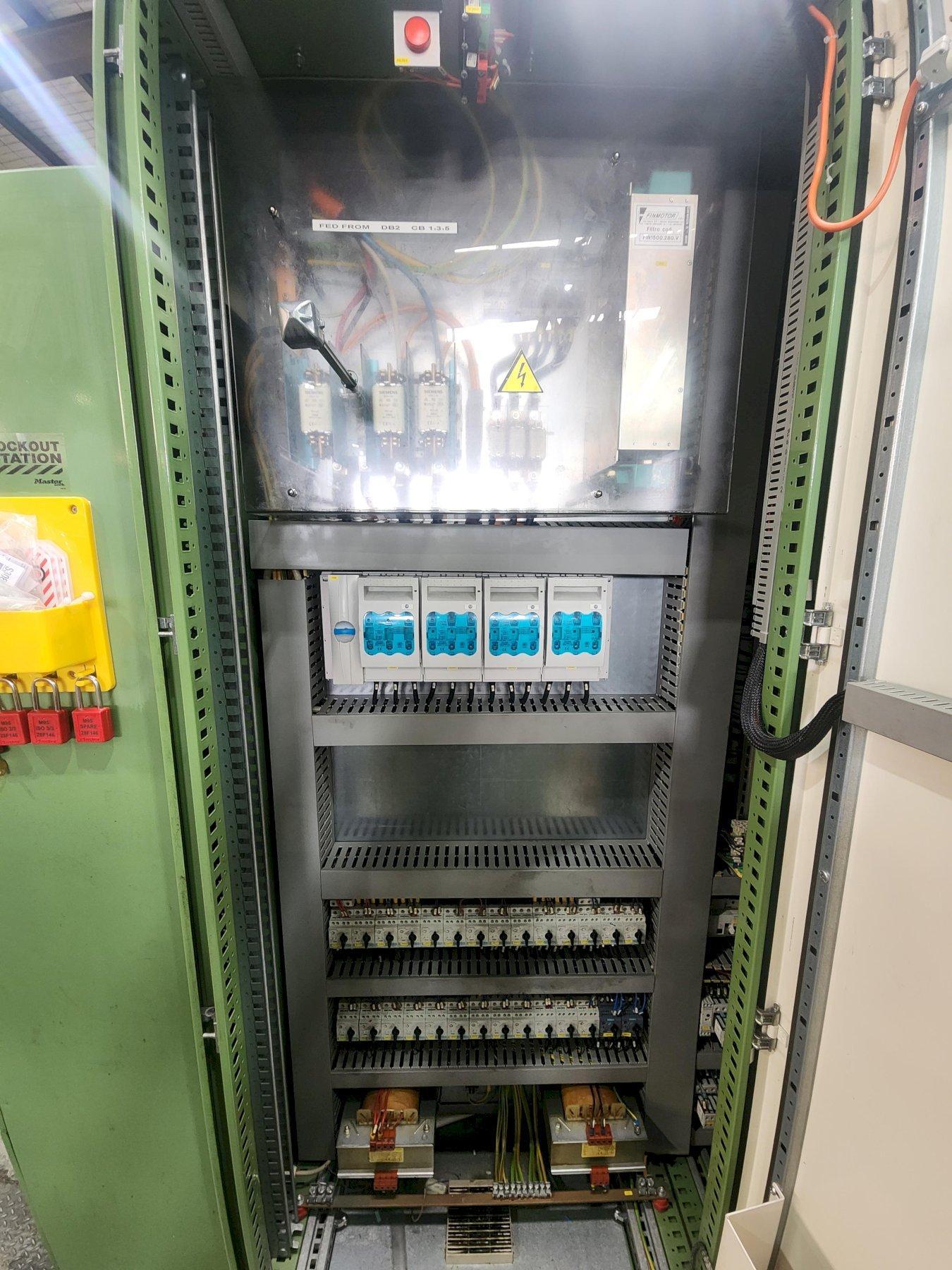

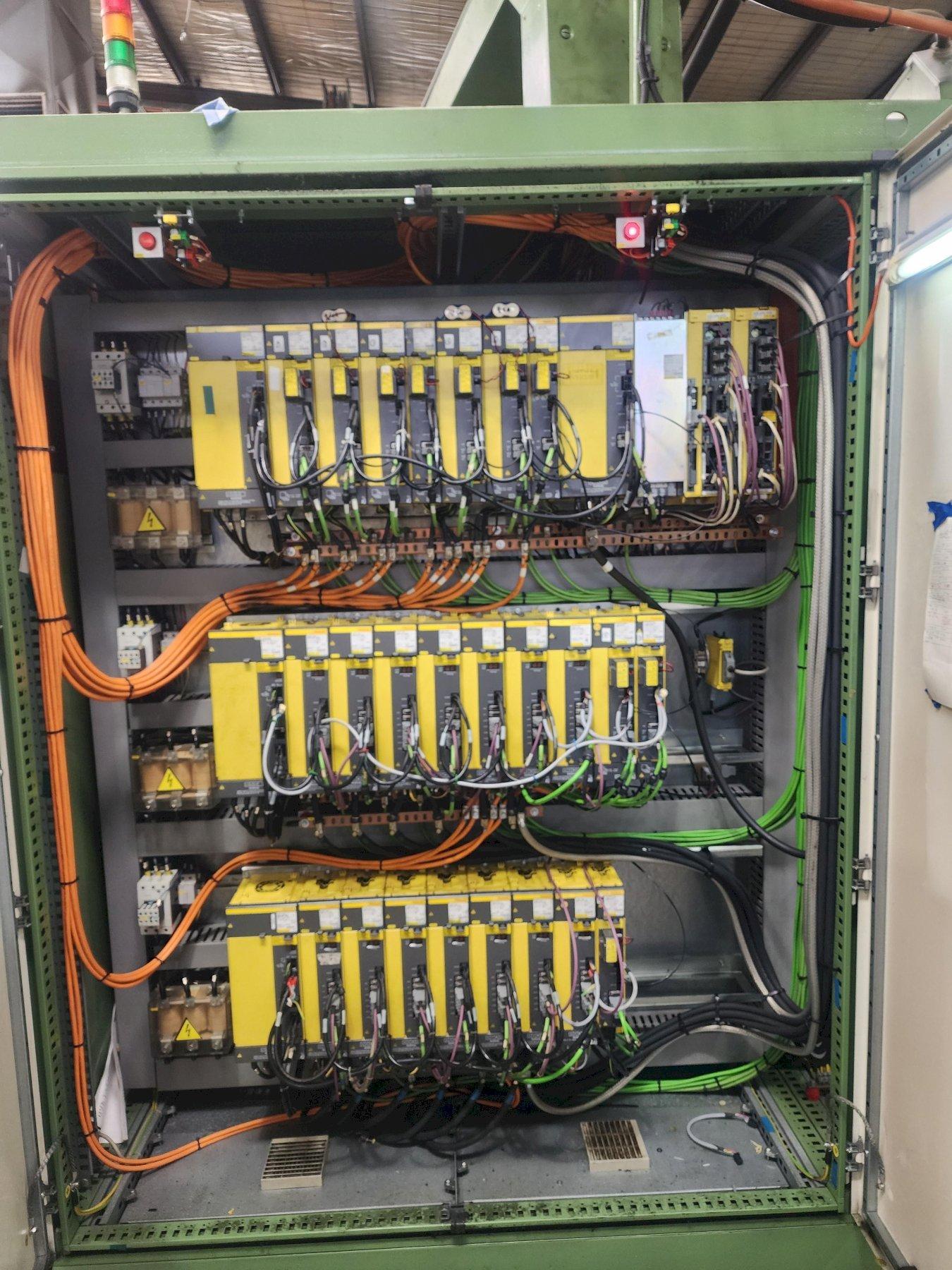

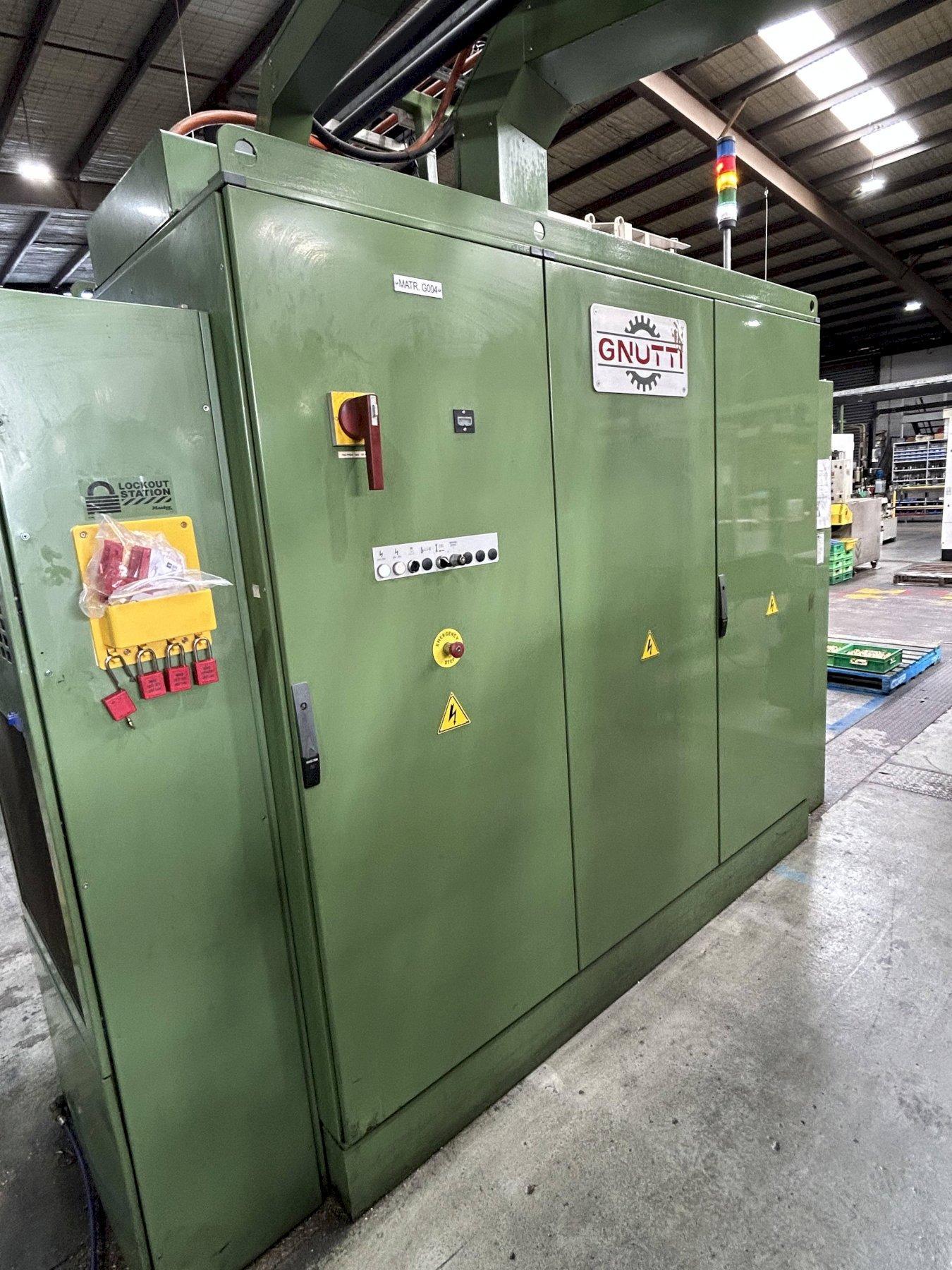

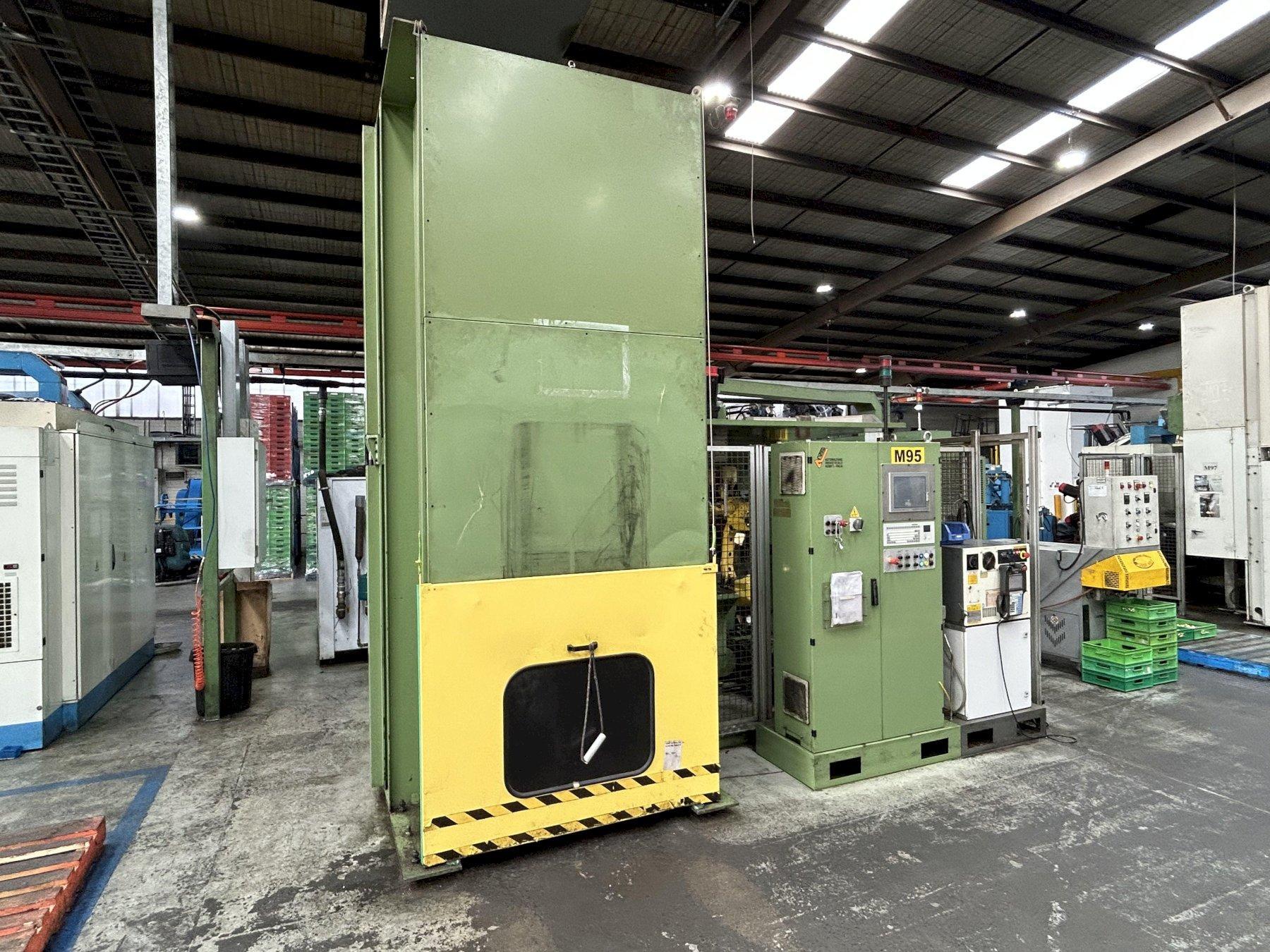

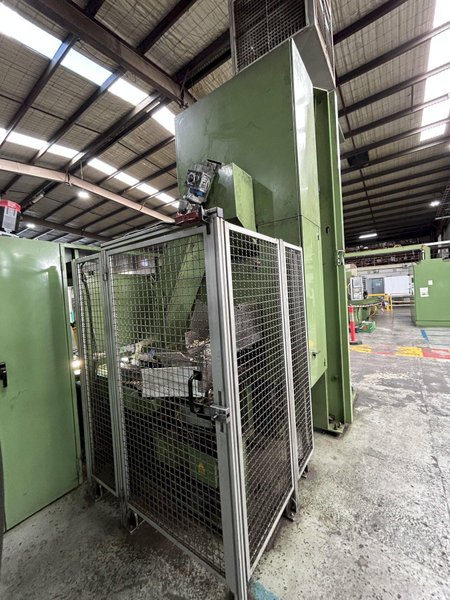

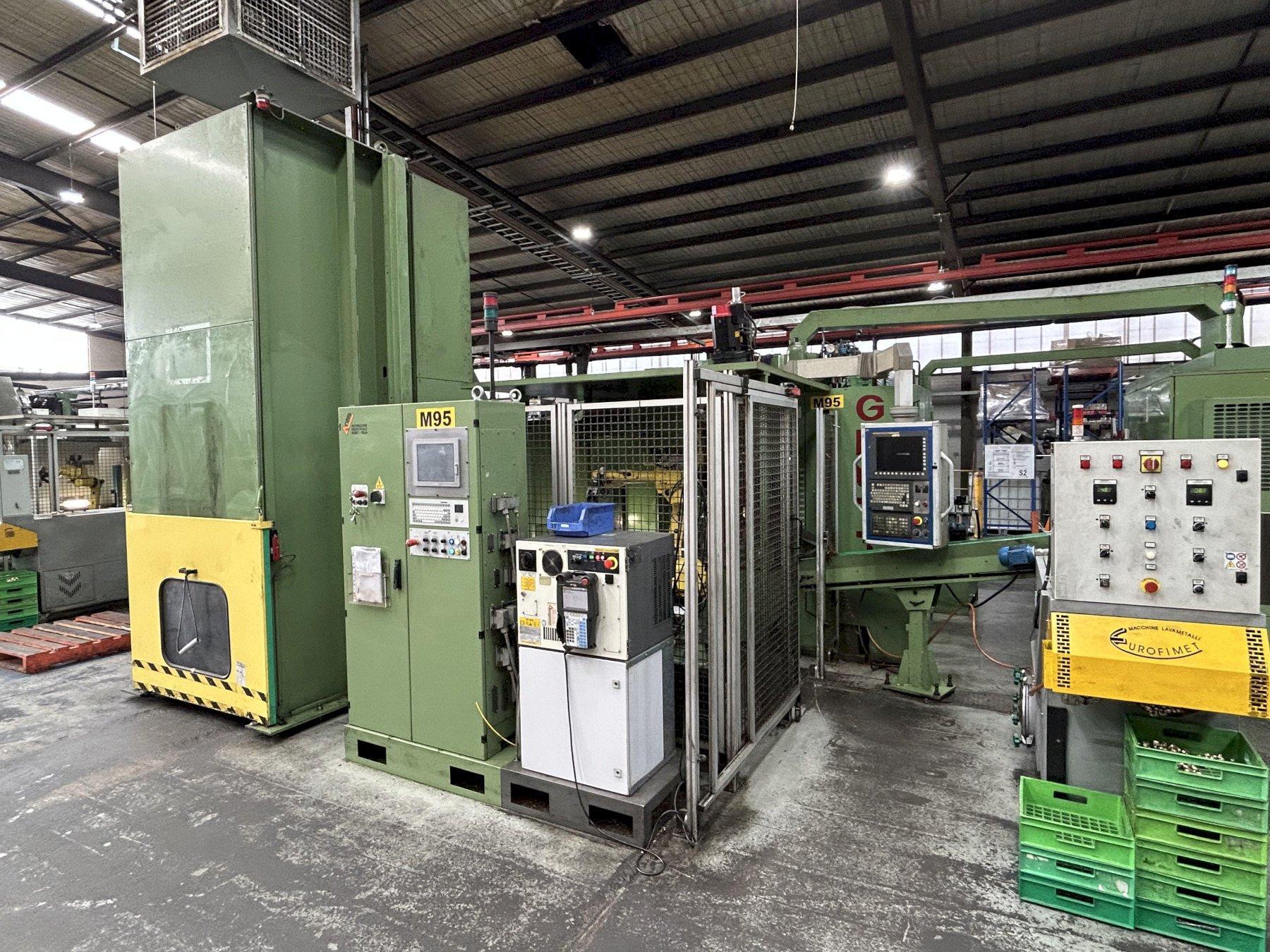

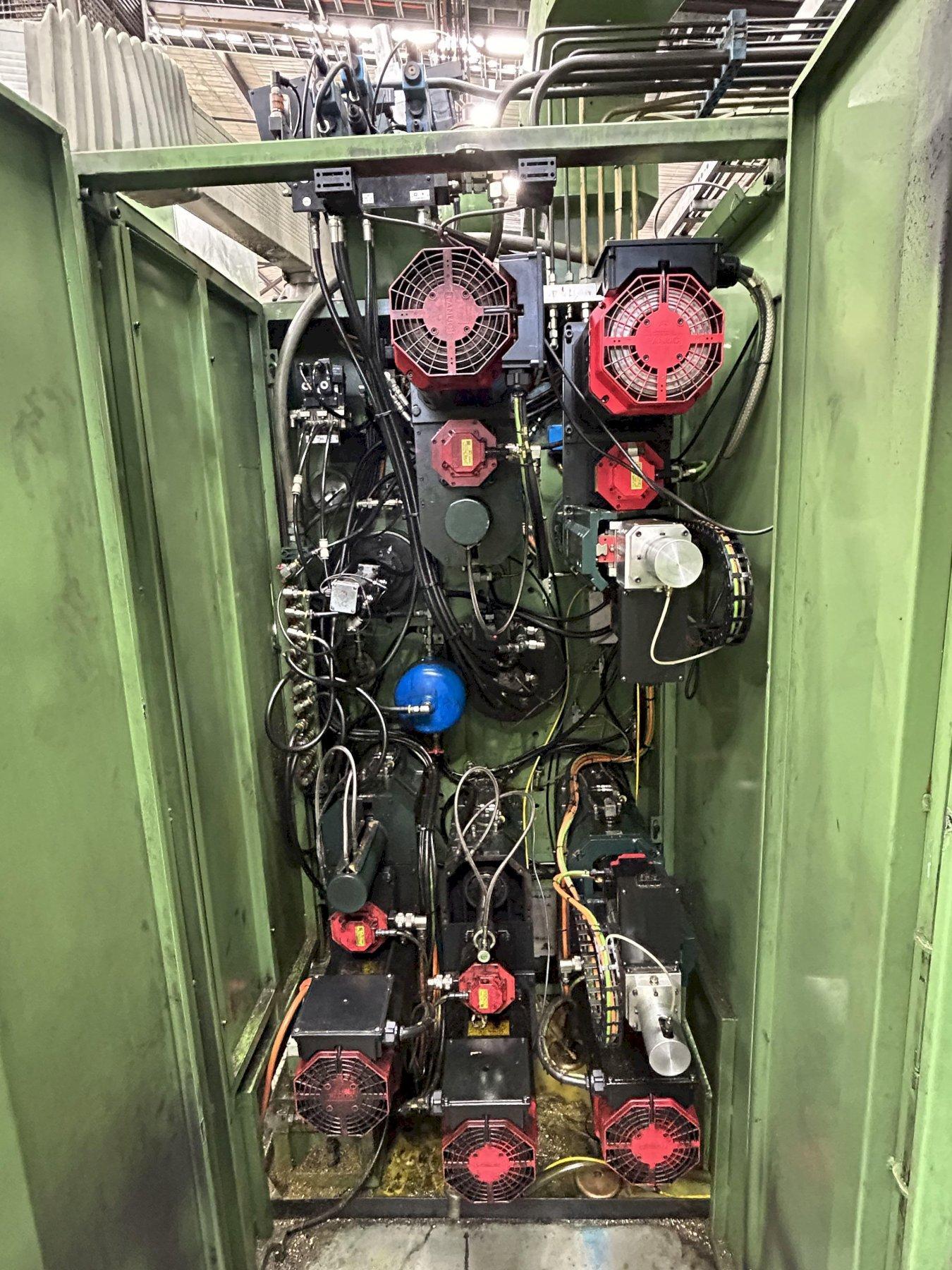

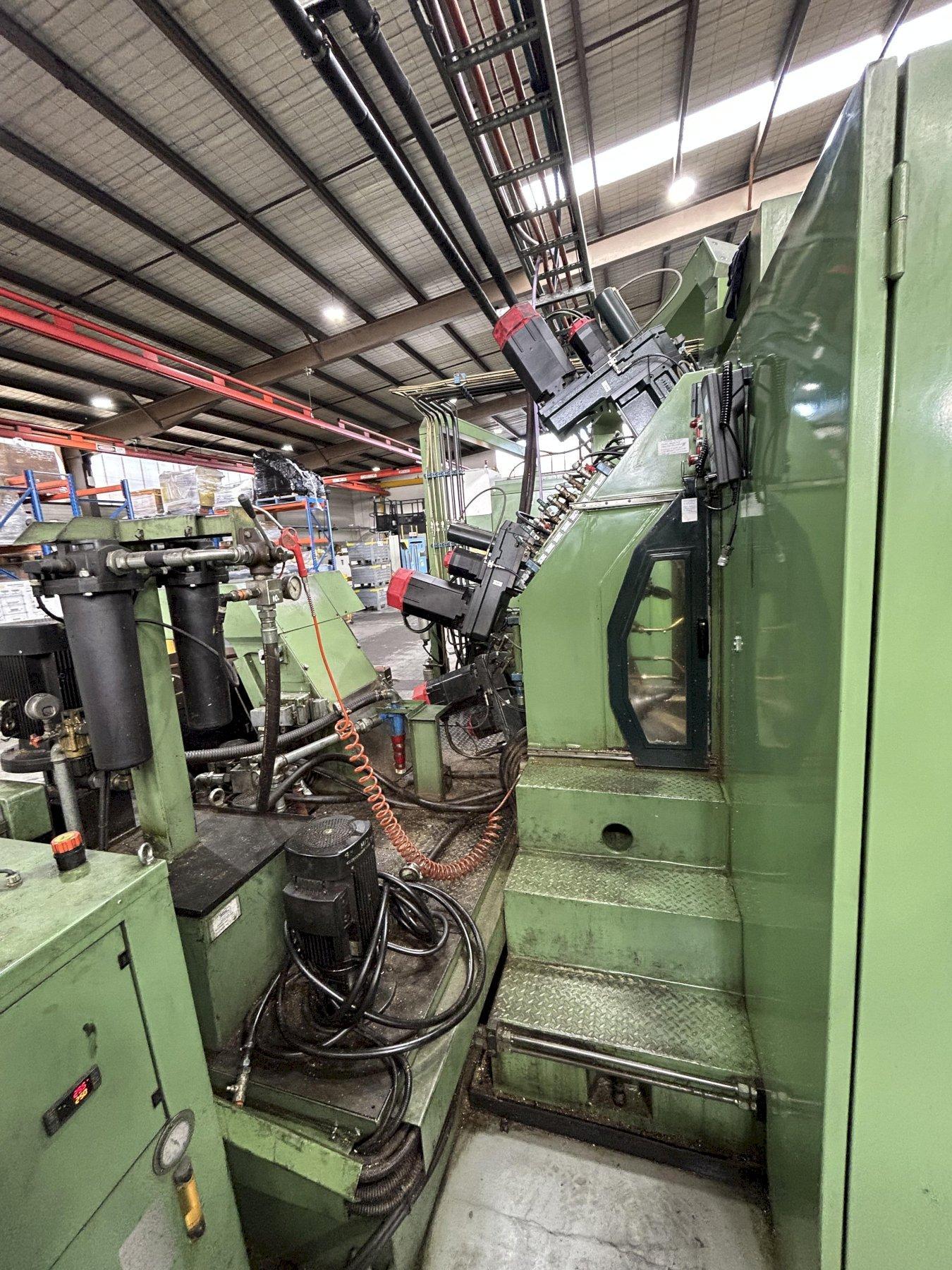

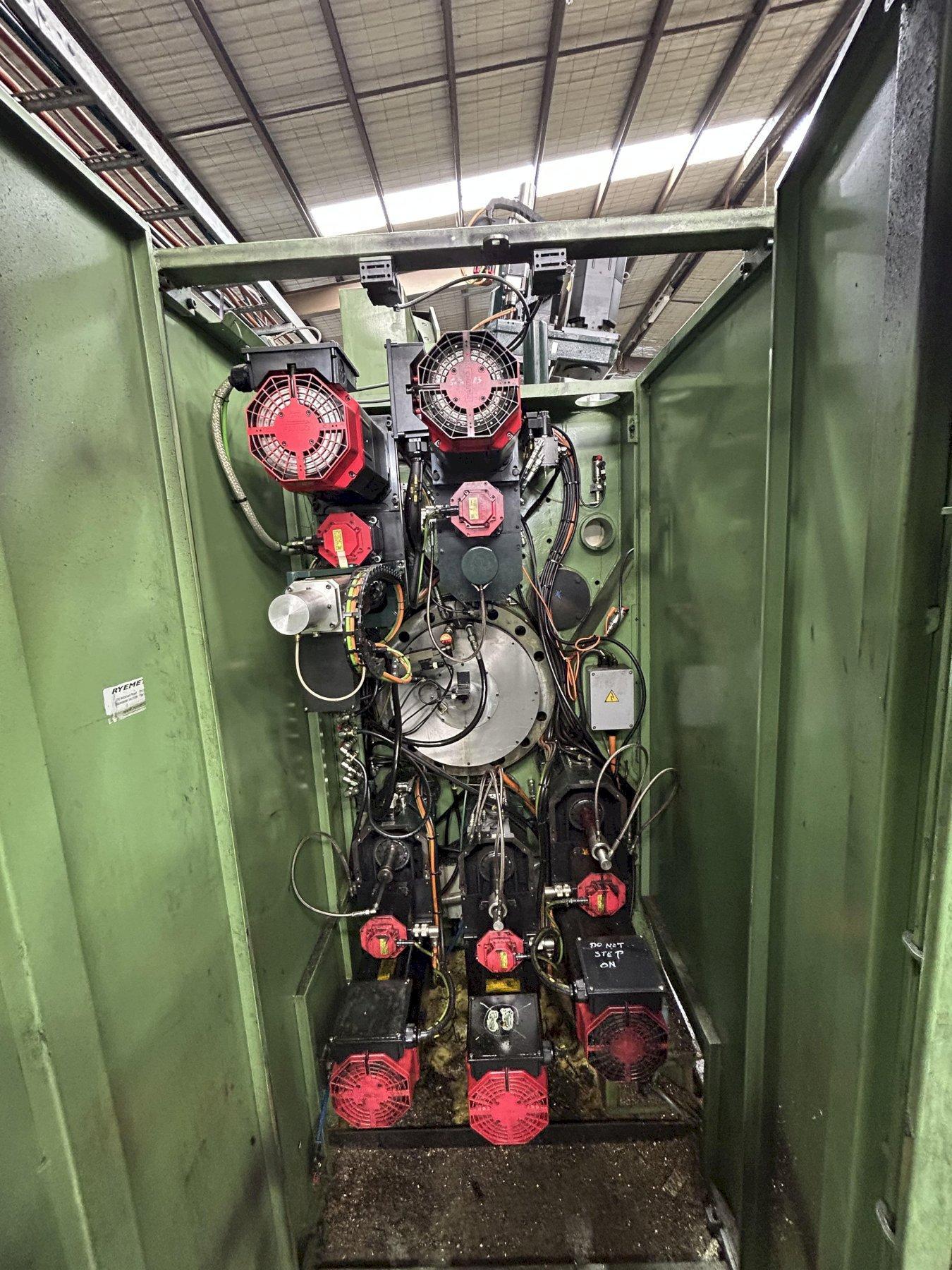

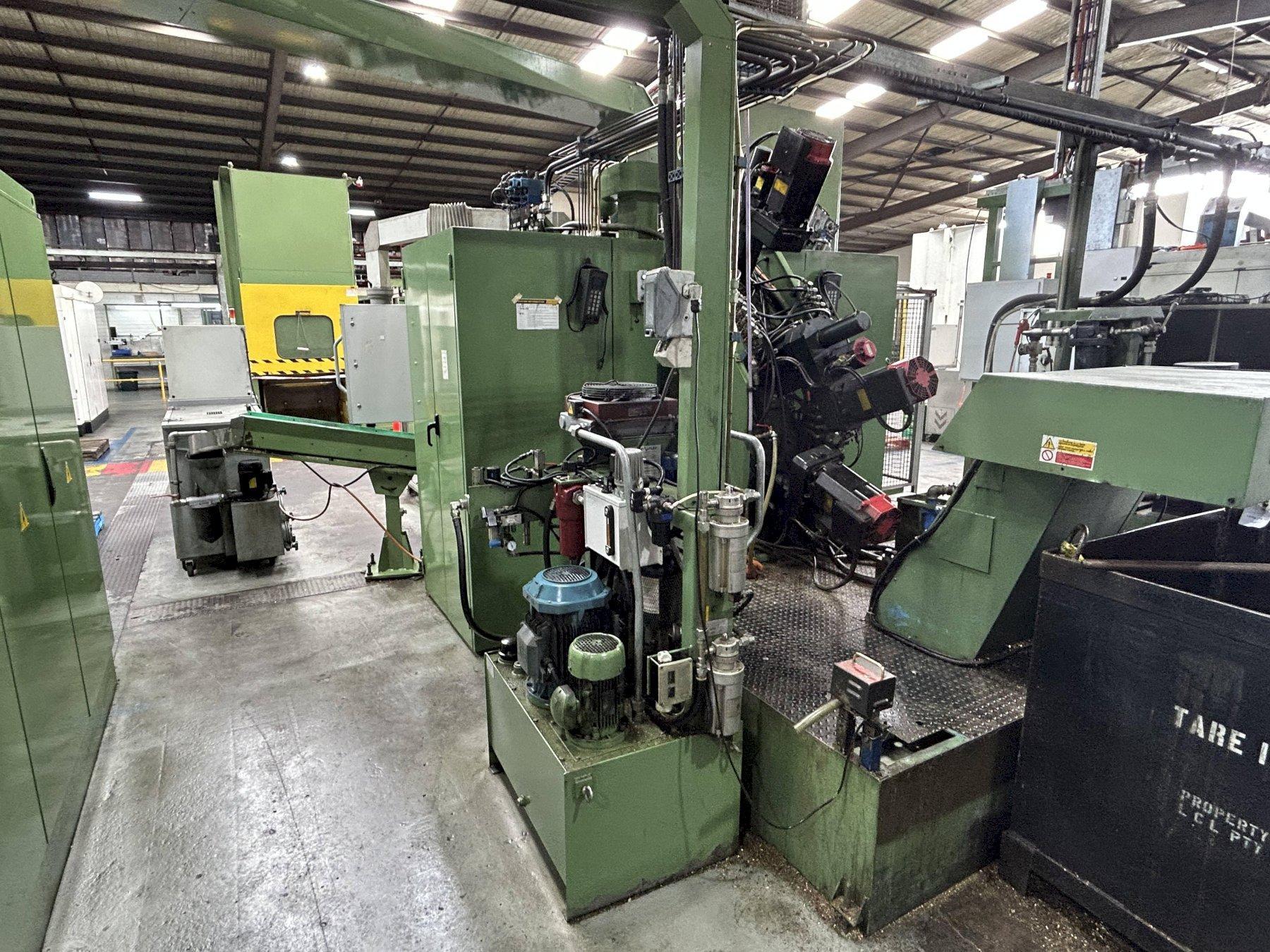

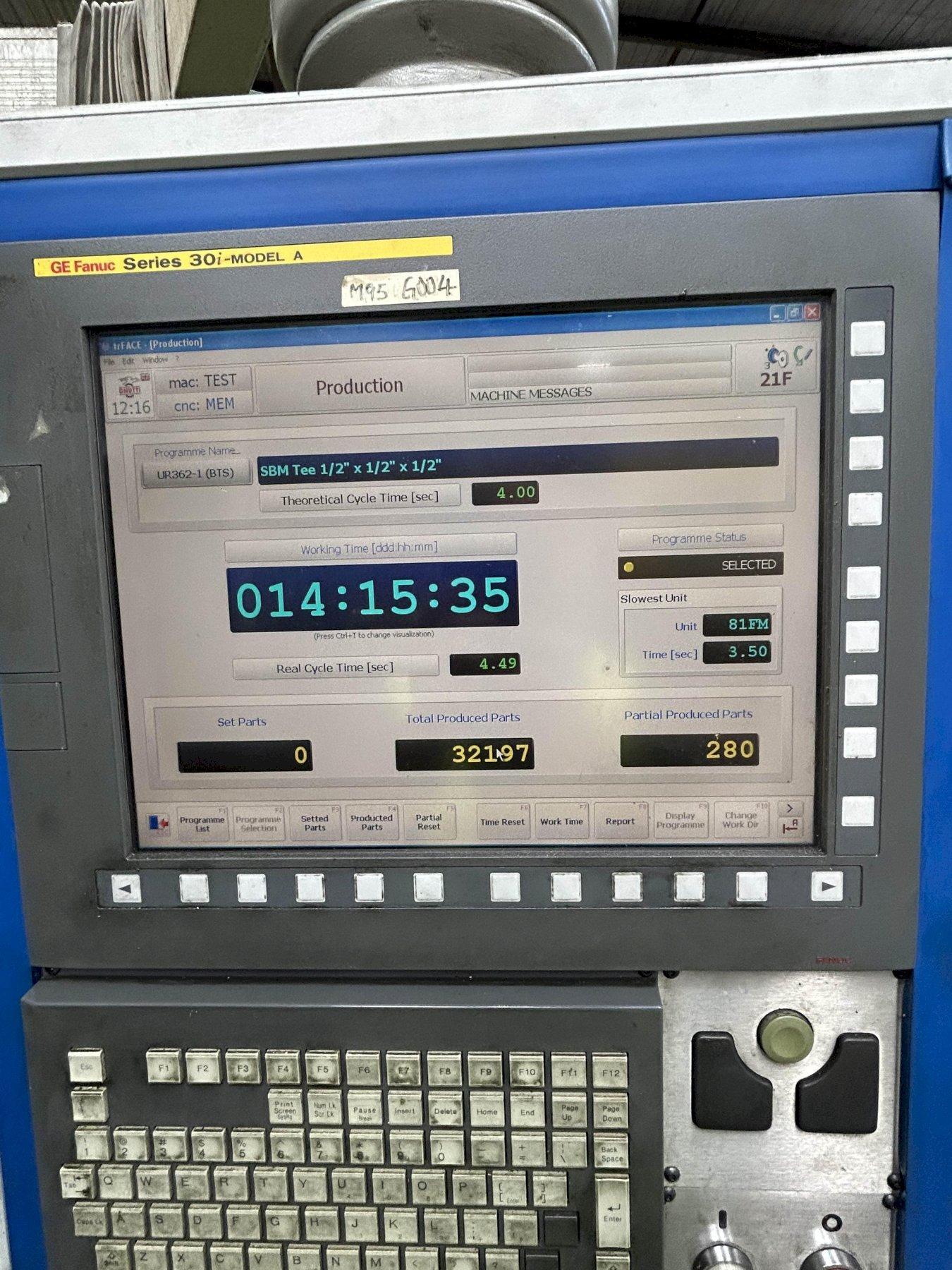

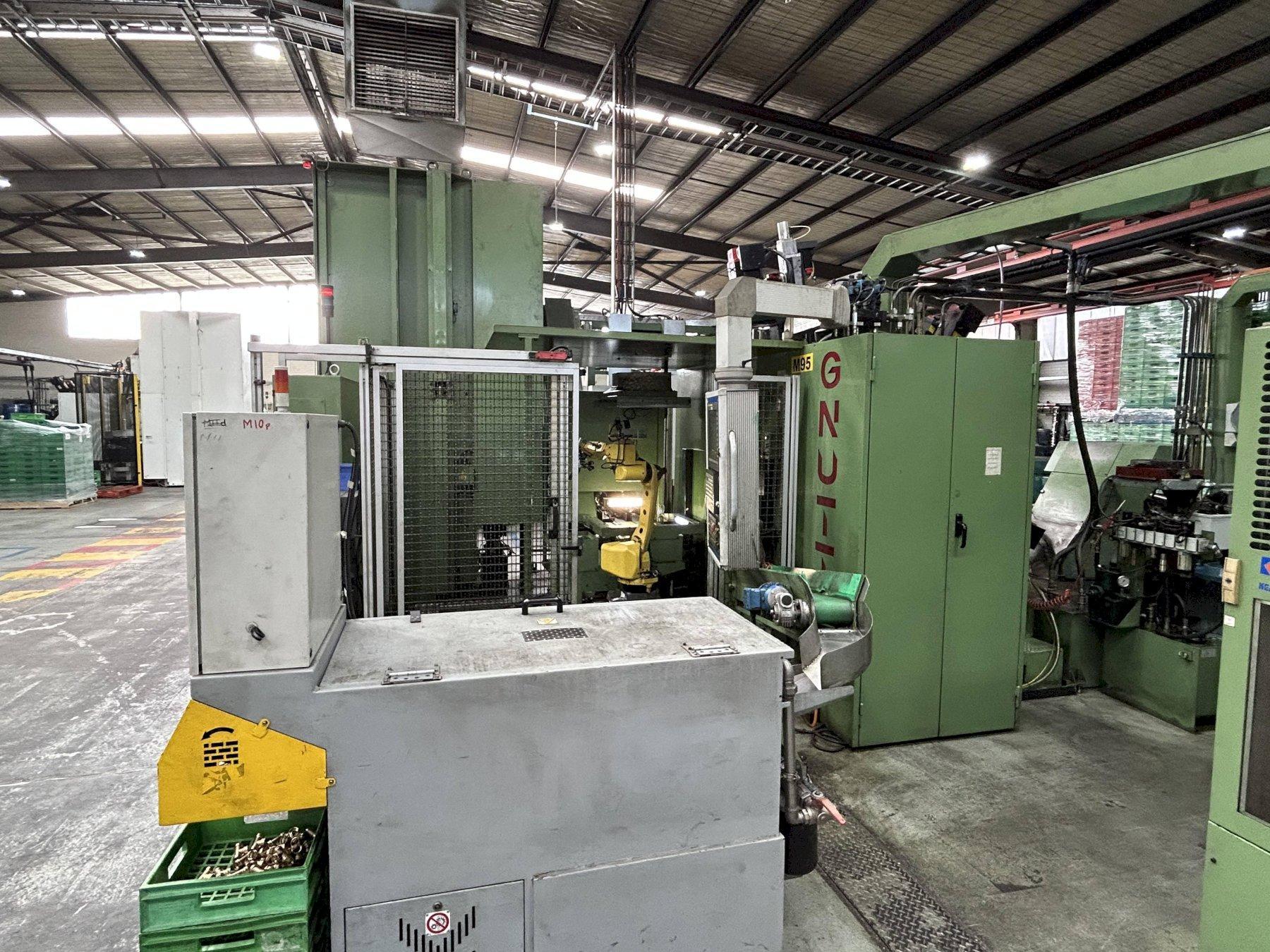

Gnutti vertical transfer machine, full Fanuc CNC controls and motors,

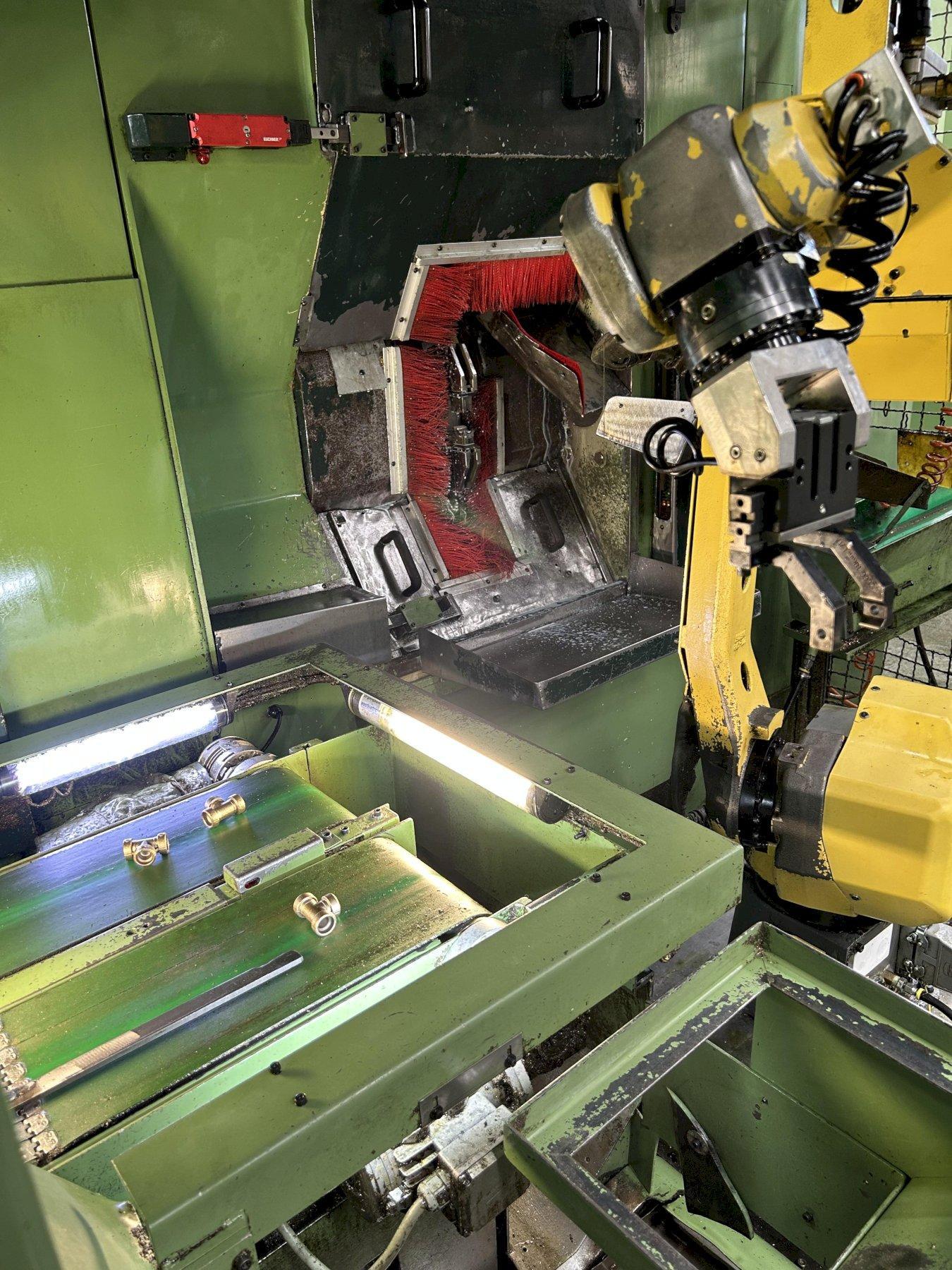

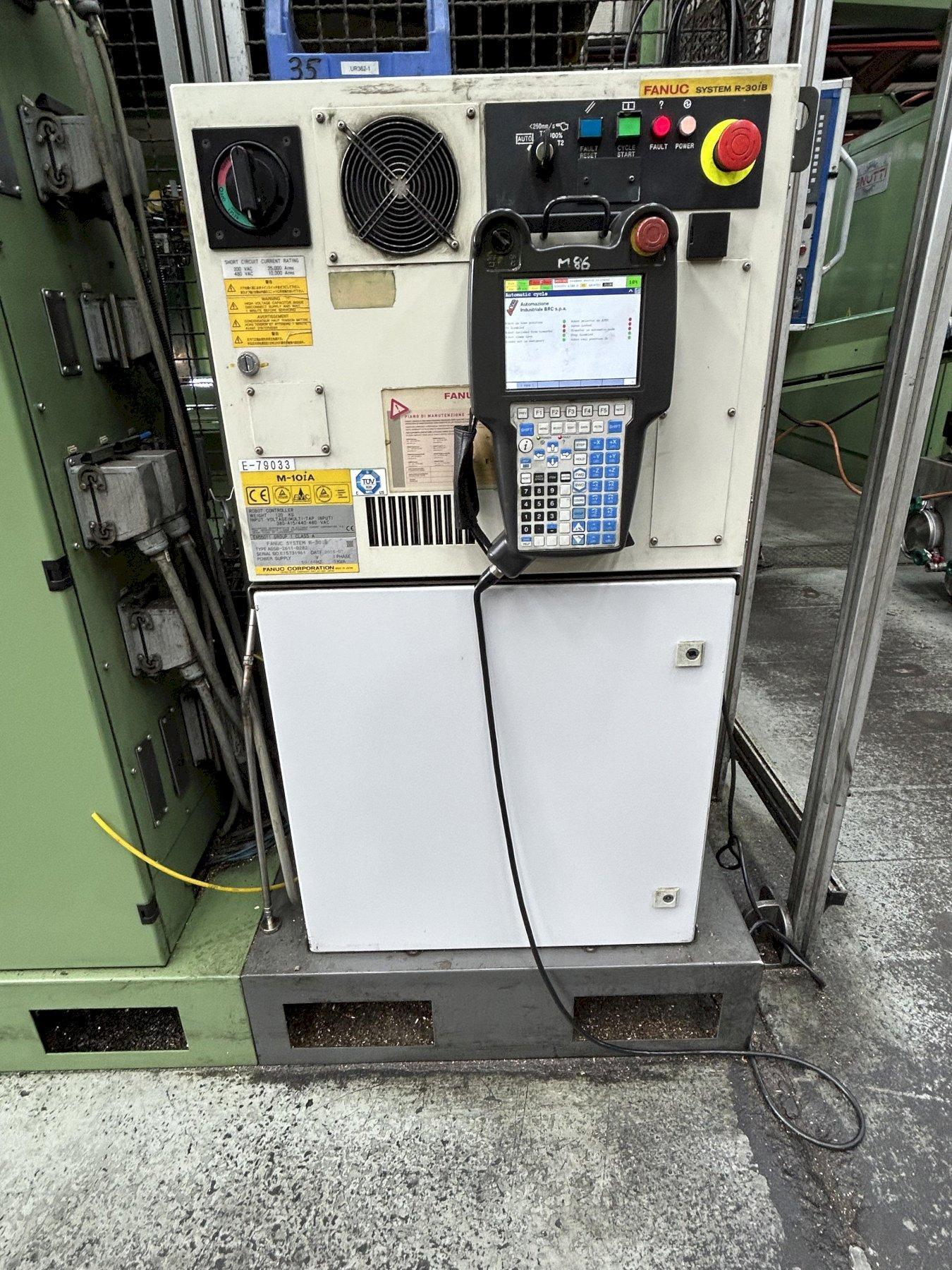

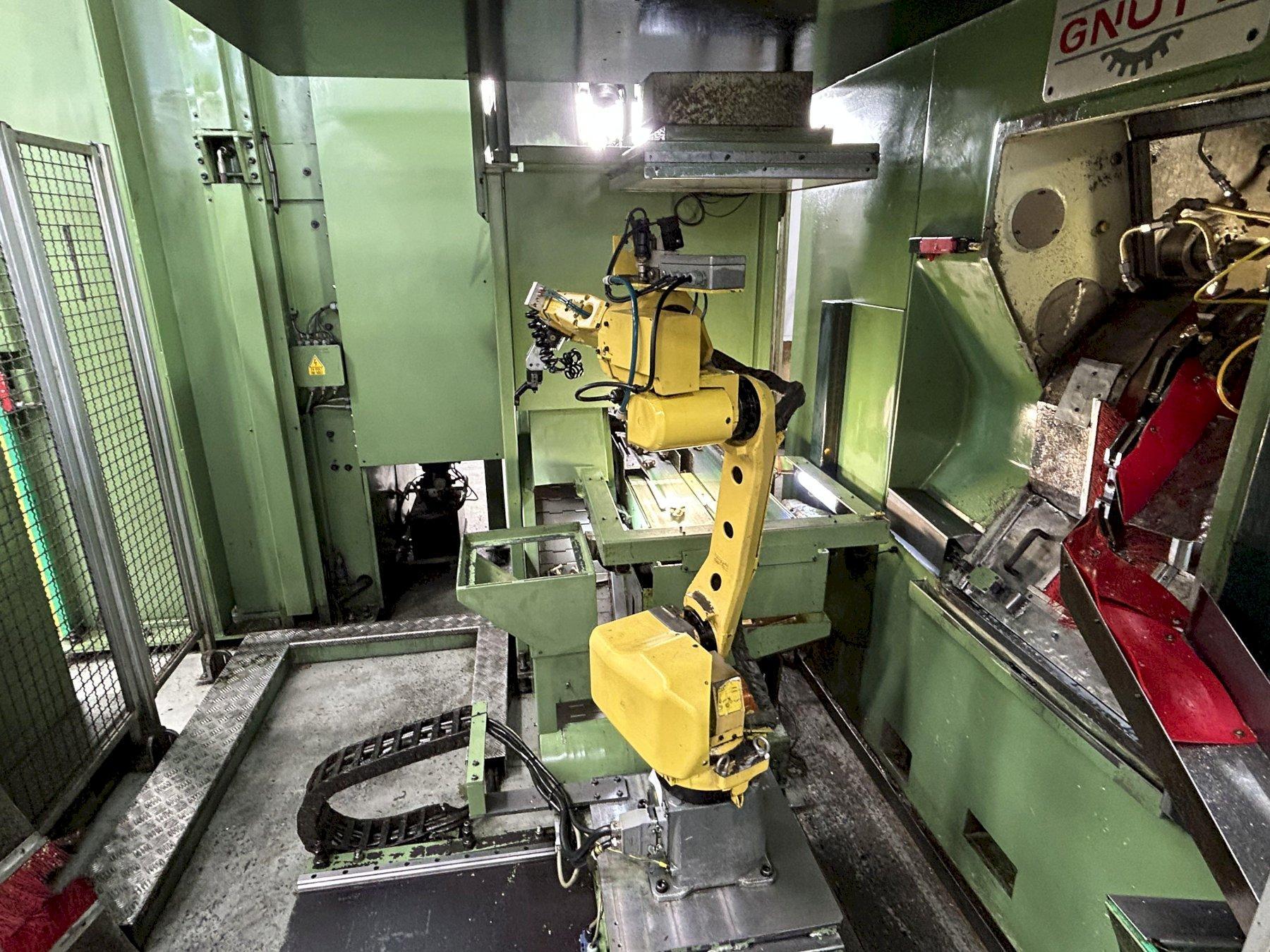

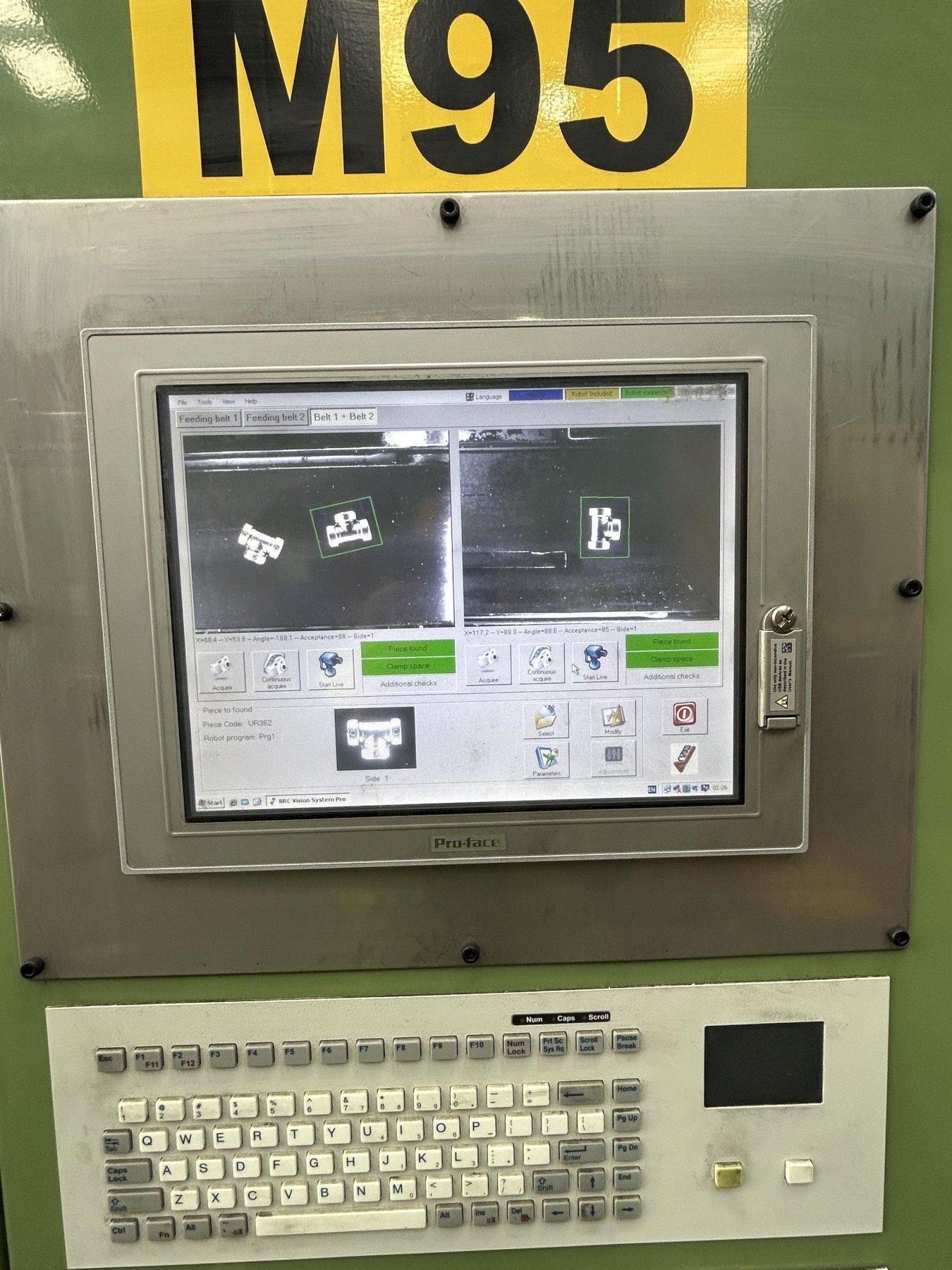

integrated with BRC Fanuc robot Vision System twin camera loading cell and
Eurofimet twin screw heated wash machine. Machine has 14 units, 9 turret

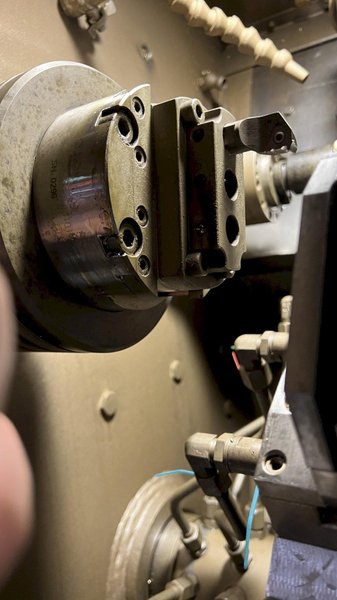

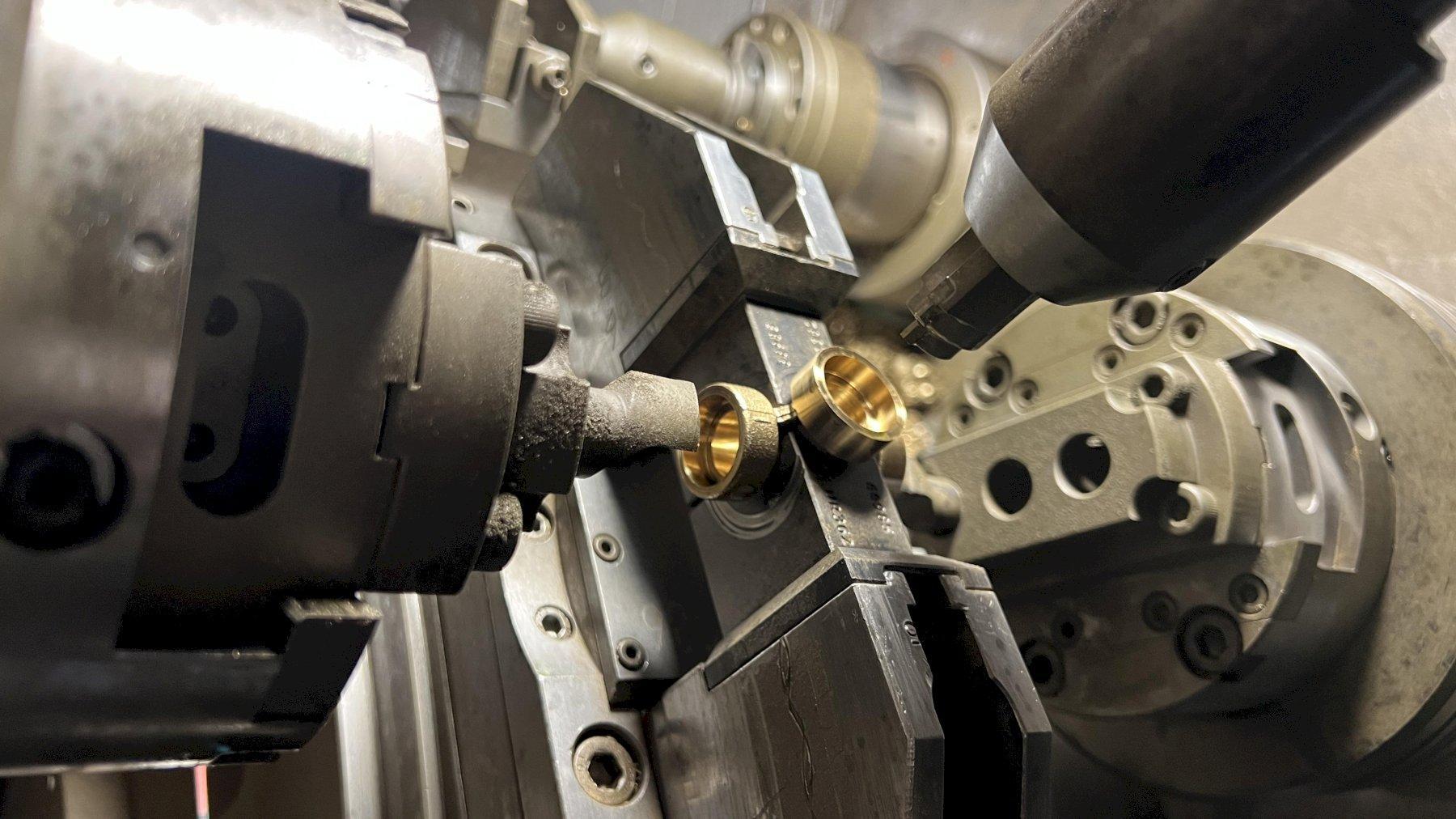

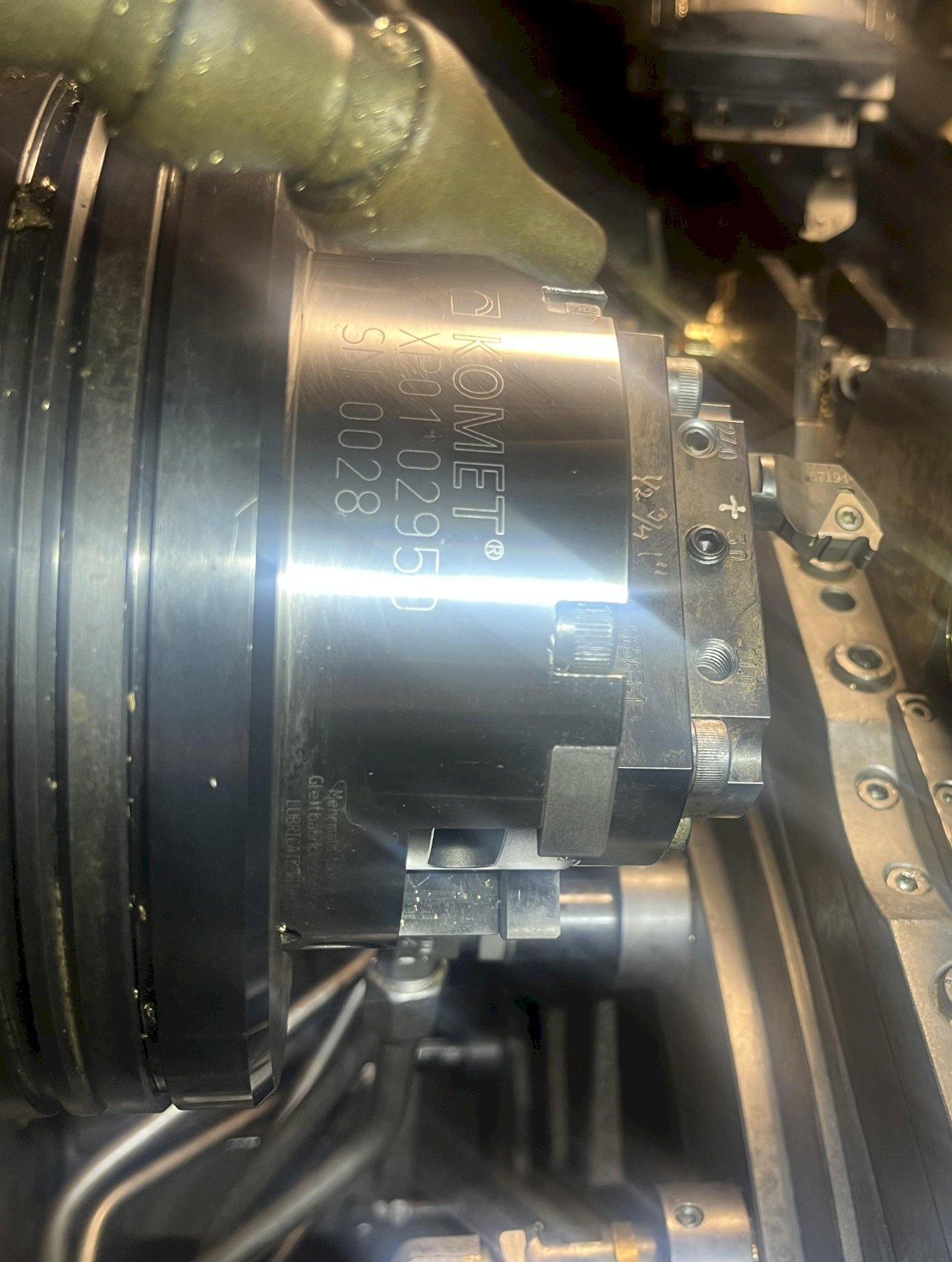

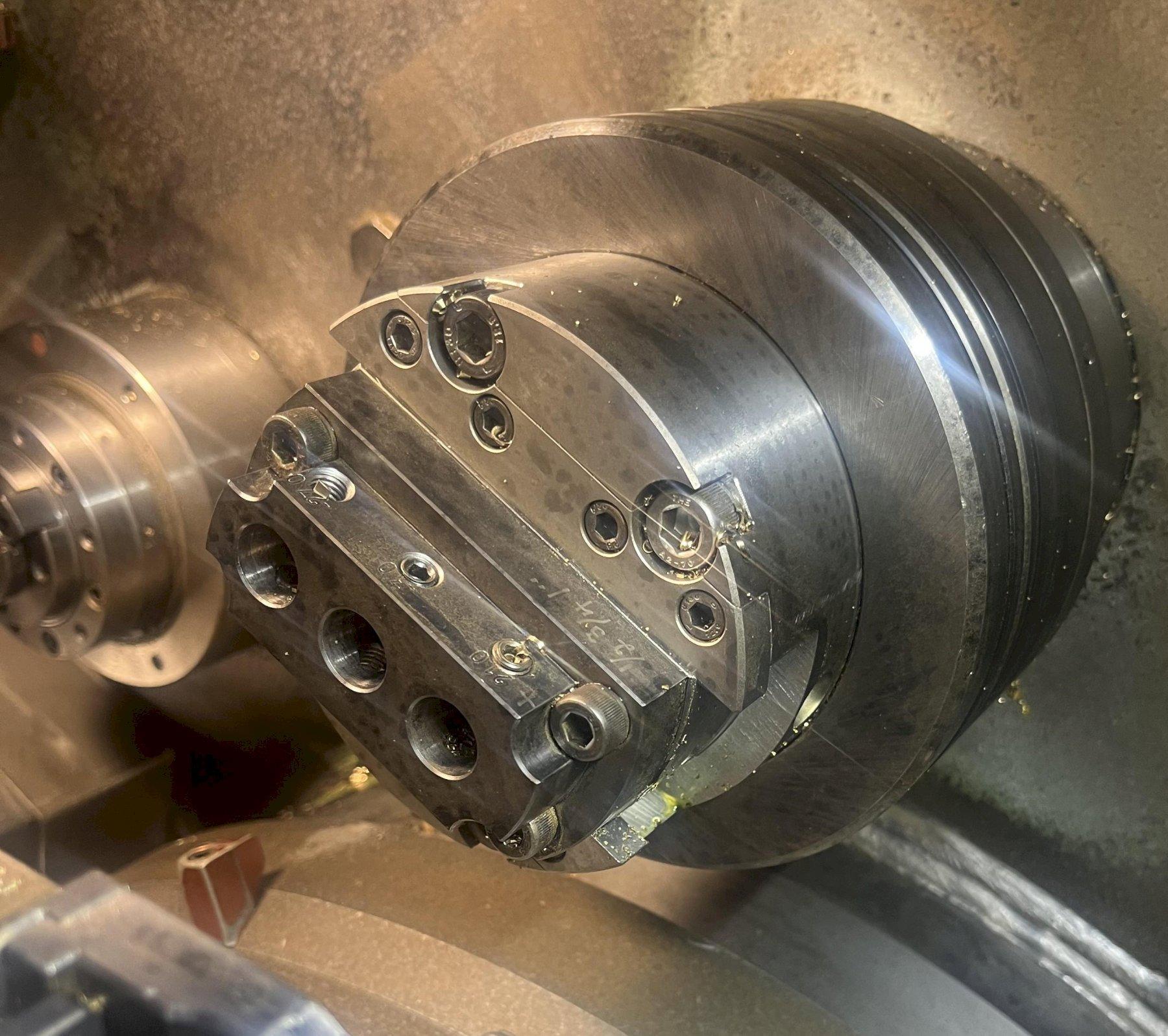

positions, multiple CNC Komet recessing heads with high load bearing support,
to single point thread cut unleaded brasses.

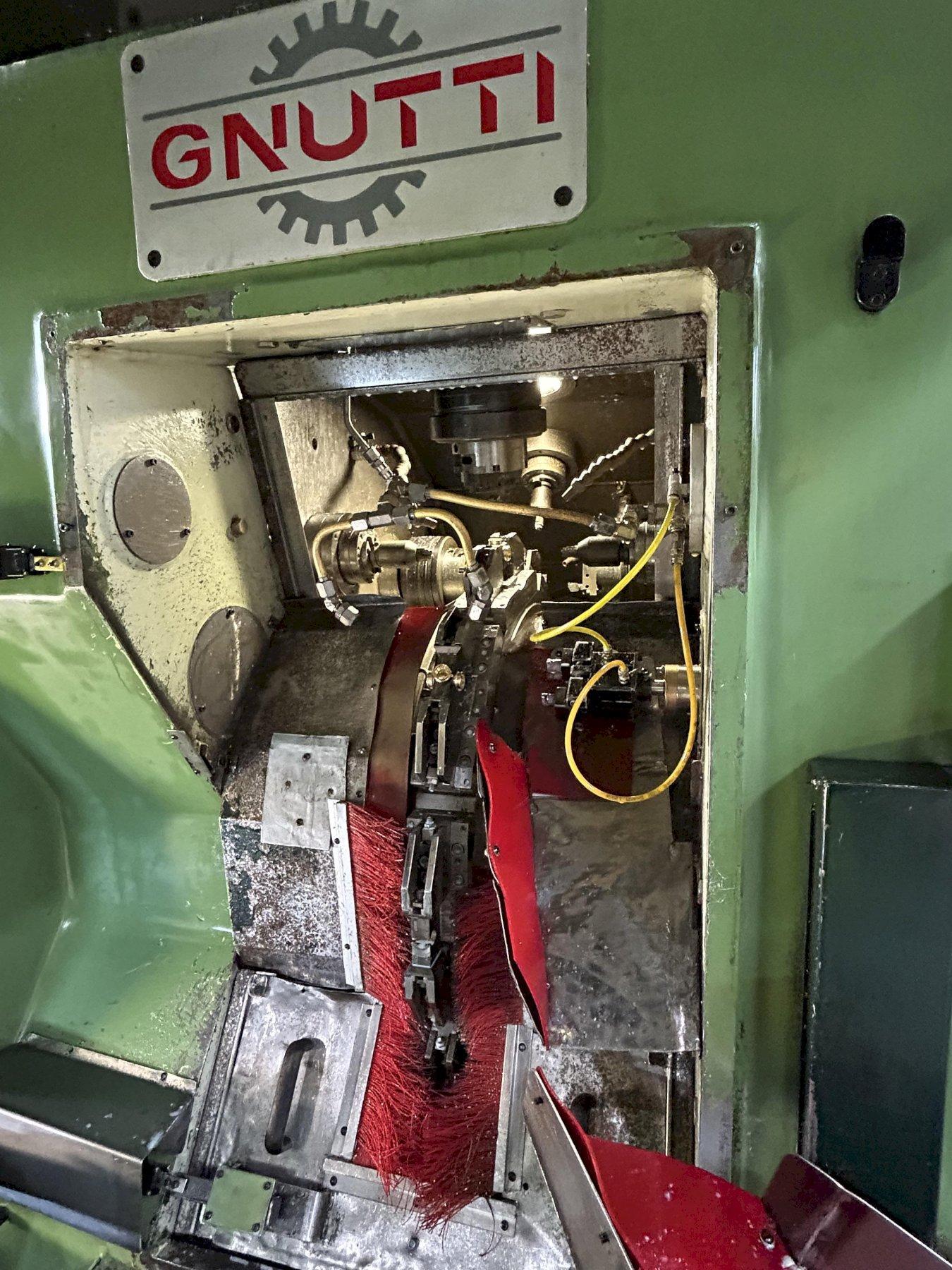

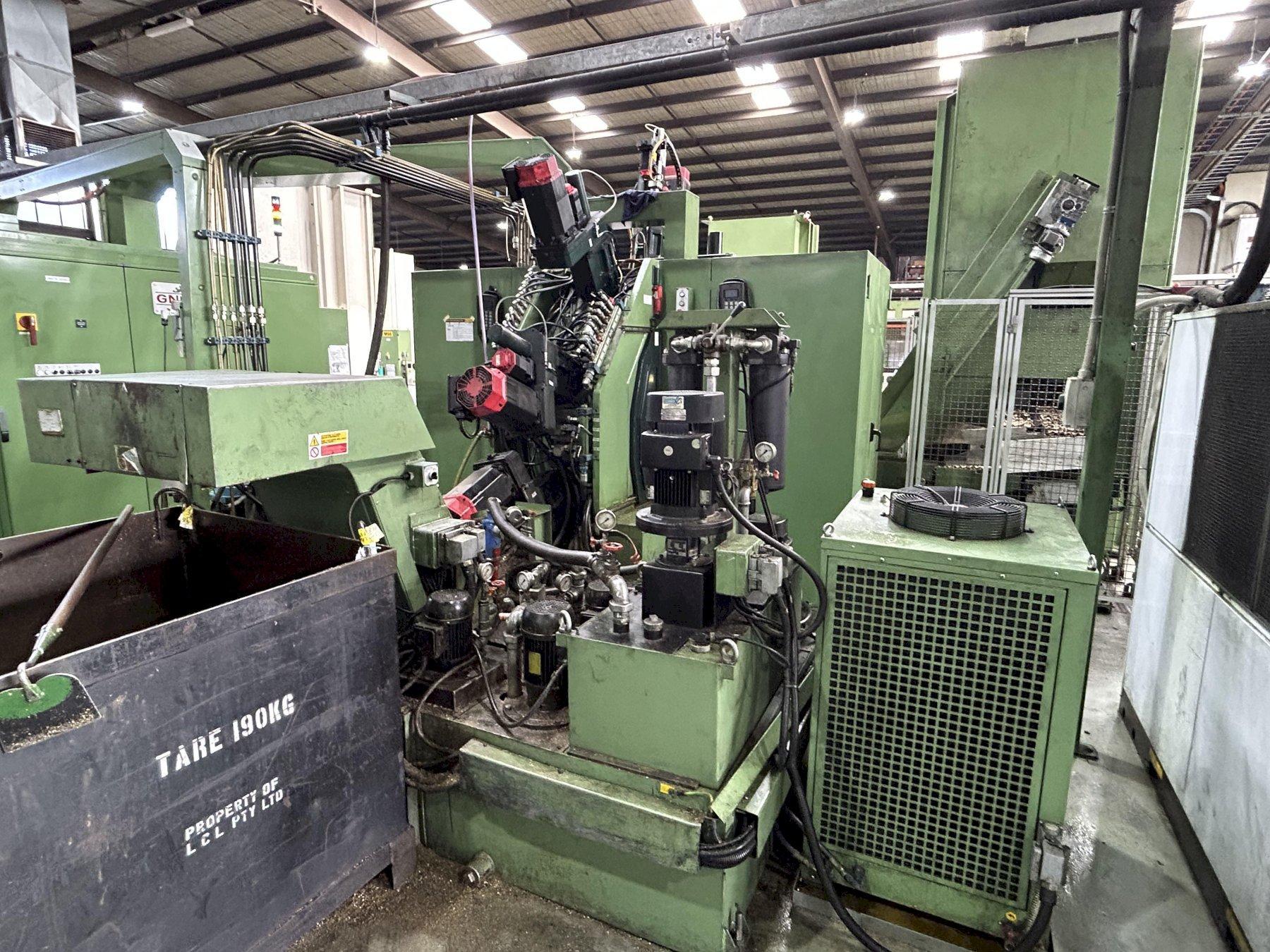

1. Gnutti Transfer Machine:
Model number: FMF -12 - 125 CNC
Serial No.: G004 - (2009)
Total life parts produced: 66,991,201
Total life working hours: 87,027
9 turret positions
Indexing Time - 1.0 Seconds
Max Spindle Stroke - 125 mm / Quill Diameter - 105 mm / Spindle Nose - ISO30
Spindle Power - 5.5 kW
Gnutti added:

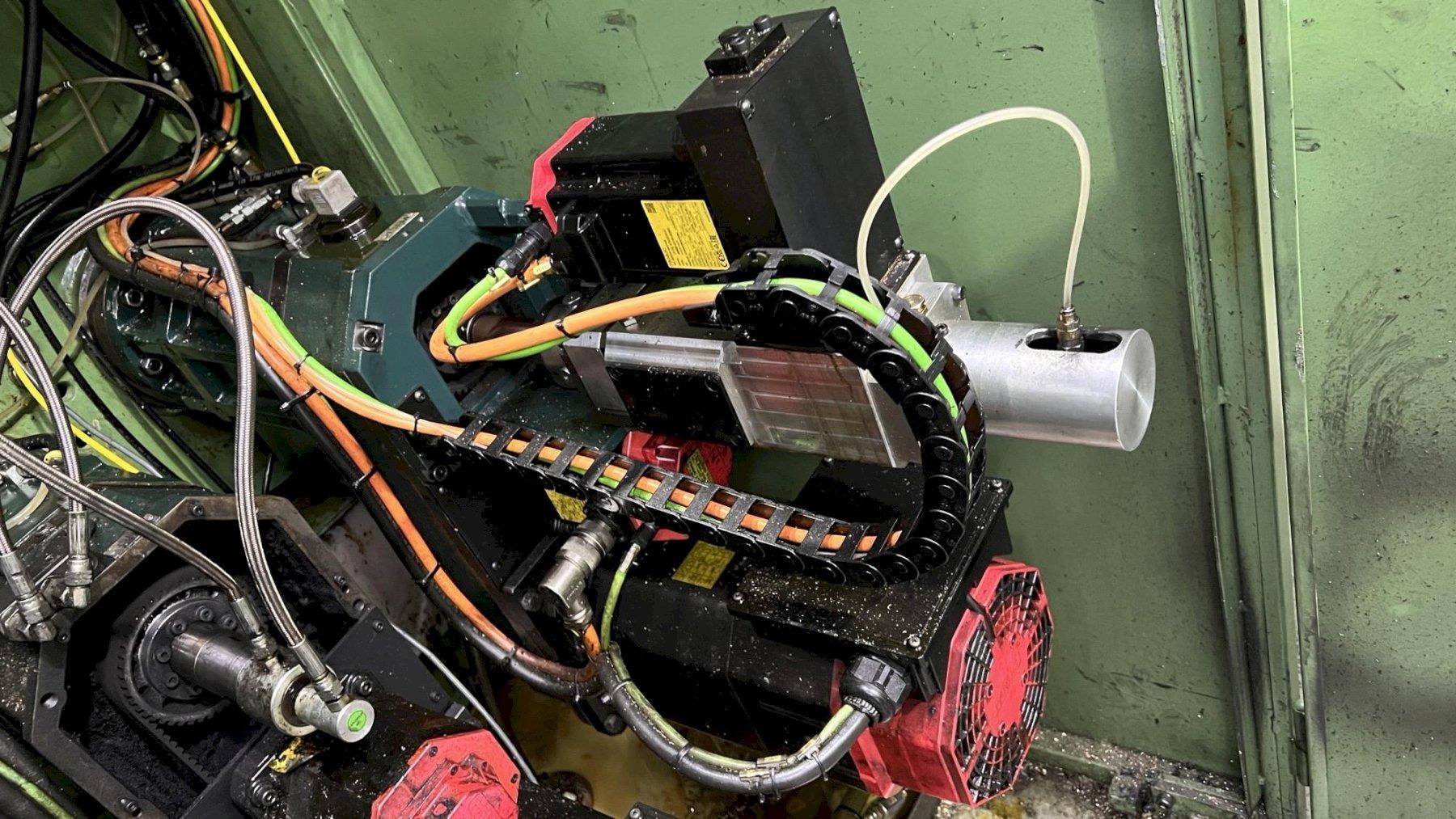

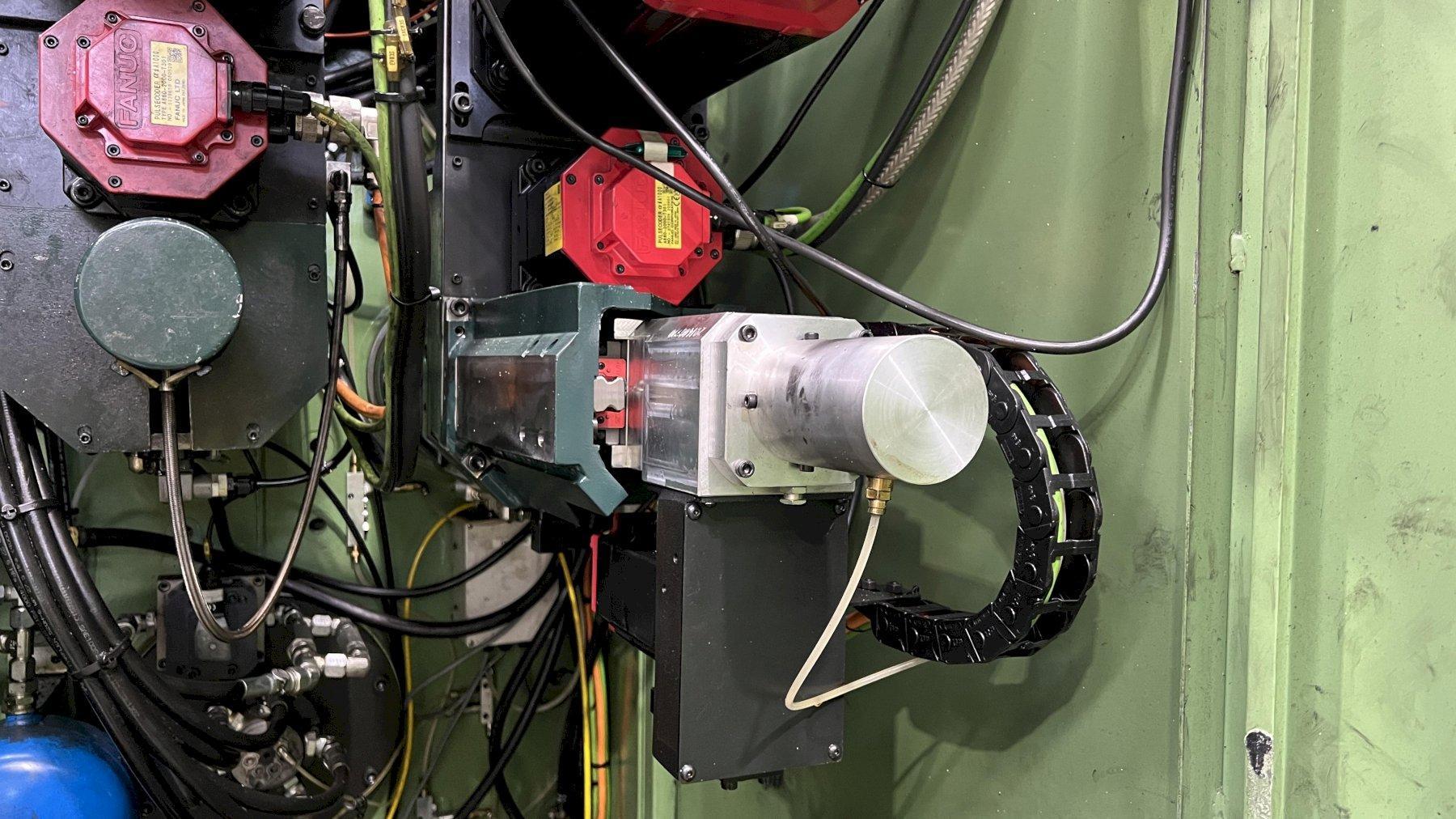

Station 82 & 43 modified to Recessing Units.
Recessing Units added to 71 & 73.
Weight - 10,500 Kg
Extensive tooling package & spare parts.

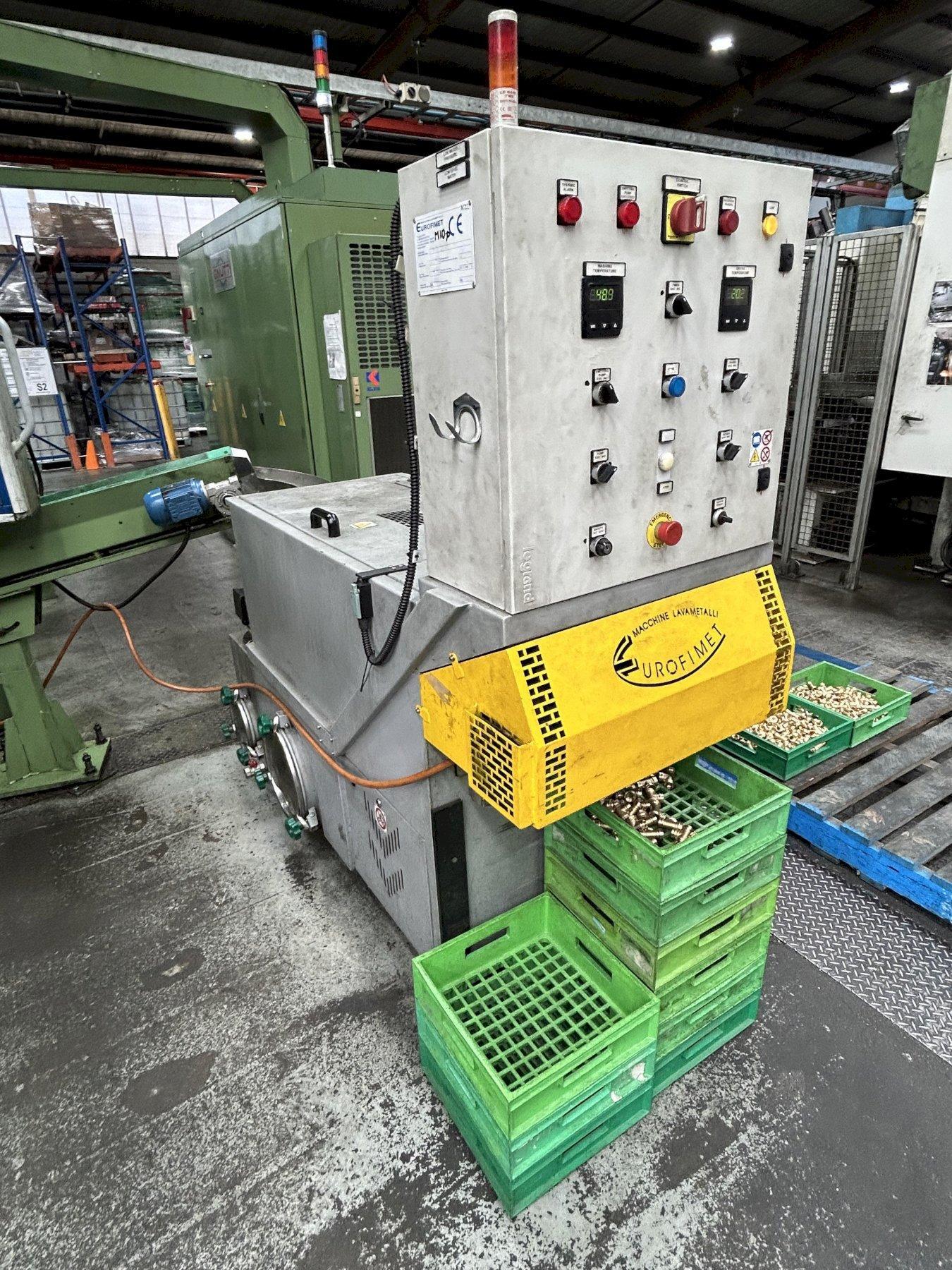

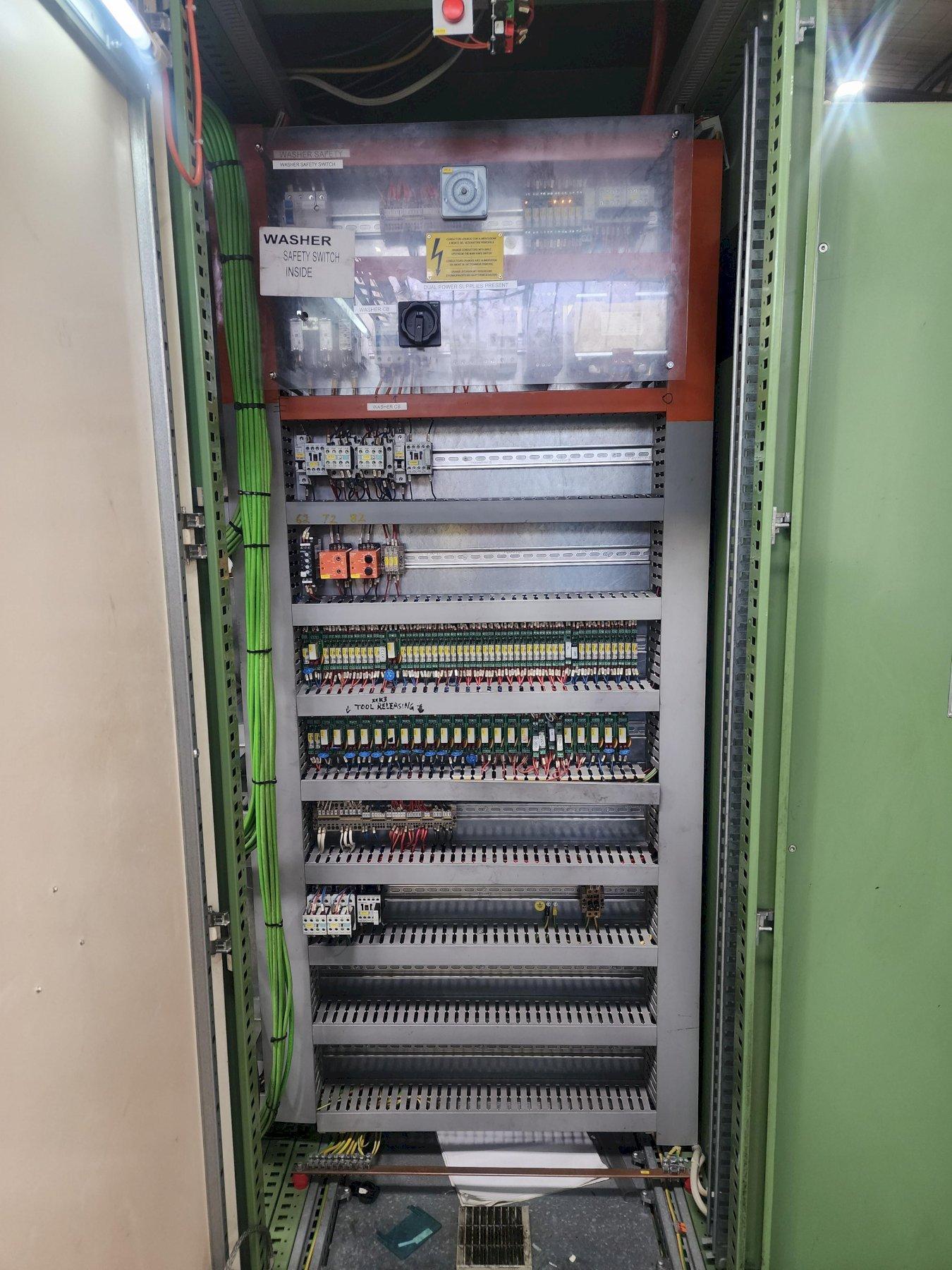

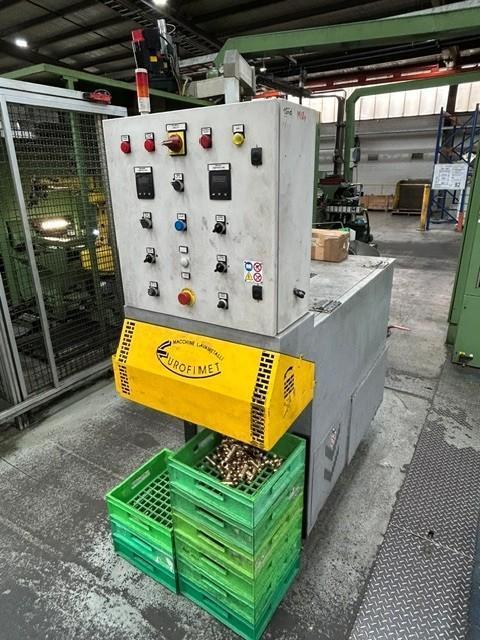

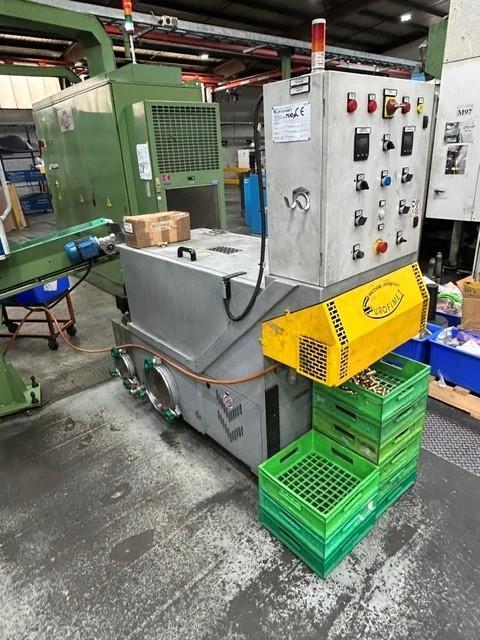

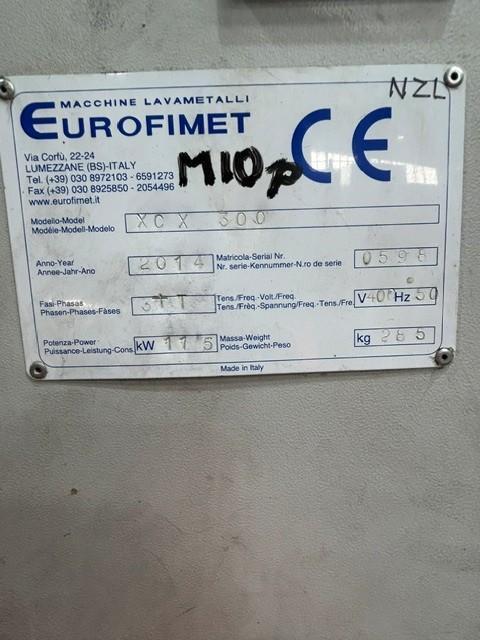

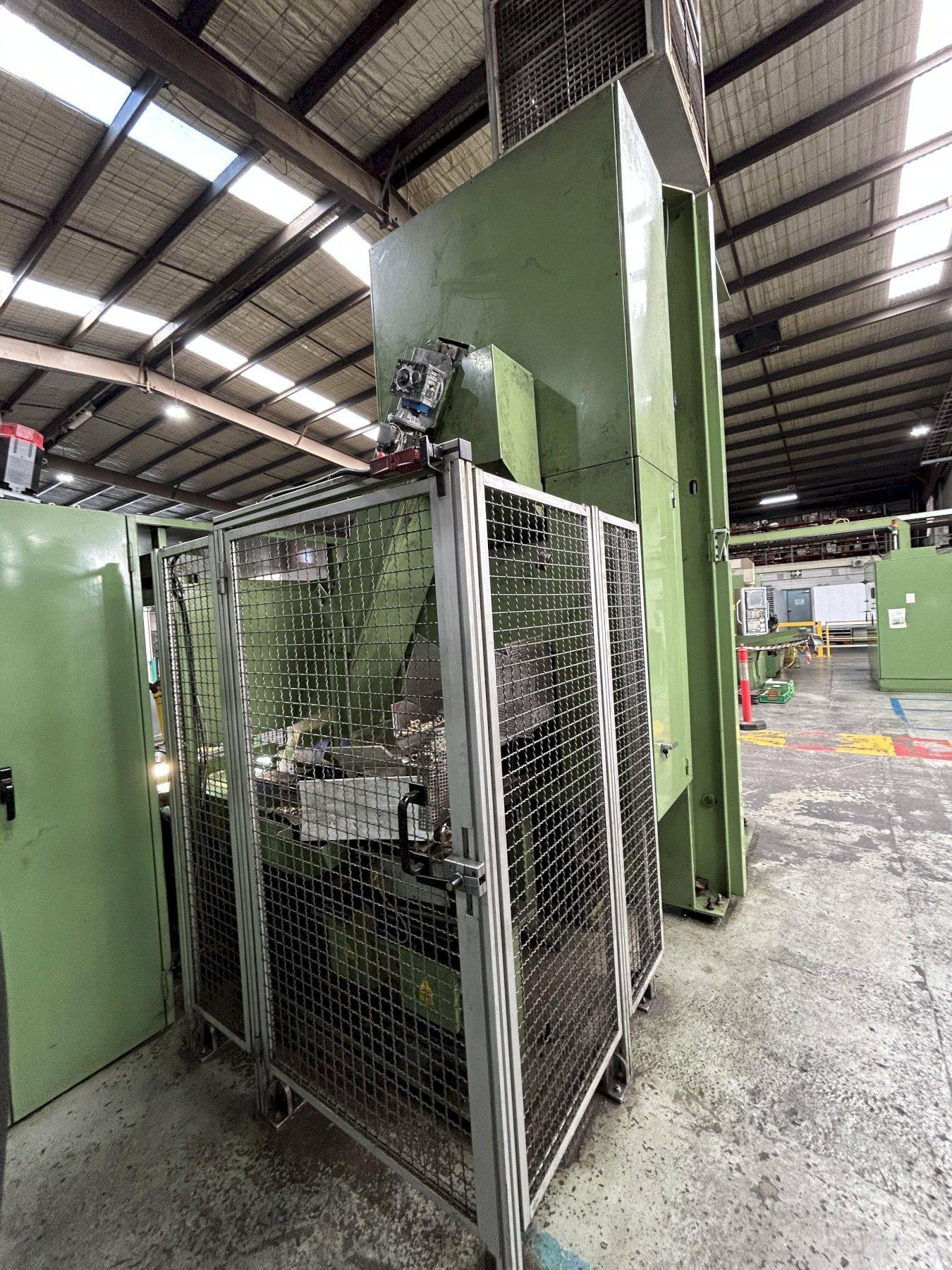

2. Eurofimet Tunnel Wash Machine:
Model - XCX 300
Serial Number - M10P / 0598 (2014)
Weight - 285 Kg
|
