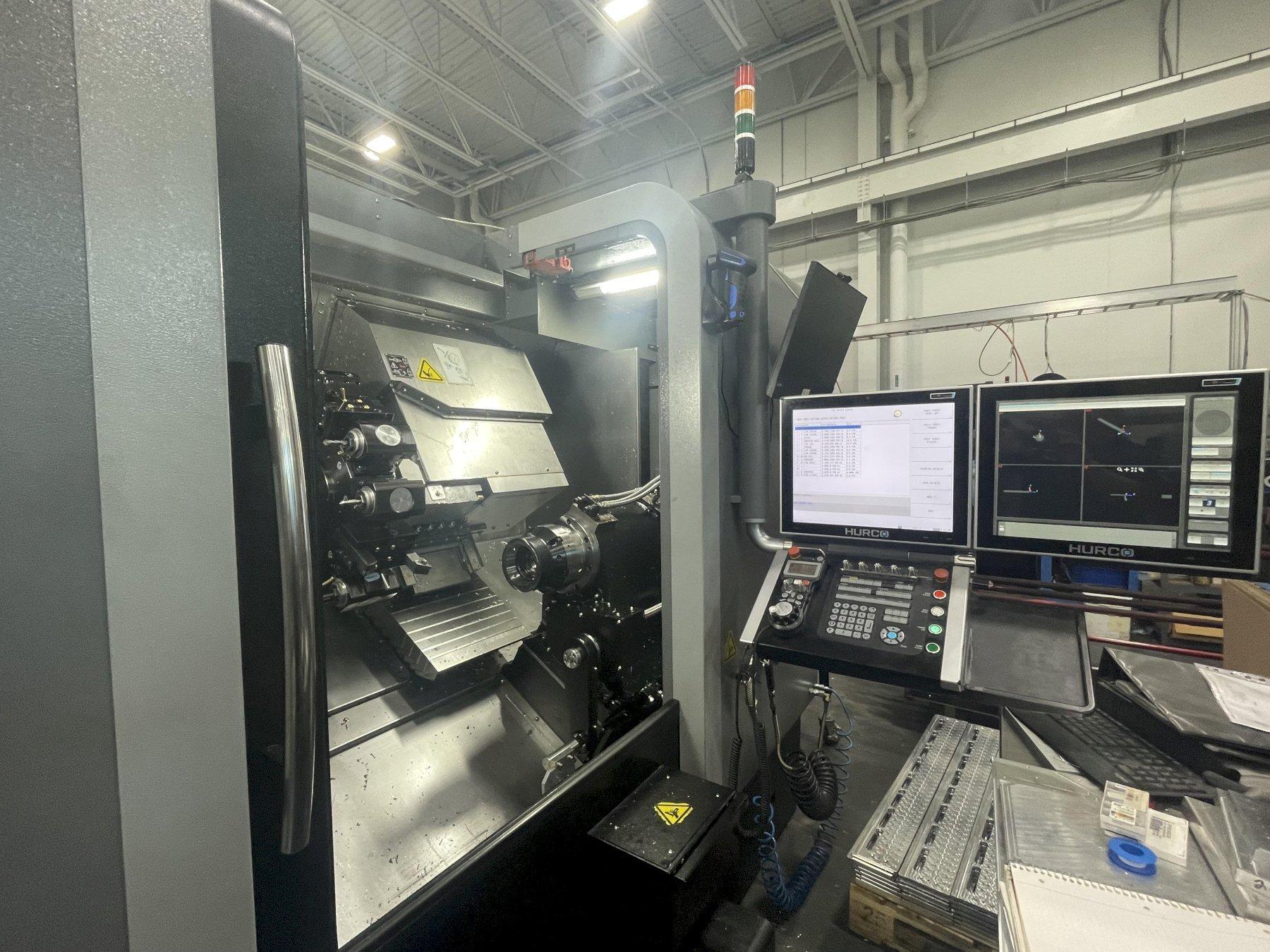

2023 Hurco TMX8MYSi Used CNC Lathe For Sale
Brand
Category
Model
TMX8MYSi
Stock #
JP85501
Year
2023
Condition
Used
Location
Michigan
| CNC Control | yes |
| Type Of CNC Control | WinMax MAX5 Dual Screen |
| # Axis | 5 |
| Swing | 20 inches |
| Turning Diameter | 10.9 inches |
| Center Distance | 28.5 inches |
| Bar Capacity | 2.6 inches |
| X Axis Travel | 11.4 inches |
| Y Axis Travel | 4.4 inches |
| Z Axis Travel | 22 inches |
| B Axis Travel (Sub Spindle) | 25.2 inches |
| C Axis Index | 0.001° |
| Rapid Traverse (X/Y/Z) | 945/472/1181 ipm |
| Spindle Nose | A2-6 |
| Spindle Speed | 4,500 rpm |
| Main Motor | 33.5 hp |
| Tailstock | no |
| Y Axis | yes |
| Live Tooling | yes |
| Live Tooling Speed | 4,000 rpm |
| Live Tooling Motor | 8.5 hp |
| Sub Spindle | yes |
| Sub Spindle Speed | 6,000 rpm |
| Sub Spindle Motor (HP) | 20 hp |
| Turret Capacity | 12 |
| Machine Weight | 17000 pounds |
|

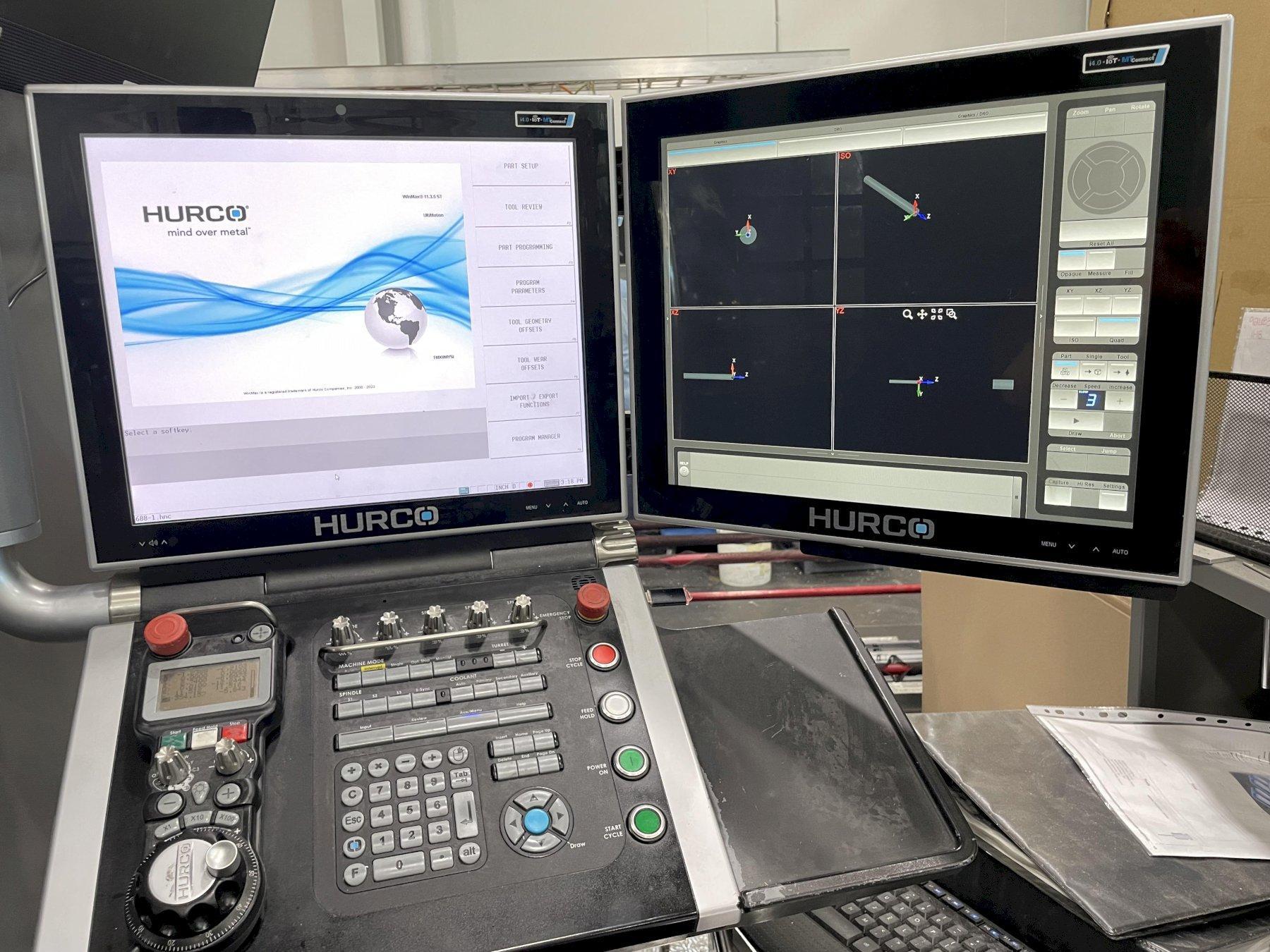

- WinMax MAX5 Dual Screen CNC Control

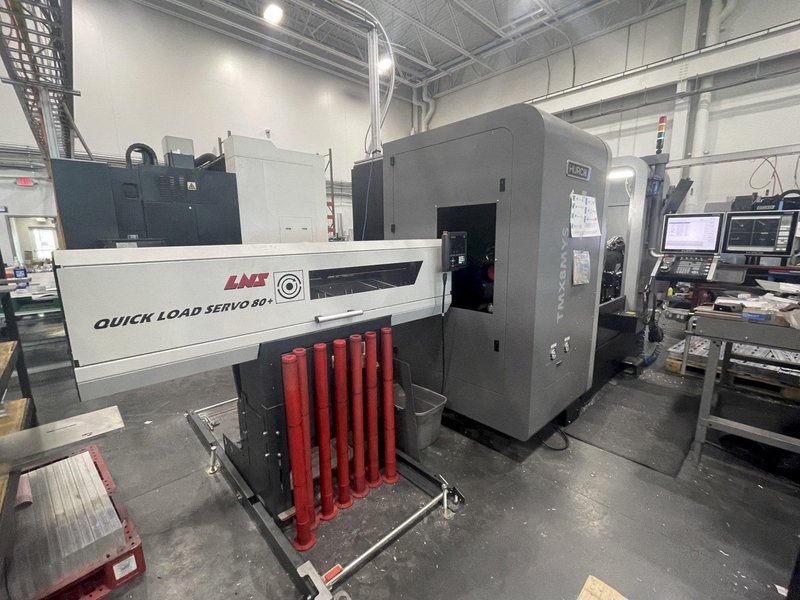

- Tool Presetter - Parts Catcher - Chip Conveyor - Coolant Tank & Pump - Collet Chucks on Main & Sub Spindle - Live Tooling - Y Axis - Sub Spindle - LNS Quick Load Servo 80+ Bar Feeder |
|
